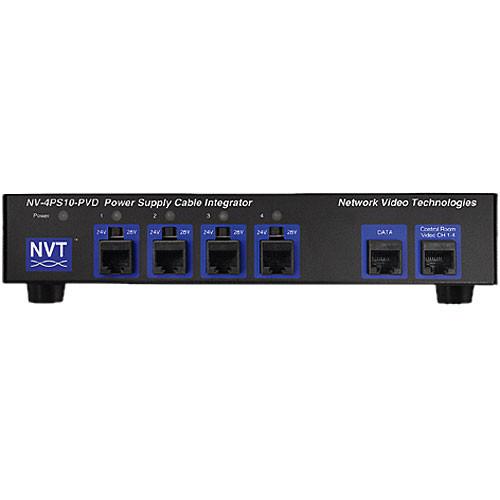

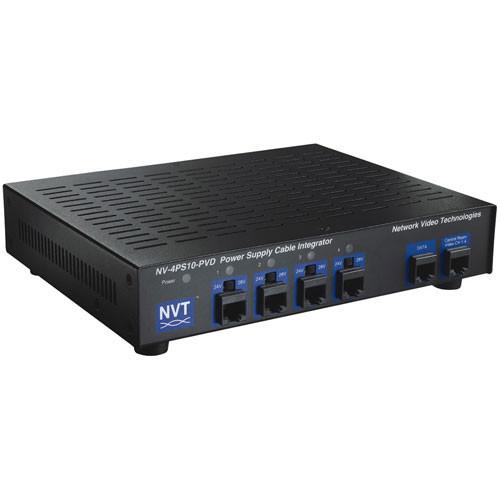

User Manual for NVT NV-4PS10-PVD Power Supply Cable Integrator Hub Click to enlarge the picture
Contents of the user manual for the NVT NV-4PS10-PVD Power Supply Cable Integrator
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-4PS10-PVD Power Supply Cable Integrator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-4PS10-PVD provides Class 2 SELV power for up to 4 cameras while allowing video and telemetry to pass through the same UTP cable. With independently selectable 24 or 28VAC power options per camera and individual LED indicator lights, it is well suited for use in a wiring/IDF telecom closet or in a Control/MDF room. - 4-Camera power over UTP while allowing video and telemetry data pass-through
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Individually selectable 24 or 28VAC with 1Amp max per channel

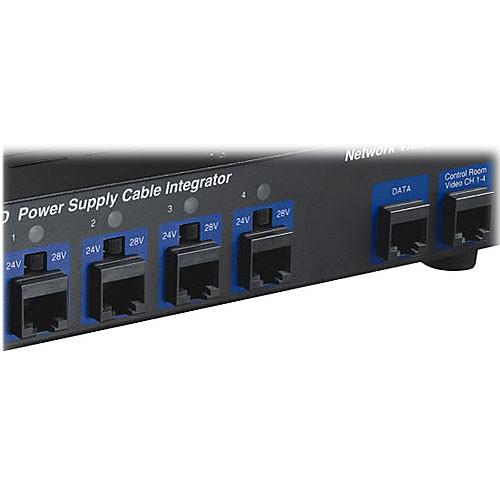

- Diagnostic LEDs show load/no load, miswires and overload conditions

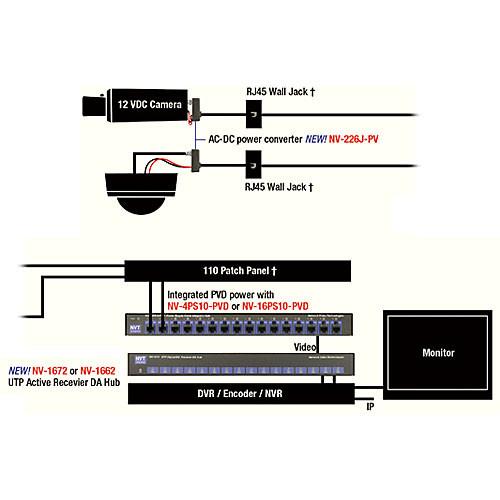

- Compatible with the NV-216A-PV, NV-218A-PVD and the NV-226J-PV transceiver at the camera
UPC: 735890072348 In the Box NVT NV-4PS10-PVD Power Supply Cable Integrator Hub Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-4PS10-PVD Power Supply Cable Integrator Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-4PS10-PVD Specs | Power Input | 115-230VAC | | Power Output | 24 or 28VAC (x4) | | Amperage | Max 1Amp per camera | | Operating Temperature | 0 - +140°F (-20 ~ +50°C) | | Dimensions (WxHxD) | 9.3 x 1.8 x 7.3" (235 x 45 x 184mm) | | Weight | 7 lbs (3.2kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 11.5 x 5.0 x 5.0" |
