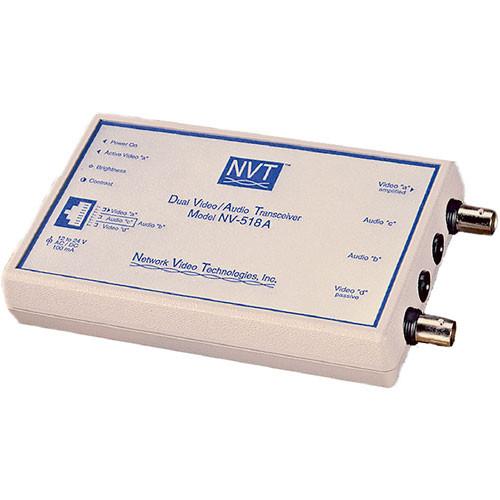

User Manual for NVT NV-518A Dual Video Audio Active Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-518A Dual Video Audio Active
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-518A Dual Video Audio Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-518A allows two channels of video and audio to be transmitted over UTP telephone cable. Along with video and audio, this unit will also convert Coaxitron PTZ control signals for transmission over the same Cat5 wire, eliminating the need to run a separate control cable. In addition to its main amplified UTP port, this unit features a secondary passive UTP port. This auxiliary port can be used to transport bi-directional video or to facilitate one-way video transmission at shorter distances of up to 1000' (300 m). Alternatively, these ports can be combined to allow this unit to act as a repeater. - Up to 2000' (600 m) when used with a passive transceiver
- Built-in transient protection and ground lifting
- Brightness and sharpness controls with Power and Active LEDs
- Can be used as a repeater for one-way video/audio transmission
UPC: 735890000334 In the Box NVT NV-518A Dual Video/Audio Active Transceiver Power supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-518A Dual Video Audio Active Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-518A Specs | Video Inputs | BNC x2 | | Audio Inputs | 1/4" Phono x2 | | Maximum Cable Length | 2000' (600 m) | | Power Requirements | 12 - 24VAC/DC (includes 12VAC power supply) | | Power Consumption | 100mA | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 5.8 x 1.2 x 3.6" (146 x 29 x 91mm) | | Weight | 9 oz (250g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.0 x 3.8 x 3.3" |
