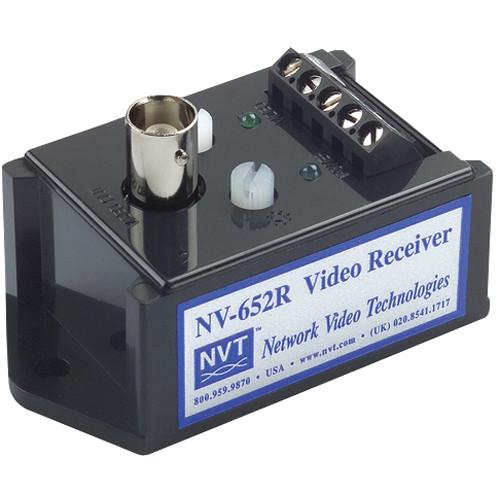

Product description The NV-652R Active Video Receiver from NVT transmits real-time monochrome or color video at distances of up to 1 mile using a Category 2 or better unshielded twisted pair (UTP) cable. The receiver offers interference rejection for clear signals, and it features ground-lifting for eliminating hum-bars when ground potential differences exist. Furthermore, built-in transient protection minimizes damaging voltage spike problems. Low emissions allow long run video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits, enabling the use of shared or existing cables. There are built-in sharpness and brightness controls which compensate for cable loss, and the receiver is compatible with any passive NVT transceiver. - Can transmit video up to 1 mile distance when used with the company's NV-653T Transmitter
- Allows transmission of video at distances of up to 3000' when used with any passive NVT transceiver
- Interference rejection for clear transmissions
- DC to 10 MHz frequency response
- Built-in transient protection and ground lifting
- Integrated brightness and sharpness controls
- Blue power and green active LED indicators
- Compatible with qualified UTP cameras
- Use the NV-RM8/10 rack panel kit (available separately) to rack-mount up to 10 receivers
- Designed for DVR and high-resolution applications over 750'
UPC: 735890006527 In the Box NVT NV-652R Active Video Receiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-652R Active Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-652R Specs | | | Frequency Response | DC to 10 MHz | | Controls | Adjustable brightness and sharpness controls | | Mode Noise Rejection | Common-mode / Differential-Mode Rejection
15 KHz to 5 MHz: 60 dB typical | | Impedance | Coaxial, Female BNC: 75 Ohms
UTP, Screw Terminal Block: 100 Ohms | | LED Indicators | Blue: Power on
Green: Active signal present | | | | Network | 1 x Unshielded twisted pair, 24 to 16 AWG (0.5 to 1.31 mm) | | Type | Category 2 or better | | Impedance | 100 ±20 Ohms | | DC Loop Resistance | 52 Ohms per 1000.0' (304.8 m)
18 Ohms per 328.1' (100.0 m) | | Differential Capacitance | 19 pF/ft maximum (62 pF/m maximum) | | | | Power Input | 12 to 24 VAC/DC, 100 mA maximum | | Ambient Temperature | 32 to 122°F (0 to 50°C) | | Humidity (Non-condensing) | 0 to 95% | | Transient Immunity | per ANSI / IEEE 587 C62.41 | | Material | ABS | | Mounting | 2 x 0.17" (4.4 mm) diameter holes, 2.5" (63.5 mm) apart | | Dimensions | 3 x 1.5 x 1.1" (76 x 39 x 28 mm) excluding brackets and connectors | | Weight | 3.5 oz (100g) | | | | Package Weight | 0.24 lb | | Box Dimensions (LxWxH) | 3.6 x 2.25 x 2.05" |
