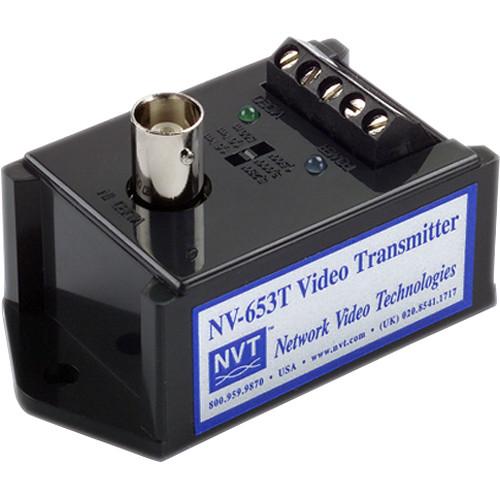

Product description The NV-653T Active Video Transmitter from NVT transmits real-time monochrome or color video at distances of up to 1 mile using a Category 2 or better unshielded twisted pair (UTP) cable. The transmitter offers interference rejection for clear signals, and it features ground-lifting for eliminating "hum-bars" when ground potential differences exist. Furthermore, built-in transient protection minimizes damaging voltage spike problems. Low emissions allow long run video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits, enabling the use of shared or existing cables. The transmitter is compatible with an active NVT receiver or a hub. - Transmits full-motion CCTV video at distances up to 1 mile when used with the active NVT receiver or hub
- Interference rejection for clear video signals
- DC to 10 MHz frequency response
- Built-in transient protection and ground lifting
- Three-position distance range switch
- Blue power and green active LED indicators
- Up to 10 transmitters can be rack mounted using the NV-RM8/10 rack panel kit (available separately)
UPC: 735890006534 In the Box NVT NV-653T Active Video Transmitter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-653T Active Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-653T Specs | | | Frequency Response | DC to 10 MHz | | Controls | 3-Position adjustable distance switch | | Mode Noise Rejection | Common-mode / Differential-Mode Rejection
15 KHz to 5 MHz: 60 dB typical | | Impedance | Coaxial, Female BNC: 75 Ohms
UTP, Screw Terminal Block: 100 Ohms | | LED Indicators | Blue: Power on
Green: Active signal present | | | | Network | 1 x Unshielded Twisted Pair: 24 to 16 AWG (0.5 to 1.31 mm) | | Type | Category 2 or better | | Impedance | 100 ±20 Ohms | | DC Loop Resistance | 52 Ohms per 1000' (304.8 m)
18 Ohms per 328.1' (100 m) | | Differential Capacitance | 19 pF/ft maximum, 62 pF/m maximum | | | | Power Input | 24 VAC/DC, 250 mA maximum | | Ambient Temperature | 32 to 122°F (0 to 50°C) | | Humidity (Non-condensing) | 0 to 95% | | Transient Immunity | per ANSI / IEEE 587 C62.41 | | Material | ABS | | Mounting | 2 x 0.17" (4.4 mm) diameter, holes 2.5" (63.5 mm) apart | | Dimensions | 3.0 x 1.5 x 1.1" (76 x 39 x 28 mm) excluding brackets and connectors | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.24 lb | | Box Dimensions (LxWxH) | 3.6 x 2.15 x 1.95" |
