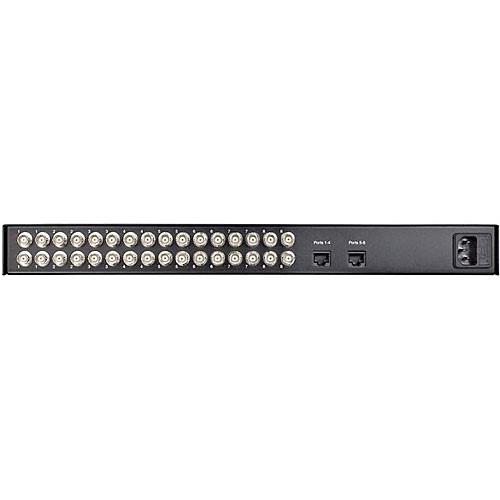

Product description The NVT NV-872 8-Channel Active Receiver Distribution Amplifier Hub converts the video signal received from up to 8 UTP devices back into regular BNC signals for connection to conventional video equipment. Through the use of a built-in amplifier, it can output 4 BNC signals per UTP input, resulting in a total of 32 BNC outputs. This makes it particularly useful in large CCTV establishments containing many CCTV cameras.
A built-in digital equalizer continuously monitors and auto compensates for signal aberrations like cable attenuation, ground-loops and wiring polarity, thus ensuring maximum signal stability. - Per channel fully automatic digital signal distance equalization
- Four BNC outputs per single UTP input

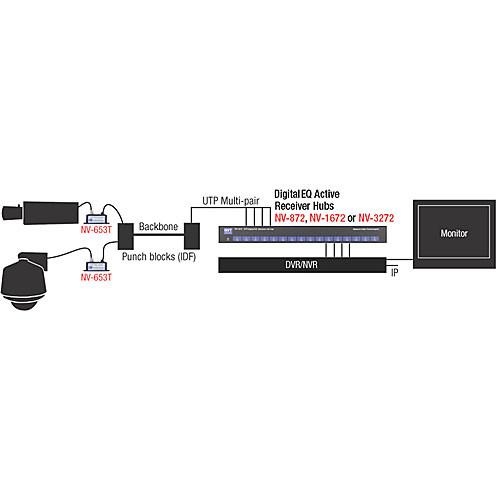

- Supports UTP cable distances up to 1 mile (1.6km) using an NV-635T active transmitter

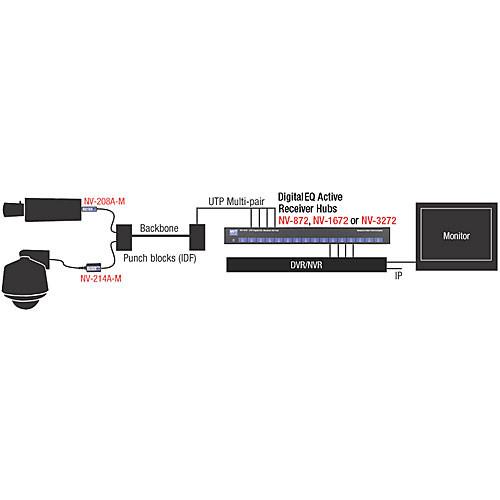

- Supports UTP cable distances up to 3000' (1km) using any NVT passive transceiver or hub

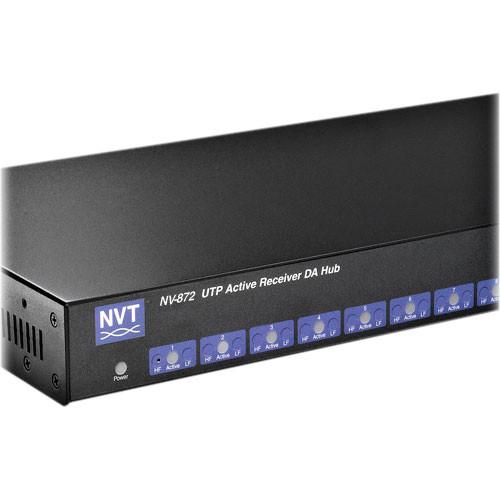

- Built-in sharpness and brightness controls

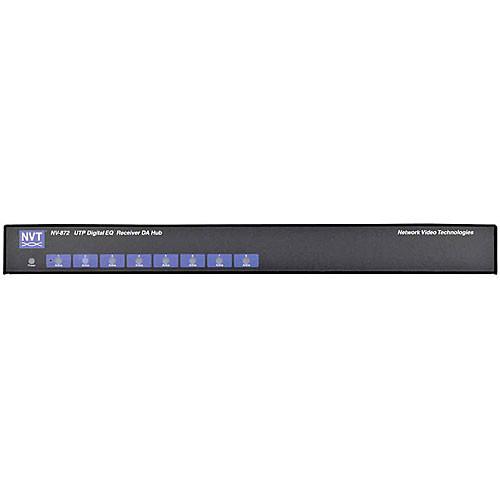

- Green active LED light per port
- Transient protection, ground lifting and interference rejection
- Includes NV-RJ45A, RJ45 to screw-terminal adapters
UPC: 735890018728 In the Box NVT NV-872 DigitalEQ 8-Channel Active Receiver Distribution Amplifier Hub Rack mount "L" brackets for front, rear or wall installations Rubber feet for desk applications 8 x 2' (60cm) BNC coax jumpers 2 x NV-RJ45A, RJ45 to screw-terminal adapters Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-872 DigitalEQ 8-Channel Active Receiver Distribution Amplifier Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-872 Specs | Video Inputs | UTP x8 | | Video Outputs | BNC x32 (4 per channel) | | Maximum Cable Length | With Active Transmitter: 1 mile (1.6km)
With Passive Transceiver: 3000' (1km) | | Power Requirements | 115 - 230VAC | | Power Consumption | 35W | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 17 x 1.7 x 8.1" (430 x 45 x 200mm) | | Weight | 4.8 lbs (2.2kg) | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 20.0 x 10.5 x 5.2" |
