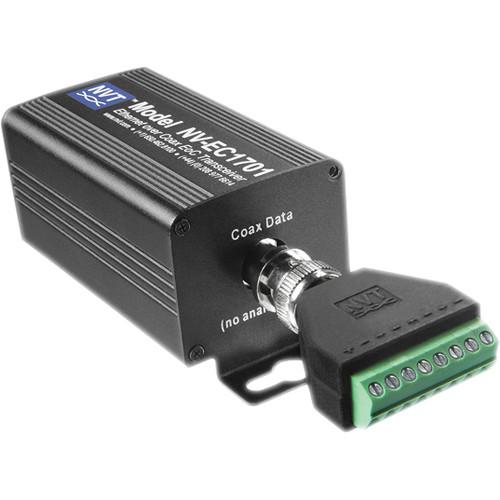

User Manual for NVT NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Click to enlarge the picture
Contents of the user manual for the NVT NV-EC1701U Ethernet Over 2-Wire Transceiver
- Product category: Ethernet Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Ethernet Extenders
|
User manual for the NVT NV-EC1701U Ethernet Over 2-Wire Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE from NVT is a compact media converter that allows 10/100Base-T Ethernet and PoE or PoE+ power to be transmitted using a 18/2 or similar cable. Up to 48 or 56VDC class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.
This transceiver is simple to use, with no IP or Mac addressing required. The status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports. The NV-EC1701U Eo2 transceiver transmits high-bandwidth encrypted Ethernet signals over conventional 2-wire cables.
The NV-EC1701U transceiver provides transparent, end-to-end 10Base-T or 100Base-T connectivity with auto detection and auto-crossover, allowing IP cameras or other devices to be installed at one end, while the data is transparently delivered to the other end.
Wire distances up to 1000' is supported, although local power (available separately) may be required for extended distances. The NV-EC1701U supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols, which allows for the transmission of other network traffic besides streaming video. - Transmits 10/100Base-T full duplex Ethernet up to 1000' over 4-pair cat5, up to 750' over 18/2 (or similar 2-wire cable), and up to 500' over shielded twisted-pair
- 48 or 56VDC is distributed over 2-wire cable to all connected IP devices
- Powers PoE entry stations (or other PoE or PoE+ devices) up to 60W
- One NVT Eo2 transceiver at the network-end can support multiple remote Eo2 transceivers and connected devices
- Advanced 128-bit AES encrypted transmission and PoE technology
UPC: 735890017073 In the Box NVT NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-EC1701U Specs | | | Connector | RJ45 female, auto-crossover | | Wire Type | 4-pair Cat5 or better | | Distance | Up to 328' (100 m) | | Speed | 10/100 Base T, half/full duplex, auto-negotiation, auto MDI/MDIX cross-over | | Latency | 3 ms | | Data | 90 Mb/s ±10% useable bandwidth per network | | Power Output | This PSE (Power Sourcing Equipment) supports PDs (Powered Devices) that are compatible with IEEE 802.3af/at, or PDs that draw up to 60 W. For maximum power/distance, 48 or 56 VDC appears on all eight RJ45 pins, and are current-protected and transient-protected. Distance will often be shorter due to power supply capacity and wire voltage-drop. For fault/safety protection, do not use more than two power supplies within a network system. | | | | Consumption | 3 W @ 10 to 56 VDC | | | | Connectivity | UTP, STP, 18/2 or similar | | Impedance | 25 to 100 Ohm | | Transmission Technology | OFDM, 128-bit AES encryption | | | | Power | Blue | | Interface | BNC 2-wire Interface: Green | | RJ45 Connector | Green | | | | Compatibility | 60 or 90 W power supply | | | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity (Non-Condensing) | 0 to 95% | | Transient Immunity | 5 x 20 µS 3000 A, 6000 V
ESD 20 kV, 200 pF | | Dimensions (L x W x H) | Transceiver (Excluding Connectors): 5.1 x 1.5 x 1.3" (131 x 38 x 33 mm) | | Weight | 5.5 oz (156 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.1 x 2.1 x 2.0" |
