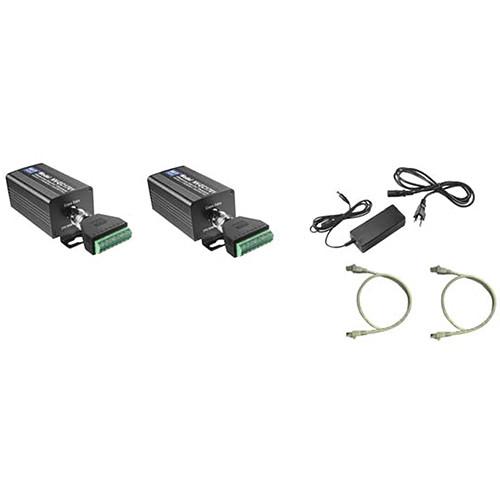

Product description The NV-EC1701U-K1H Single 90W Eo2 Transmission System from NVT includes two NV-EC1701U Transceivers, a NV-PS56-90W Power Supply with IEC line cord, and two NV-PC4PR Patch Cords.
Each NV-EC1701U Eo2 Transceiver with PoE Power is a compact media converter that allows 10/100 BaseT Ethernet and PoE or PoE+ power to be transmitted using a 18/2 cable or similar. This device is typically used in legacy installations where an existing 18/2 cable is re-used as part of an upgrade to IP devices. Up to 48 or 56VDC Class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.
These transceivers are simple to use, with no IP or MAC addressing required. The status LEDs indicate power and link connectivity/activity for RJ-45 and 2-wire ports. The NV-EC1701U Eo2 Transceiver transmits high bandwidth encrypted Ethernet signals over conventional 2-wire cables.
The NV-EC1701U Transceiver provides transparent, end-to-end 10-BaseT or 100-BaseT connectivity with auto detection and auto-crossover. This means that IP cameras or other devices may be installed at one end, and the data is transparently delivered to the other end.
Wire distances up to 1,500’ (450m) are supported, although local power (sold separately) may be required for extended distances. The transceiver supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols. This allows for the transmission of other network traffic besides streaming video.
The NV-PS56-90W Power Supply delivers power to the NV-EC1701U Transceivers. This 56VDC power supply offers output power of 90W with a 6' IEC line cord. A molded P1J 5.5mm barrel connector provides Class 2 (SELV) regulated output.
Each NV-PC4PR 4-Pair RJ45 Patch Cord (0.9m) features two RJ45 plugs and is designed for use with the NV-EC1701 Transceivers. Note: Distance and number of devices supported by the transceiver may be lower due to power supply capacity and wire voltage-drop. - NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE The NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE from NVT is a compact media converter that allows 10/100Base-T Ethernet and PoE or PoE+ power to be transmitted using a 18/2 or similar cable. Up to 48 or 56VDC class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.
This transceiver is simple to use, with no IP or Mac addressing required. The status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports. The NV-EC1701U Eo2 transceiver transmits high-bandwidth encrypted Ethernet signals over conventional 2-wire cables.
The NV-EC1701U transceiver provides transparent, end-to-end 10Base-T or 100Base-T connectivity with auto detection and auto-crossover, allowing IP cameras or other devices to be installed at one end, while the data is transparently delivered to the other end.
Wire distances up to 1000' is supported, although local power (available separately) may be required for extended distances. The NV-EC1701U supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols, which allows for the transmission of other network traffic besides streaming video. - Transmits 10/100Base-T full duplex Ethernet up to 1000' over 4-pair cat5, up to 750' over 18/2 (or similar 2-wire cable), and up to 500' over shielded twisted-pair
- 48 or 56VDC is distributed over 2-wire cable to all connected IP devices
- Powers PoE entry stations (or other PoE or PoE+ devices) up to 60W
- One NVT Eo2 transceiver at the network-end can support multiple remote Eo2 transceivers and connected devices
- Advanced 128-bit AES encrypted transmission and PoE technology
UPC: 735890017073 - NV-PS56-90W Power Supply (56 VDC, 90W) The NVT NV-PS56-90W Power Supply delivers 56 VDC and 90W of power to the NV-EC1701U and NV-EC1701 Ethernet over Coax (EoC) transceivers. A molded P1J 5.5mm barrel connector at the end of a 6' cord provides Class 2 (SELV) regulated output.
- 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) The 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) from NVT features two RJ45 plugs and is designed for use with NV-EC1701 Transceivers.
In the Box Bundle Items 2 x NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE - Limited Lifetime Warranty
NV-PS56-90W Power Supply (56 VDC, 90W) - Limited Lifetime Warranty
2 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-EC1701U-K1H Single 90W Eo2 Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE
| | | Connector | RJ45 female, auto-crossover | | Wire Type | 4-pair Cat5 or better | | Distance | Up to 328' (100 m) | | Speed | 10/100 Base T, half/full duplex, auto-negotiation, auto MDI/MDIX cross-over | | Latency | 3 ms | | Data | 90 Mb/s ±10% useable bandwidth per network | | Power Output | This PSE (Power Sourcing Equipment) supports PDs (Powered Devices) that are compatible with IEEE 802.3af/at, or PDs that draw up to 60 W. For maximum power/distance, 48 or 56 VDC appears on all eight RJ45 pins, and are current-protected and transient-protected. Distance will often be shorter due to power supply capacity and wire voltage-drop. For fault/safety protection, do not use more than two power supplies within a network system. | | | | Consumption | 3 W @ 10 to 56 VDC | | | | Connectivity | UTP, STP, 18/2 or similar | | Impedance | 25 to 100 Ohm | | Transmission Technology | OFDM, 128-bit AES encryption | | | | Power | Blue | | Interface | BNC 2-wire Interface: Green | | RJ45 Connector | Green | | | | Compatibility | 60 or 90 W power supply | | | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity (Non-Condensing) | 0 to 95% | | Transient Immunity | 5 x 20 µS 3000 A, 6000 V
ESD 20 kV, 200 pF | | Dimensions (L x W x H) | Transceiver (Excluding Connectors): 5.1 x 1.5 x 1.3" (131 x 38 x 33 mm) | | Weight | 5.5 oz (156 g) | | | | Box Dimensions (LxWxH) | 6.1 x 2.1 x 2.0" | - NV-PS56-90W Power Supply (56 VDC, 90W)
| Input | 100 to 240 VAC, 50/60 Hz | | Output | 56 VDC, 90 W | | Environmental | Operating:
Temperature: -22 to 122°F / -30 to 50°C
Humidity: 20 to 85% relative, non-condensingStorage:
Temperature: -40 to 185°F / -40 to 85°C
Humidity: 0 to 95% relative, non-condensing | | Dimensions | Power Supply: 5.7 x 2.4 x 1.25" / 14.5 x 6.0 x 3.2 cm
Power Cord Length: 6.0' / 1.8 m | | Weight | Power Supply: 15.9 oz / 450.0 g
Power Cord: 5.5 oz / 156.0 g | | | | Box Dimensions (LxWxH) | 8.504 x 6.457 x 4.882" | - 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray)
| Length | 3' (0.91 m) | | Connector 1 | RJ45 | | Connector 2 | RJ45 | | Color | Gray | | Compatibility | NVT NV-EC1701 Transceivers | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.75" |
