User Manual for NVT NV-EC1701U-K4H Quadruple 90W Eo2 Transmission System Click to enlarge the picture
Contents of the user manual for the NVT NV-EC1701U-K4H Quadruple 90W Eo2 Transmission
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-EC1701U-K4H Quadruple 90W Eo2 Transmission contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|

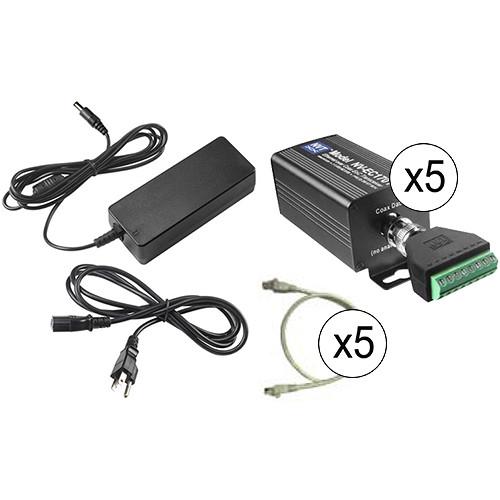

Product description The NV-EC1701U-K4H Quadruple 90W Eo2 Transmission System from NVT includes five NV-EC1701U Transceivers, a NV-PS56-90W Power Supply with IEC line cord, and five NV-PC4PR Patch Cords.
Each NV-EC1701U Eo2 Transceiver with PoE Power is a compact media converter that allows 10/100 BaseT Ethernet and PoE or PoE+ power to be transmitted using a 18/2 cable or similar. This device is typically used in legacy installations where an existing 18/2 cable is re-used as part of an upgrade to IP devices. Up to 48 or 56VDC Class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.
These transceivers are simple to use, with no IP or MAC addressing required. The status LEDs indicate power and link connectivity/activity for RJ-45 and 2-wire ports. The NV-EC1701U Eo2 Transceiver transmits high bandwidth encrypted Ethernet signals over conventional 2-wire cables.
The NV-EC1701U Transceiver provides transparent, end-to-end 10-BaseT or 100-BaseT connectivity with auto detection and auto-crossover. This means that IP cameras or other devices may be installed at one end, and the data is transparently delivered to the other end.
Wire distances up to 1,500’ (450m) are supported, although local power (sold separately) may be required for extended distances. The transceiver supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols. This allows for the transmission of other network traffic besides streaming video.
The NV-PS56-90W Power Supply delivers power to the NV-EC1701U Transceivers. This 56VDC power supply offers output power of 90W with a 6' IEC line cord. A molded P1J 5.5mm barrel connector provides Class 2 (SELV) regulated output.
Each NV-PC4PR 4-Pair RJ45 Patch Cord (0.9m) features two RJ45 plugs and is designed for use with the NV-EC1701 Transceivers. Note: Distance and number of devices supported by the transceiver may be lower due to power supply capacity and wire voltage-drop. UPC: 735890417095 In the Box NVT NV-EC1701U-K4H Quadruple 90W Eo2 Transmission System 5 x NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE NV-PS56-90W Power Supply (56 VDC, 90W) 5 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-EC1701U-K4H Quadruple 90W Eo2 Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-EC1701U-K4H Specs | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 2.0" |
