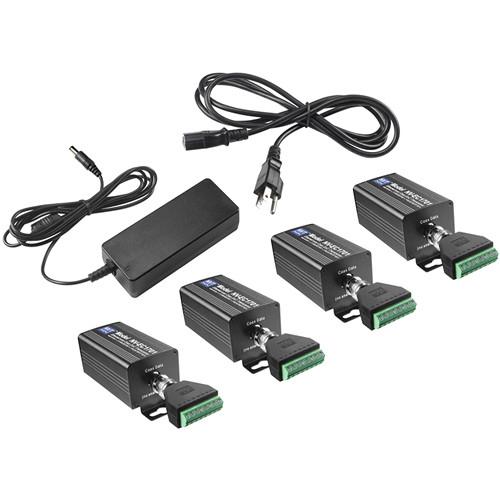

User Manual for NVT NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System Kit Click to enlarge the picture
Contents of the user manual for the NVT NV-EC1701U-KIT3 Triple Entry Station Eo2
- Product category: Ethernet Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Ethernet Extenders
|
User manual for the NVT NV-EC1701U-KIT3 Triple Entry Station Eo2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description With the NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System Kit from NVT Phybridge users benefit from four Ethernet over 2-wire transceiver units designed for use in converting legacy 2-wire cabling to Ethernet. Also found in this kit is a single power supply with a molded P1J 5.5mm barrel connector offering Class 2 (SELV) regulated power output. To complete the installation, this kit comes with four RJ45 patch cords. - NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE The NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE from NVT is a compact media converter that allows 10/100Base-T Ethernet and PoE or PoE+ power to be transmitted using a 18/2 or similar cable. Up to 48 or 56VDC class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.
This transceiver is simple to use, with no IP or Mac addressing required. The status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports. The NV-EC1701U Eo2 transceiver transmits high-bandwidth encrypted Ethernet signals over conventional 2-wire cables.
The NV-EC1701U transceiver provides transparent, end-to-end 10Base-T or 100Base-T connectivity with auto detection and auto-crossover, allowing IP cameras or other devices to be installed at one end, while the data is transparently delivered to the other end.
Wire distances up to 1000' is supported, although local power (available separately) may be required for extended distances. The NV-EC1701U supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols, which allows for the transmission of other network traffic besides streaming video. - Transmits 10/100Base-T full duplex Ethernet up to 1000' over 4-pair cat5, up to 750' over 18/2 (or similar 2-wire cable), and up to 500' over shielded twisted-pair
- 48 or 56VDC is distributed over 2-wire cable to all connected IP devices
- Powers PoE entry stations (or other PoE or PoE+ devices) up to 60W
- One NVT Eo2 transceiver at the network-end can support multiple remote Eo2 transceivers and connected devices
- Advanced 128-bit AES encrypted transmission and PoE technology
UPC: 735890017073 - NV-PS56-60W Power Supply (56 VDC, 60W) The NVT NV-PS56-60W Power Supply delivers 56 VDC and 60W of power to the NV-EC1701U and NV-EC1701 Ethernet over Coax (EoC) transceivers. A molded P1J 5.5mm barrel connector at the end of a 6' cord provides Class 2 (SELV) regulated output.
- 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) The 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) from NVT features two RJ45 plugs and is designed for use with NV-EC1701 Transceivers.
In the Box Bundle Items 4 x NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE fuqecafcwtarcbbwwtwdyarr - Limited Lifetime Warranty
NV-PS56-60W Power Supply (56 VDC, 60W) - Limited Lifetime Warranty
4 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE
| | | Connector | RJ45 female, auto-crossover | | Wire Type | 4-pair Cat5 or better | | Distance | Up to 328' (100 m) | | Speed | 10/100 Base T, half/full duplex, auto-negotiation, auto MDI/MDIX cross-over | | Latency | 3 ms | | Data | 90 Mb/s ±10% useable bandwidth per network | | Power Output | This PSE (Power Sourcing Equipment) supports PDs (Powered Devices) that are compatible with IEEE 802.3af/at, or PDs that draw up to 60 W. For maximum power/distance, 48 or 56 VDC appears on all eight RJ45 pins, and are current-protected and transient-protected. Distance will often be shorter due to power supply capacity and wire voltage-drop. For fault/safety protection, do not use more than two power supplies within a network system. | | | | Consumption | 3 W @ 10 to 56 VDC | | | | Connectivity | UTP, STP, 18/2 or similar | | Impedance | 25 to 100 Ohm | | Transmission Technology | OFDM, 128-bit AES encryption | | | | Power | Blue | | Interface | BNC 2-wire Interface: Green | | RJ45 Connector | Green | | | | Compatibility | 60 or 90 W power supply | | | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity (Non-Condensing) | 0 to 95% | | Transient Immunity | 5 x 20 µS 3000 A, 6000 V
ESD 20 kV, 200 pF | | Dimensions (L x W x H) | Transceiver (Excluding Connectors): 5.1 x 1.5 x 1.3" (131 x 38 x 33 mm) | | Weight | 5.5 oz (156 g) | | | | Box Dimensions (LxWxH) | 6.1 x 2.1 x 2.0" | - NV-PS56-60W Power Supply (56 VDC, 60W)
| Input | 100 to 240 VAC, 50/60 Hz | | Output | 56 VDC, 60 W | | Environmental | Operating:
Temperature: -22 to 122°F / -30 to 50°C
Humidity: 20 to 85% relative, non-condensingStorage:
Temperature: -40 to 185°F / -40 to 85°C
Humidity: 0 to 95% relative, non-condensing | | Dimensions | Power Supply: 4.9 x 2.0 x 1.25" / 12.5 x 5.0 x 3.2 cm
Power Cord Length: 6.0' / 1.8 m | | Weight | Power Supply: 10.6 oz / 300.0 g
Power Cord: 5.5 oz / 156.0 g | | | | Box Dimensions (LxWxH) | 7.5 x 3.5 x 1.3" | - 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray)
| Length | 3' (0.91 m) | | Connector 1 | RJ45 | | Connector 2 | RJ45 | | Color | Gray | | Compatibility | NVT NV-EC1701 Transceivers | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.75" |
