User Manual for NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2 Transmission System Click to enlarge the picture
Contents of the user manual for the NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2
- Product category: Ethernet Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Ethernet Extenders
|
User manual for the NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|

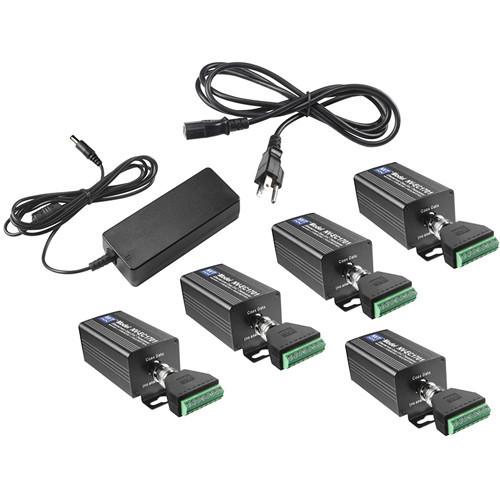

Product description The NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2 Transmission System includes five NV-EC1701U Transceivers, NV-PS48-60W Power Supply with an IEC line cord, and five NV-PC4PR Patch-Cords.The NV-EC1701U Ethernet over 2-Wire Transceiver with PoE Power is a compact media converter that allows 10/100 BaseT Ethernet and PoE or PoE+ power to be transmitted using the 18/2 cable or similar. This device is typically used in legacy installations where the existing 18/2 cable is re-used as part of an upgrade to IP devices. Up to 48 or 56VDC class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers, and their PoE or PoE+ devices.This transceiver is simple to use, with no IP or MAC addressing required. The status LEDs indicate power and link connectivity/activity for RJ-45 and 2-wire ports. The NV-EC1701U Eo2 Transceiver transmits high bandwidth encrypted Ethernet signals over conventional 2-wire cables.The NV-EC1701U Transceiver provides transparent, end-to-end 10-BaseT or 100-BaseT connectivity with auto detection and auto-crossover. This means that IP cameras or other devices may be installed at one end, and the data is transparently delivered to the other end.Wire distances up to 1,500’ (450m) are supported, although local power (sold separately) may be required for extended distances. The NV-EC1701U supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols. This allows for the transmission of other network traffic besides streaming video.The NV-PS48-60W Power Supply delivers 60W power to the transceiver with an IEC line cord. In addition, the NV-PC4PR RJ45 Patch-Cord offers compatibility with this transceiver. Note: Distance and number of devices supported may be lower due to power supply capacity and wire voltage-drop. UPC: 735890417071 In the Box NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2 Transmission System 5 x NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE 48 VDC Power Supply 5 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-EC1701U-KIT4 Quadruple Entry Station Eo2 Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-EC1701U Specs | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 7.5 x 3.0 x 2.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
