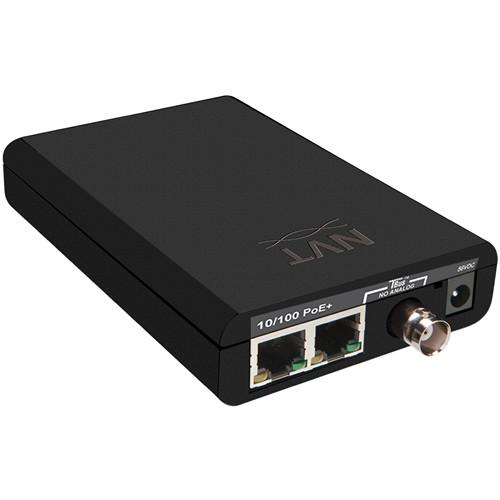

Product description Supporting data transfer rates of up to 150 Mbps, the NV-ET1801 TBus Single Port PoE+ Transmitter from NVT Phybridge is designed to send and receive data over coax cabling. This transmitter comes equipped with a single Gigabit Ethernet port and one coax port, as well as a single uplink port. Once installed, users benefit from both industrial transient protection and thermistor current protection. Additionally, this receiver is designed to transmit data up to 328' using Cat 5 Ethernet cable or better. The TBus interface supports coax cabling and features an impedance of 25 to 100 Ohms with a 3 ms latency, and an operating distance of up to 8000' or 1.5 miles. - Transmits 10/100/PoE+ BaseT, over coax 8000' over RG-59U; 2000' over 2-wire/UTP; 1300' over shielded twisted-pair
- Use with either the NV-ER1804 (4-port), the NV-ER1808i (8-port), or the NV-ER1816i (16-port) Ethernet receivers
- Powers PoE, PoE+, or high power PoE cameras (or other PoE devices), up to 50W
- Easy configuration, no PC required
- Status LEDs include power (blue), link data (green), link quality (red/amber/green), and RJ45 PoE (green)
- Supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, and more)
- Advanced 128-bit AES encrypted transmission and PoE+ power technology
- Built-in transient protection; industrial temperature range
- UL-Listed to IEC/UL 60950-1
- Complies with FCC part 15B limits
UPC: 735890018018 In the Box NVT NV-ET1801 TBus Single Port PoE+ Transmitter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-ET1801 TBus Single Port PoE Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-ET1801 Specs | Interfaces | RJ45 Ethernet Interfaces
Connectivity
- 10/100/1000BaseT IEEE 802.3ab
- Auto-negotiation, auto MDI / MDX crossover
PoE Power
- This Power Sourcing Equipment (PSE) detects and supports Powered Devices (PDs) that are compatible with IEEE 802.3af or 802.3at, or PDs that draw up to 50 watts
- For maximum power distance, 56 VDC appears on all eight RJ45 pins
Protection
- Industrial transient protection
- Thermistor current protection
Wire Type
- Cat 5 or better
Distance
- Up to 328' (100 m)
TBus Link Interface
Connectivity
- BNC or RJ45
- Wire type
- Coax, single- or multi-pair UTP, 1 8/2, or STP wire
Impedance
- 25 to 100 Ohms
Topology
- Bus architecture supports star, daisy-chain, or an combination. One control-room receiver may support multiple remote TBus Transmitters
Data Throughput
- 150 Mbps total network bandwidth with dynamic bandwidth allocation
Latency
- 3 ms
Transmission Technology
- IEEE 1901
Wire Distance
- Up to 8000', 1.5 miles (2.5 km)
Encryption
- 128-bit AES, through one-button joining | | Temperature & Humidity | Operating / Storage Temperature
-40 to 185°F / -40 to 85°C
Operating / Storage Humidity
20 to 85% RH non-condensing | | Power Consumption | ≤3 W | | Generated Heat | 10 BTU/hour | | Transient Immunity | 5 x 20 μS 3000 A, 6000 V
ESD 20 kV, 200 pF | | Dimensions | 4.8 x 0.93 x 3.23" / 122 x 24 x 82 mm | | Weight | 5.1 oz / 145 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.1 x 3.6 x 1.2" |
