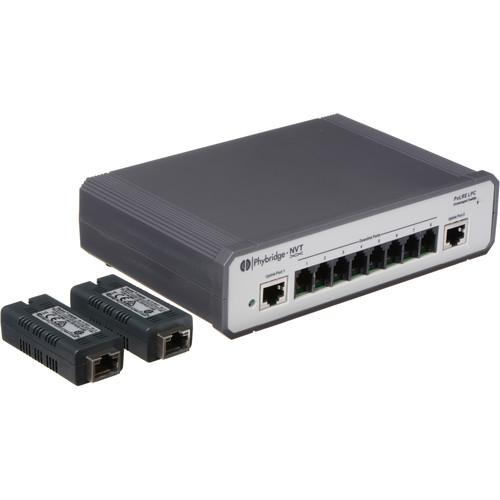

Product description With the NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch from NVT it is easy to run a wired network connection to PoE compliant devices at distance of up to 1200'.
This kit consists of a single 8-port unmanaged switch and two network adapters to connect devices such as IP phones, access points, IP cameras, and other PoE 802.3af compliant devices to your network. Once configured, the PoLRE switch and included adapters support data transfer rates of up to 10 Mbps with no degradation in network performance over longer distances. - Easy Migration to IP
- PoLRE is designed to make the migration to IP quick, easy, and cost effective by leveraging an existing single pair UTP infrastructure. Benefits include:
• Accelerating your return on investment by reducing infrastructure costs
• Collapsing planning and deployment time
• Eliminating infrastructure barriers, risks, disruption and costs
• Creating a robust IP platform that is easy to configure, deploy and manage - Speed, Reach, and Power
- The LPC delivers 10 Mbps (symmetrical, full duplex) and PoE over a single pair of UTP with 1200' reach. It is designed to support IP Phones and other IEEE compliant devices. There is no reduction in bandwidth speed based on longer distances
- Simple Deployment
- PoLRE LPC was designed to make it simple for small businesses or distributed enterprise to simplify their IP migration. No network configuration required
- PoLRE LPC Switch
- The PoLRE LPC switch is a high-performing 8-port unmanaged switch that helps maximize your return on investment and reduce your total cost of ownership.
The PoLRE LPC transforms the existing two-wire infrastructure into a robust IP platform with power ideal for IP phones and other IEEE compliant IP devices.
Advantages:
• Quick, easy and cost effective IP migration
• Plug-and-play unmanaged switch
• Ethernet and PoE over a single pair of wire with 4 times the reach of traditional switches UPC: 735890500032 In the Box NVT NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-PL-08 Specs | | | Interface | Ethernet Uplink (Trunk IP)
2 x RJ45 Ports:
10/100 Base-T auto-sensing, independent speed selection, Ethernet IEEE 802.3, CAT5 copper cable
Downlink (PoE and IP to Adapter)
8 x RJ11 jacks
Maximum Distance:
1200' (365 m) CAT3 UTP cable
24 AWG
Speed: 10 Mbps (full duplex)
Power: 10 Watts | | Power | Power Supply
48 VDC
Power Consumption
2.9 W
Power Injection
48 VDC; endpoint devices must be compliant with IEEE 802.3af
External Power Supply
External 100 W power supply included. Optional higher power supplies available | | Temperature & Humidity | Operating Temperature
14 to 115.6°F / -10 to 45.5°C
Humidity
10 to 95% (non-condensing) at 95°F / 35°C | | Dimensions (WxDxH) | 7.01 x 4.72 x 1.77" (17.8 x 12 x 4.5 cm) | | Weight | 0.679 lb (308 g) | | | | Interface | Interface PoLRE (Switch Side)
1 x RJ11 Port:
CAT3 unshielded single twisted pair cable. Between the wall plate and adapter, you can reuse the existing silver satin when doing a DNIC/POTS displacement
Interface Ethernet Side: For IP End Point Device
1 x RJ45 Port: 10 Base-T | | Power | Power Supply
48 VDC
Power Consumption
0.9 W
Power Injection (PoE)
Voltage on RJ45 Port:
54 VDC max
37 VDC when 1200' / 365 m away from its PoLRE switch powers Class 1, Class 2, and some Class 3 IEEE 802.3af compliant IP devices | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Humidity
10 to 95% (non-condensing) at 95°F / 35°C | | Dimensions (W x D x H) | 1.1 x 2.56 x 0.71" (2.8 x 6.5 x 1.8 cm) | | Weight | 0.78 oz (22 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 2.8" |
