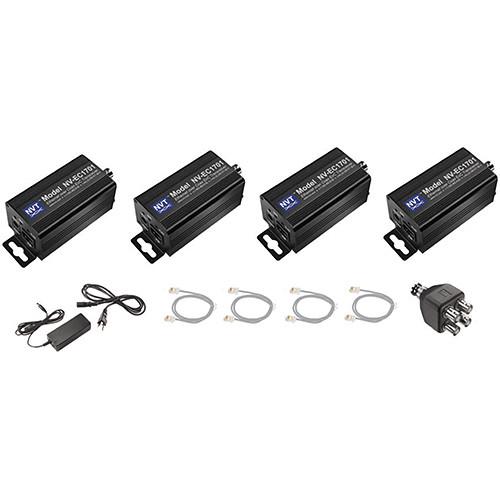

NVT Triple 60W EoC Transmission System

User Manual for NVT Triple 60W EoC Transmission System

• Product category: Signal Extenders NVT
• Brand: NVT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NVT Signal Extenders

Product description

• EoC Ethernet over Coax Transceiver with PoE The EoC Ethernet over Coax Transceiver with PoE from NVT is a compact converter that allows 10/100Base-T Ethernet and PoE power to be transmitted using coax cable. EoC devices are typically used in legacy installations where existing coax is re-deployed as part of an upgrade to IP cameras. Class 2 power of 56 VDC is delivered to one transceiver, which distributes it to up to four remote transceivers (available separately) and their PoE cameras. This transceiver is easy to use with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and BNC ports.
  • 10/100Base-T transmission speeds up to 93 Mbps at up to 8000'
  • Powers PoE devices up to 50W
  • 56 VDC is distributed over the coax to all connected equipment
  • Easy configuration, no PC required
  • Supports all networking protocols including UDP, TCP/IP, TFTP, RTP, and HTTP
  • 128-bit AES encrypted transmission and power technology with built-in transient protection
  UPC: 735890017011
• NV-PS56-60W Power Supply (56 VDC, 60W) The NVT NV-PS56-60W Power Supply delivers 56 VDC and 60W of power to the NV-EC1701U and NV-EC1701 Ethernet over Coax (EoC) transceivers. A molded P1J 5.5mm barrel connector at the end of a 6' cord provides Class 2 (SELV) regulated output.
• BNC Coax Splitter Adapter The BNC Coax Splitter Adapter from NVT allows up to four camera-end Ethernet over Coax (EoC) transceiver cables to be connected to one control-end EoC transceiver. UPC: 735890142546
• 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) The 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) from NVT features two RJ45 plugs and is designed for use with NV-EC1701 Transceivers.

• NV-PS56-60W Power Supply (56 VDC, 60W)

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EoC Ethernet over Coax Transceiver with PoE

  Connectors	RJ45, auto-crossover BNC/RG59U coax connection
  Wire Type	Cat5 or better
  Distance	RJ45 Ethernet Interface: up to 328' (100 m) Coax Building Wiring Interface: up to 8000' (2500 m)
  Speed	Up to 93 Mbps, 10/100Base-T with auto-negotiation and auto MDI/MDIX crossover
  Latency	3 ms
  Throughput	85 Mbps ±10% useable bandwidth per network
  Network Compatible	IEEE 802.3af/a
  Impedance	25 to 100 Ohms
  Security	128-bit AES encryption
  LED Indicators	Power: Blue BNC Interface: Green RJ45 Interface: Green
  Transient Immunity	5 x 20 µS 3000 A, 6000 V ESD 20 kV, 200 pF
  Consumption	≤ 3 W @ 10 to 56 VDC
  Input Voltage	100-240 VAC, 50/60 Hz
  Operating Temperature	-40 to 185°F (-40 to 85°C)
  Relative Humidity (non-condensing)	20 to 85%
  Dimensions	4.1 x 1.6 x 1.7" (102 x 40 x 42 mm)
  Weight	0.32 lb (145 g)

  Box Dimensions (LxWxH)	4.85 x 2.0 x 1.95"

• NV-PS56-60W Power Supply (56 VDC, 60W)

  Input	100 to 240 VAC, 50/60 Hz
  Output	56 VDC, 60 W
  Environmental	Operating: Temperature: -22 to 122°F / -30 to 50°C Humidity: 20 to 85% relative, non-condensingStorage: Temperature: -40 to 185°F / -40 to 85°C Humidity: 0 to 95% relative, non-condensing
  Dimensions	Power Supply: 4.9 x 2.0 x 1.25" / 12.5 x 5.0 x 3.2 cm Power Cord Length: 6.0' / 1.8 m
  Weight	Power Supply: 10.6 oz / 300.0 g Power Cord: 5.5 oz / 156.0 g

  Box Dimensions (LxWxH)	7.5 x 3.5 x 1.3"

• BNC Coax Splitter Adapter

  Connectors

  1 x BNC male 4 x BNC female

  Box Dimensions (LxWxH)	4.3 x 3.2 x 1.4"

• 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray)

  Length	3' (0.91 m)
  Connector 1	RJ45
  Connector 2	RJ45
  Color	Gray
  Compatibility	NVT NV-EC1701 Transceivers

  Box Dimensions (LxWxH)	7.0 x 4.0 x 0.75"
