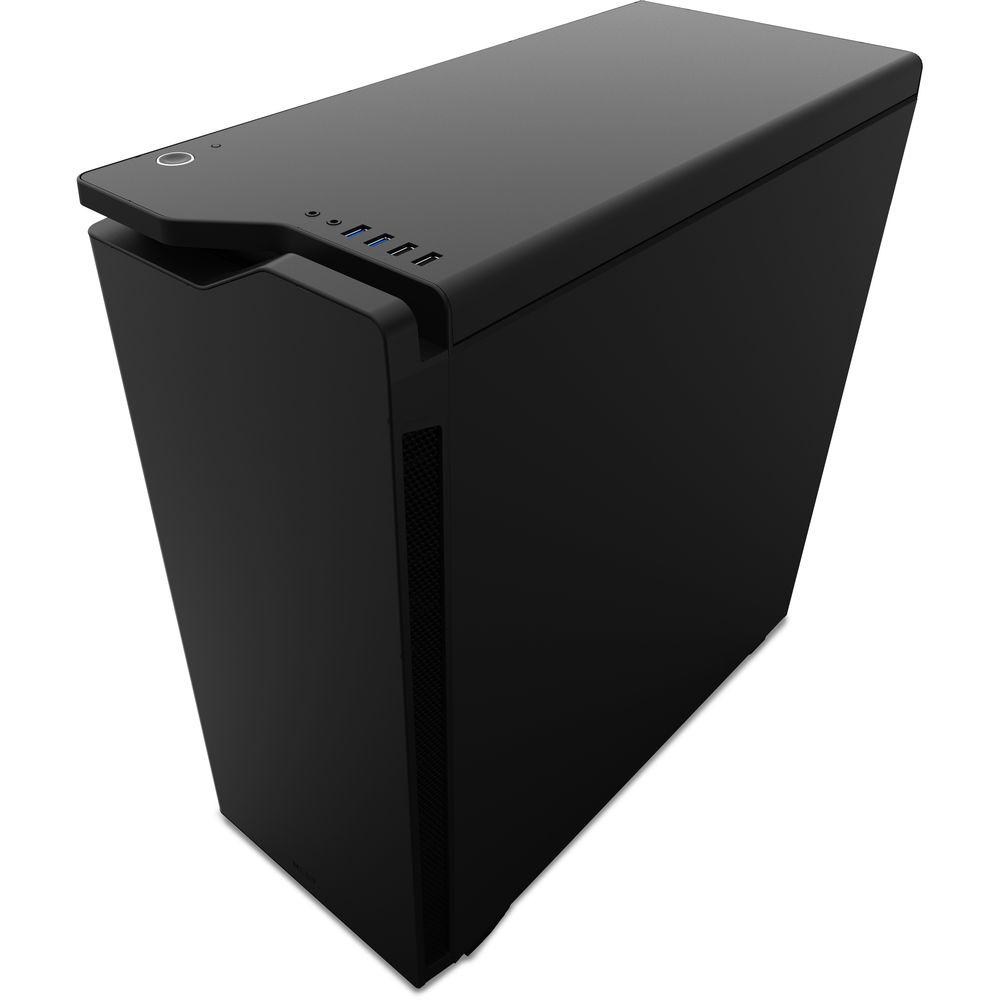

User Manual for NZXT H440 Mid-Tower 2015 Case Click to enlarge the picture
Contents of the user manual for the NZXT H440 Mid-Tower 2015 Case
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
|
User manual for the NZXT H440 Mid-Tower 2015 Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|

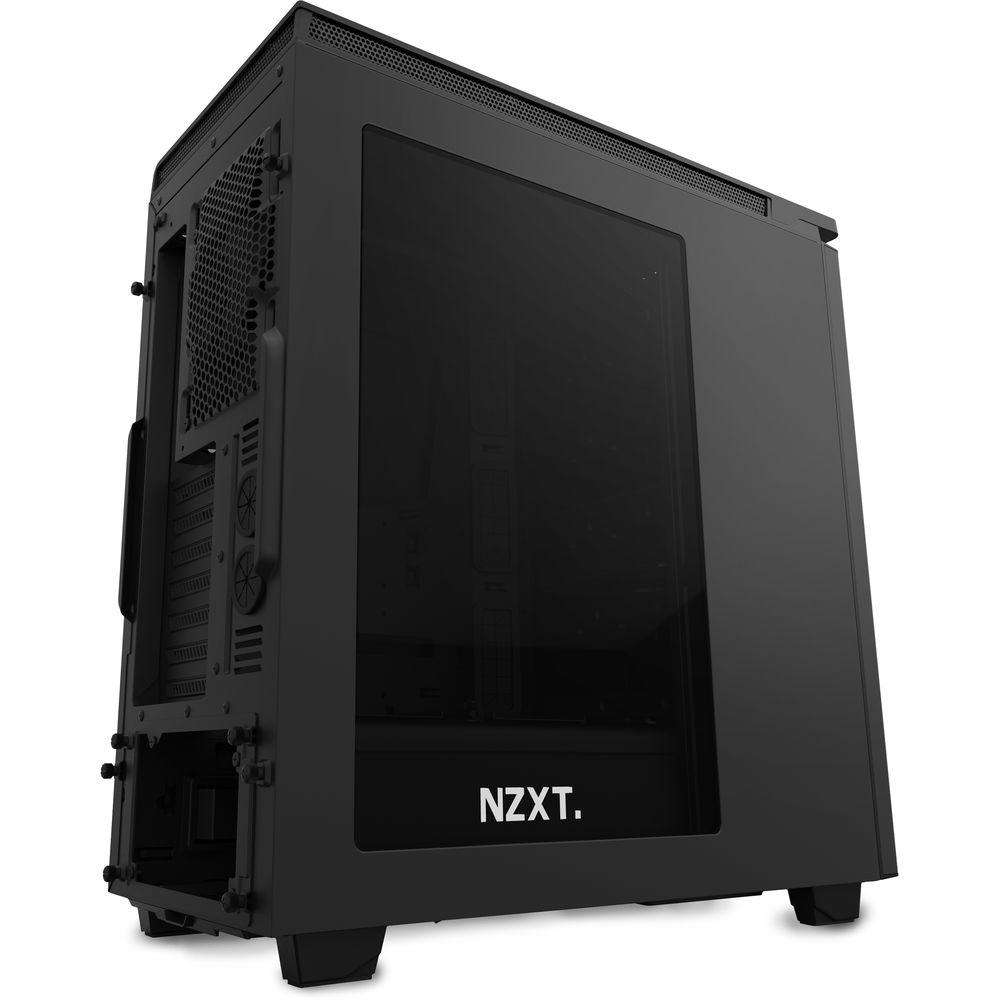

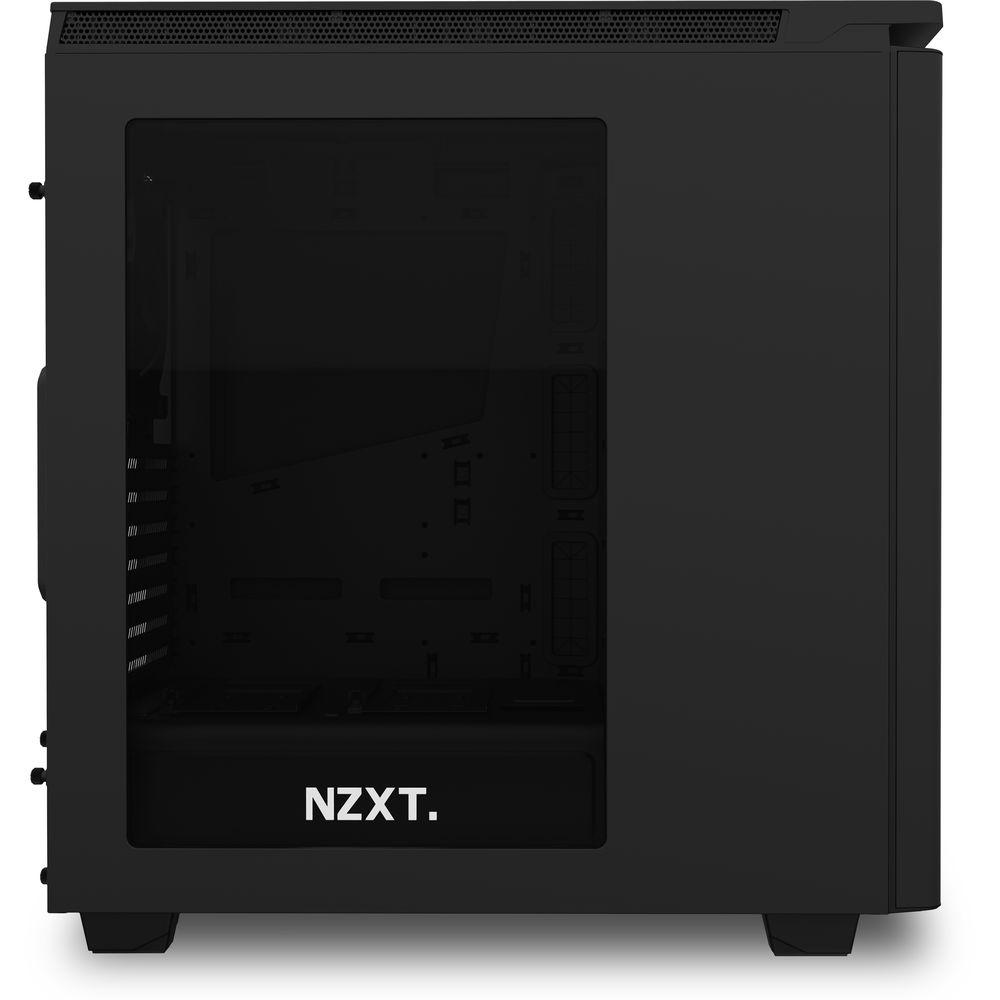

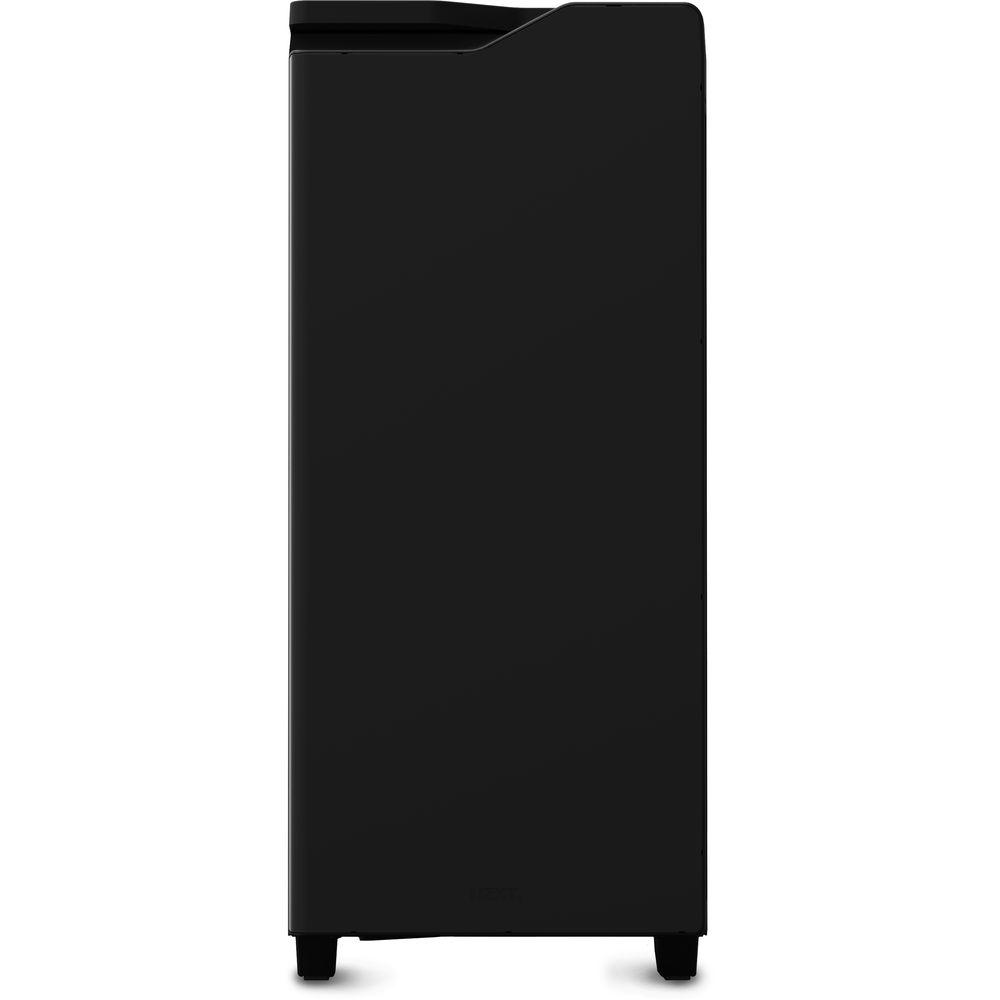

Product description The NZXT H440 Mid-Tower 2015 Case features a black steel chassis with black trim and supports mini-ITX, micro-ATX, and ATX motherboards. It comes with a solid front panel as well as a windowed side panel that reveals your components. This case comes with a 10-port fan hub to support a greater amount of cooling solutions than the previous version. In addition, this case can support graphics cards up to 16.9" long with the removal of the drive cage.
NZXT has designed this case to hold up to eleven 3.5" drives as well as eight 2.5" drives. With no internal optical drive support, you may connect an optional external optical drive to its two USB 2.0 ports or two USB 3.0 ports. There's also an audio port for a headset. Aside from these features, this case has seven expansion slots.

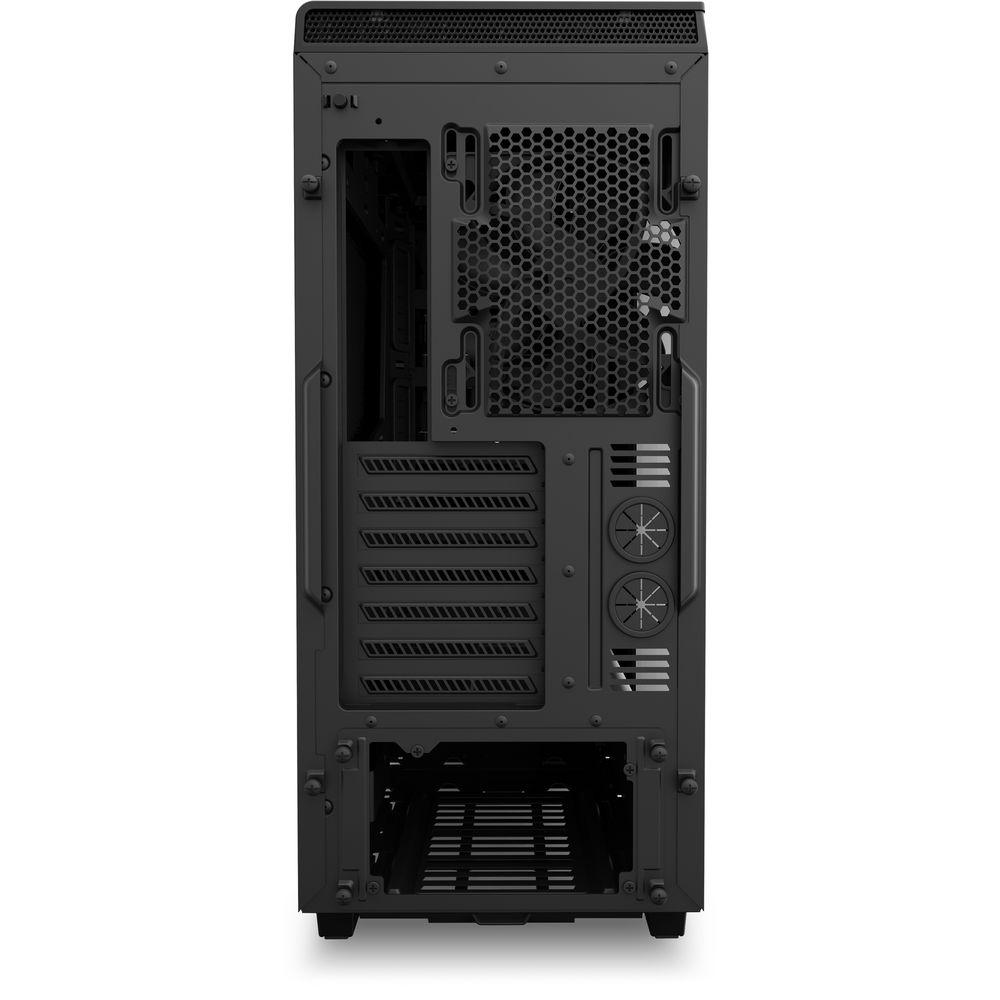

The four included FNv2 case fans create a push-pull airflow design that cools your components. Three 120mm fans are mounted in the front, and a single 140mm is installed in the back of the case. For additional cooling, this case supports radiators up to 360mm in size and has vents that can handle up to three additional 120mm or two 140mm fans on the top. Furthermore, air filters keep dust from entering inside, and closed-cell padding keeps everything quiet. - Liquid-cooling system support: 240mm, 280mm, and 360mm radiators (front and top)

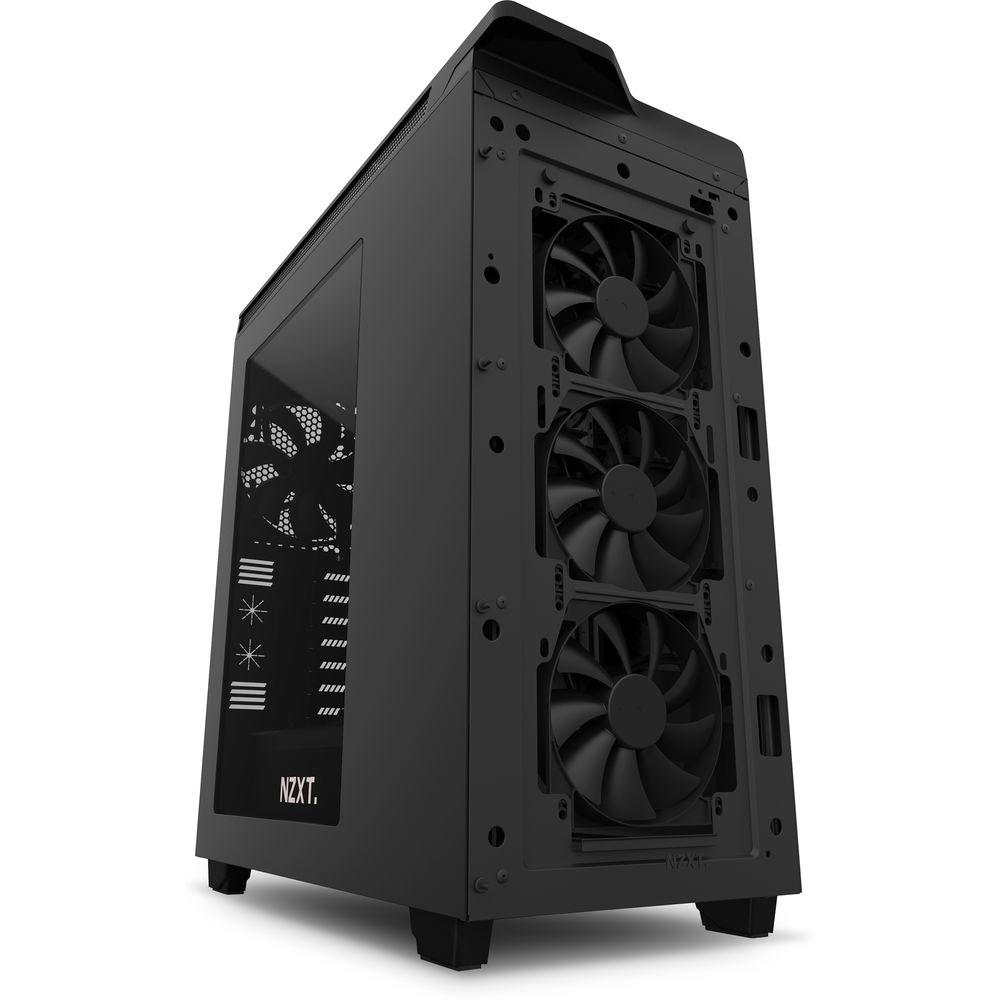

- Four NZXT FNv2 case fans: three 120mm in front and one 140mm in the rear
- All-steel top and front panels, HDD drive trays, and chassis
- Motherboard support for ATX, mATX, and ITX, as well as GPUs up to 16.9"
- Cable management capabilities

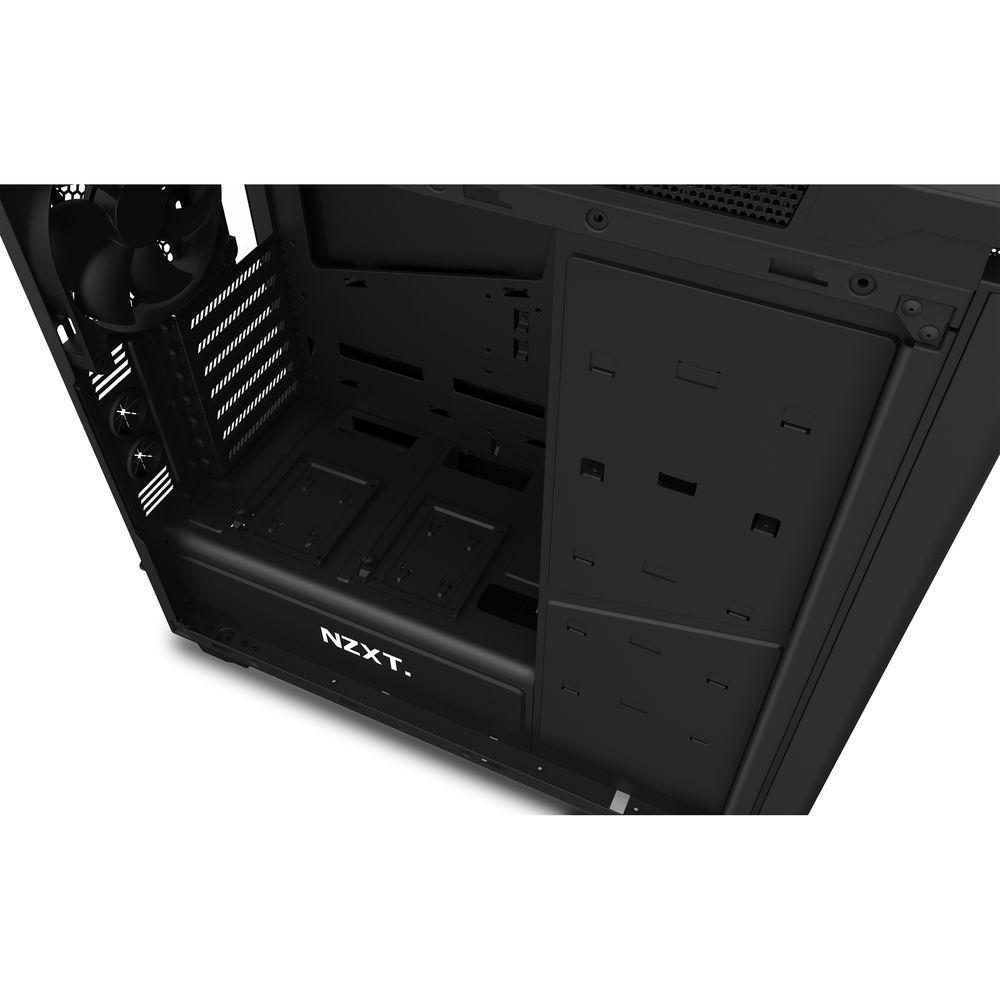

- Integrated power supply shroud with SSD mounts
- 0.2" thick closed-cell sound dampening material
- Integrated 10-port fan hub

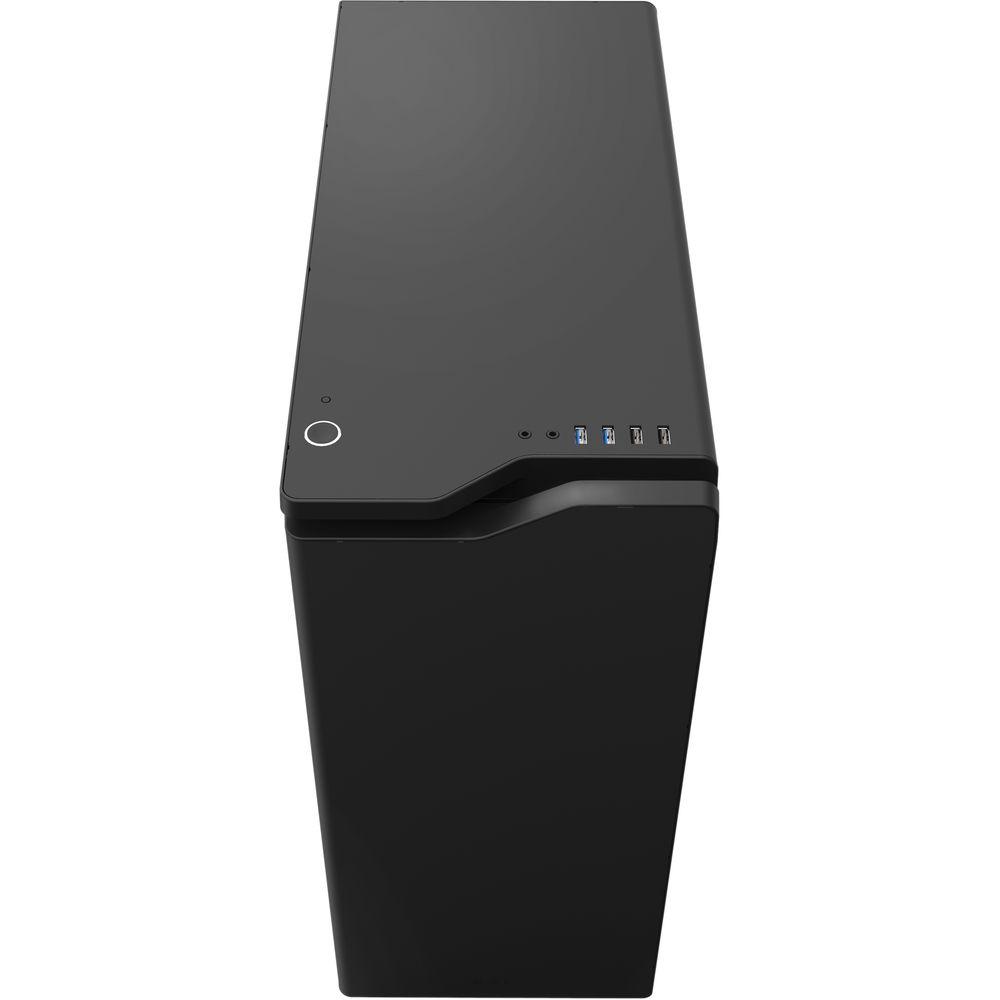

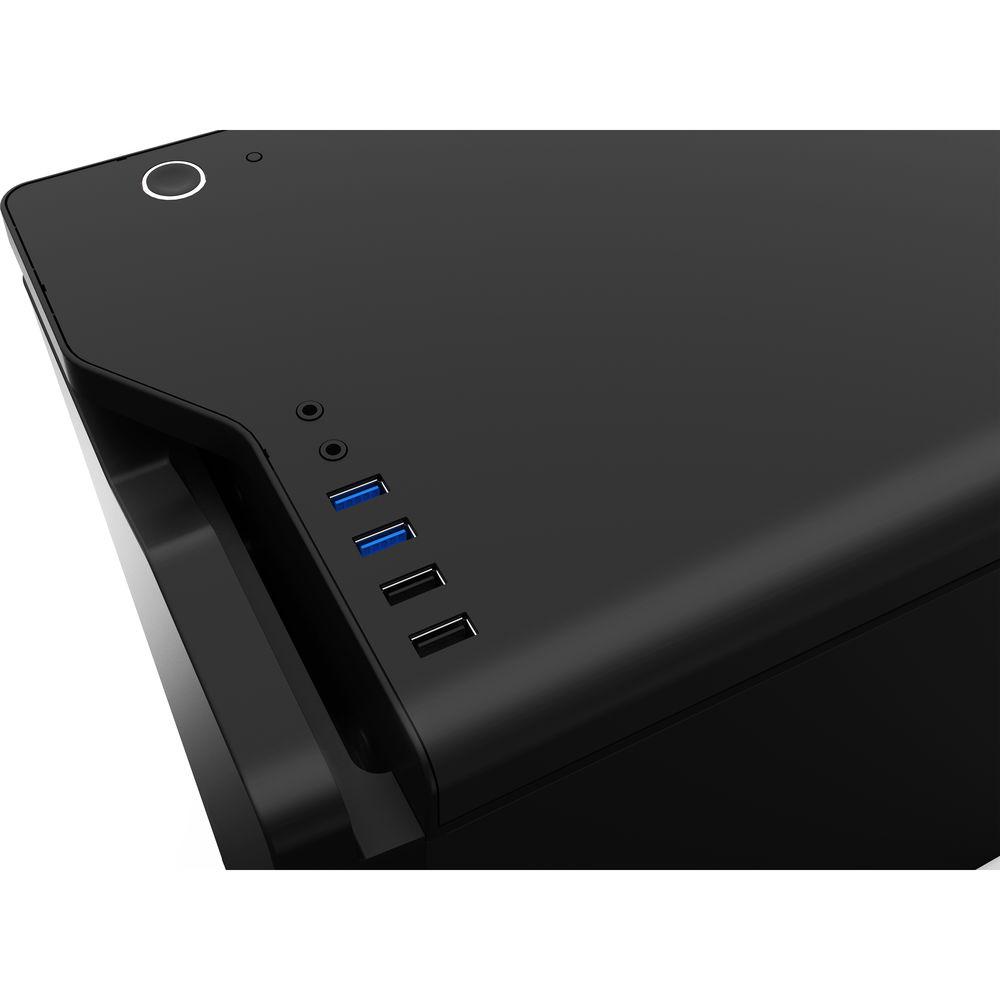

- Horizontally mounted two USB 3.0 and two USB 2.0 ports along with an audio mic/headphone input
In the Box NZXT H440 Mid-Tower 2015 Case (Matte Black and Black, Windowed) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT H440 Mid-Tower 2015 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT H440 Specs | Motherboard Support | ATX, Micro-ATX, Mini-ITX | Internal Drive Bays | 11 x 3.5" 8 x 2.5" | Maximum GPU Length | 11.6" / 29.4 cm | CPU Cooler Height | 7.1" / 18 cm | | Fan Mounting (Top) | 3 x 120 mm Or 2 x 140 mm | Fans Included (Front) | 3 x 120 mm | Fans Included (Rear) | 1 x 140 mm | Maximum Radiator Size (Front) | 360 mm | Maximum Radiator Size (Rear) | 140 mm | Maximum Radiator Size (Top) | 360 mm | Fan Controller Included | No | Filter Locations | Front, Bottom | | Connections | 2 x USB Type-A (USB 3.0) 2 x USB Type-A (USB 2.0) | Audio Connections | 1 x 3.5 mm Input 1 x 3.5 mm Output | Display Connections | None | | Windowed Panel | Yes | Material | Steel, Plastic | Cable Management Space | 1.3" / 32.5 mm | Dimensions (W x H x D) | 8.7 x 20.2 x 18.9" / 220.0 x 512.0 x 480.0 mm | Weight | 22.4 lb / 10.2 kg | | Package Weight | 26.0 lb | Box Dimensions (LxWxH) | 22.5 x 22.0 x 11.5" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
