User Manual for NZXT H500 Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the NZXT H500 Mid-Tower Case
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
 |
User manual for the NZXT H500 Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|

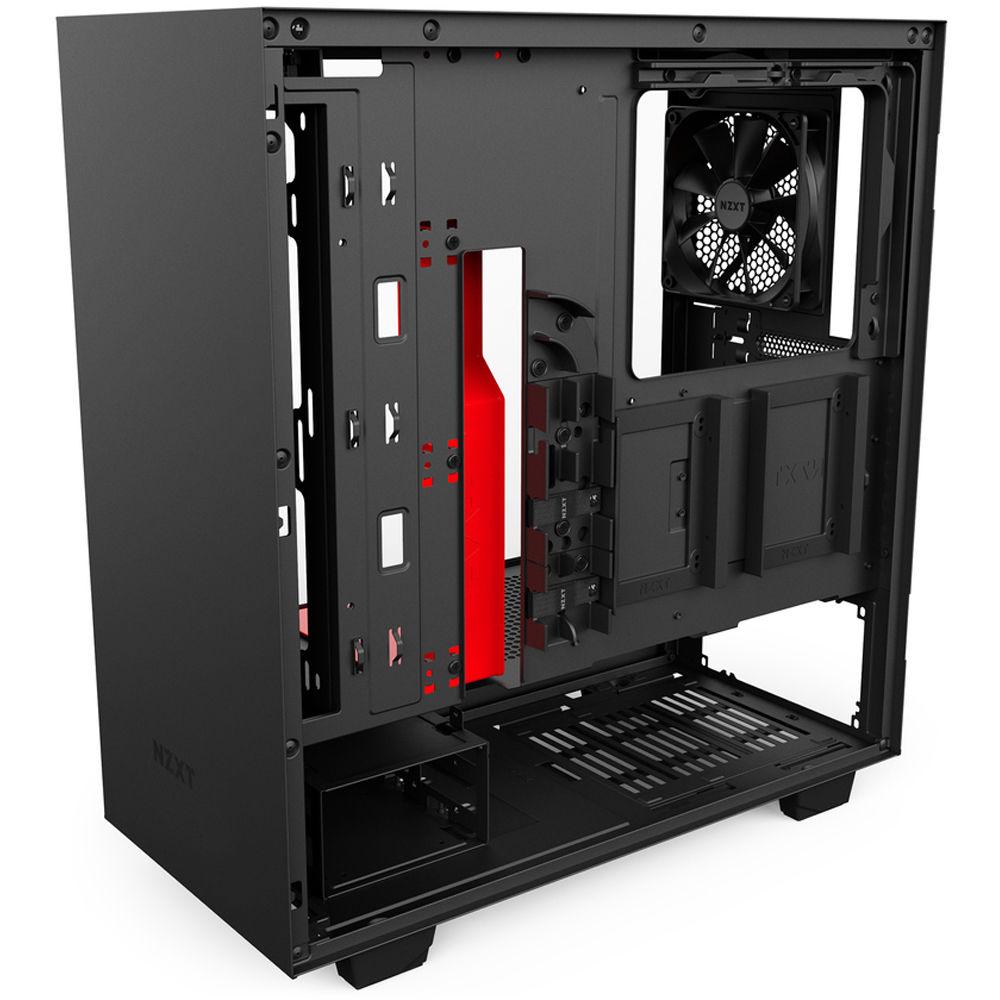

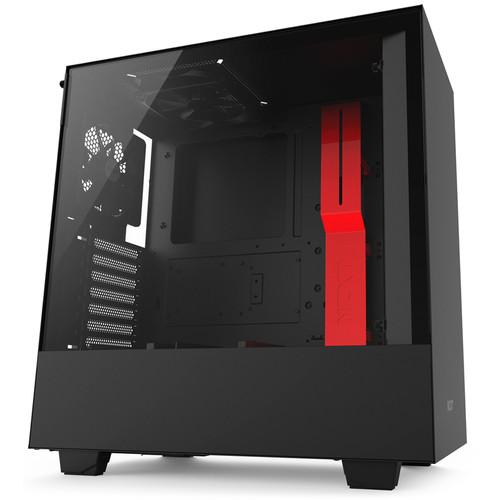

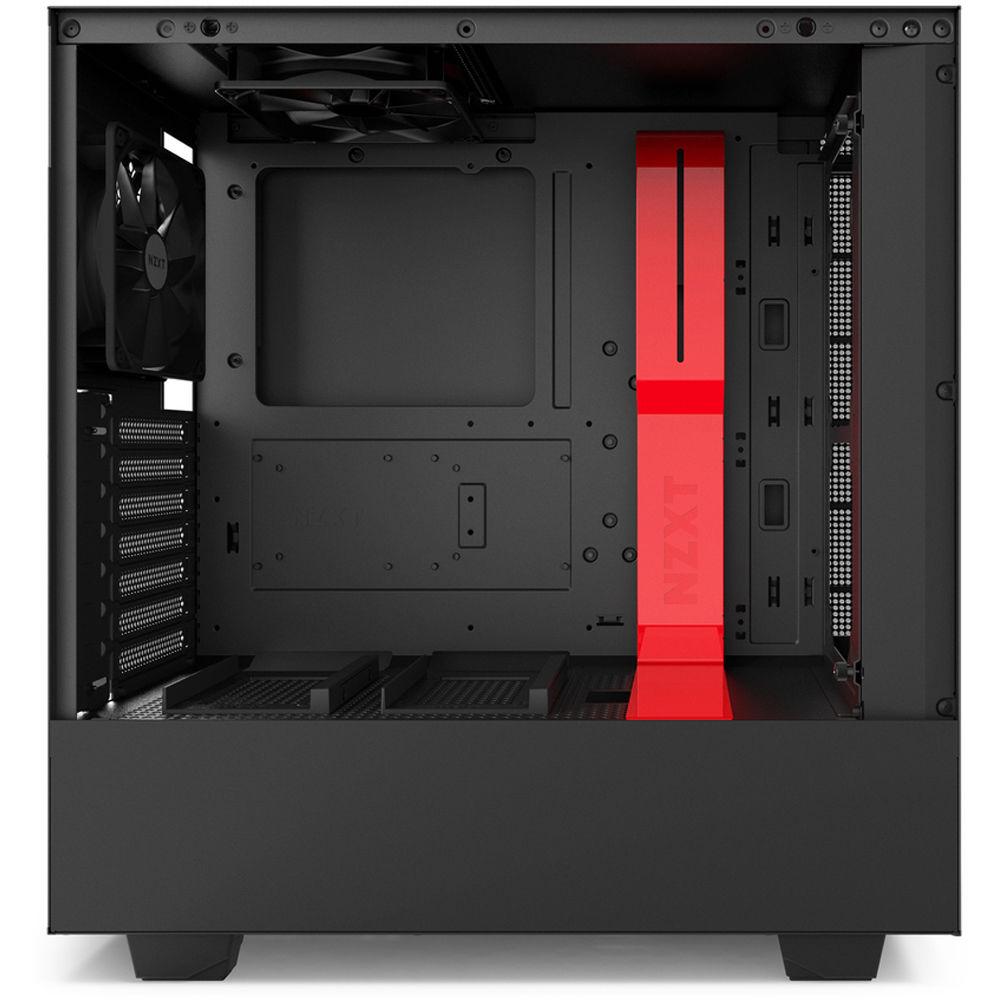

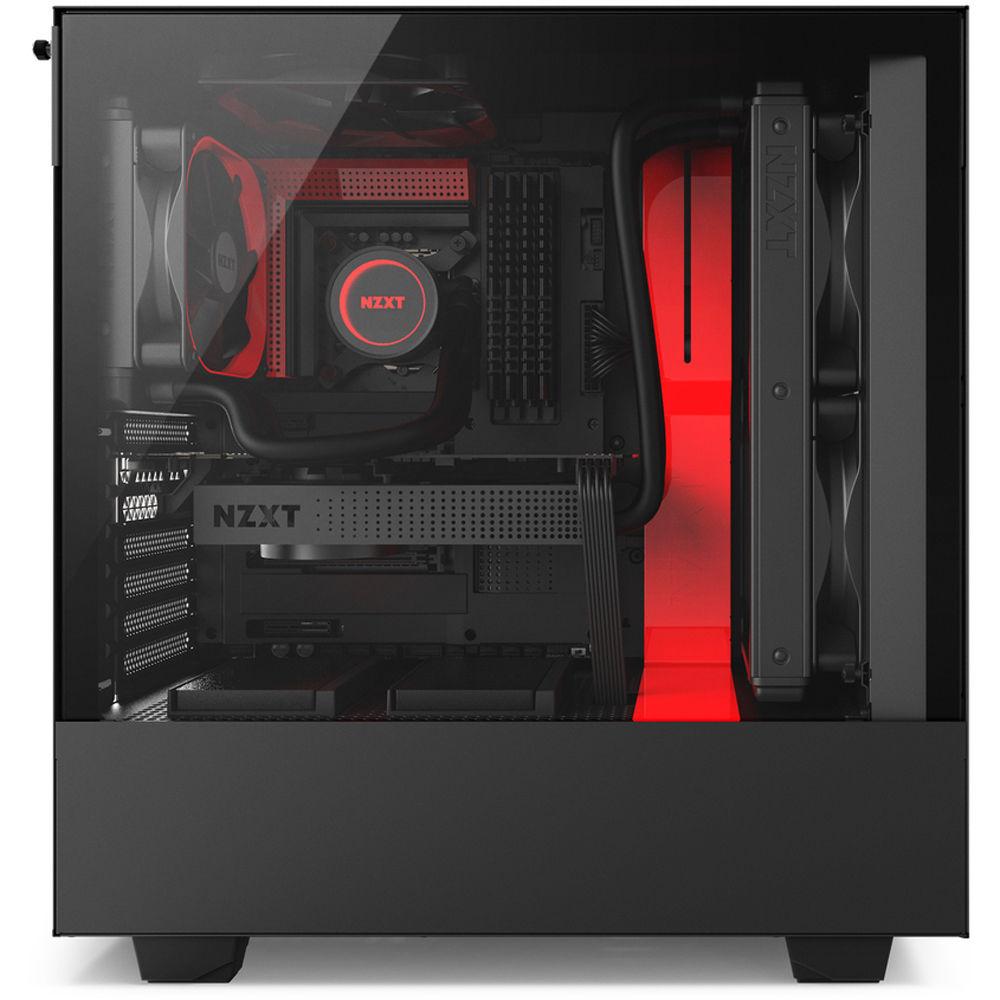

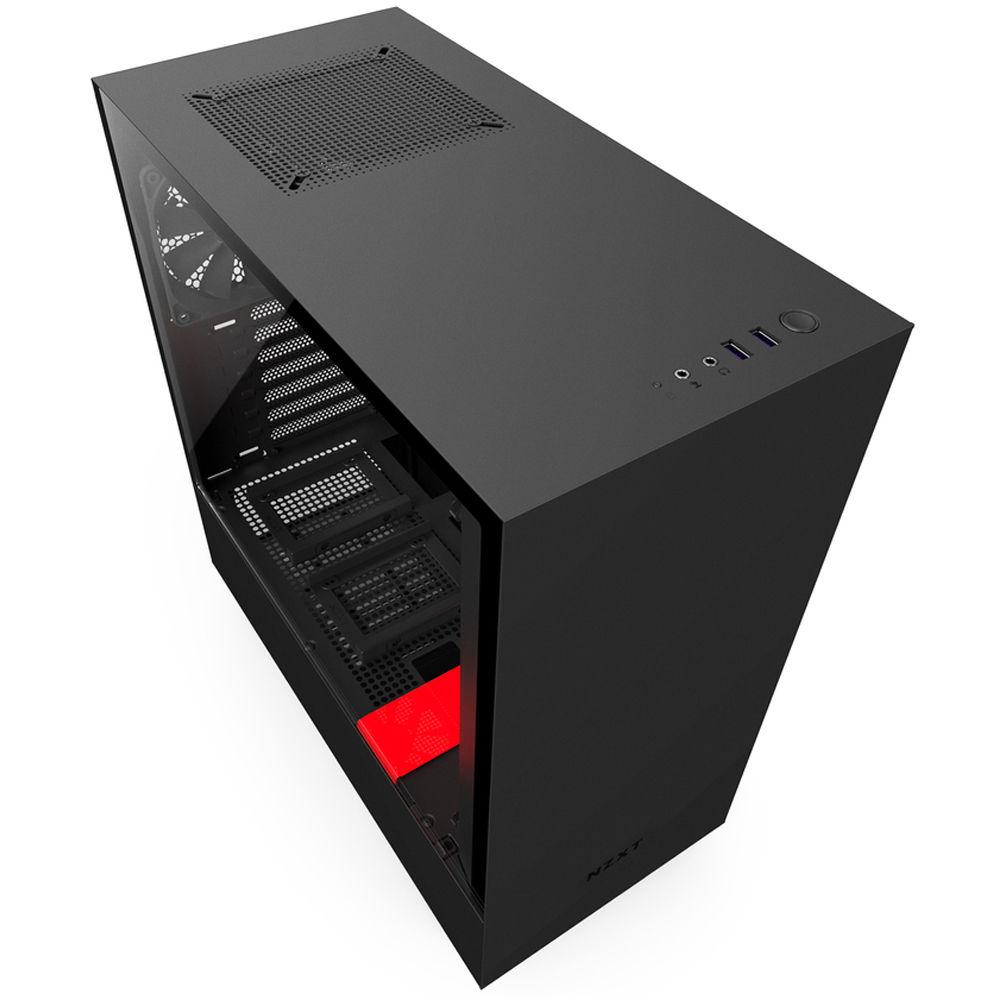

Product description The H500 Mid-Tower Case from NZXT features a sleek, minimal black and red design with plenty of helpful additions for a clean and easy build. Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back with pre-installed channels and straps. It supports up to an ATX motherboard, three 2.5" and 3.5" drives, and seven expansion cards for up to three dual-slot graphics cards. You also have the option of installing a single dual-slot graphics card vertically instead using an optional riser cable. If its default storage options feel limited, there's actually plenty of room for expansion throughout the case with optional brackets. Whether you choose to liquid cool or not, the H500 supports up to two 140mm fans at the front and a single 120mm fan at the rear. Moreover, thanks to its tempered glass side panel, you can show off your hardware along with any custom LED lighting. -
- Removable brackets for mounting fans and radiators
- Cable management system with pre-installed channels and straps
- Sleek PSU shroud
- Adjustable cable management bar

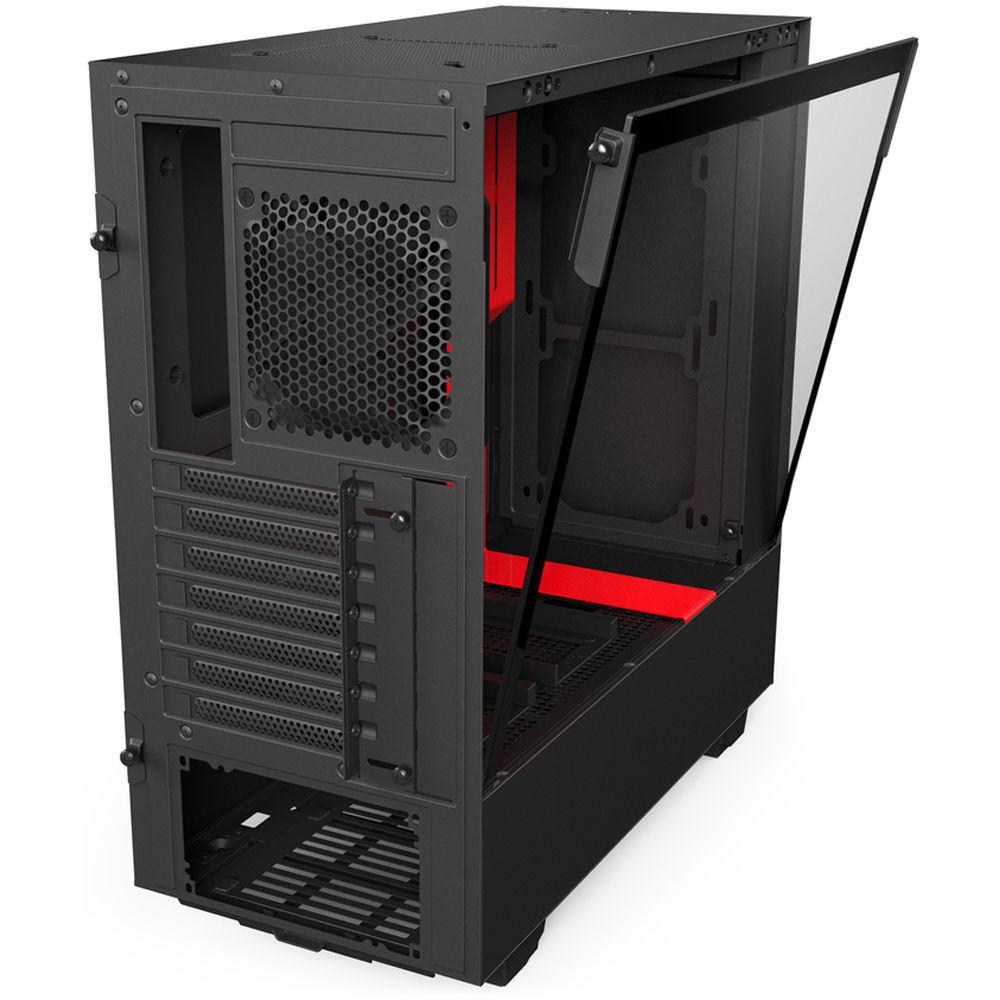

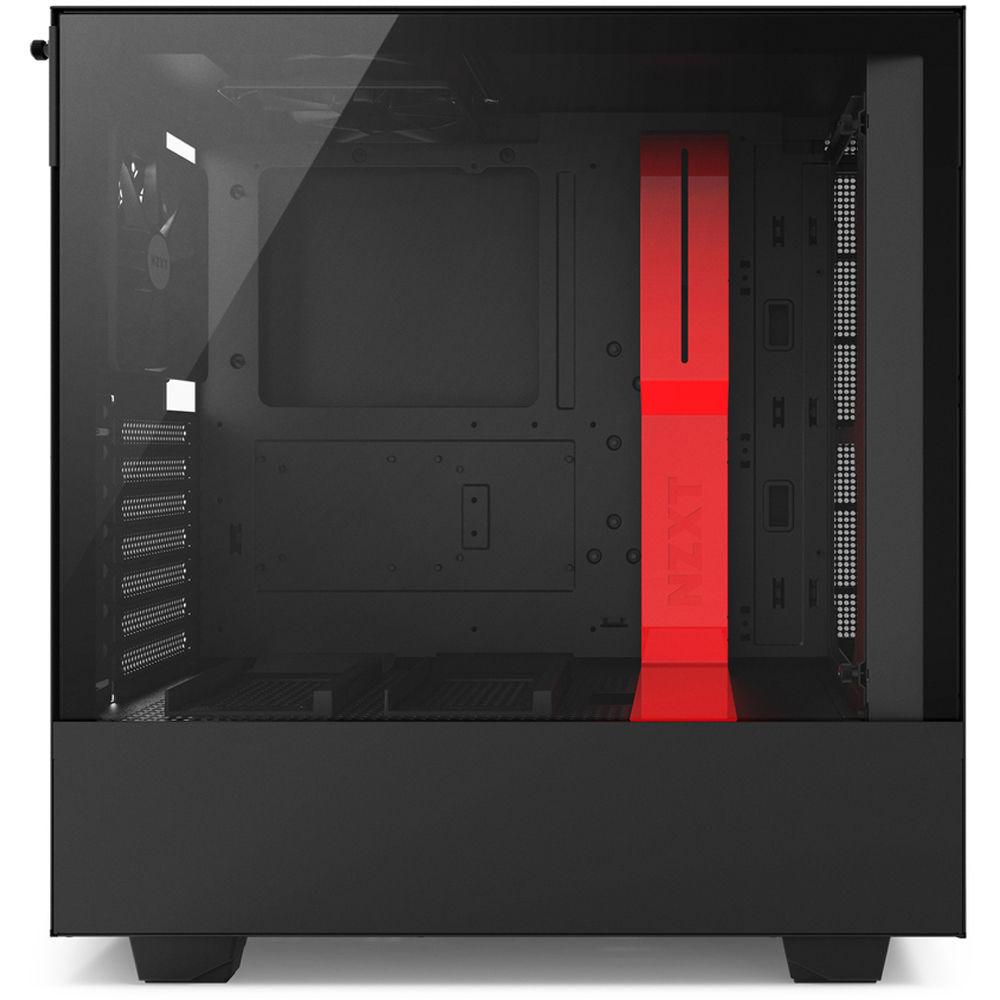

- Tempered glass side panel
- Front and bottom fan filters
- Support for vertical GPU mounting
- Customizable drive mounting
UPC: 815671013767 In the Box NZXT H500 Mid-Tower Case (Black/Red) Screw Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT H500 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT CA-H500B-BR Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ATX | | External Drive Bays | None | | Internal Drive Bays | 3 x 2.5"
3 x 3.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 15.00" / 381 mm | | CPU Cooler Height | 6.50" / 165 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | None | | Fans Included (Rear) | 1 x 120 mm (1200 Variable rpm) | | Fans Included (Top) | 1 x 120 mm (1200 Variable rpm) | | Maximum Radiator Size (Front) | 1 x 280 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Noise Level | 28 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Cable Management Space | 0.91" / 23 mm | | Dimensions (W x H x D) | 8.3 x 18.1 x 16.9" / 210.0 x 460.0 x 428.0 mm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 11.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
