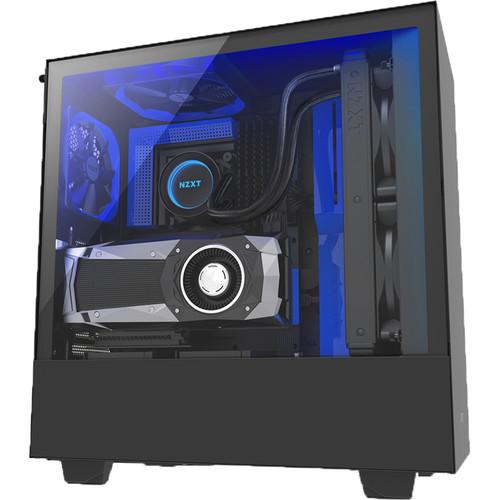

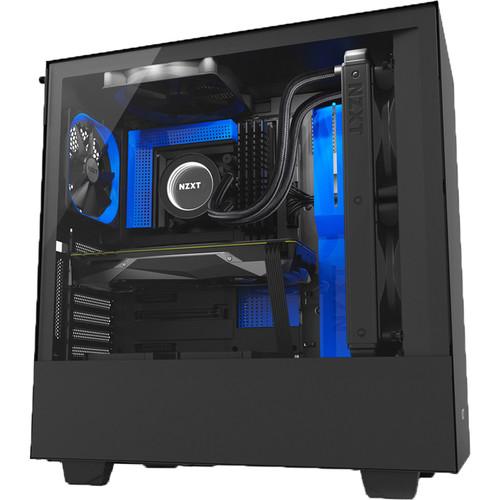

Product description The black and blue H500i Mid-Tower Case from NZXT features a sleek, minimal design with plenty of helpful additions for a clean and easy build. Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back with pre-installed channels and straps. The i version of this case includes NZXT's CAM-powered Smart Device, which is a fan and RGB LED lighting control unit. Inside the H500i, you can install up to an ATX motherboard, three 2.5" and 3.5" drives, and seven expansion cards for up to three dual-slot graphics cards. You also have the option of installing a single dual-slot graphics card vertically instead using an optional riser cable. If its default storage options feel limited, there's actually plenty of room for expansion throughout the case with optional brackets. Whether you choose to liquid cool or not, the H500i supports up to two 140mm fans at the front, one 140mm fan at the top, and one 120mm fan at the rear. Moreover, thanks to its tempered glass side panel, you can show off your hardware along with any custom LED lighting. -
- NZXT CAM lighting and fan control device featuring three 10W fan channels and one RGB LED port that supports up to four HUE+ LED strips or five Aer RGB fans
- CAM device also has a built-in noise-detection module to help you optimize cooling and noise
- Removable brackets for mounting fans and radiators

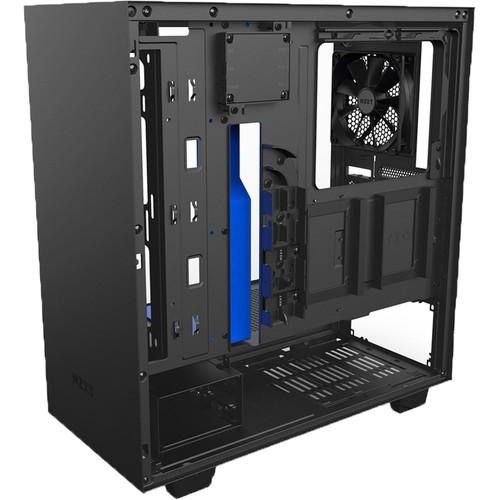

- Cable management system with pre-installed channels and straps
- Sleek PSU shroud

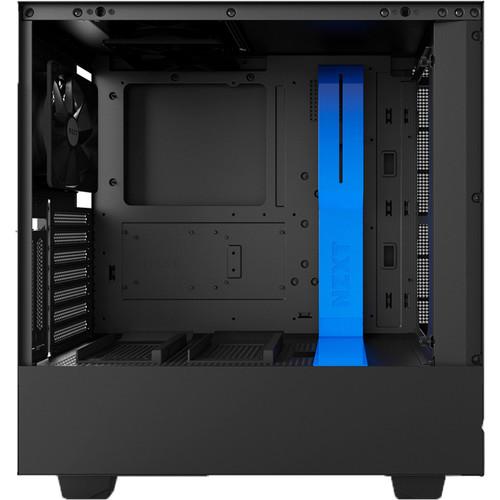

- Adjustable cable management bar

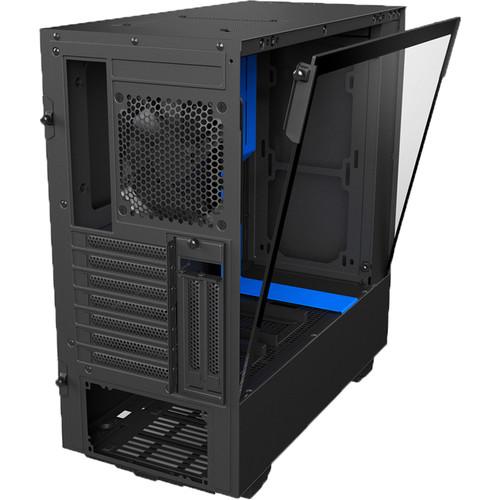

- Tempered glass side panel
- Front and bottom fan filters
- Support for vertical GPU mounting
- Customizable drive mounting
In the Box NZXT H500i Mid-Tower Case (Black/Blue) Screw Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT H500i Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT CA-H500W-BL Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ATX | | External Drive Bays | None | | Internal Drive Bays | 3 x 2.5"
3 x 3.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 15.00" / 381 mm | | CPU Cooler Height | 6.50" / 165 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | None | | Fans Included (Rear) | 1 x 120 mm (1200 Variable rpm) | | Fans Included (Top) | 1 x 120 mm (1200 Variable rpm) | | Maximum Radiator Size (Front) | 1 x 280 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Noise Level | 28 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | Yes | | Cable Management Space | 0.91" / 23 mm | | Dimensions (W x H x D) | 8.3 x 18.1 x 16.9" / 210.0 x 460.0 x 428.0 mm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 20.0 x 19.5 x 10.0" |
