User Manual for NZXT H700i Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the NZXT H700i Mid-Tower Case
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
 |
User manual for the NZXT H700i Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|

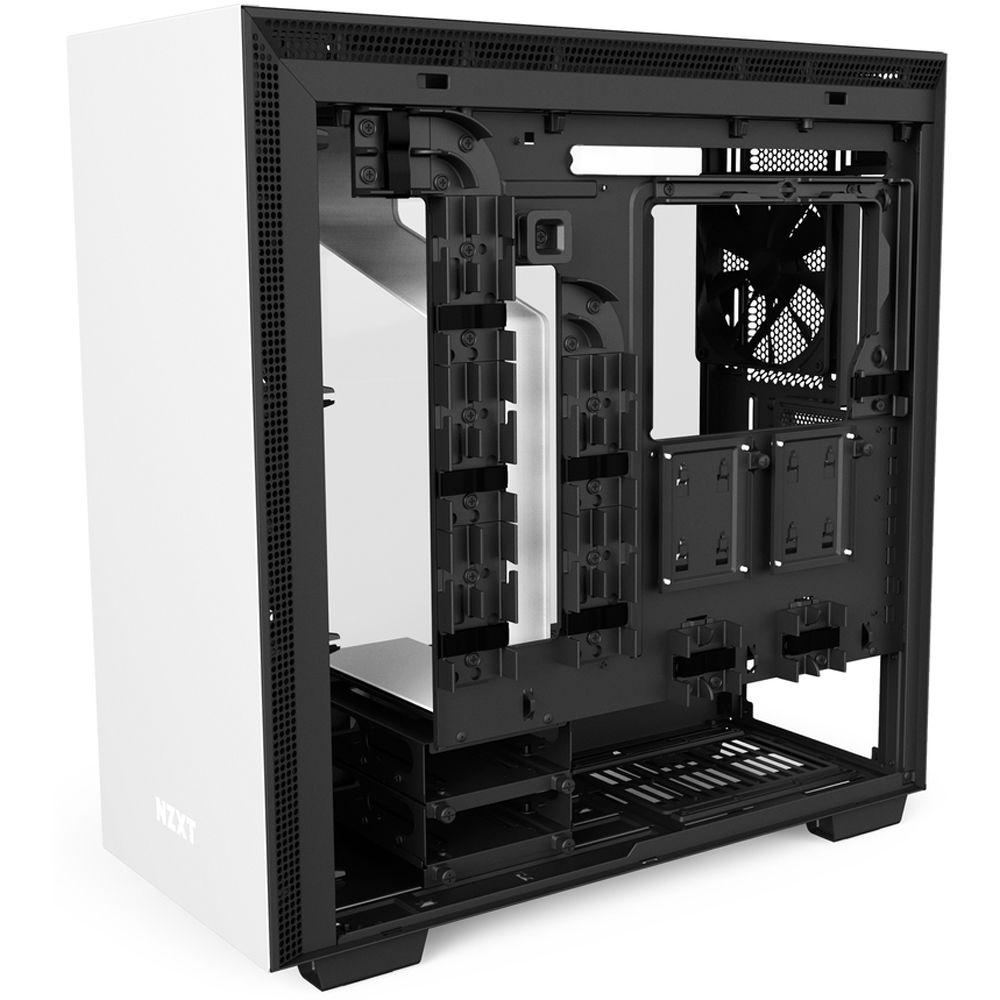

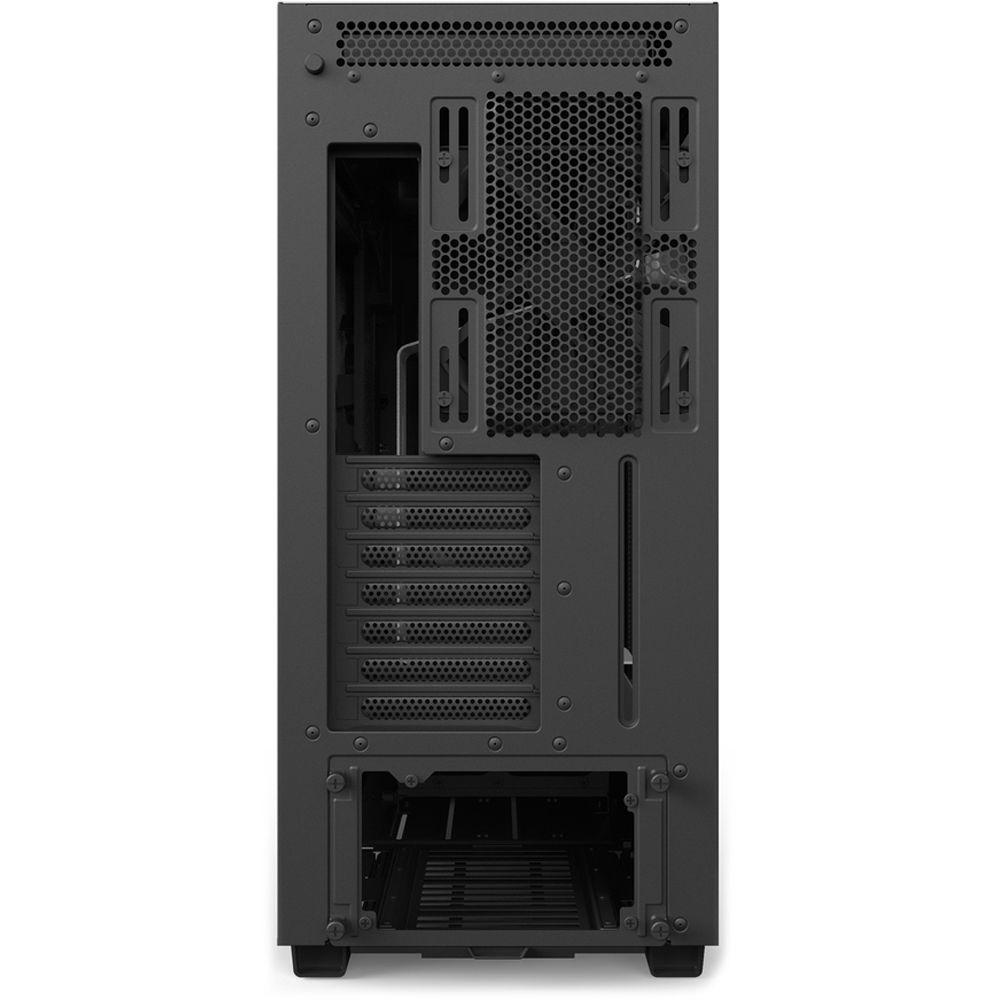

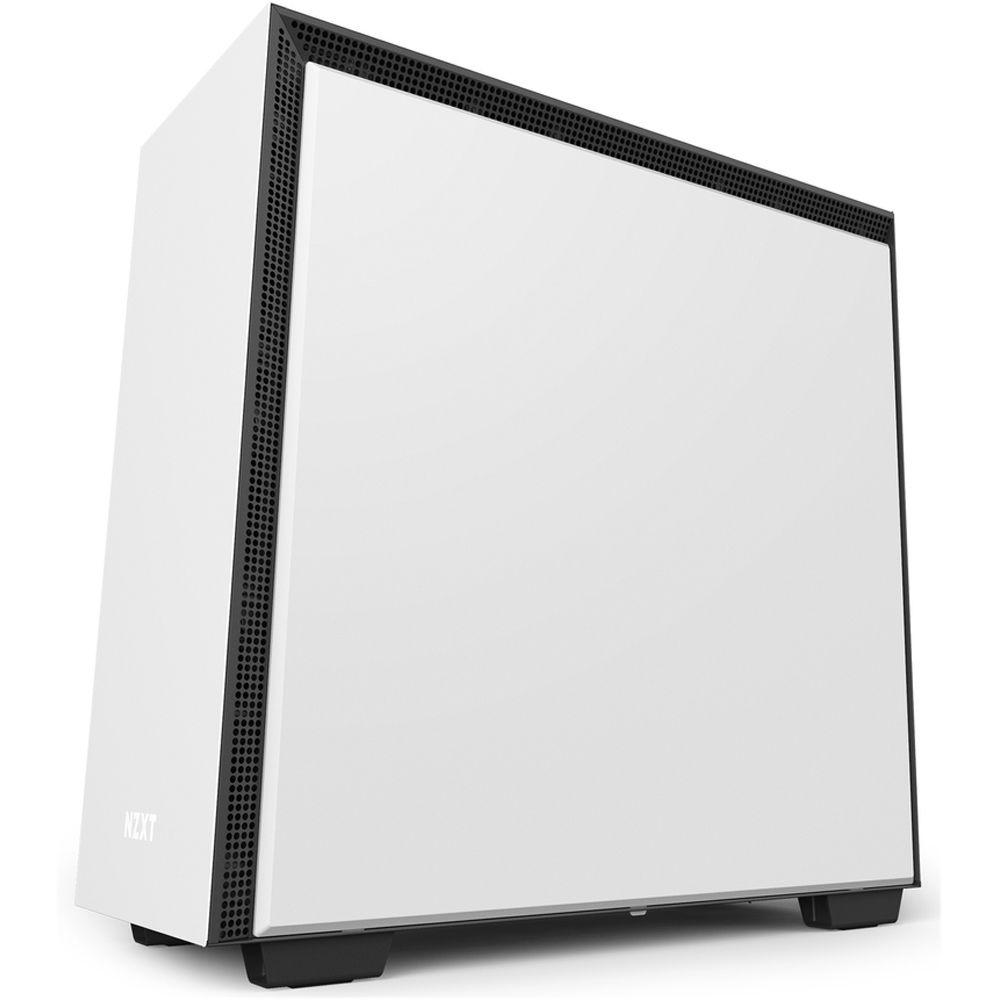

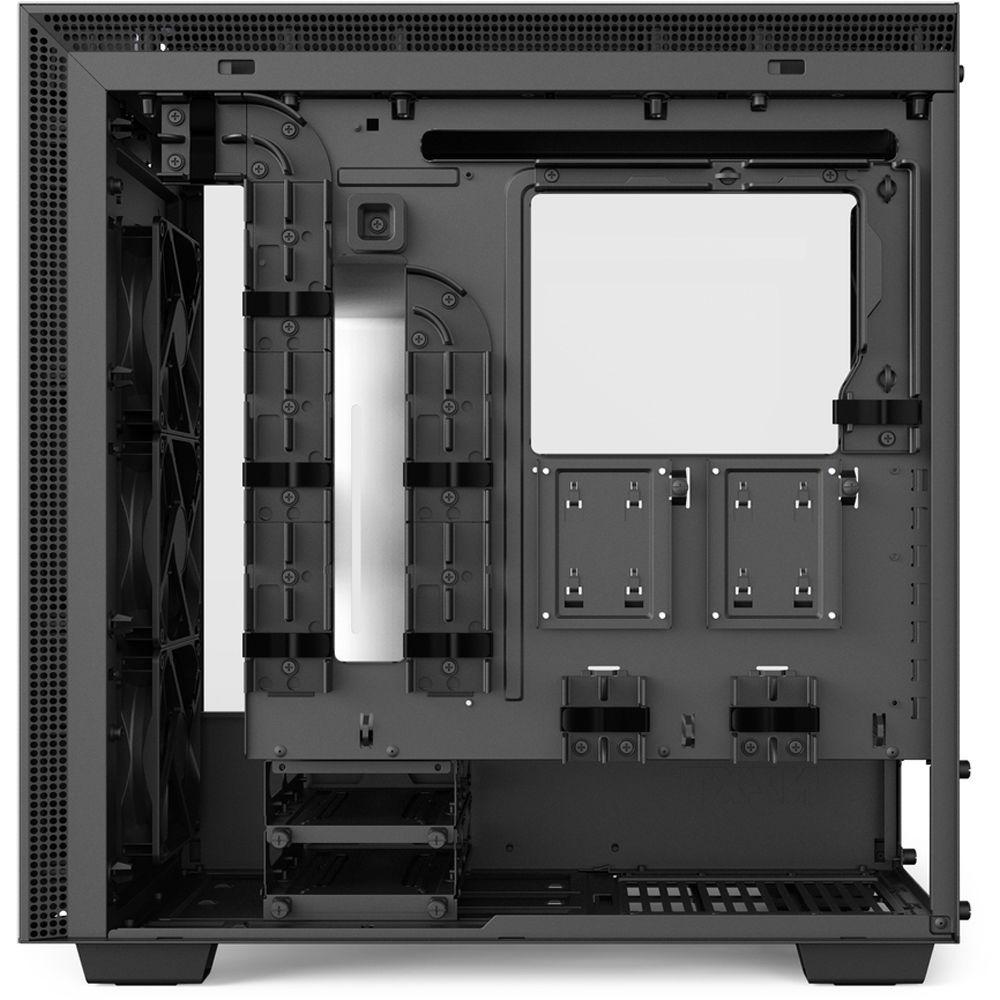

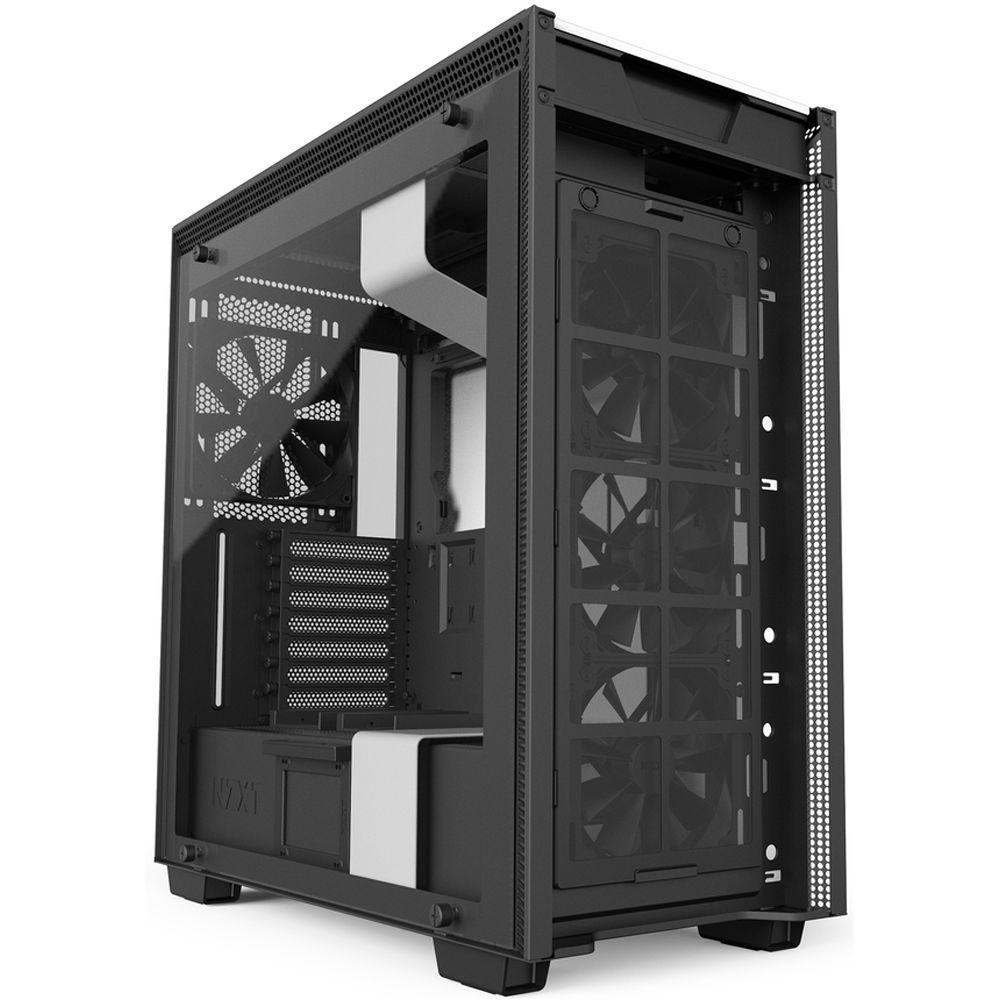

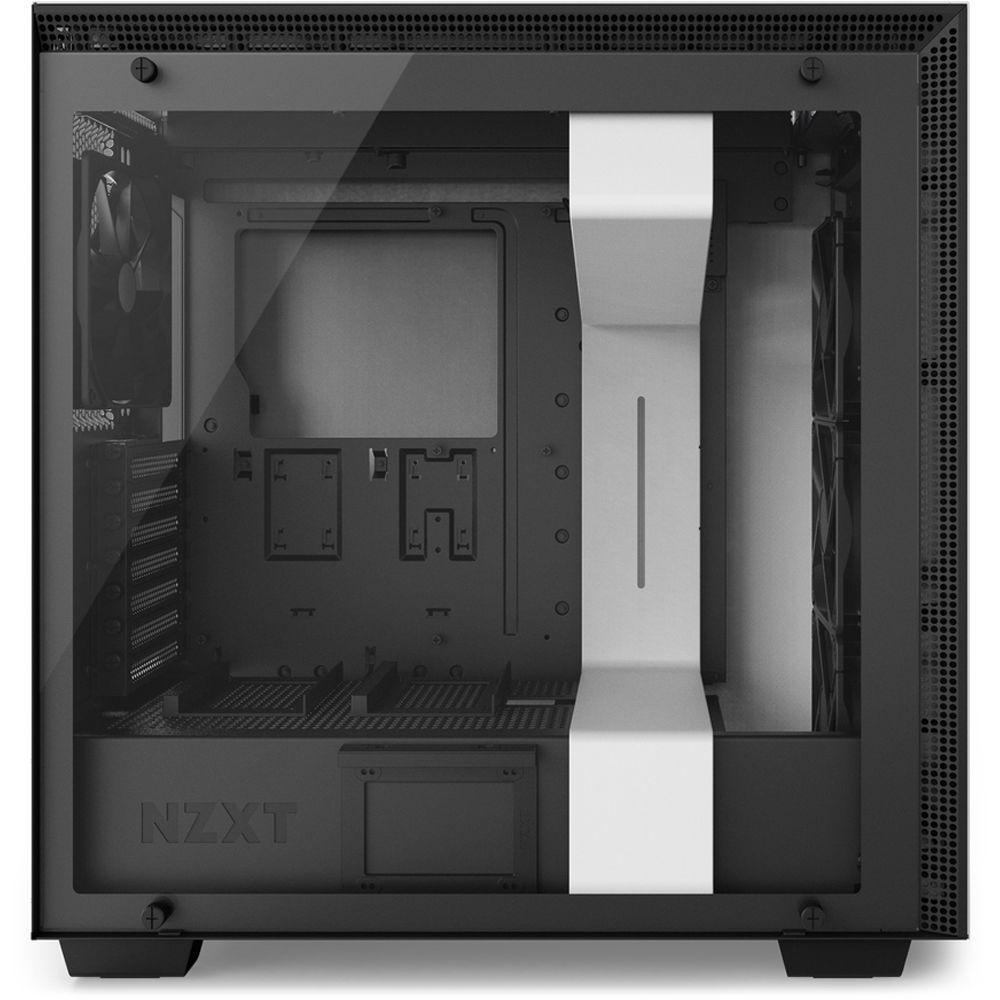

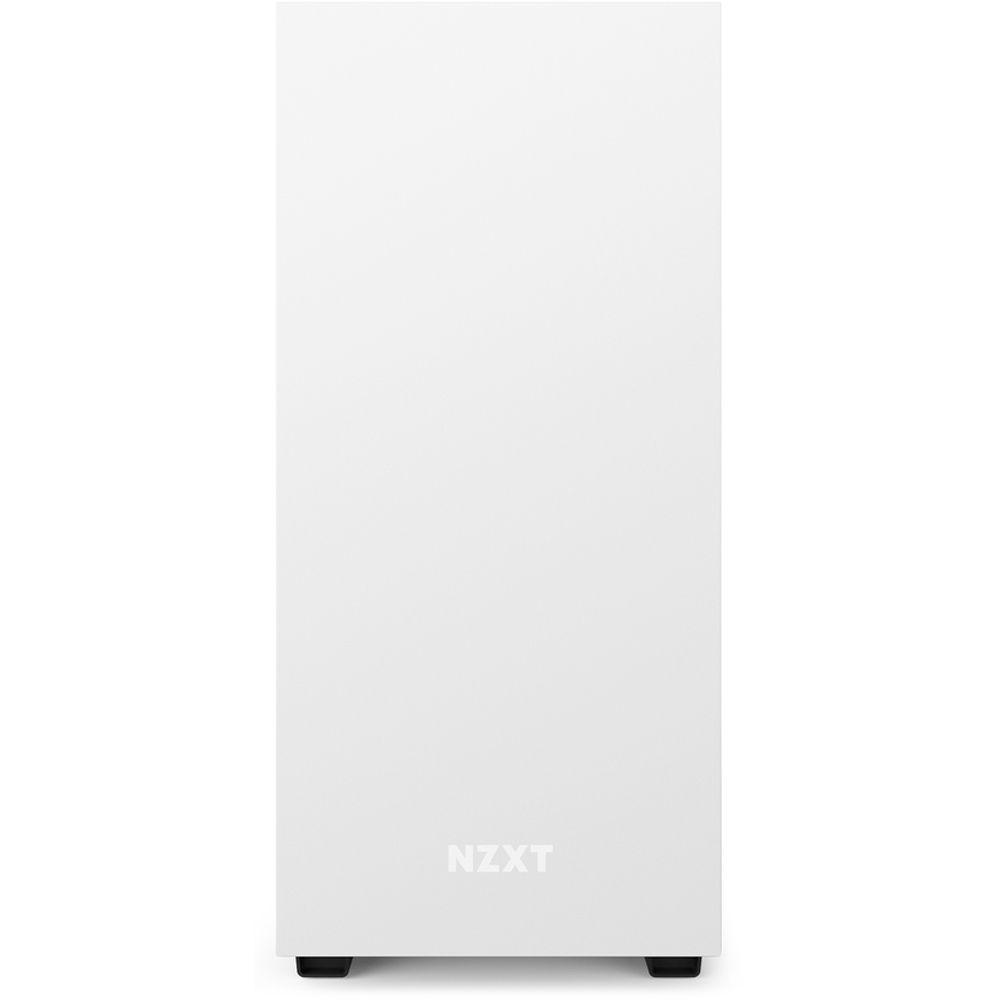

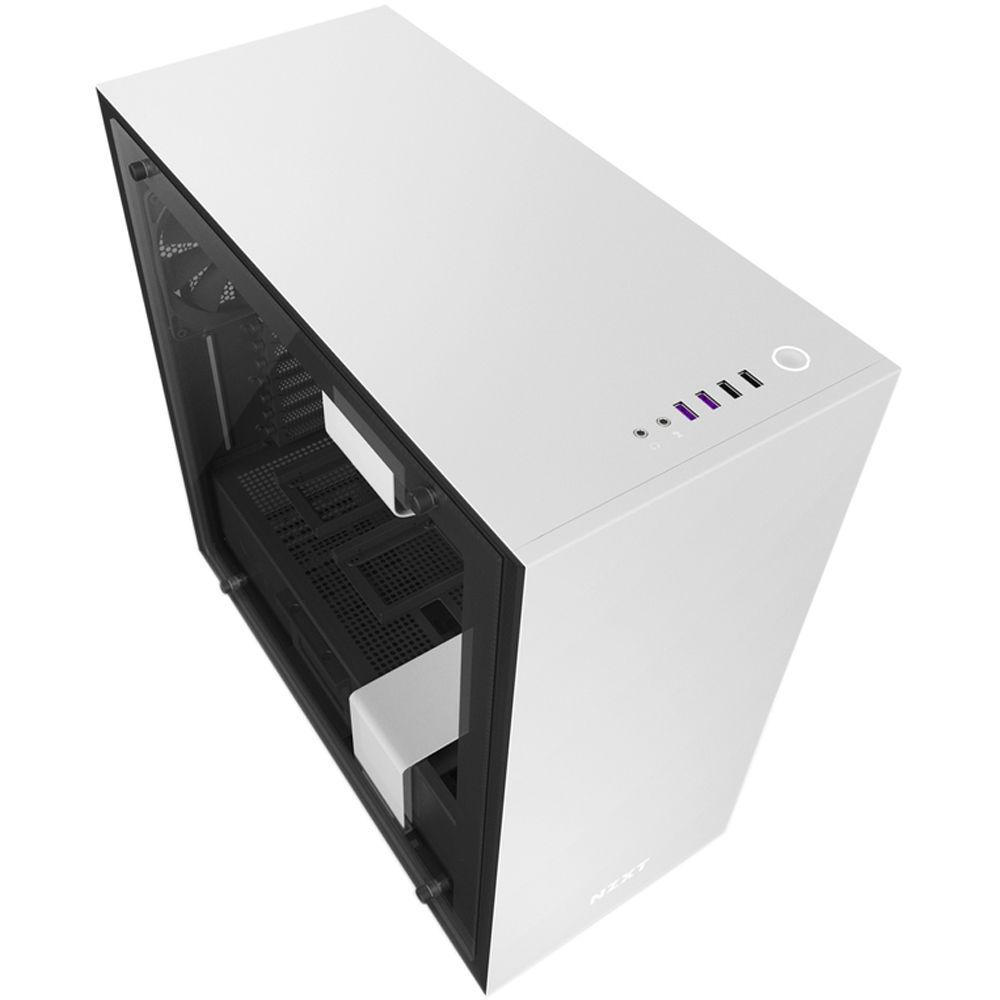

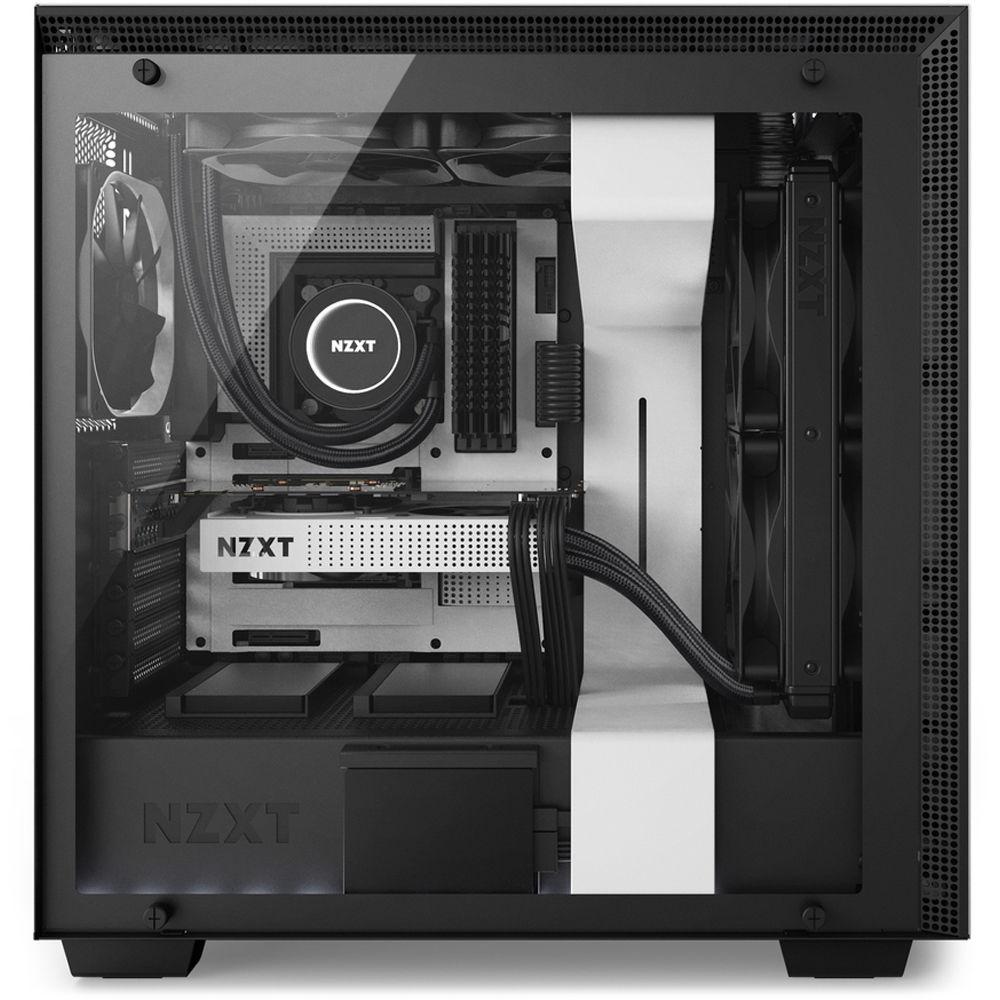

Product description The H700i Mid-Tower Case from NZXT is a compact case with a minimal design fit for up to E-ATX builds. Within this white case is a CAM-powered Smart Device that simplifies fan and lighting installation and management. Moreover, it has built-in adaptive noise reduction that optimizes your build's acoustics for quiet operation. It can hold up to two or three 3.5" drives, seven 2.5" drives, and three dual-slot graphics cards. The H700i has plenty of cooling power with 120mm fan mounting spots on the top and rear, as well as up to a 360mm radiator support with a push/pull fan configuration at the front. Included with this case are three 120mm Aer F120 fans pre-installed in the front and a 140mm Aer F140 located at the back. Once everything is ready to go, you can show off your build thanks to its tempered glass side panel. - Integrated CAM-powered Smart Device simplifies RGB lighting and fan installation and management
- Tempered glass side panel showcases user-installed LED lighting
- Simplified water cooling support for both custom and AIO systems
- Adaptive Noise Reduction within the Smart Device optimizes cooling and noise balance
UPC: 815671013538 In the Box NZXT H700i Mid-Tower Case (White) Screw Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT H700i Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT H700i Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ATX | | External Drive Bays | None | | Internal Drive Bays | 2 x 3.5"
7 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.26" / 413 mm | | CPU Cooler Height | 7.28" / 185 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 3 x 120 mm (1200 rpm) | | Fans Included (Rear) | 1 x 140 mm (1000 rpm) | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Fan Mounting (Internal) | None | | Noise Level | 29 dBA | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front | | | | Connections | 2 x USB Type-A (USB 3.1)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Cable Management Space | 0.87" / 22 mm | | Dimensions (W x H x D) | 9.1 x 20.3 x 19.4" / 230.0 x 516.0 x 494.0 mm | | Weight | 27.1 lb / 12.3 kg | | | | Package Weight | 32.65 lb | | Box Dimensions (LxWxH) | 23.8 x 23.5 x 13.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
