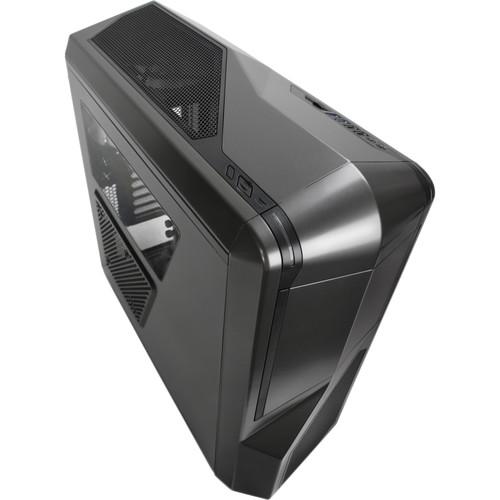

User Manual for NZXT Phantom 410 Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the NZXT Phantom 410 Mid-Tower Case
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
 |
User manual for the NZXT Phantom 410 Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|

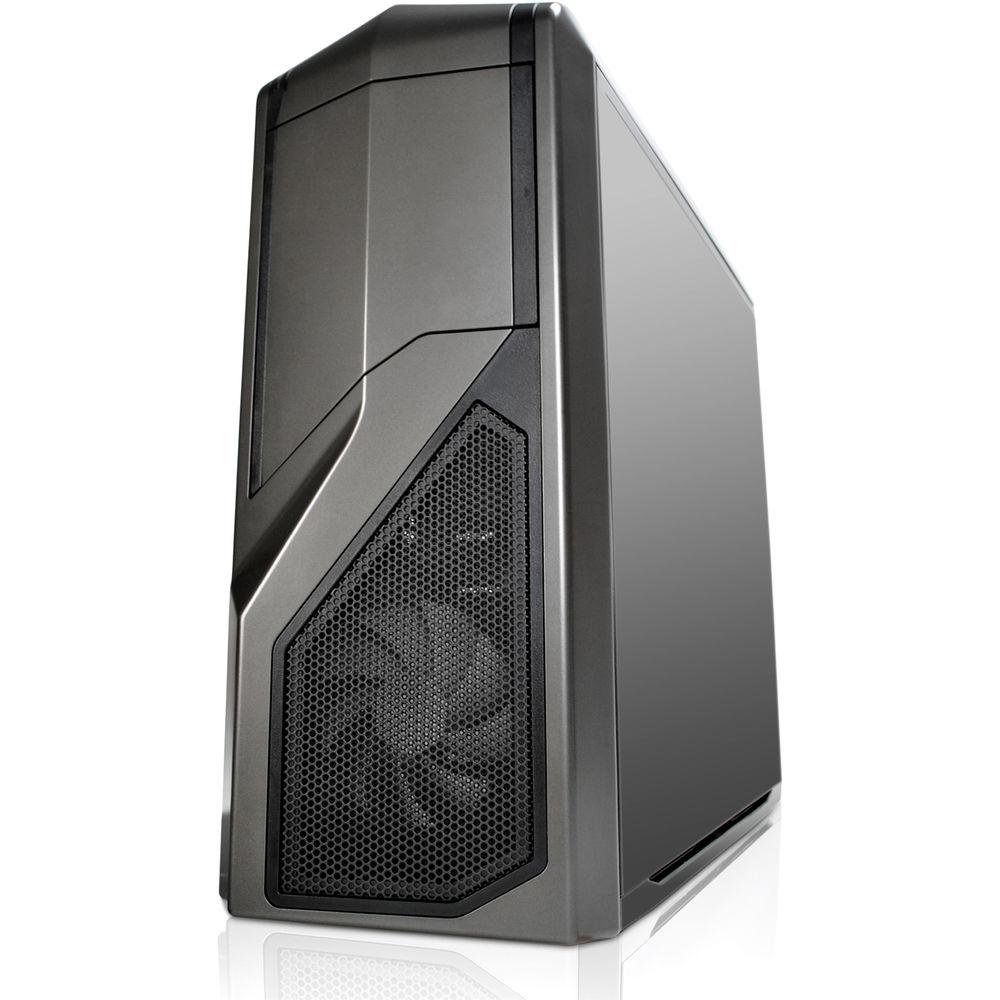

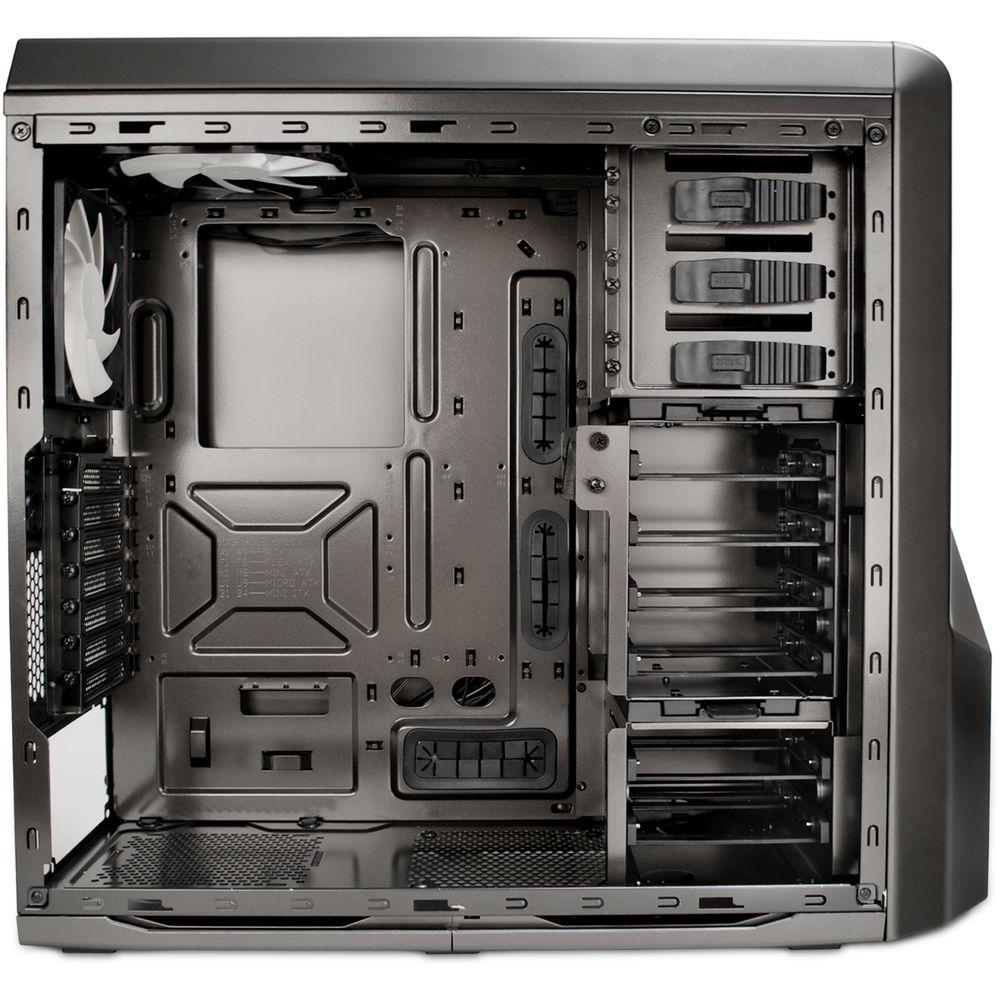

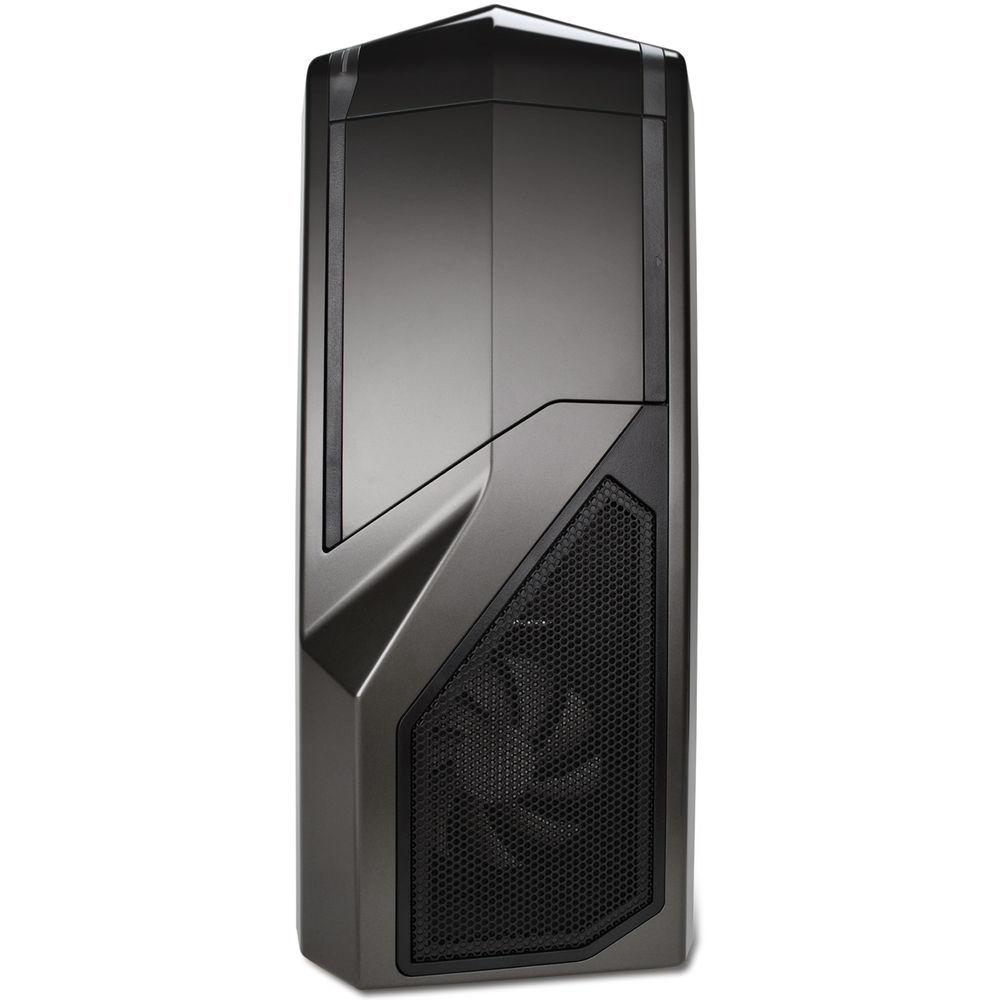

Product description The gunmetal Phantom 410 Mid-Tower Case from NZXT offers optimal expansion and cooling, and supports ATX, Micro-ATX, and Mini-ITX motherboards. It features a windowed side panel and an interior pivoting fan slot that supports either a 120mm or 140mm fan for additional GPU cooling. Mount hard drives easily with its screw-less, right-mounted HDD trays, or remove them if you need more room for a long graphics card. The Phantom 410 has three 5.25" drive bays, and six 3.5" drive bays that can also accommodate 2.5" hard drives or SSDs.For cooling, the Phantom 410 can fit up to eight fans and comes with three preinstalled: one 120mm at the top, one 120mm at the rear, and one 140mm at the front. The top 120mm fan can be removed to fit a 240mm radiator for water cooled configurations. Front I/O ports consist of an audio input and output jacks as well as two USB 2.0 Type-A and two USB 3.0 Type-A ports. Furthermore, it has a 30 W fan controller, allowing you to easily adjust the airflow for performance or silent operation. - Clearance for top 240 mm dual radiator for water cooling solutions
- Adjustable interior pivot 120/140mm fan slot for directional air flow

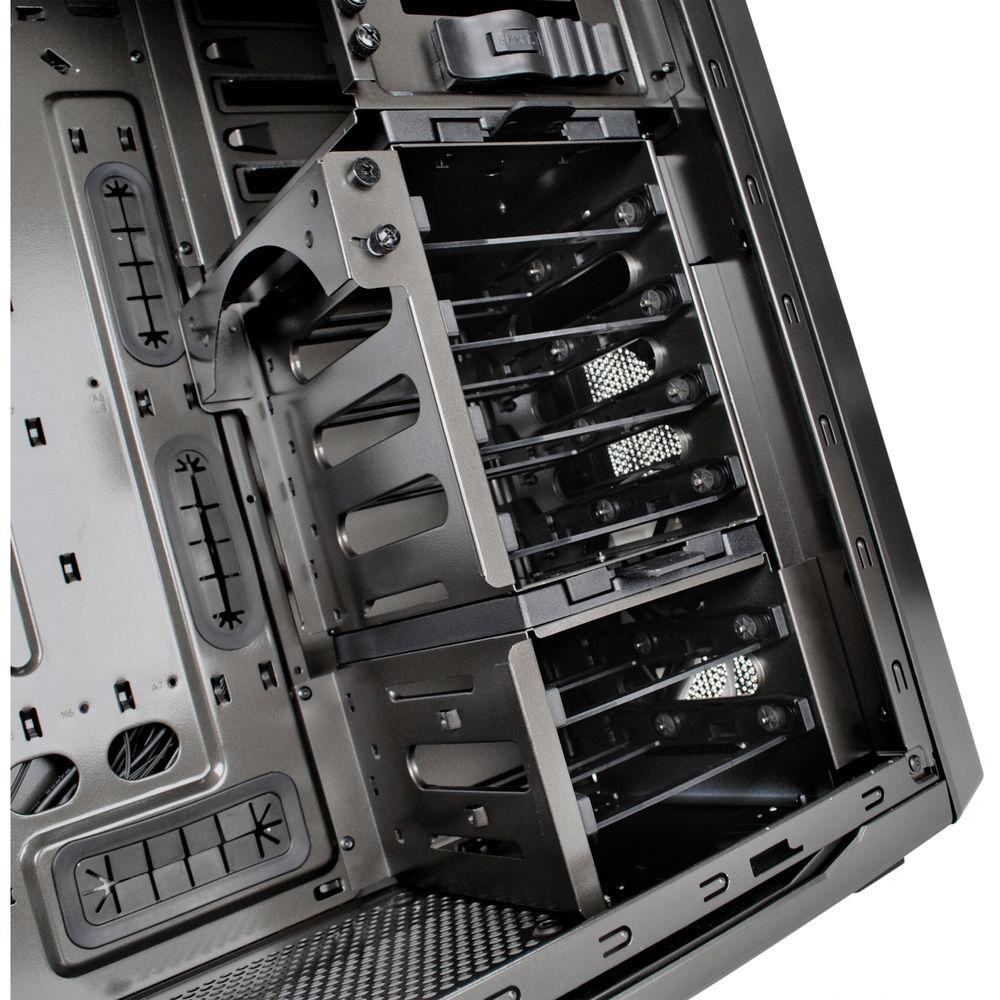

- Removable HDD cage to allow more room for extended video cards
- Right mounted HDD rails for easy hard drive replacement

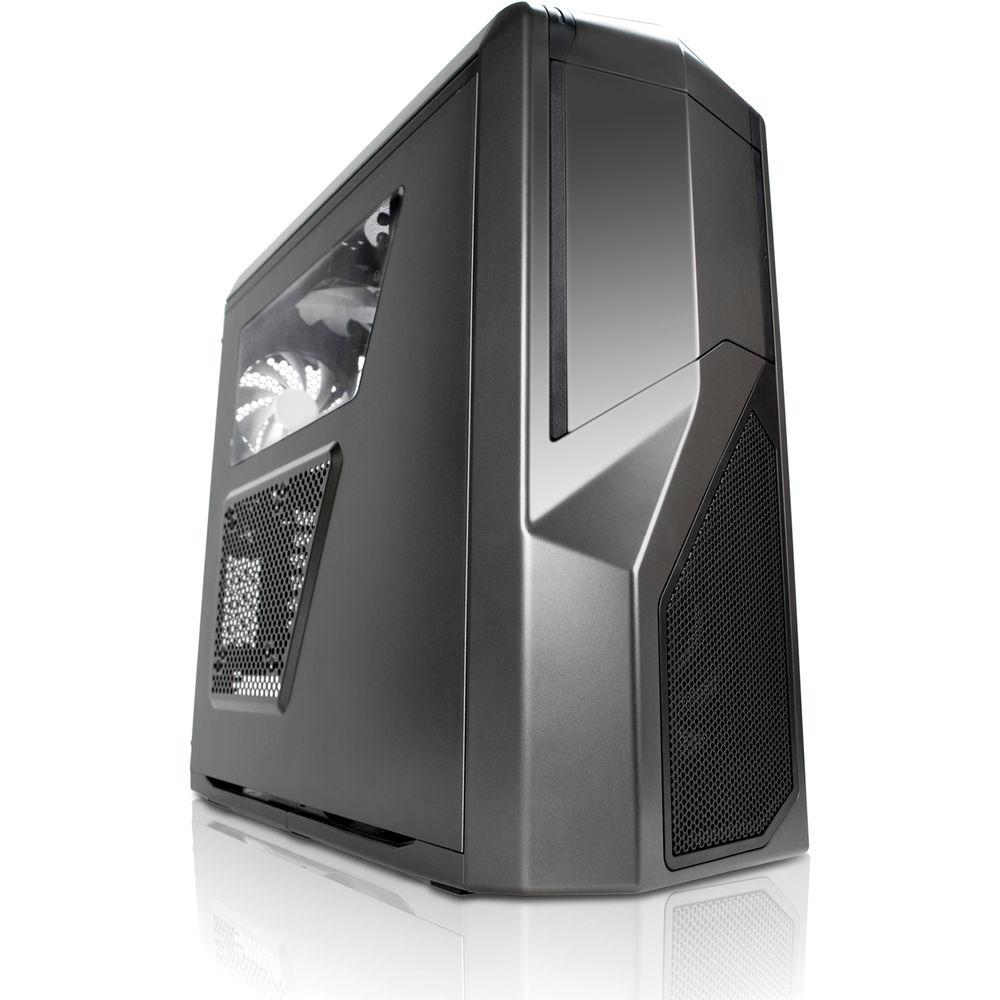

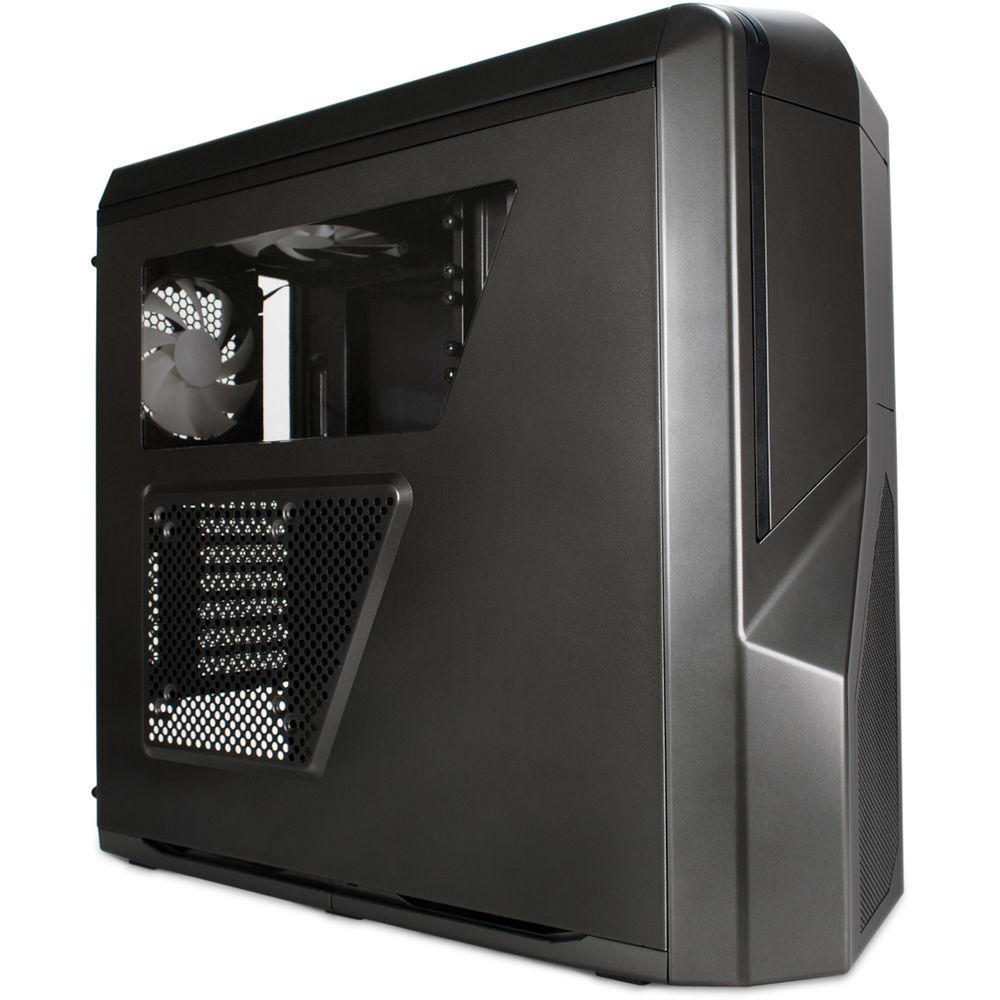

- Single 120/140mm side fan with acrylic window for interior viewing and cooling
- Front internal 2 x USB 3.0 headers, 2x USB 2.0, audio and microphone input
- 30W 3-step fan control for setting up your system for silence or performance
- Wire management support up to 0.9" space for easy cable management
- Screw-less 5.25" and 3.5" HDD trays that can also secure 2.5" SSDs
- Cooling capability of up to eight fans (2 x 120mm and 1 x 140mm LED fan included)
UPC: 815671010773 In the Box NZXT Phantom 410 Mid-Tower Case (Gunmetal) 12 x Thumb Screws (6-32) 6 x Thumb Screws (M3 x 5) 14 x Screws (5 x 10KT) 4 x Screws (6-32 x 28) 4 x Hexagon Screws (6-32) 15 x Screws (6-32 x 5) 24 x Screws (M3 x 5) 9 x Stand-Offs 1 x Stand-Off Wrench 10 x Cable Ties Limited 2-Year Warranty User Manual PDF 21.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT Phantom 410 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT CA-PH410-G1 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 6 x 3.5" | | Maximum GPU Length | 12" / 30.5 cm | | | | Fan Mounting (Front) | 1 x 120 mm
| | Fan Mounting (Side) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Top) | 1 x 140 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Mounting (Internal) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Controller Included | Yes | | Filter Locations | Front, Bottom | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Cable Management Space | 1" / 25 mm | | Dimensions (W x H x D) | 8.4 x 20.3 x 20.9" / 215.0 x 516.0 x 532.0 mm | | Weight | 19.8 lb / 9.0 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 11.0" |
