NZXT Phantom 820 Full-Tower Case

Search your instruction manual in PDF to download

User Manual for NZXT Phantom 820 Full-Tower Case

Click to enlarge the picture
NZXT Phantom 820 Full-Tower Case Contents of the user manual for the NZXT Phantom 820 Full-Tower Case
  • Product category: Desktop Computer Cases NZXT
  • Brand: NZXT
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NZXT Desktop Computer Cases

NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case NZXT Phantom 820 Full-Tower Case
User manual for the NZXT Phantom 820 Full-Tower Case contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NZXT product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!



Product description

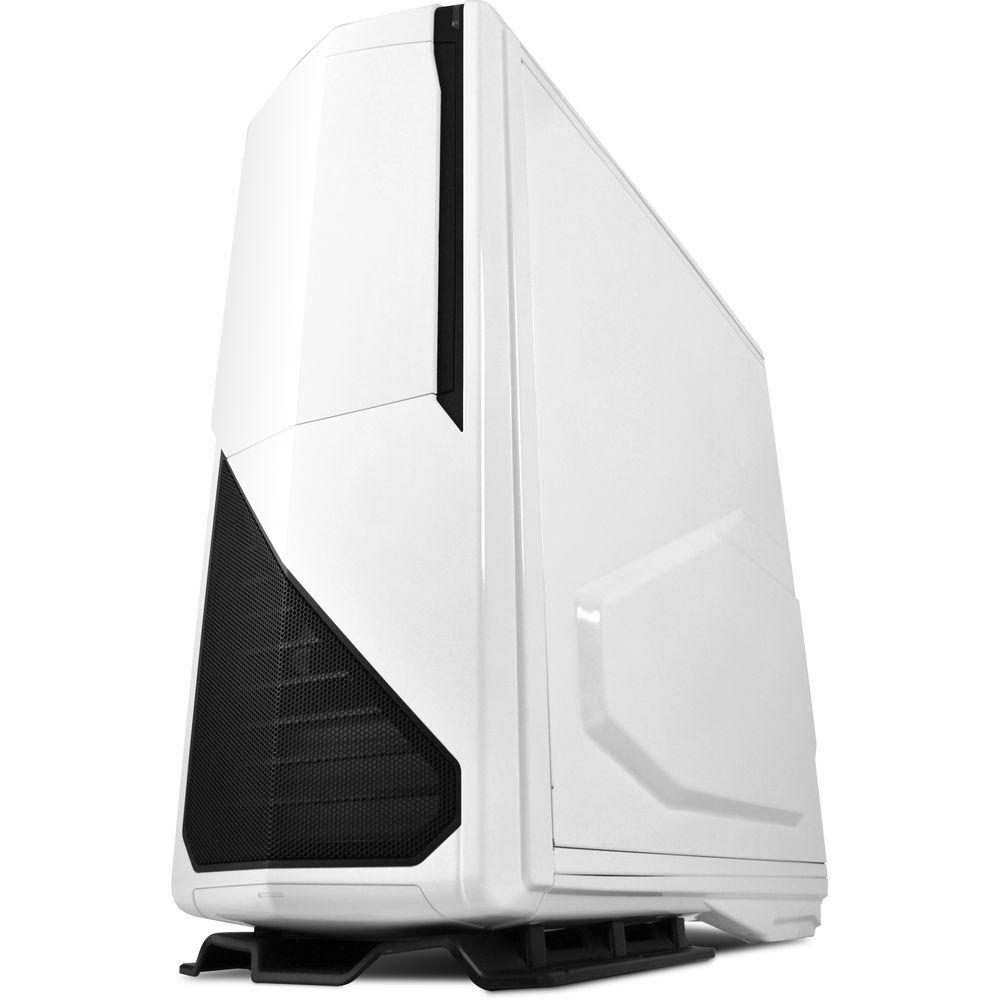

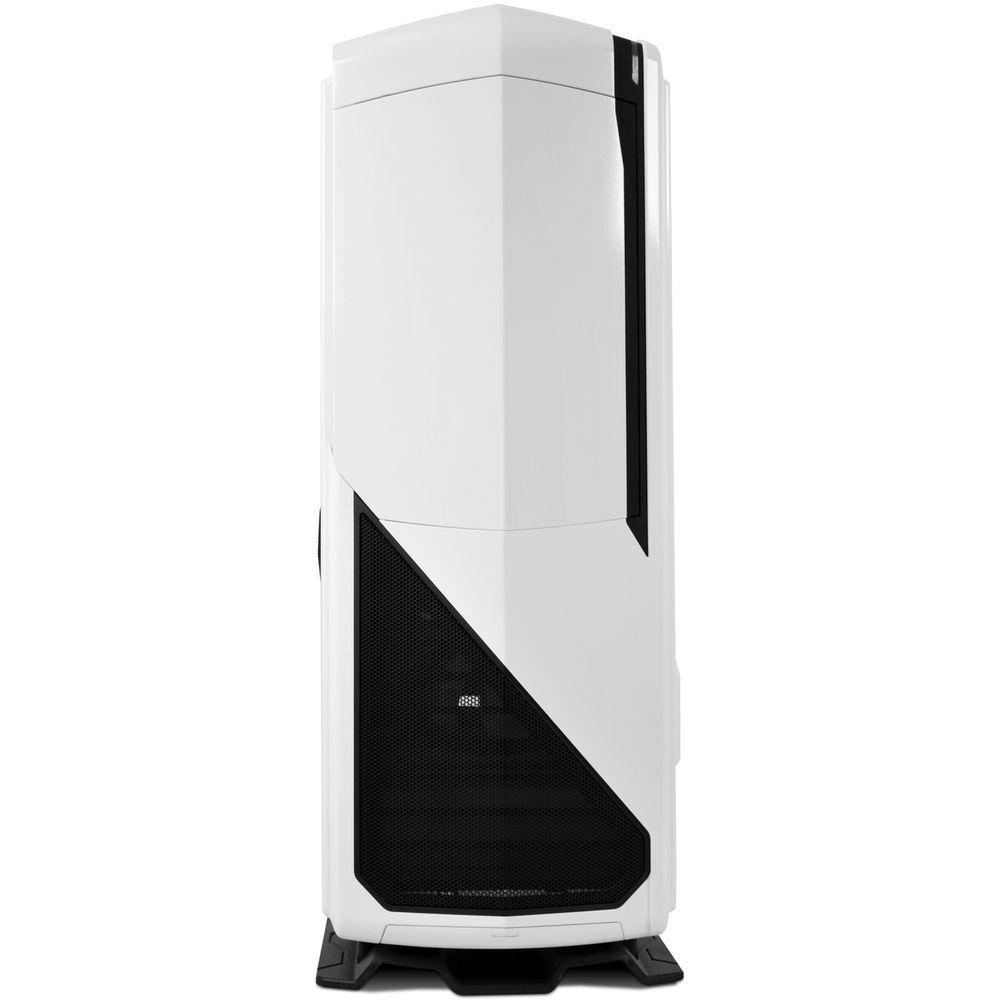

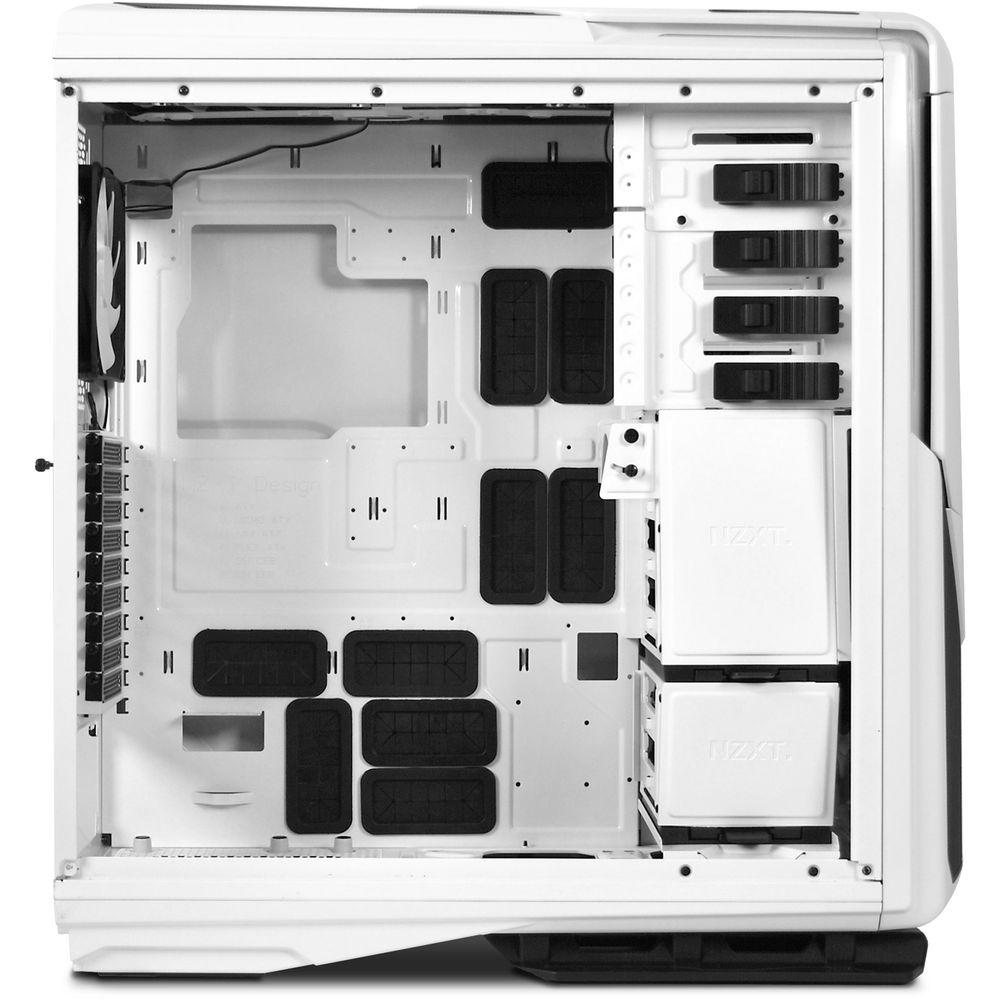

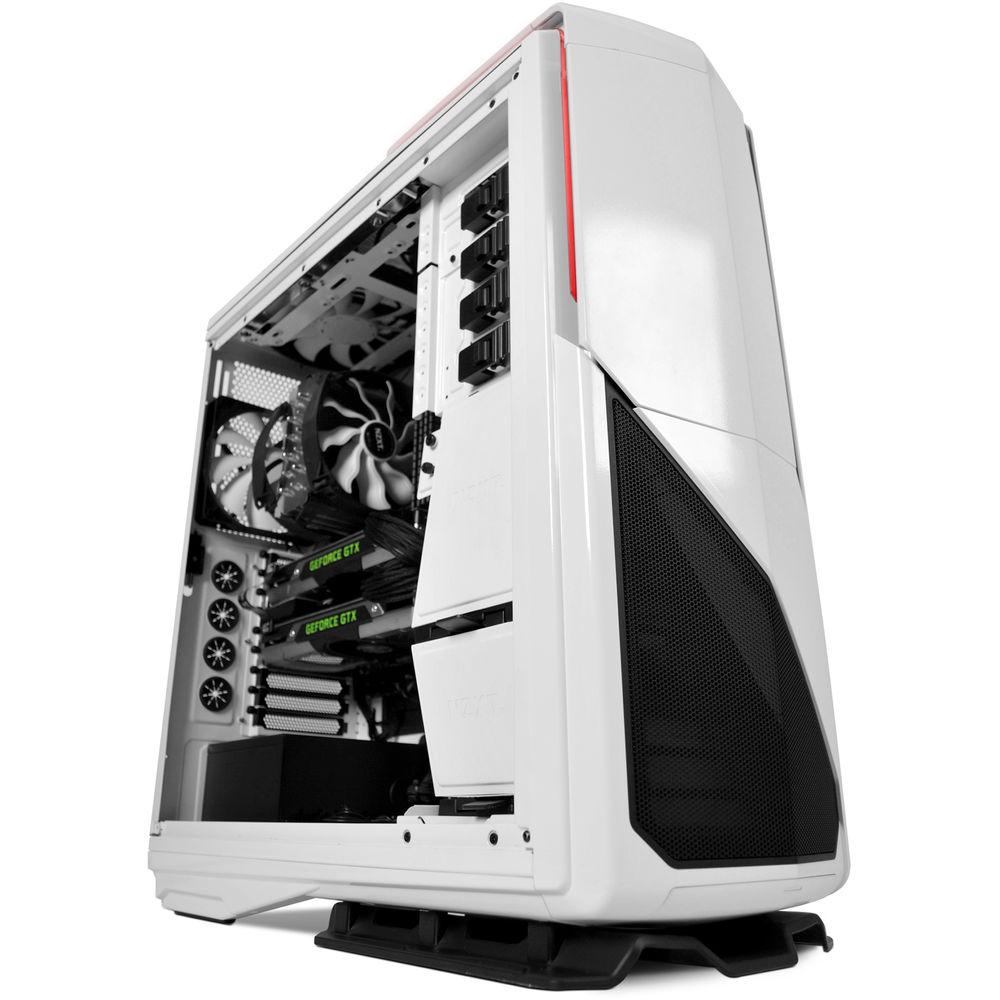

The NZXT Phantom 820 Full-Tower Case features a glossy white exterior and provides enough space to house extended-ATX, XL-ATX, ATX, micro-ATX, and mini-ITX motherboards. Corsair has designed this case to support up to four 5.25" and six 3.5" drives inside its bays. You may install graphics cards up to 13.1" long or remove a drive cage to accommodate larger-sized cards. For cooling your components, one 140mm fan along with three 200mm fans provide high airflow while remaining quiet. There's also an integrated 4-channel digital fan controller that controls the cooling performance of the fans. Furthermore, Corsair has outfitted this case with an adjustable interior pivot 120/140mm fan slot for directional airflow and mounting locations that can hold additional fans as well as liquid cooling solutions.

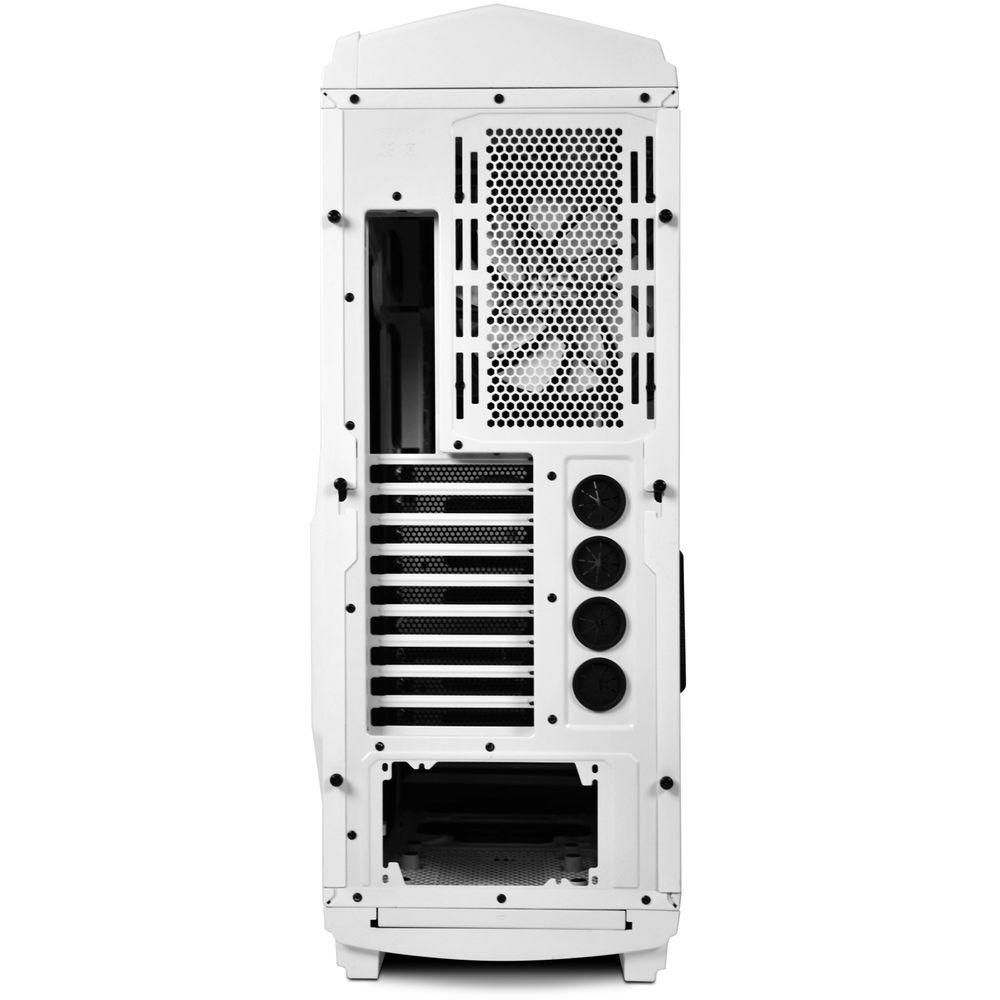

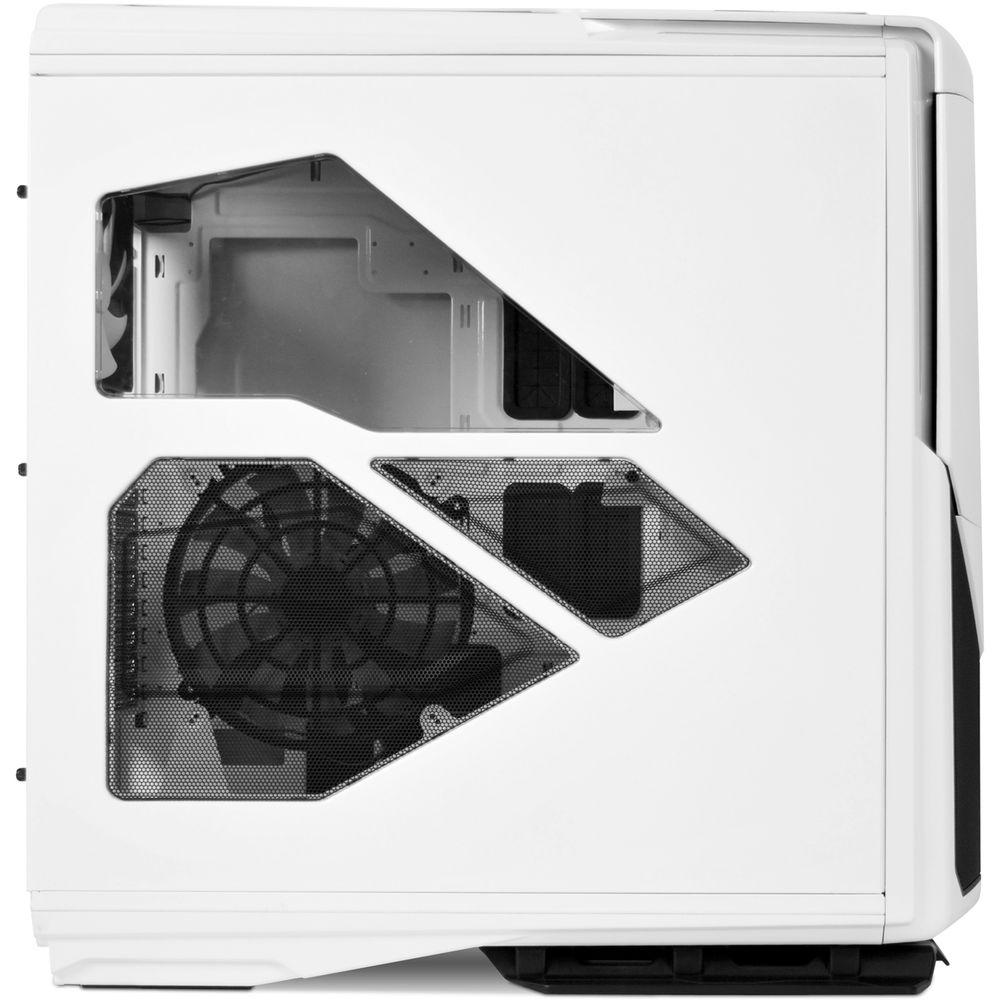

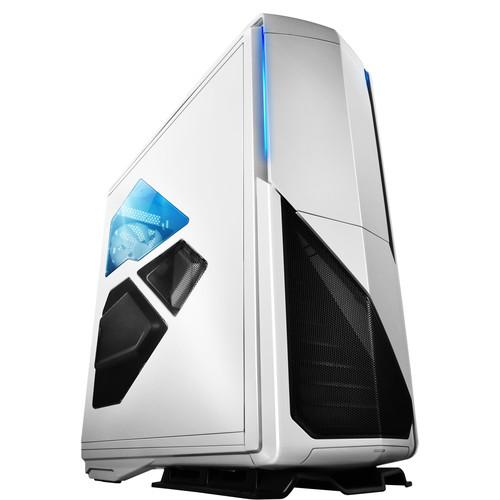

The Phantom is outfitted with other features such as integrated HUE LEDs for illuminating the interior along with the exterior of this case. These LEDs can be customized with various colors and turned on or off. To help you see the rear ports, a white LED offers visibility in darken environments. Other notable features include 1.4" cable management spaces along with a windowed side panel so you can show off your internal components. Additionally, the 820 case sports two USB 3.0 and four USB 2.0 ports as well as a combo audio jack and SD card reader for easy access.
    Airflow
  • The quad-channel digital fan controller provides 15 watts per channel to control the speed of the fans precisely. Moreover, LED indicators progressively get brighter on high speeds and dimmer for low settings. This case also comes with four fans and supports a total of nine fans.
    Integrated HUE LED System
  • The integrated RGB lighting system illuminates the interior and exterior of your enclosure.
    Water Cooling Support
  • Corsair has design this case to support radiators in the size up to 360mm in the top space and radiators up to 280mm on the bottom.
    Fan Filters
  • The easily removable filters are located in the top, front, side, and bottom of the case. The elevated pedestal also helps keep your PC dust-free by lifting it off the ground.
    Cable Management

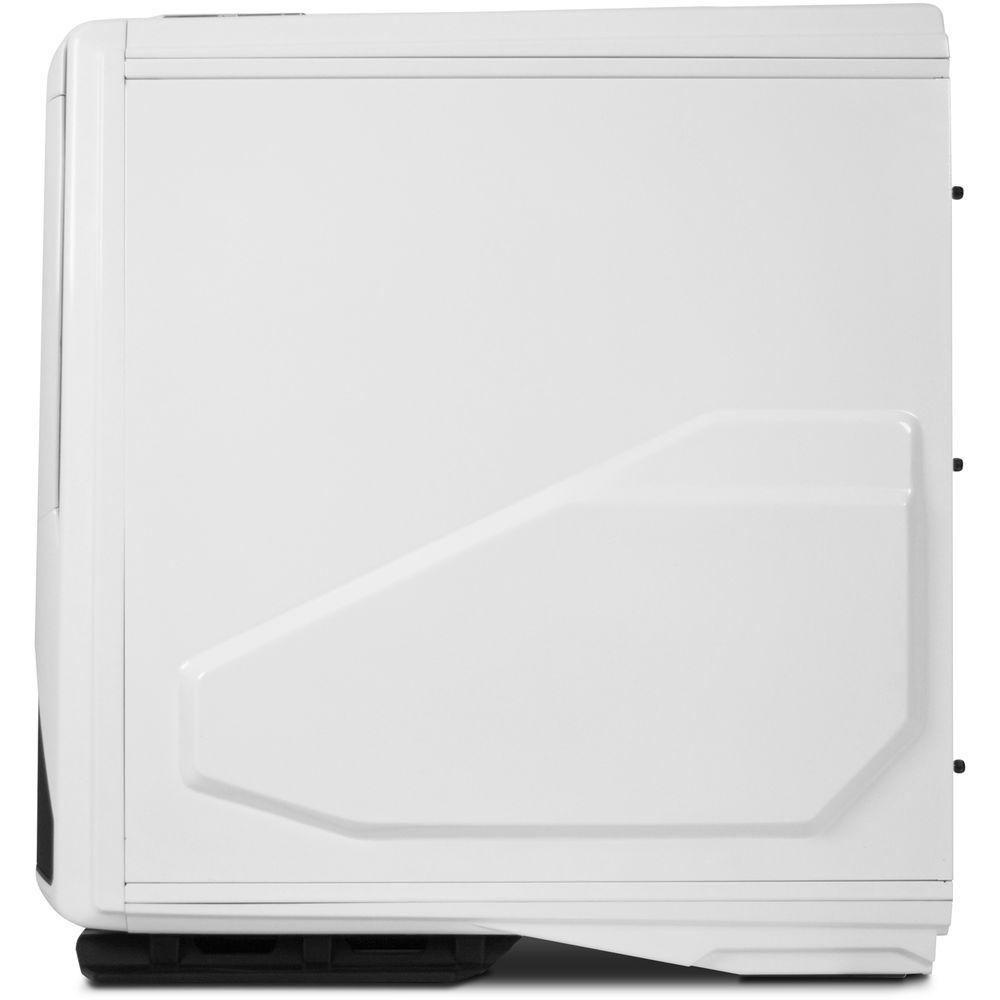

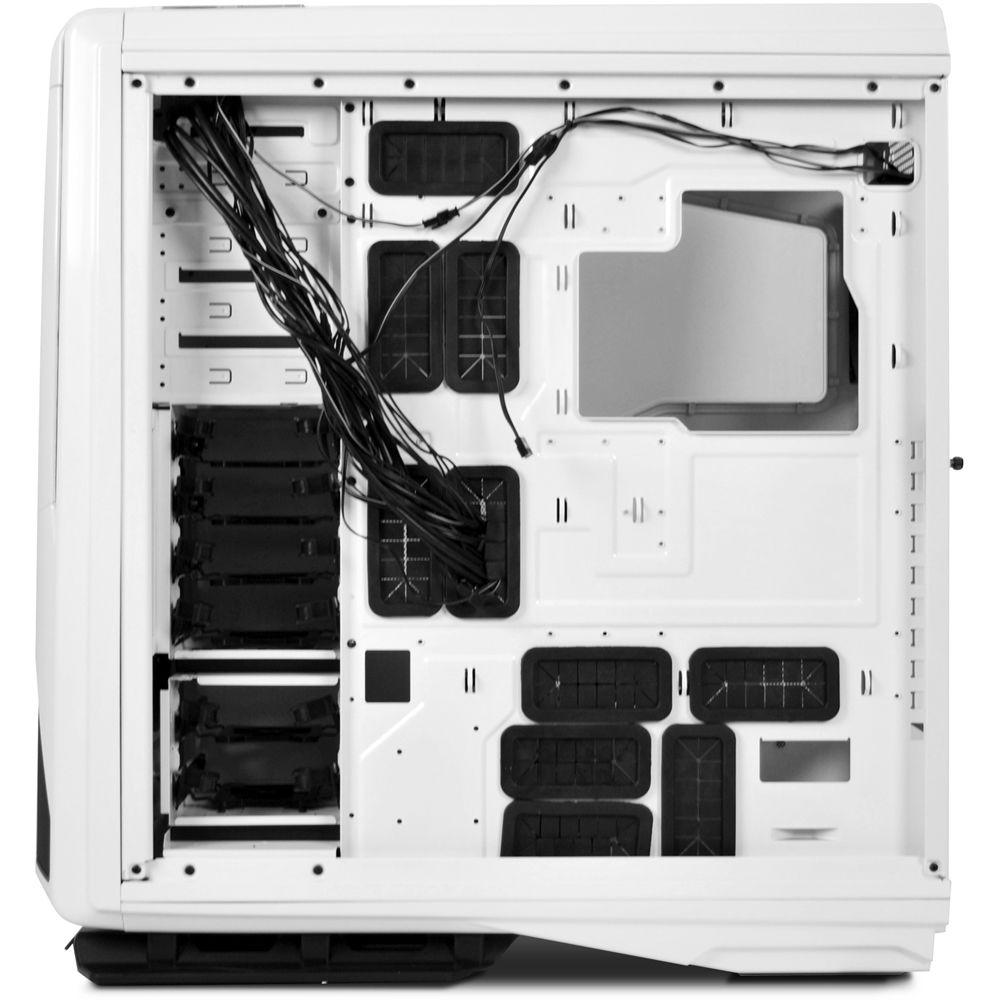

  • The extruded right side panel provides up to 1.4" of management space for storing your cables.
UPC: 815671011039 In the Box NZXT Phantom 820 Full-Tower Case (Glossy White)
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NZXT Phantom 820 Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for NZXT Phantom 820 Full-Tower Case can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for NZXT Phantom 820 Full-Tower Case can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the NZXT Phantom 820 Full-Tower Case can be downloaded in PDF format at the link stated below.
    Download PDF user manual - NZXT Phantom 820 Full-Tower CaseDownload PDF User Manual - https://www.search-manual.com/ upload/ nzxt-phantom-820-full-tower-case-216315-user-manual.pdf
    (PDF file, 20.17 MB)


    Technical parameters

    NZXT CA-PH820W1 Specs

    Motherboard Support E-ATX, XL-ATX, ATX, Micro-ATX, Mini-ITX
    External Drive Bays 4 x 5.25"
    Internal Drive Bays 6 x 3.5"
    Maximum GPU Length 13.1" / 33.3 cm
    CPU Cooler Height 6" / 15.3 cm
    Fan Mounting (Top) 1 x 200 mm
    Fan Mounting (Bottom) 2 x 120 mm
    Or
    2 x 140 mm
    Fans Included (Front) 1 x 200 mm
    Fans Included (Rear) 1 x 140 mm
    Fans Included (Side) 1 x 200 mm
    Fans Included (Top) 1 x 200 mm
    Maximum Radiator Size (Rear) 140 mm
    Maximum Radiator Size (Side) 140 mm
    Maximum Radiator Size (Top) 360 mm
    Maximum Radiator Size (Bottom) 280 mm
    Fan Mounting (Internal) 1 x 120 mm
    Or
    1 x 140 mm
    Fan Controller Included Yes
    Filter Locations Front, Top, Bottom, Side
    Connections 2 x USB Type-A (USB 3.0)
    4 x USB Type-A (USB 2.0)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel No
    Material Steel, Plastic
    Cable Management Space 1.3" / 34 mm
    Dimensions (W x H x D) 9.3 x 25.6 x 24.1" / 235.0 x 650.0 x 612.0 mm
    Weight 33.1 lb / 15.0 kg
    Package Weight 40.15 lb
    Box Dimensions (LxWxH) 30.0 x 27.0 x 12.0"
