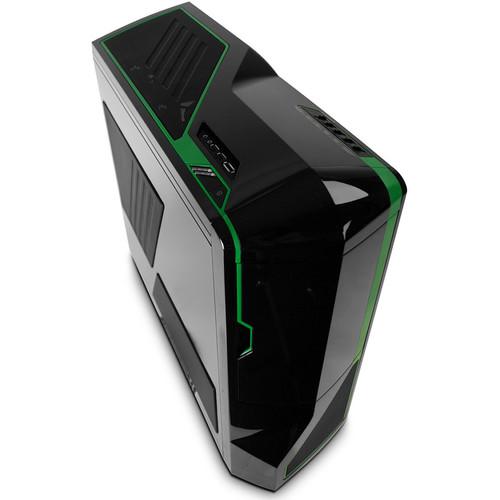

User Manual for NZXT Phantom Full-Tower Case Click to enlarge the picture
Contents of the user manual for the NZXT Phantom Full-Tower Case
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
|
User manual for the NZXT Phantom Full-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|
Product description The black with green stripes Phantom Full-Tower Case from NZXT supports E-ATX, ATX, and Micro-ATX motherboards, and is engineered to offer enhanced cooling and expandability. It can accomodate up to five 5.25" drives and seven 3.5/2.5" hard drives or solid-state drives. The Phantom's cooling capabilities include seven fan options with dual 200mm, single side 230/200mm, triple 120mm, front 140mm fans. It includes dual radiator support, quad water-cooling cutouts, and an integrated fan controller with up to five 20W channels. In addition, this case is also equipped with seven expansion slots, audio in/out jacks, an eSATA port, a five-channel fan controller, and a single USB 3.0 and two USB 2.0 ports for peripheral connectivity. -
- Phantom’s extensive cooling capabilities include 7 fan cooling options with dual 200mm, single side 230/200mm (Guaranteed fit with FN-200 & FS-200 fans), triple 120mm, and front 140mm fans.
- For enhanced control and expandability, Phantom includes dual radiator support, quad water cooling cutouts, and an integrated fan controller with up to five 20W channels.
- Meticulous wire management is easily attainable with large spacing behind the motherboard.
- Screw-less bays make installing and swapping HDDs an effortless process.
- Rubber grommets dampen vibration during operation and allow clean cable management.
In the Box NZXT Phantom Full-Tower Case (Black with Green Stripes) 36 x M3 Screws 8 x 6-32 Flat Screws 36 x 6-32 Screws 4 x 6-32 Hexagon Screws 9 x Stand-Offs 4 x Kb 5x10mm Screws 4 x 6-32x12WM, W=7 Screws 4 x 6-32x28mm Screws 2 x 6-32x21mm Screws 10 x M3 Thumb Screws 7 x 6-32x17mm Thumb Screws 10 x Cable Ties 1 x Left Water-Cooler Bracket 1 x Right Water-Cooler Bracket Limited 2-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT Phantom Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT PHAN-002GR Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX | | External Drive Bays | 5 x 5.25" | | Internal Drive Bays | 7 x 2.5" | | Maximum GPU Length | 13.8" / 35.1 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | | | Fan Mounting (Front) | 1 x 140 mm
| | Fan Mounting (Top) | 1 x 200 mm
| | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Side) | 2 x 120 mm | | Fans Included (Top) | 1 x 200 mm LED | | Maximum Radiator Size (Top) | 240 mm | | Fan Controller Included | Yes | | Filter Locations | Top, Side | | | | Connections | 2 x USB Type-A (USB 3.0)
1 x eSATA (eSATA) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | 0.9" / 23 mm | | Dimensions (W x H x D) | 8.7 x 21.2 x 24.5" / 222.0 x 540.0 x 623.0 mm | | Weight | 24.2 lb / 11.0 kg | | | | Package Weight | 27.4 lb | | Box Dimensions (LxWxH) | 27.0 x 24.0 x 11.0" |
