User Manual for NZXT S340 Razer Edition Mid-Tower Chassis Click to enlarge the picture
Contents of the user manual for the NZXT S340 Razer Edition Mid-Tower Chassis
- Product category: Desktop Computer Cases NZXT
- Brand: NZXT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NZXT Desktop Computer Cases
 |
User manual for the NZXT S340 Razer Edition Mid-Tower Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NZXT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NZXT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NZXT product will considerably shorten its lifespan!
|

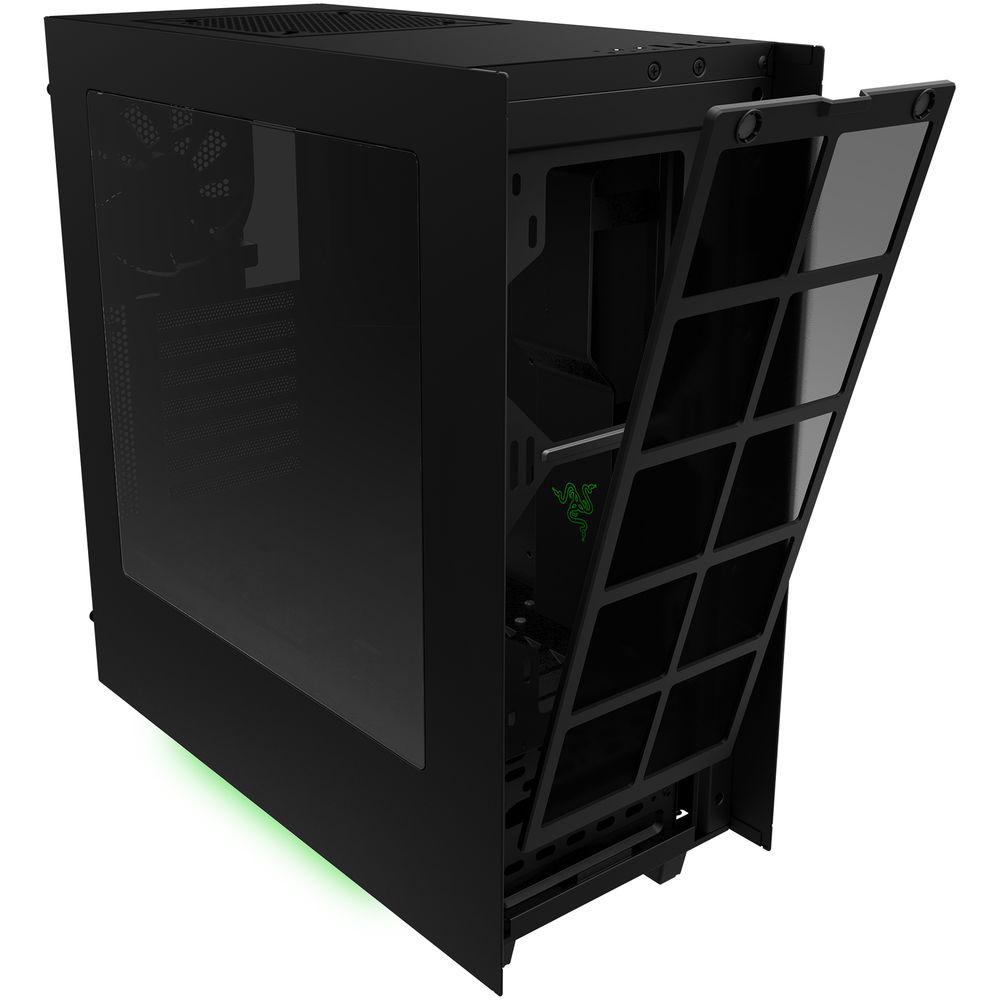

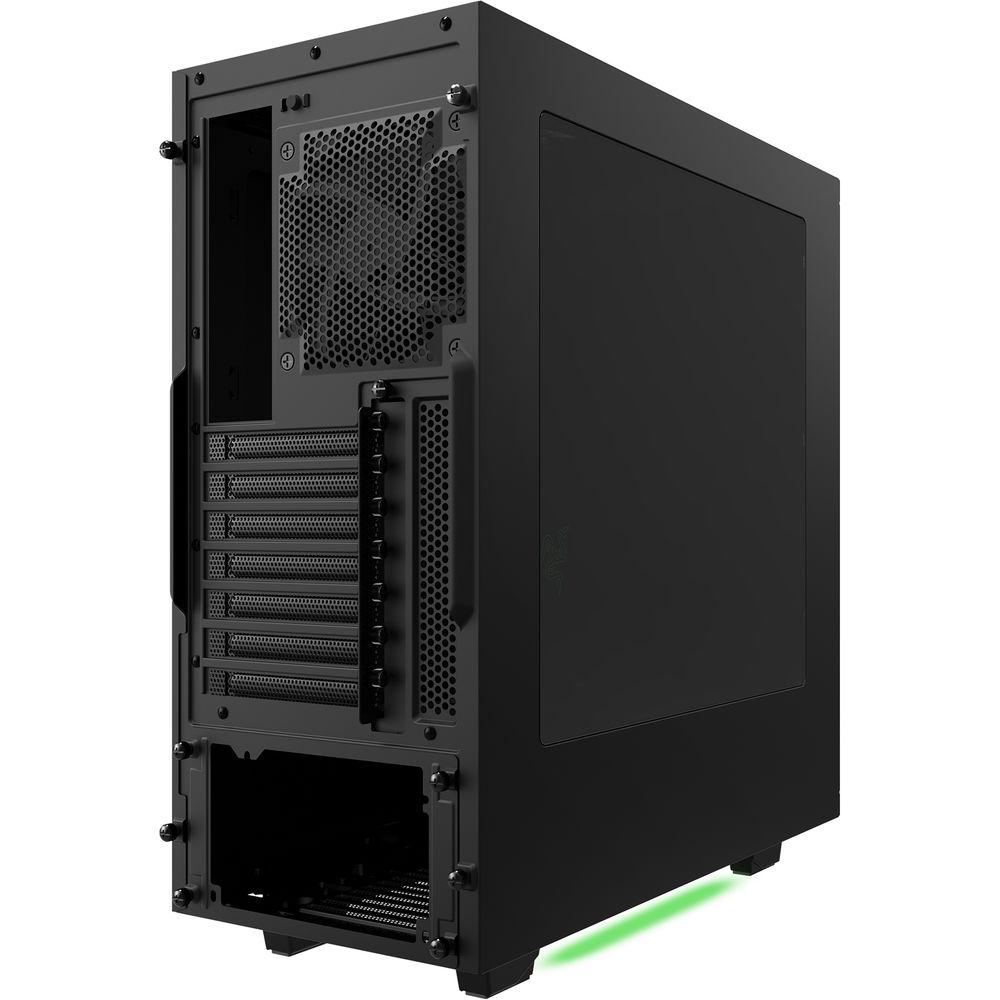

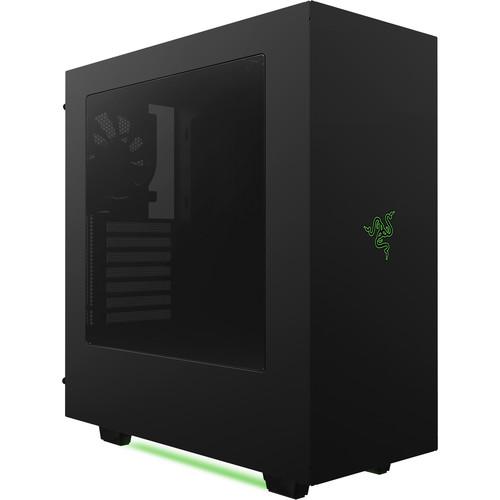

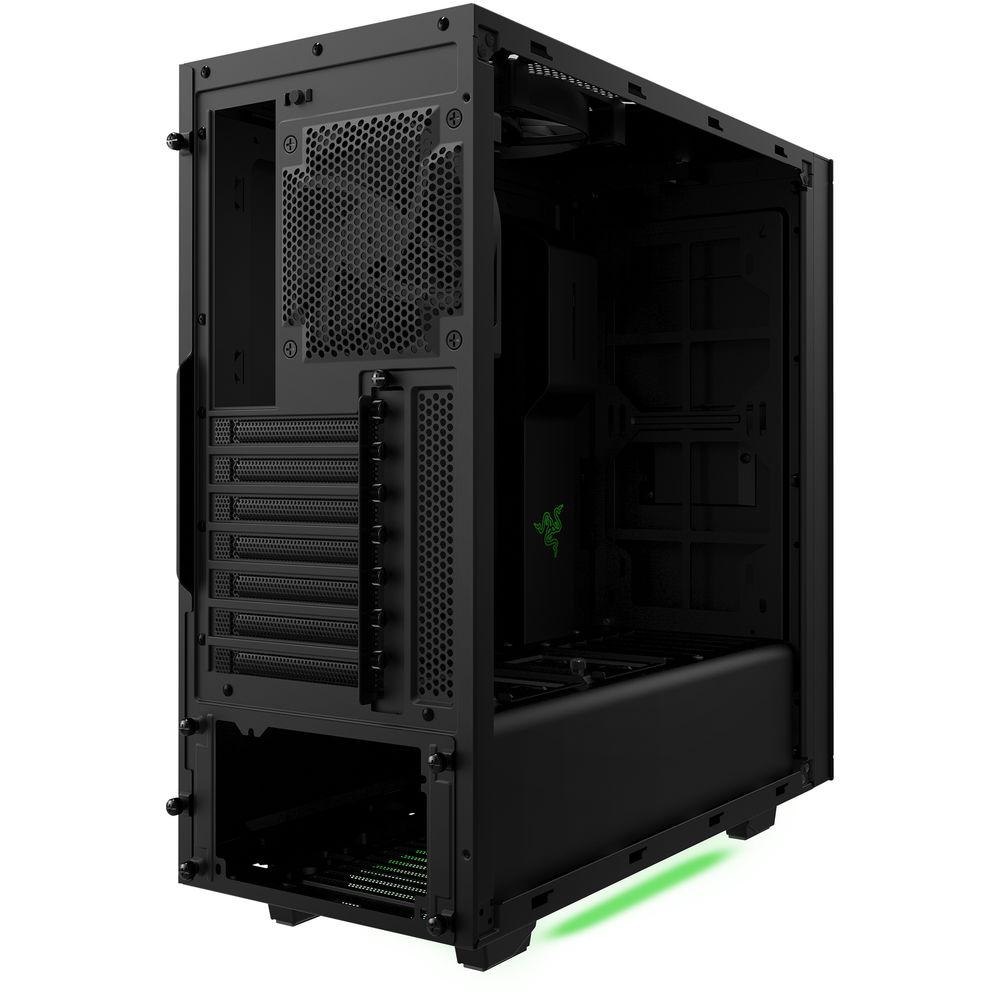

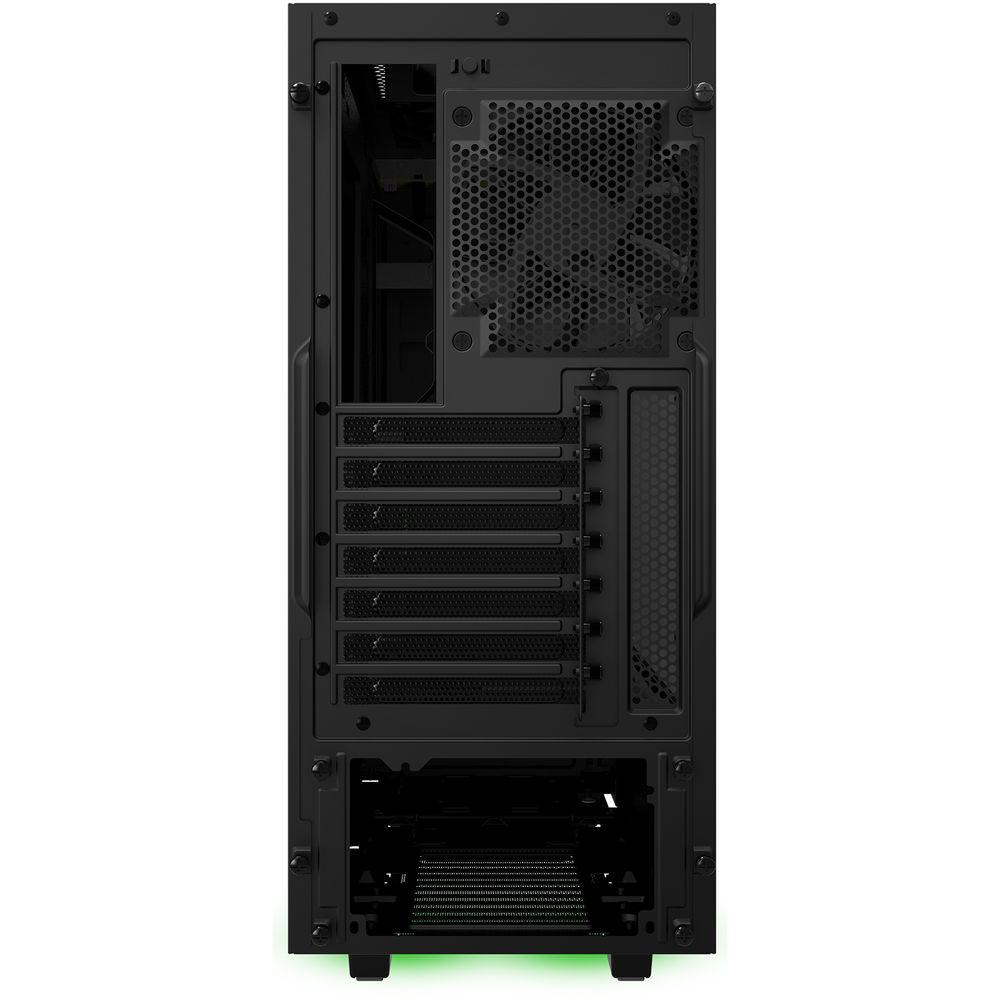

Product description The black and green NZXT S340 Mid-Tower Chassis Razer Edition features an optical drive free design that provides a spacious interior to install your components. This case includes two 120mm fans and has a cable management bar that keeps your cables hidden from view. Its left side panel has a window through which you can view your motherboard, CPU cooler, RAM, PCI cards, and 2.5" drives. Offering a simple interior layout, the S340 has its power supply and 3.5" drive bays compartmentalized at the bottom of the case with a sleek PSU cover.The NZXT S340 supports mini-ITX, micro-ITX, and ATX motherboards. For storage, it accommodates up to two 2.5" drives and three 3.5" drives. It has seven expansion slots and can house graphics cards up to 14.3" long. To help keep unwanted dust from entering the case, NZXT includes removable air filters. It also supports optional 240mm and 280mm radiators so you can build an all-in-one liquid cooling solution. - Designed by Razer

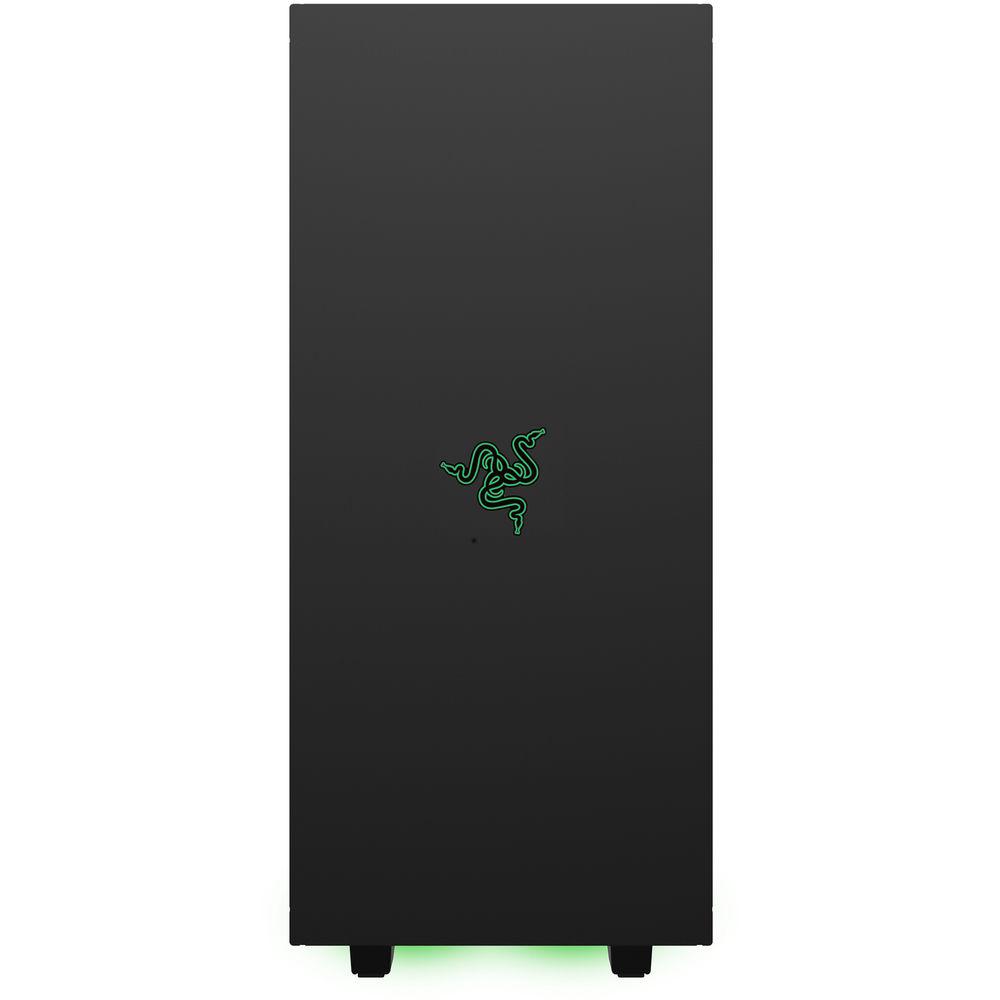

- NZXT and Razer have worked together to combine all the features of the S340 with a design from Razer to bring you this special edition. This custom design features a backlit Razer logo on the front panel, a tinted window, an illuminated LED power button, green underglow, green USB ports, and a PCI slot base cover for a flush look and funneled airflow.

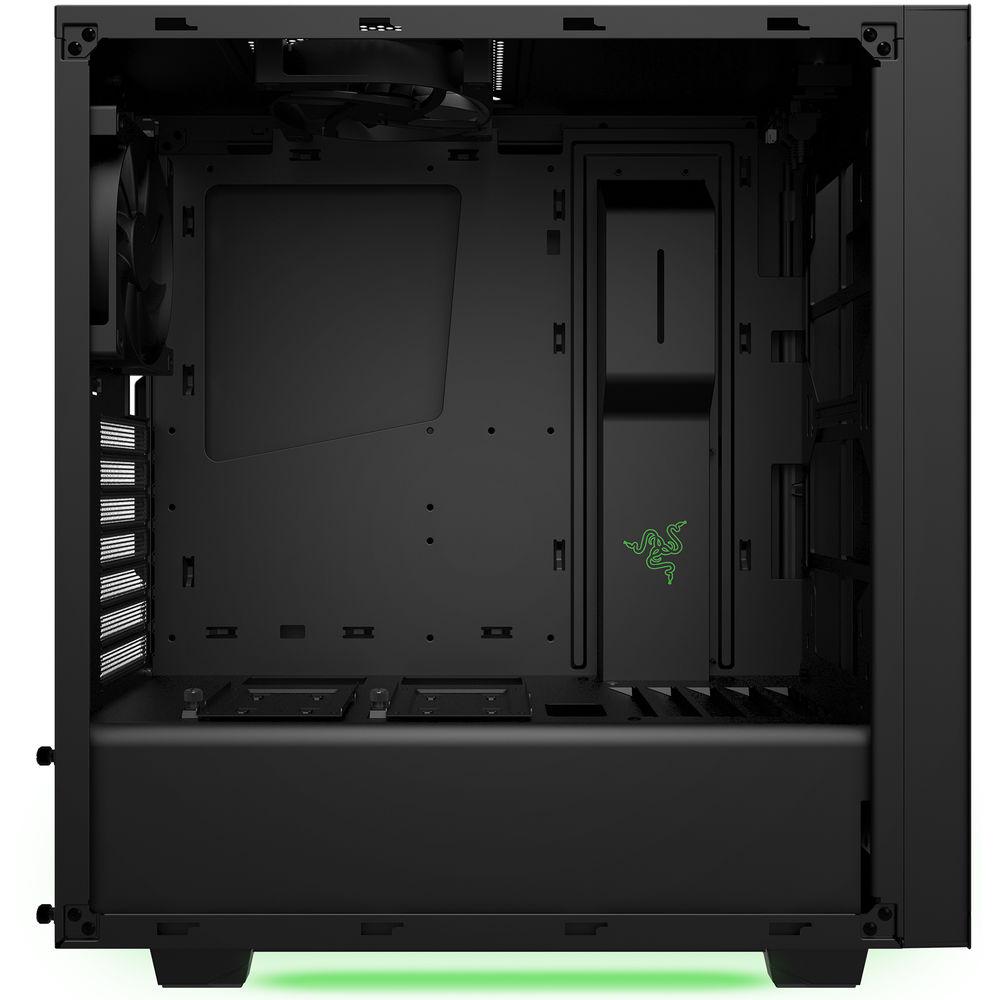

- Simple Interior Layout
- This case offers a large interior space to house your components and a cable management bar that keeps your cables hidden away. To further help keep your cables tidy, this case provides over twenty cable management points.
- Multimedia and USB Ports

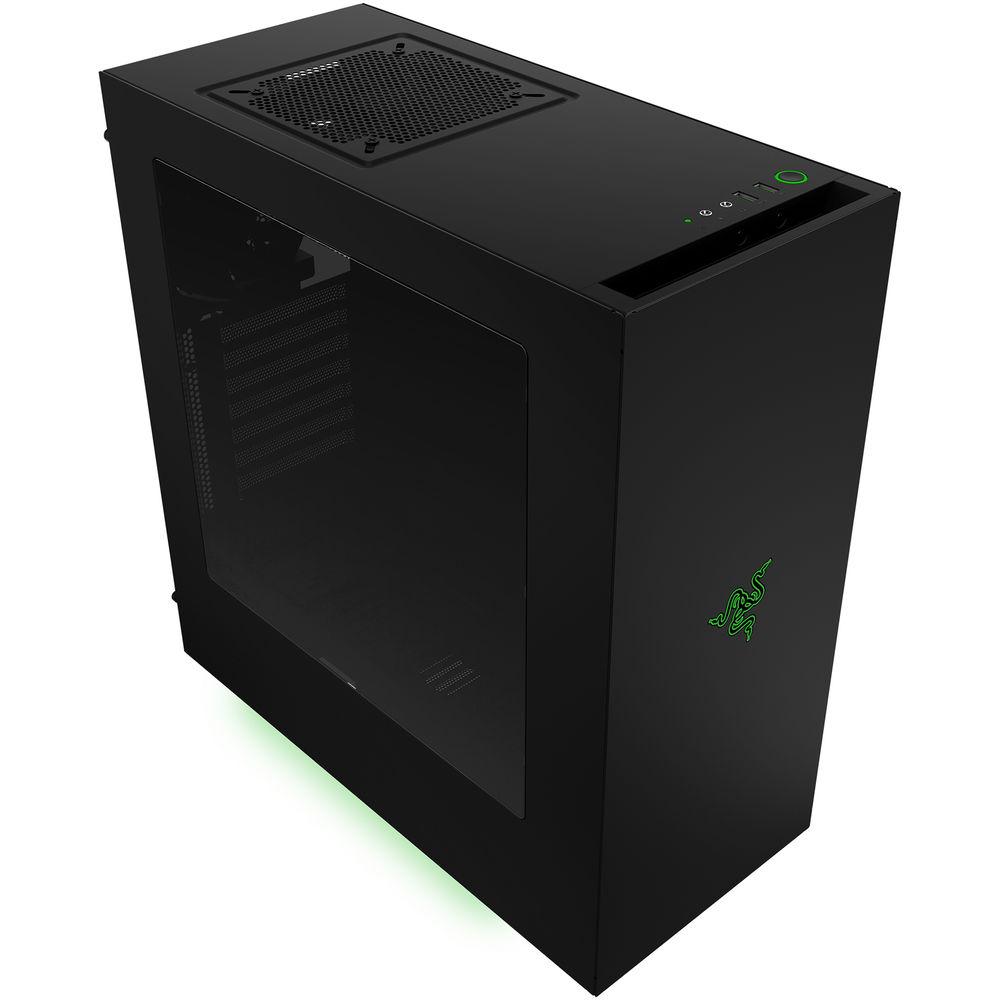

- The top of the case has two USB 3.0 ports, a headphone jack, and a microphone jack. In addition, the audio jacks are plated with steel.
- Easy Build
- NZXT includes captive thumb screws that allow you open the case without tools and stay attached so you don't have to worry about losing them.
- Compact Mid Tower Design
- Measuring at 17.5" (445mm) high and 17" (432mm) long, the S340 keeps your system's footprint to a minimum while still supporting graphics cards up to 14.3" long.
- Kraken Ready
- This small mid-tower case is fully compatible with the optional Kraken X61 and X31 liquid coolers.
- Showcase Design

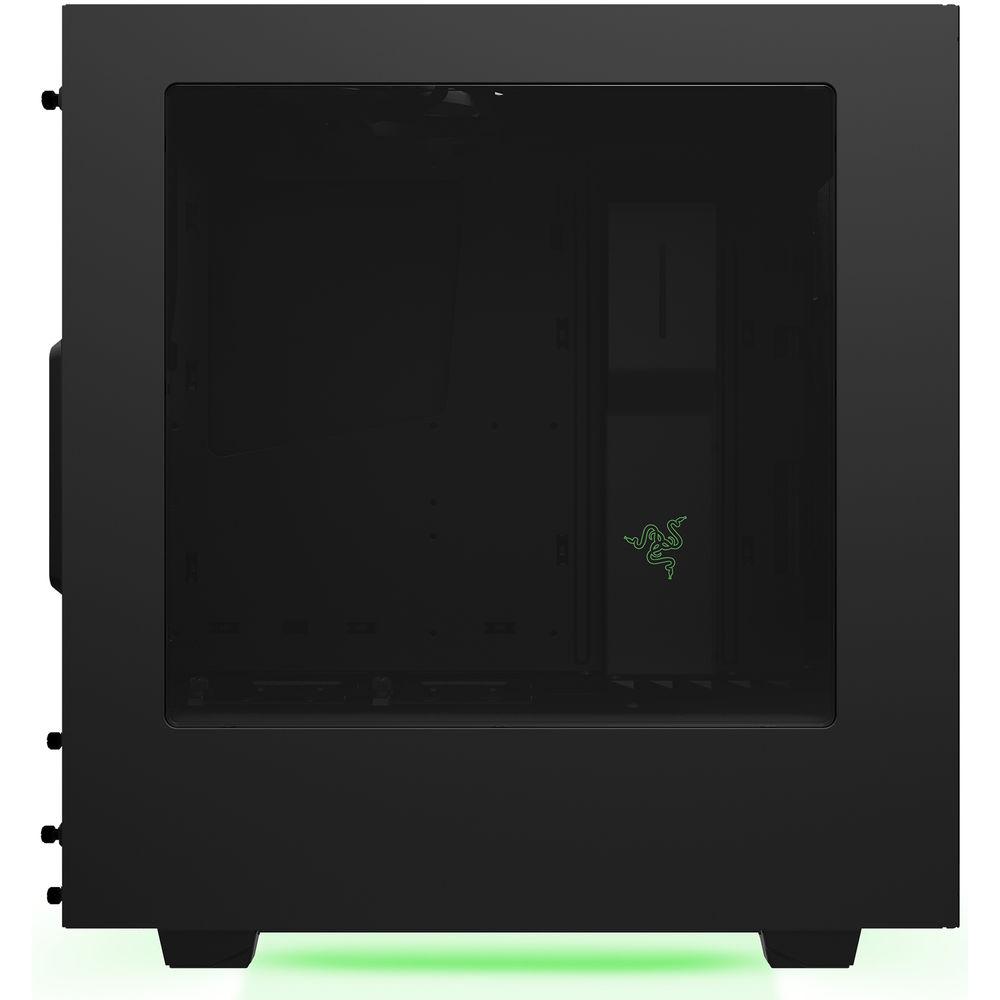

- The left side panel features a transparent window so you can see inside the case.
UPC: 815671012609 In the Box NZXT S340 Razer Edition Mid-Tower Chassis (Black/Green) Screw Kit Standoff Wrench 10 x Cable Ties Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NZXT S340 Razer Edition Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNZXT S340 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 3 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 14.3" / 36.3 cm | | CPU Cooler Height | 6.3" / 16.1 cm | | | | Fan Mounting (Front) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Top) | 1 x 120 mm | | Maximum Radiator Size (Front) | 280 mm | | Maximum Radiator Size (Rear) | 120 mm | | Fan Controller Included | No | | Filter Locations | Front, Rear, Bottom | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | 0.7" / 17 mm | | Dimensions (W x H x D) | 7.9 x 17.5 x 17.0" / 200.0 x 445.0 x 432.0 mm | | Weight | 15.5 lb / 7.1 kg | | | | Package Weight | 19.65 lb | | Box Dimensions (LxWxH) | 20.8 x 19.7 x 10.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
