User Manual for Oben AC-1321 Aluminum Tripod with BA-106A Ball Head Click to enlarge the picture
Contents of the user manual for the Oben AC-1321 Aluminum Tripod with BA-106A
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
 |
User manual for the Oben AC-1321 Aluminum Tripod with BA-106A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

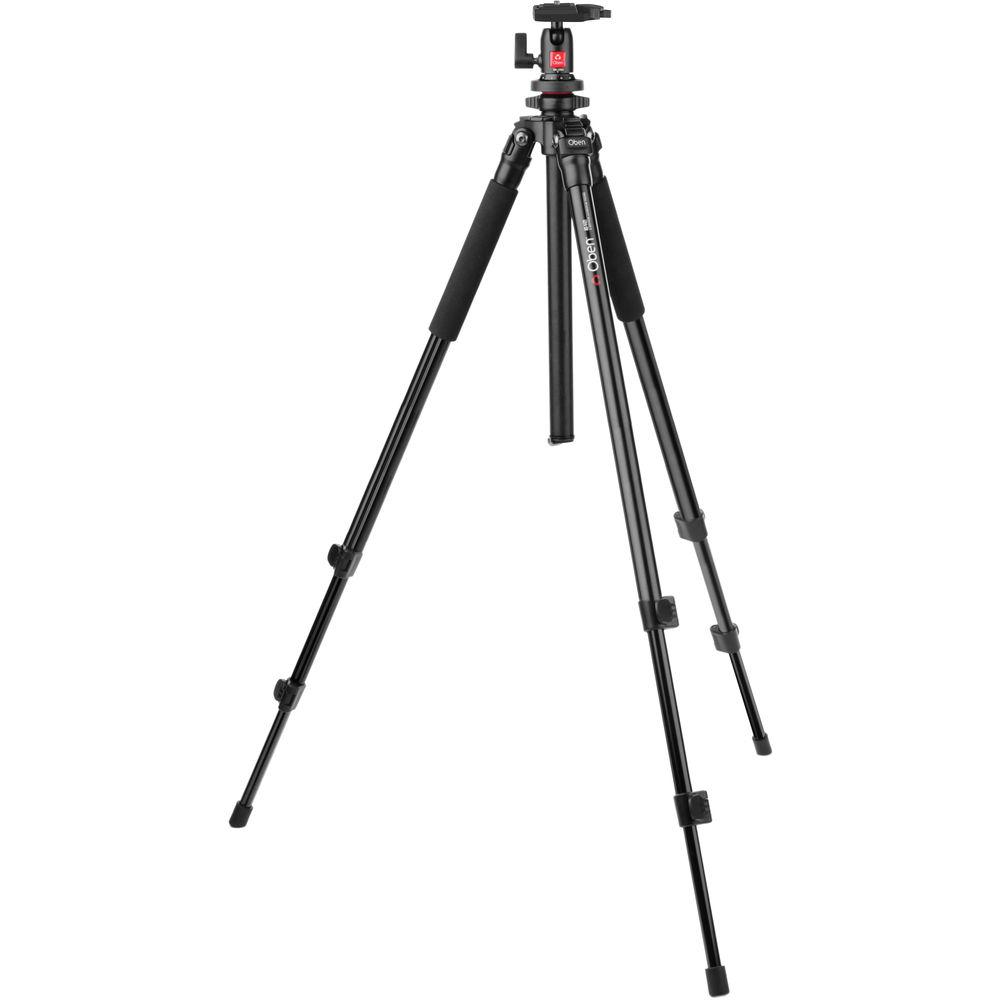

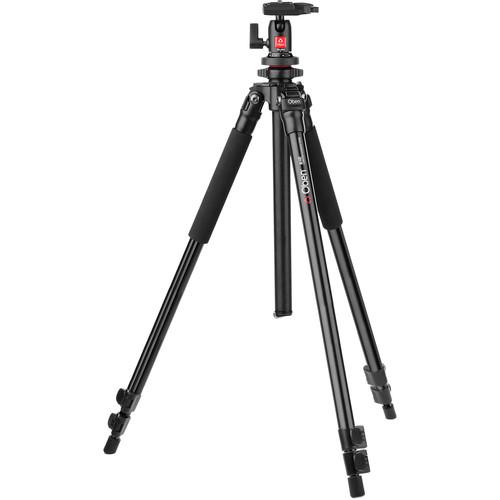

Product description Time-Lapse Tips and Tools Read More The AC-1321 Aluminum Tripod with BA-106A Ball Head from Oben is a lightweight (2.9 lb) tripod that provides reliable support for any camera and lens up to 6.6 lb.

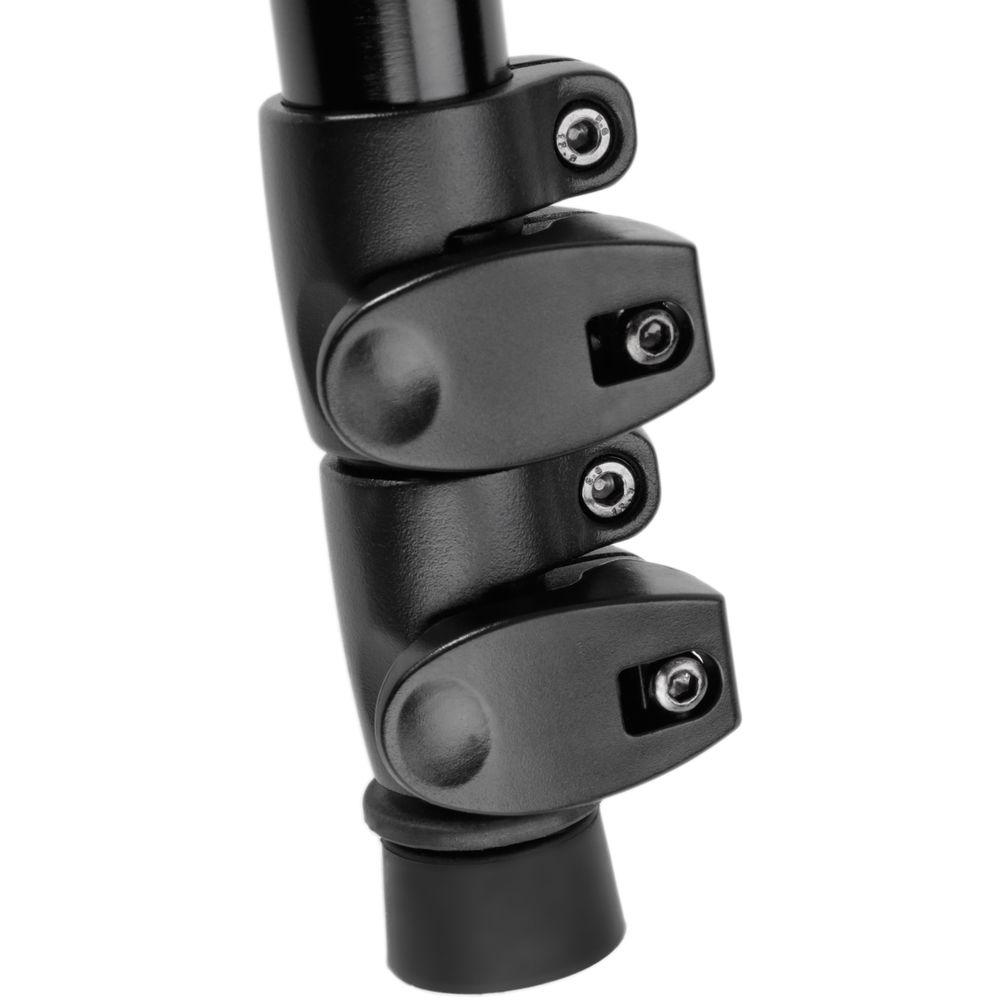

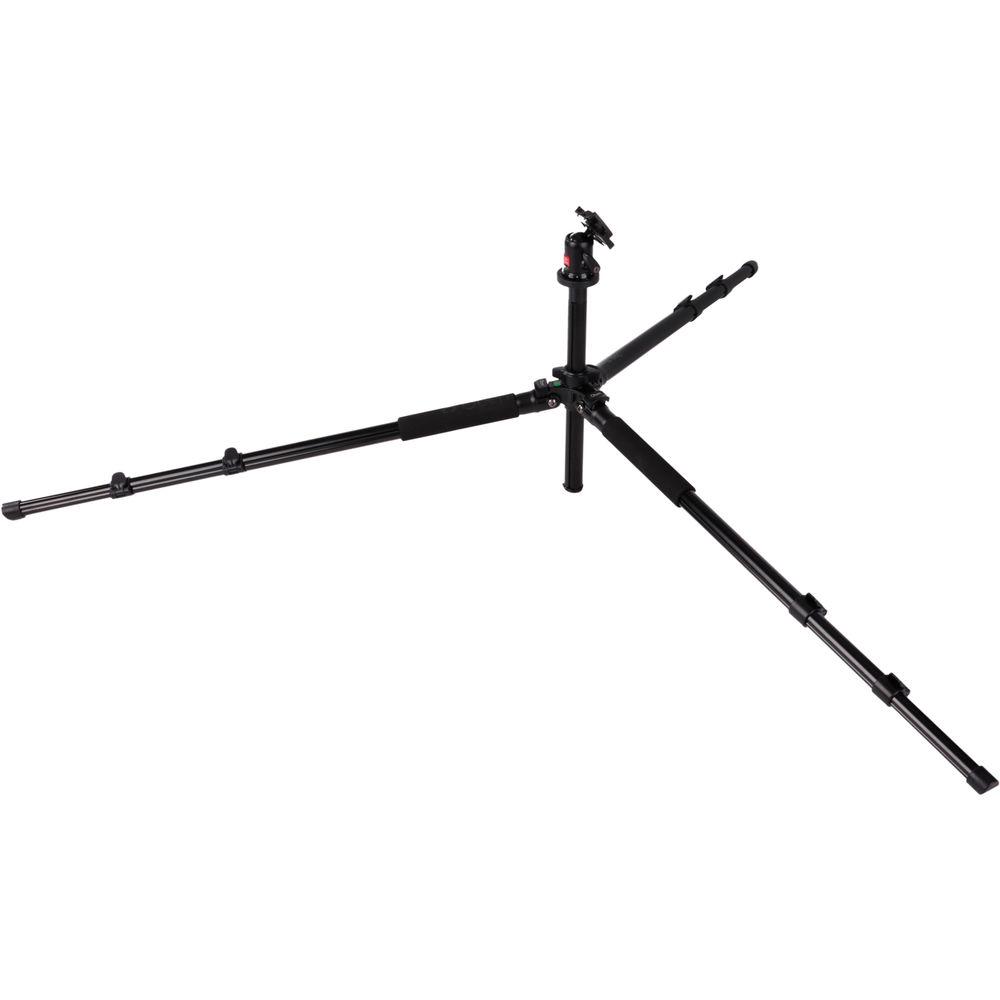

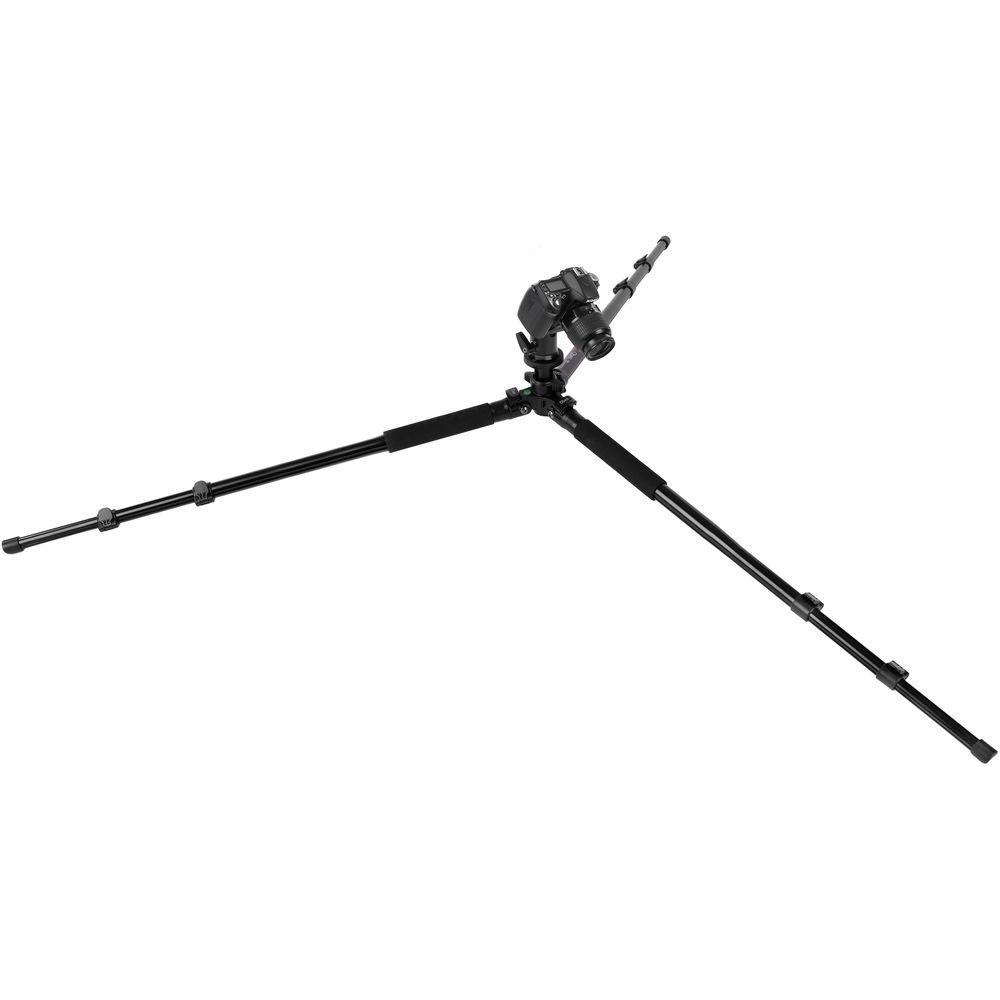

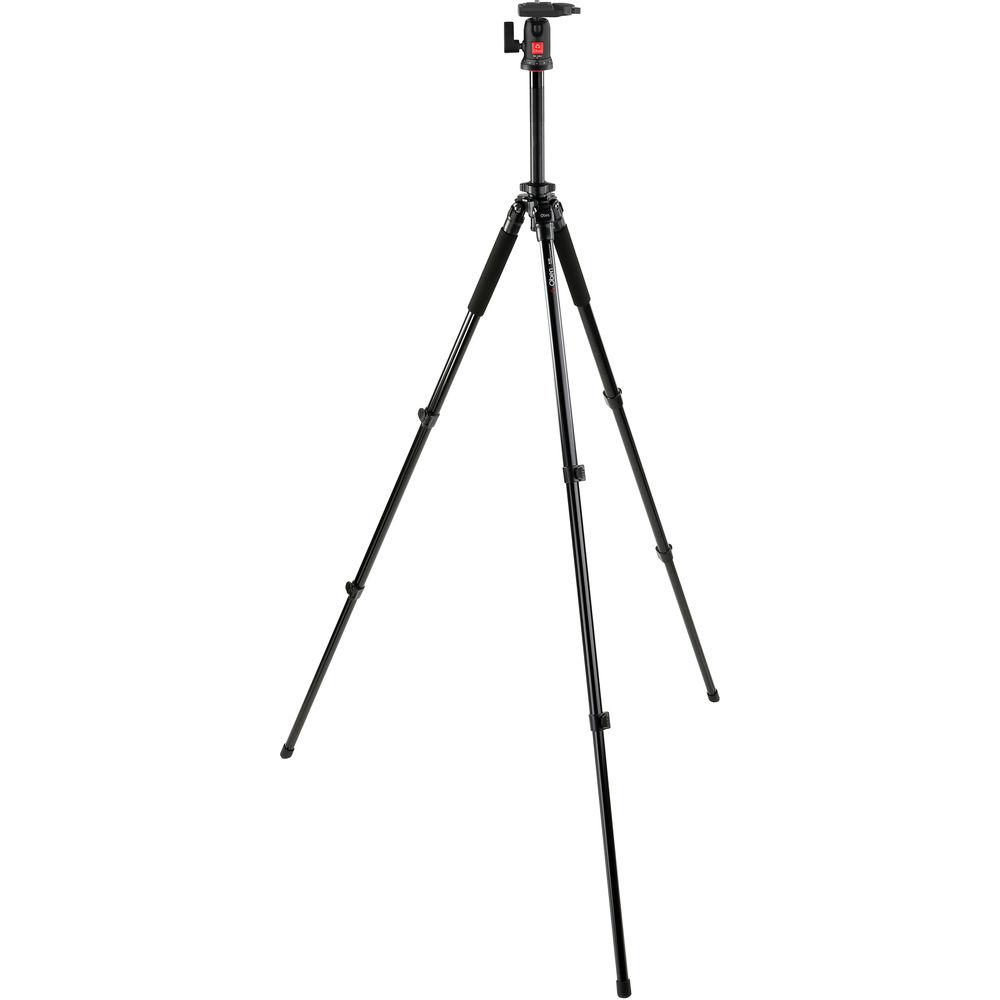

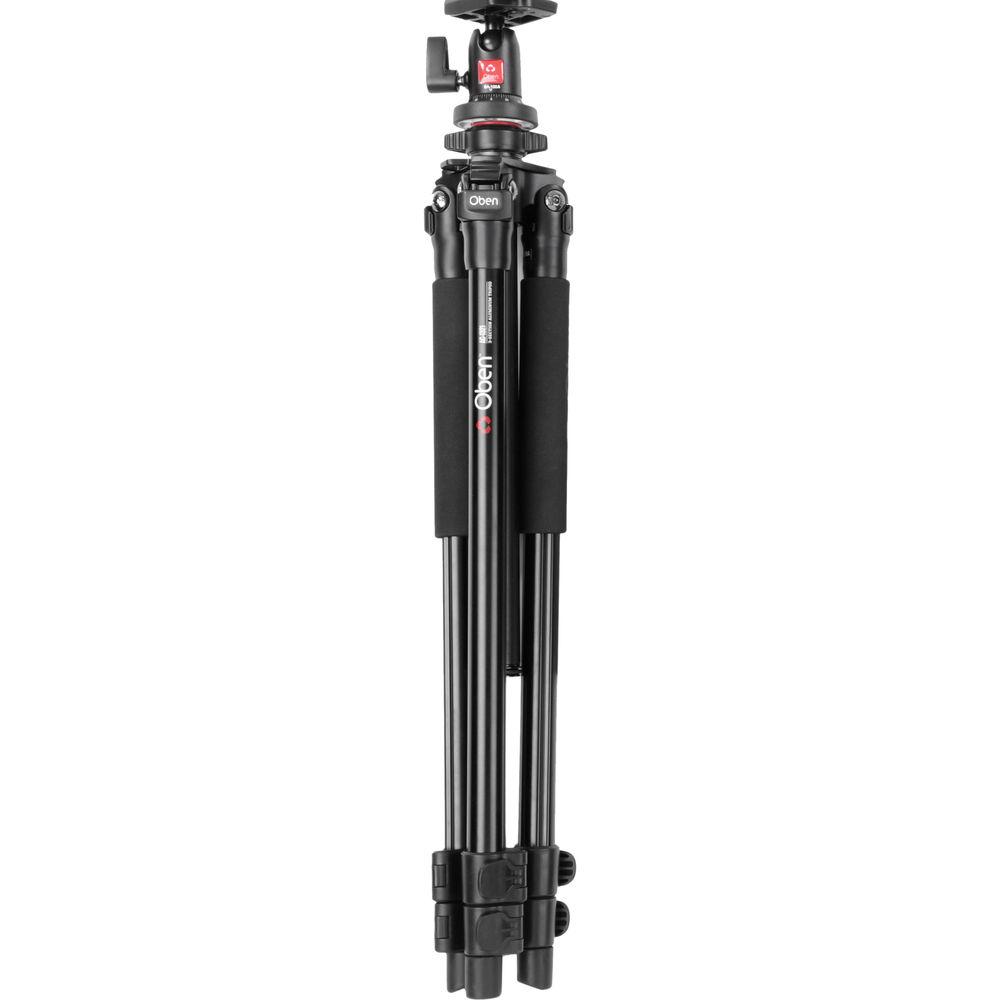

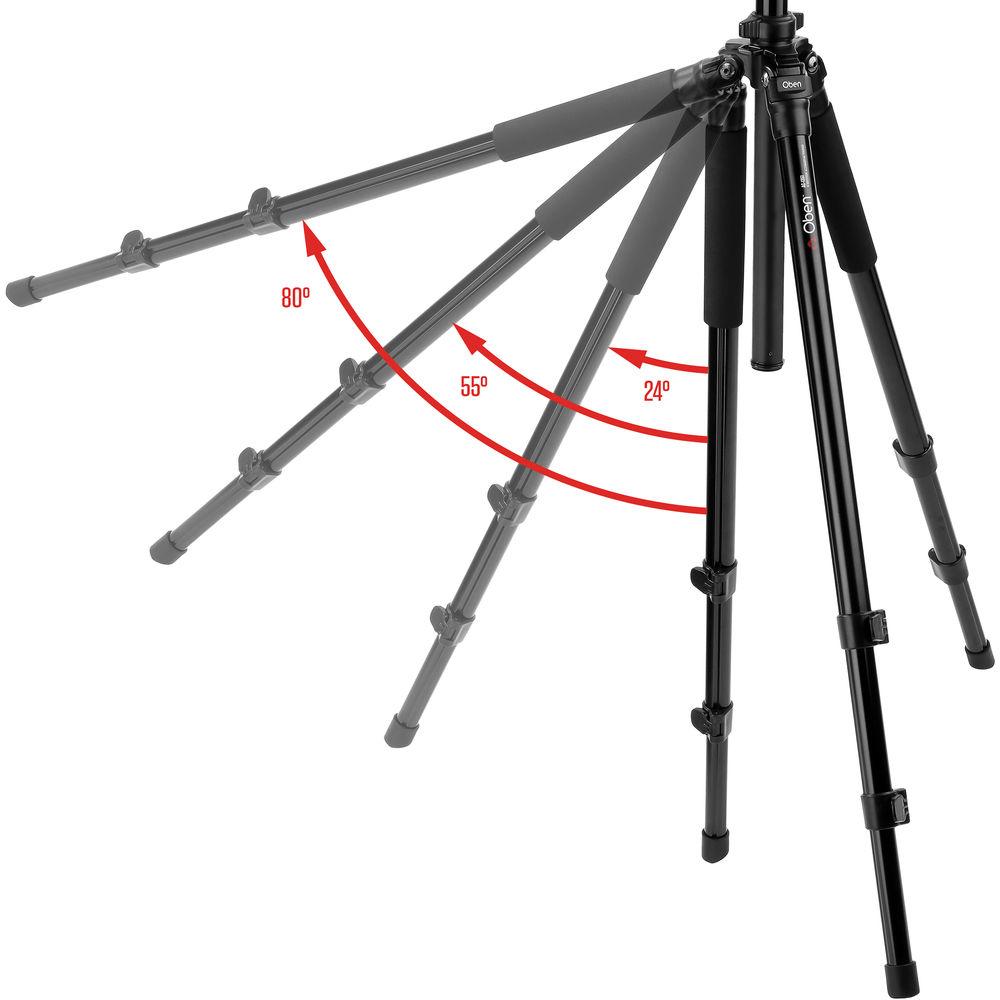

The tripod's 3-section aluminum legs and center column extend to a maximum height of 57.5", and when folded, the entire system is a compact 23.4". Flip locks on each leg enable extremely fast deployment and retraction of leg stages. Three leg angles are possible, and pull-tab locks secure the legs in their notches. The legs' angles are independently adjustable to accommodate shooting on uneven terrain. At the widest leg angle, the tripod sits extremely close to the ground to facilitate low-angle shooting. The tripod's feet feature rubber tips which are great for shooting on slippery or hard surfaces.

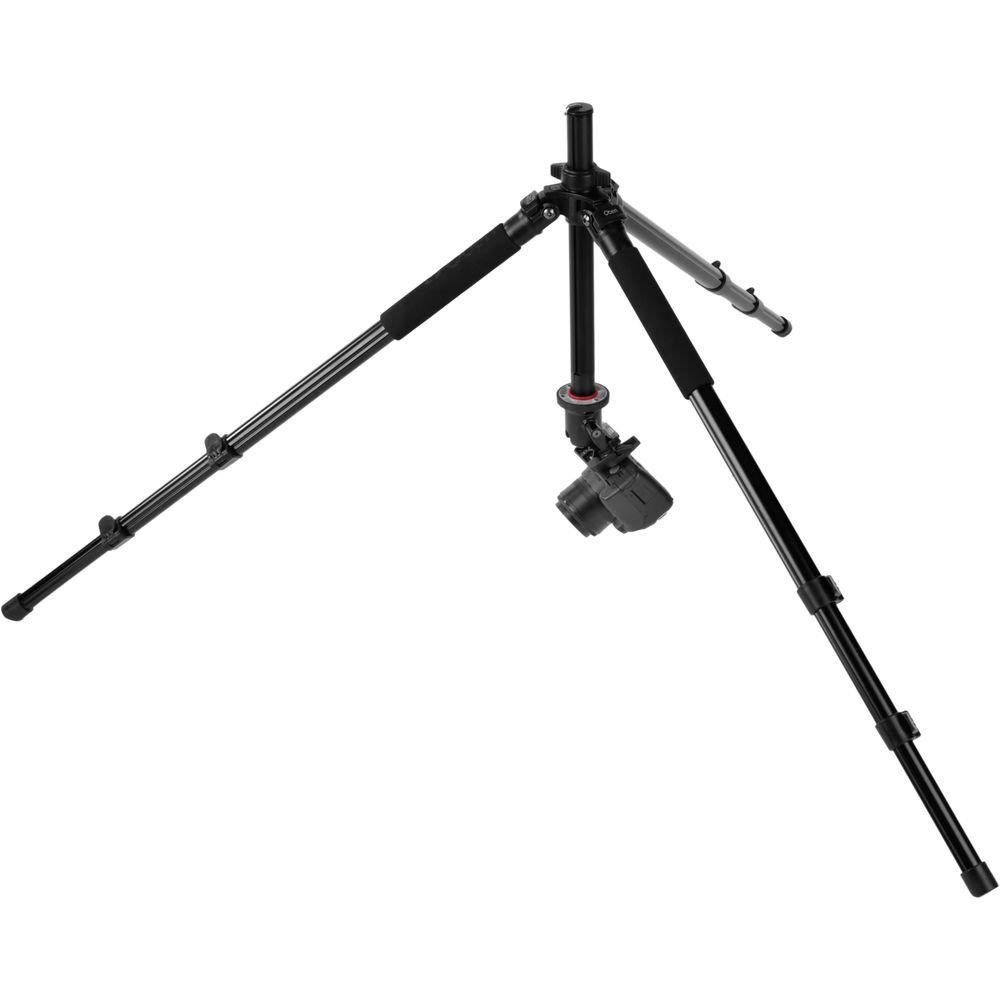

The tripod's rapid center column extends with a twist of the wingnut locking knob. For protection when it's retracted quickly, there's a rubber damper that protects the center-post collar. Locking screws underneath the collar enable you to fasten the head securely to the chassis. By unscrewing the spring-loaded hook at the bottom end, the center column becomes removable and reversible, for a second method of achieving extremely low-angle shots. The center column's hook holds a counterweight, in case you need additional system stability.
The BA-106A is a simple ball head with one ratcheting locking knob to control all motion. The knob allows you to unlock the ball so that you can quickly orient your camera properly, retighten the knob, and return to shooting. This enables fast setup changes, and frees you to keep a finger on the trigger while you're making a quick adjustment to the head's orientation. The ball head has a 90° notch which facilitates shooting in portrait orientation. A bull's eye bubble level ensures your camera is level on both the horizontal and vertical axes.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw. With your camera attached to the quick-release plate, it easily snaps and locks into place on the ball head and is quickly removed by pressing the locking lever. A safety lock on the lever prevents your QR plate and camera from accidental release.
This tripod also includes a fitted, padded carry case with a removable shoulder strap, two heavy-duty zippers, and an interior zipper pocket. A tool clip with two hex wrenches for adjusting the center column and the leg joints is also included. It snaps onto any of the tripod legs for easy access. - A spring-loaded counterweight hook is located at the bottom of the center column. The column can be separated into 2 parts to give you a short column for low angle and macro work
- Leg cushions on 2 legs provide a firm grip in cold or wet weather
- Two included Allen keys attach to a tripod leg, so you're always ready to tighten components
- Padded carry bag provides a snug fit for the tripod/head combination and features two heavy-duty zippers, an interior pocket with a zipper, and a shoulder strap

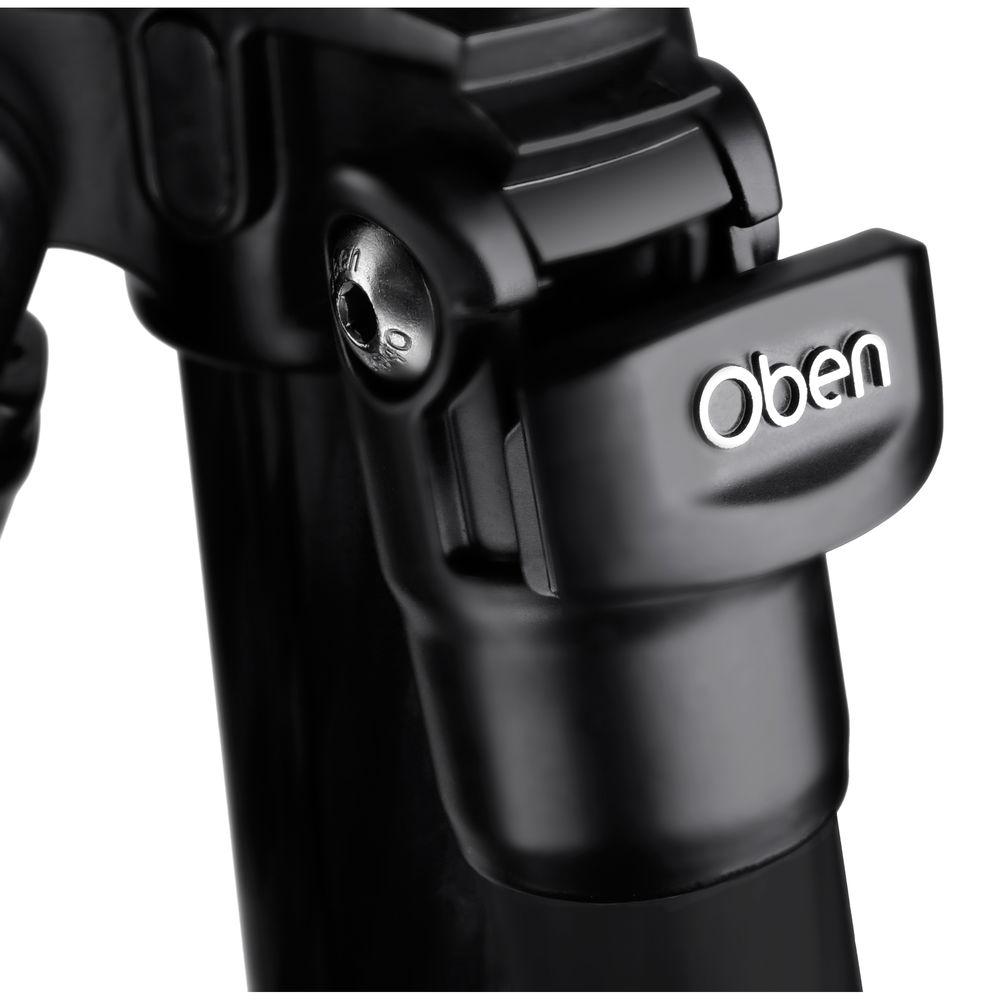

- Angle adjustment locks keep legs at the chosen angles
- Center column is grooved to prevent rotation
- Angled rubber feet for maximum contact with the ground
- Tripod features reversible 1/4"-20 and 3/8"-16 screw to fit almost any head
UPC: 847628585843 In the Box Oben AC-1321 Aluminum Tripod with BA-106A Ball Head BA-106A Single Lever Ball Head RP-5 Quick Release Plate for BA-106A and BA-106T Ball Heads Padded Carrying Case Leg Tool Clip and 2 Hex Keys Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-1321 Aluminum Tripod with BA-106A Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Oben AC-1321 Aluminum Tripod with BA-106A Ball Head can be downloaded in PDF format at the link stated below.
Technical parametersOben AC-1321 Specs | | | Head Type | Ball Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | | | Load Capacity | 6.6 lb / 3 kg | | Maximum Working Height | 57.5" / 146.1 cm | | Max Height without Center Column | 47.4" / 120.4 cm | | Minimum Working Height | 8.3" / 21.1 cm | | Folded Length | 23.4" / 59.4 cm | | Materials | Aluminum Alloy | | Weight | 2.9 lb / 1.3 kg | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Leg Sections | 3 | | Leg Diameter | 0.86" / 22 mm | | Bubble Level | Yes | | | | Center Column Features | Reversible | | Center Column Shape | Faceted | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 26.0 x 5.0 x 4.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
