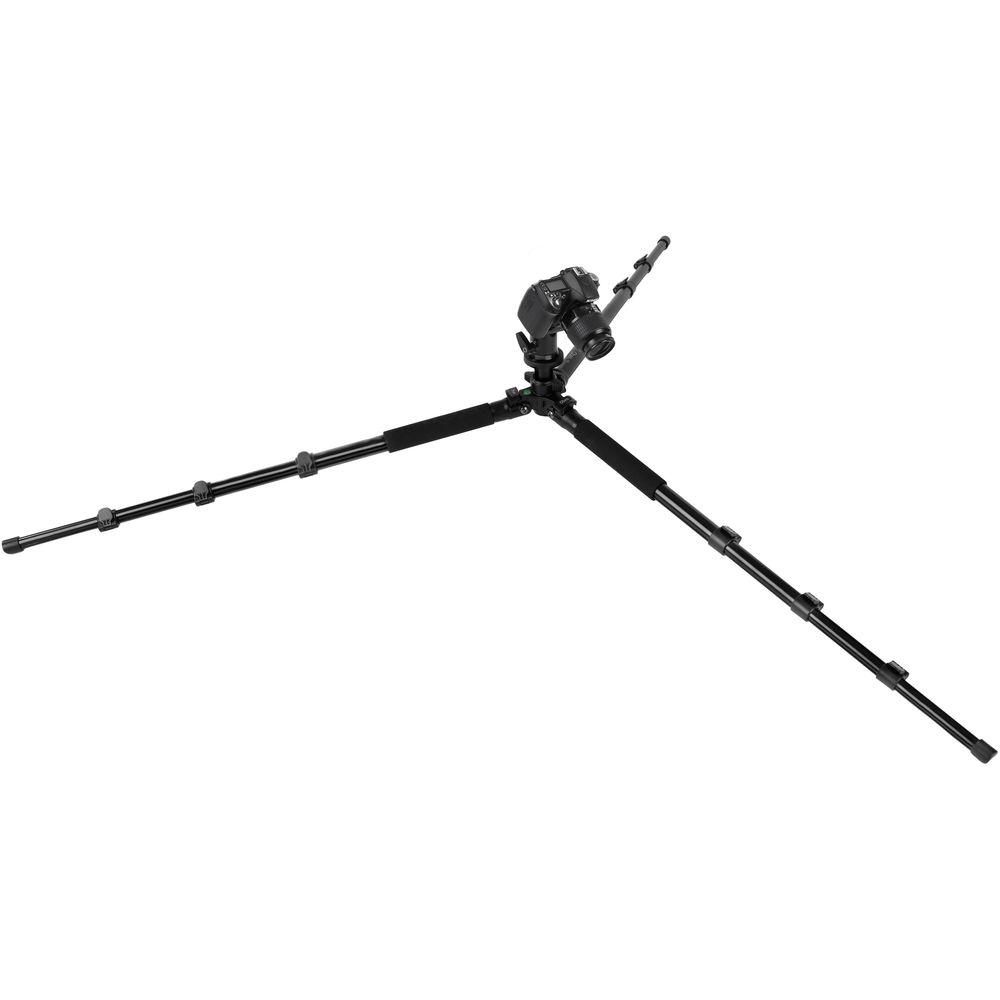

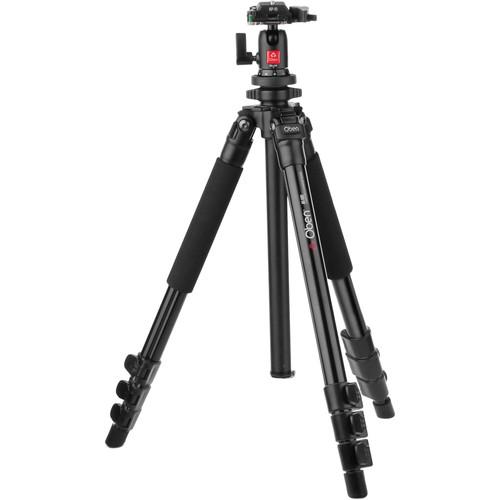

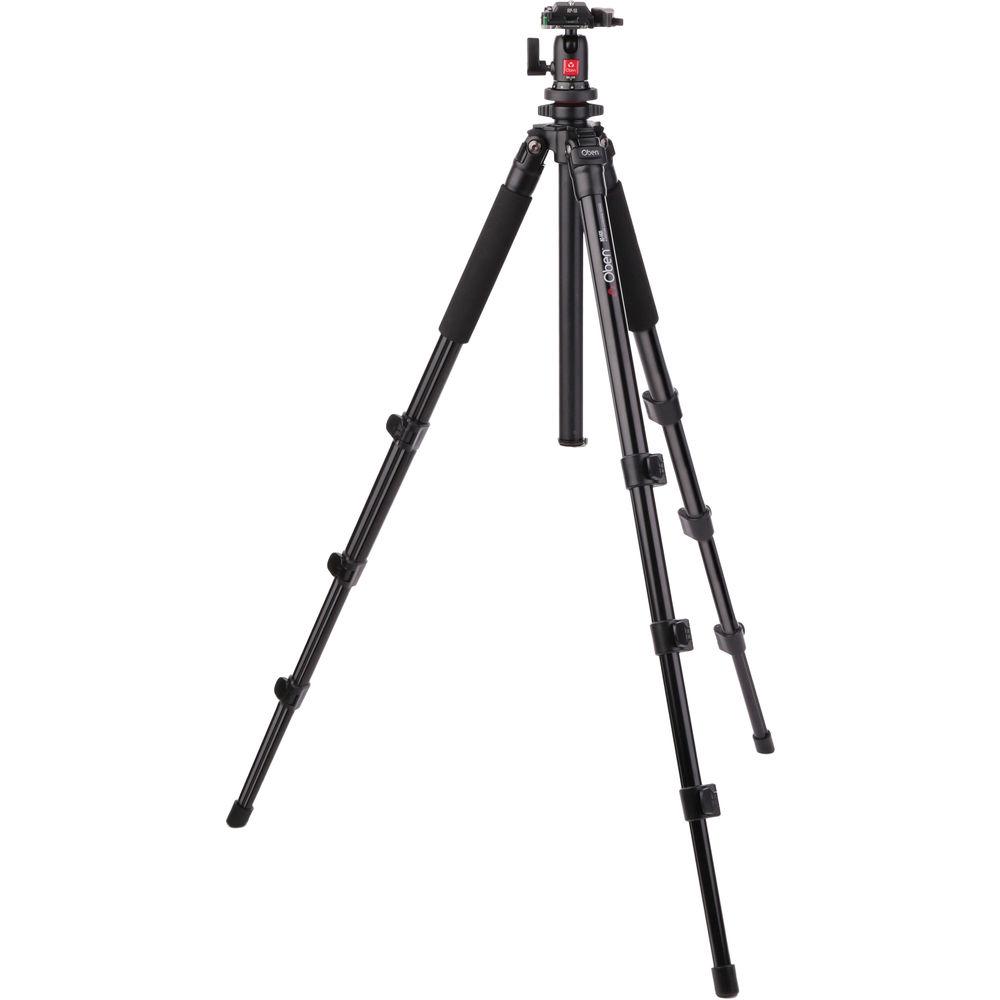

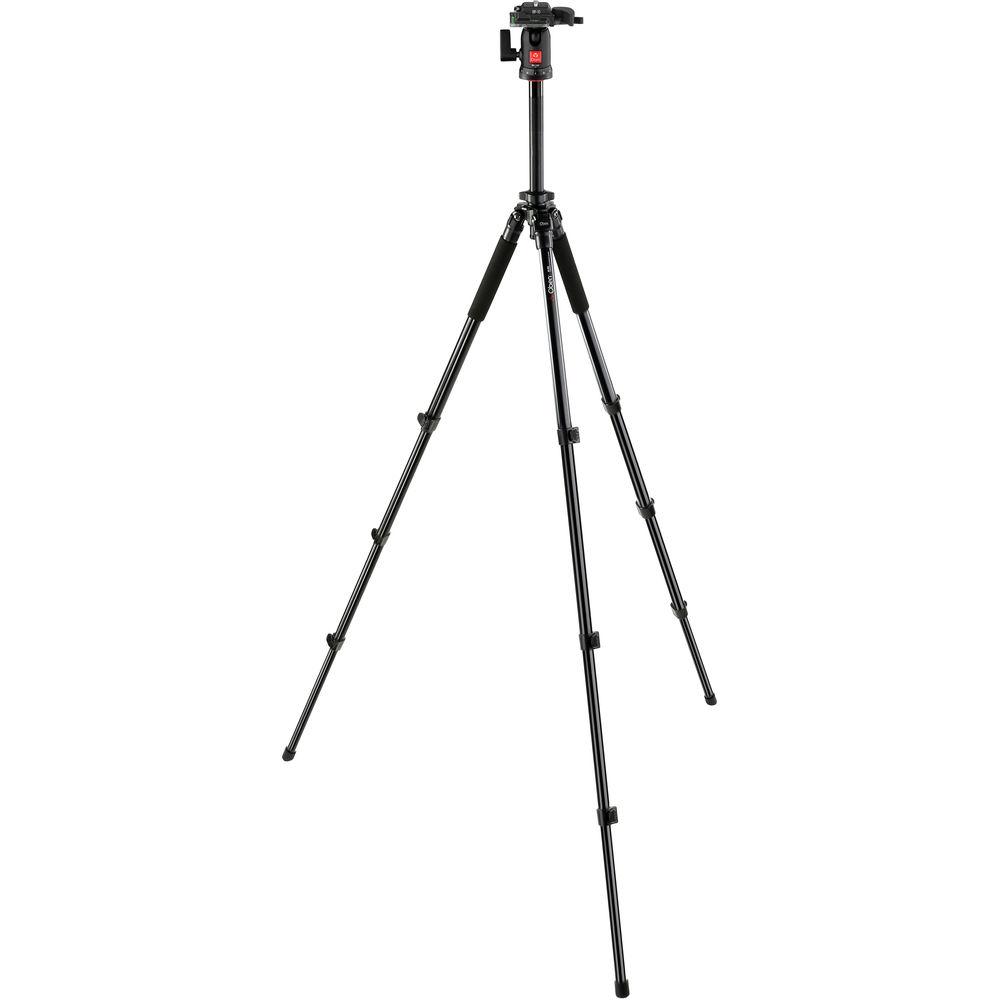

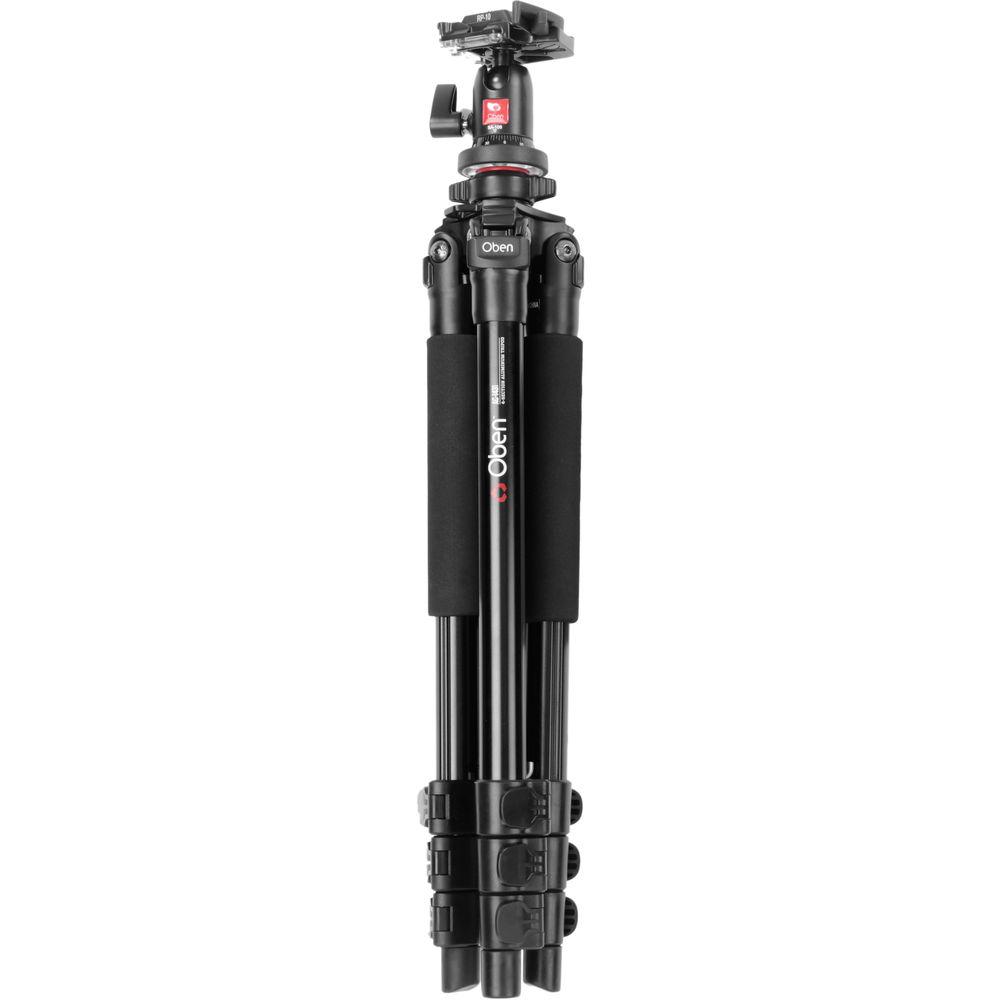

Product description Time-Lapse Tips and Tools Read More The Oben AC-1431 4-Section Aluminum Tripod with BA-108 Ball Head provides supports up to 8.8 lb, rises to a maximum height of 59.5" with the center column fully extended, and folds down to a compact 21" for transport. Flip locks on the four-section legs facilitate rapid setup and break down. Three leg angles: normal (80°), low (55°) and extra low (24°) are available via angle adjustment tabs at the joint of each leg.

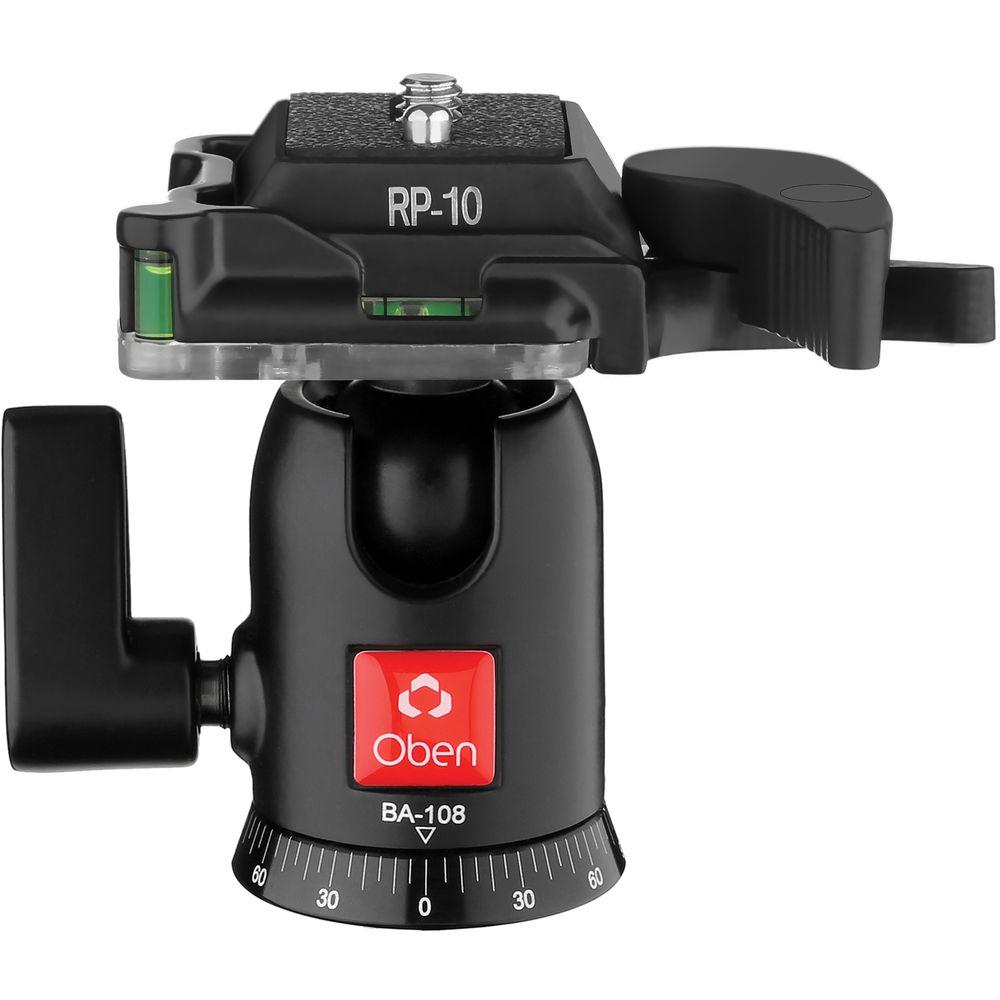

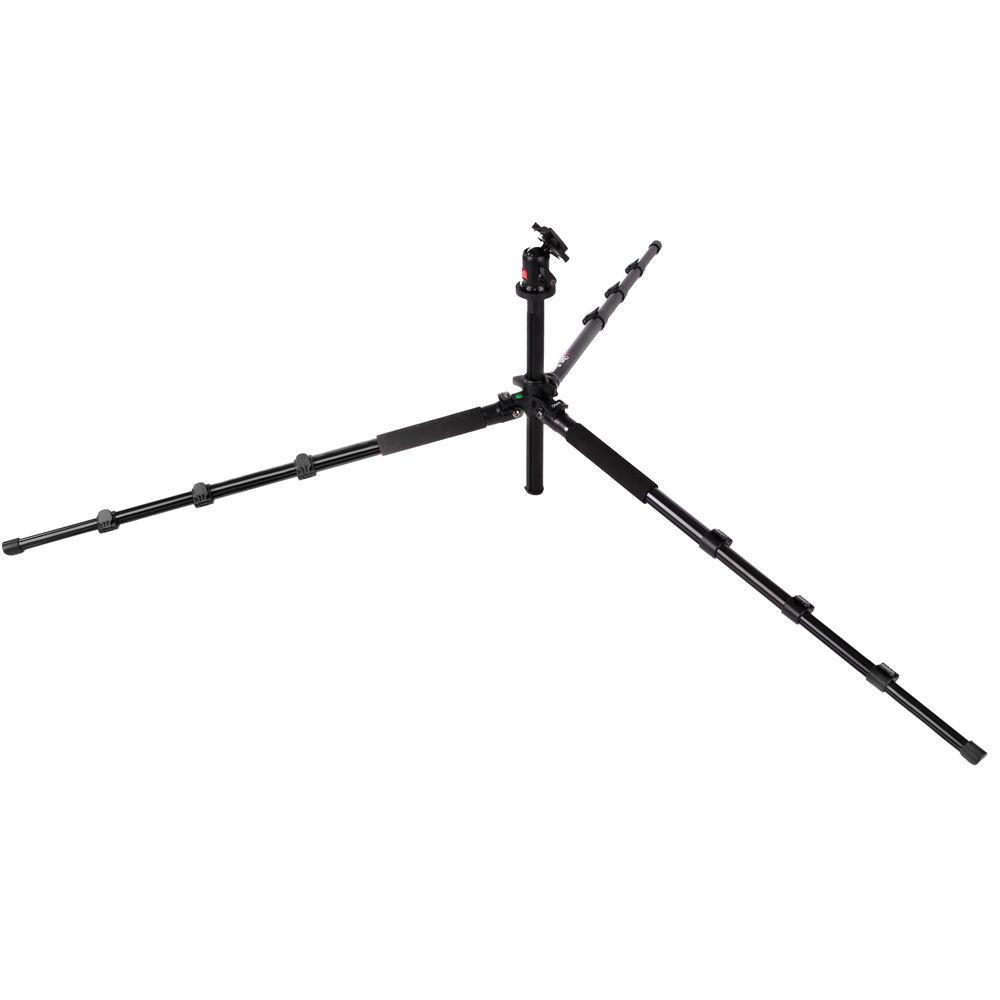

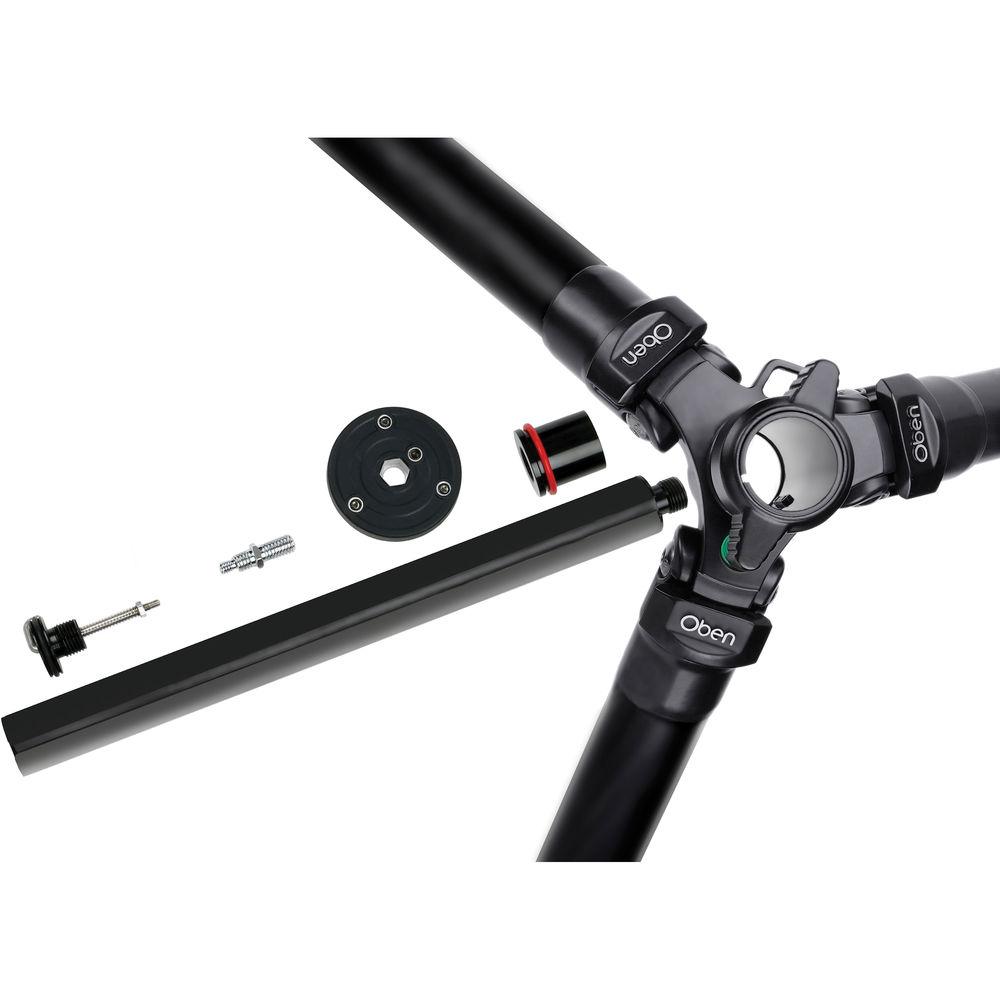

The center column can be reversed with a twist of the butterfly knob, or it can be split in two to be used as a short column for macro and low angle shooting as low as 8.1". Any combination of leg angles can be combined to accommodate uneven terrain, stairs or obstructions. A built-in bubble level helps you square up your compositions. For extra stability the center column employs a spring-loaded counterbalance hook. The included BA-108 ball head features a single-action lever that controls its rotation and 360 degree panning while a robust ball-locking mechanism secures it solidly. The head's four bubble levels ensure accurate panoramas. The BA-108's built-in quick release comes with a camera plate that features a standard 1/4"-20 screw and a retractable, removable video pin to provide additional stability for camcorders. Since the head is removable, locking screws underneath the collar thwart torsion when re-attaching. The tripod comes with a carry case and shoulder strap for storage and transport. - Center column can be separated into 2 parts to give you a short column for low angle and macro work
- Center column is grooved to prevent rotation
- Spring-loaded counterweight hook is located at the bottom of the center column

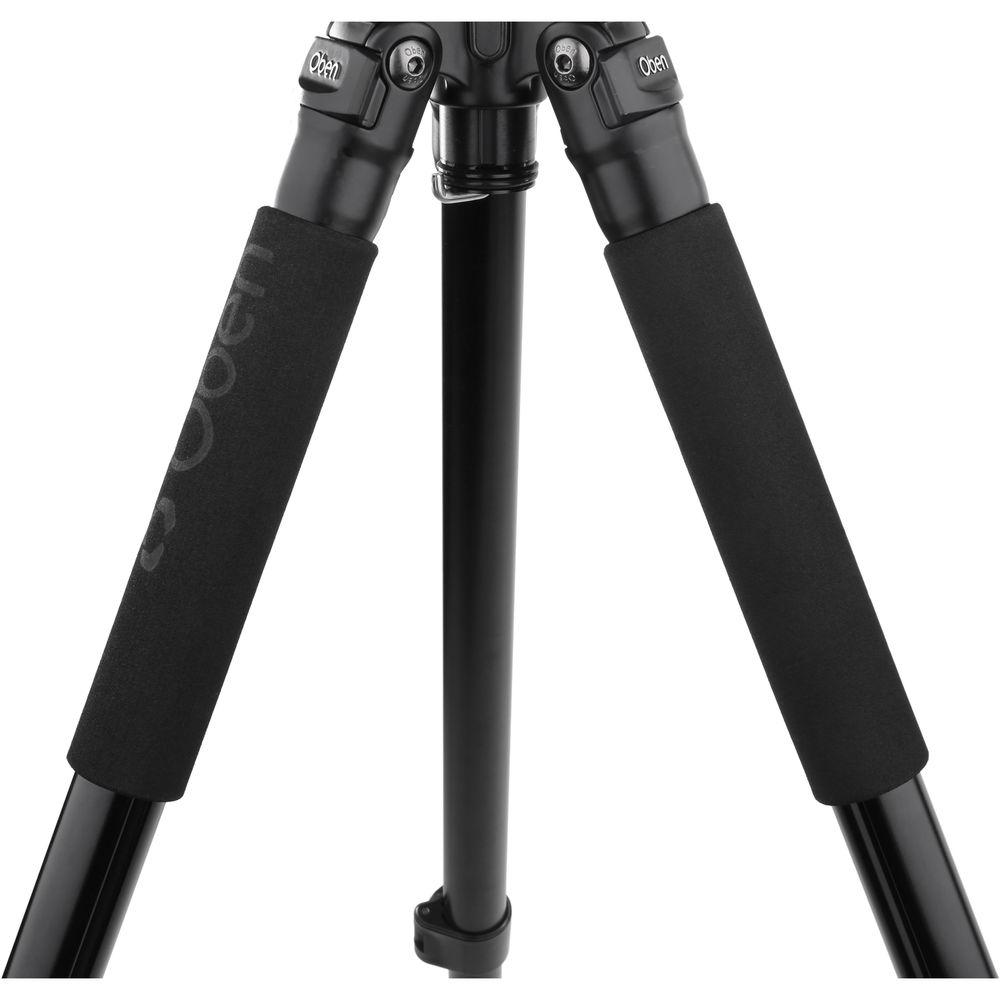

- Leg cushions on 2 legs provide a firm grip in cold or wet weather
- Tripod features reversible 1/4"-20 and 3/8"-16 screw to fit almost any head
- Angle adjustment locks keep legs at the chosen angles
- Angled rubber feet for maximum contact with the ground
- Two included Allen keys attach to a tripod leg, so you're always ready to tighten components
- Padded carry bag provides a snug fit for the tripod/head combination and features two heavy-duty zippers, an interior pocket with a zipper, and a shoulder strap
UPC: 847628556300 In the Box Oben AC-1431 Aluminum Tripod with BA-108 Ball Head BA-108 Single Lever Ball Head ftbqxqqydcuevxdrerceaxzx RP-10 Quick Release Plate Padded Carrying Case Shoulder Strap for Case Leg Tool Clip with 2 Allen Keys Hex Key for Split Column Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-1431 Aluminum Tripod with BA-108 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Oben AC-1431 Aluminum Tripod with BA-108 Ball Head can be downloaded in PDF format at the link stated below.
Technical parametersOben AC-1431 Specs | | | Head Type | Ball Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 59.5" / 151.1 cm | | Max Height without Center Column | 49.6" / 126 cm | | Minimum Working Height | 8.1" / 20.6 cm | | Folded Length | 21" / 62.2 cm | | Materials | Aluminum Alloy | | Weight | 3.2 lb / 1.5 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 0.98" / 25 mm | | Bubble Level | Yes | | | | Center Column Features | Reversible | | Center Column Shape | Faceted | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 24.5 x 5.0 x 5.0" |
