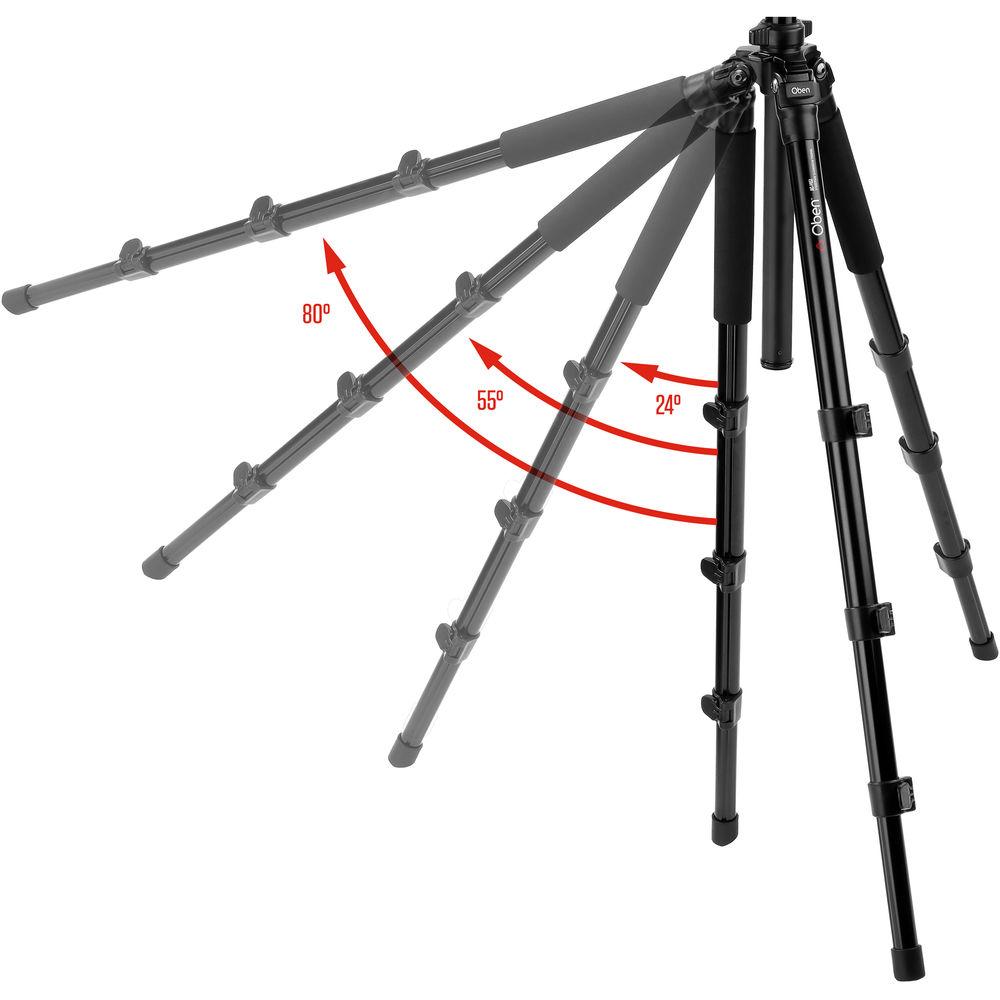

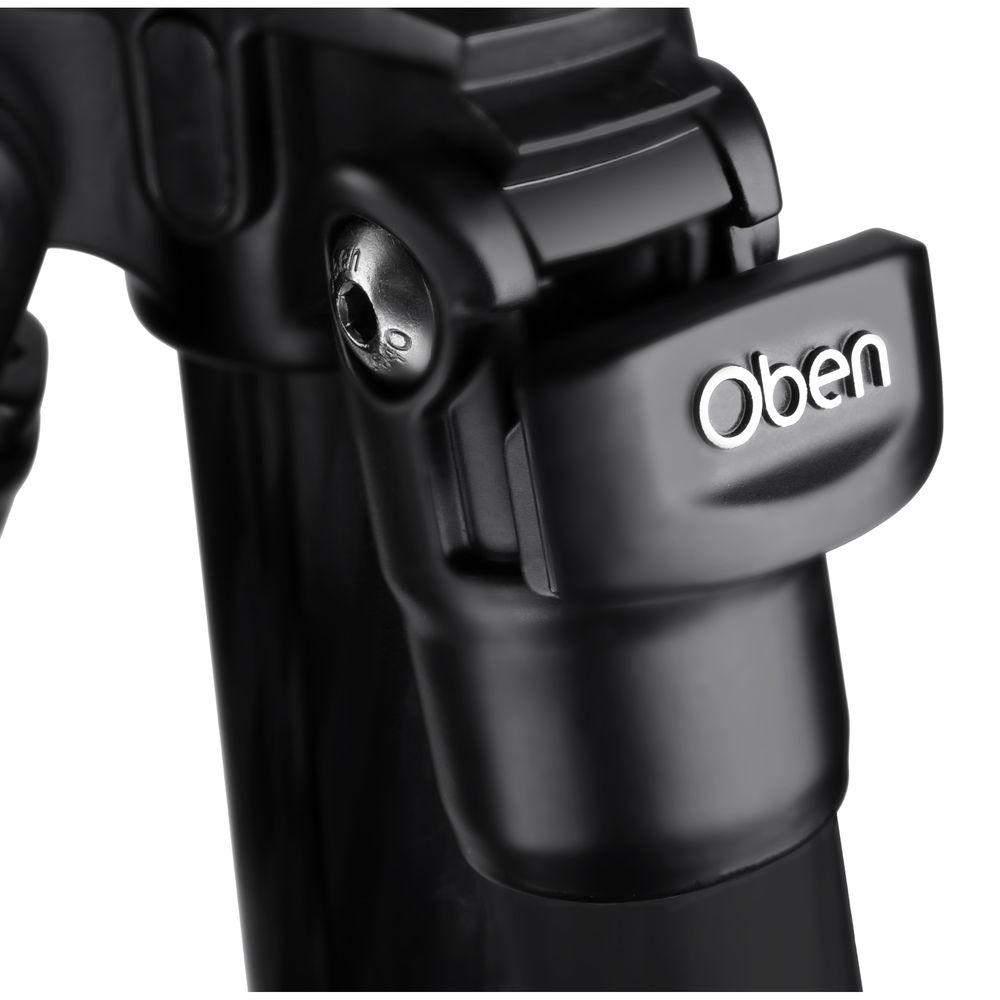

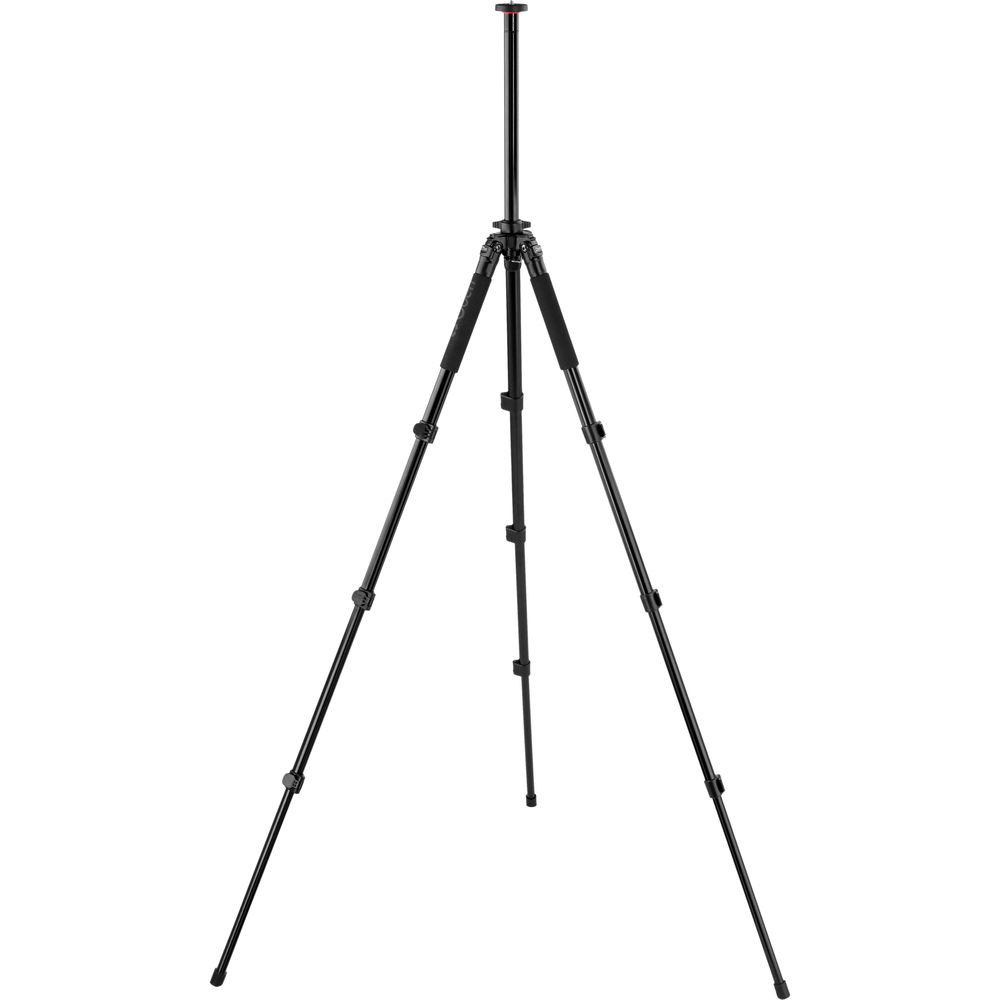

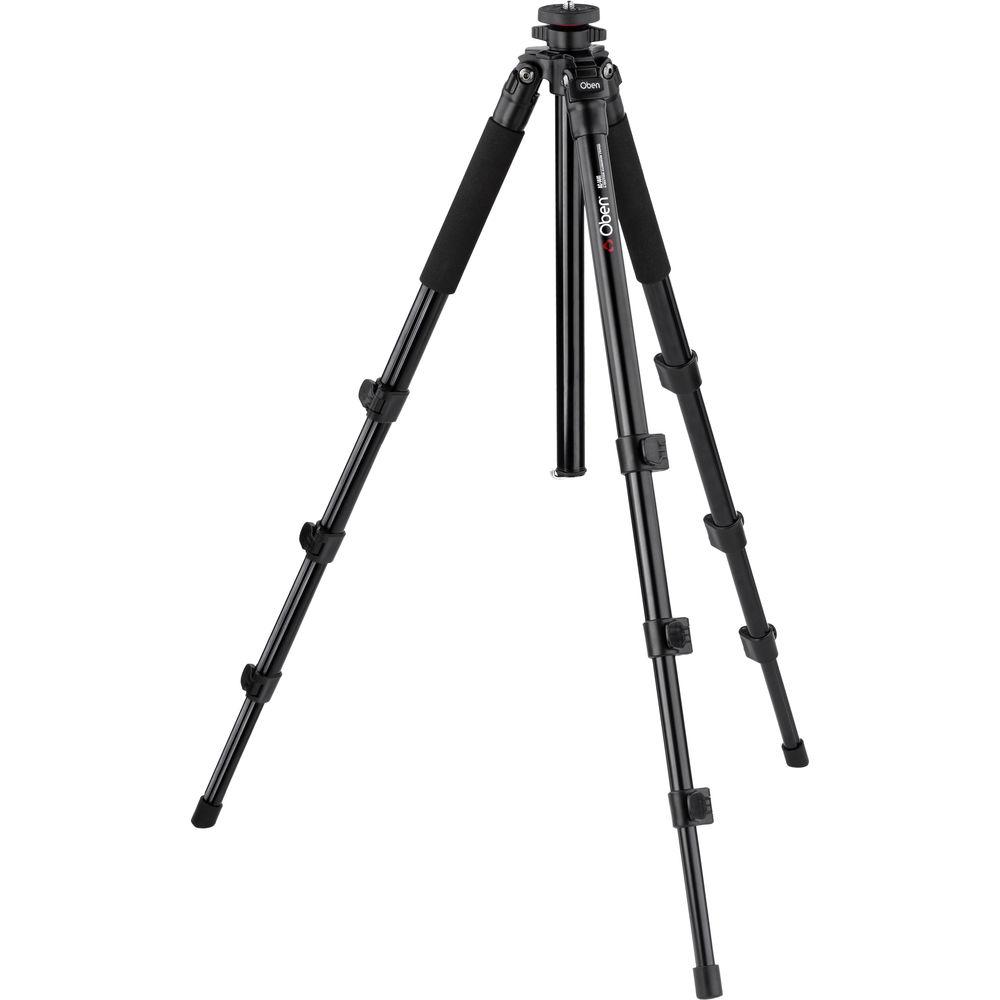

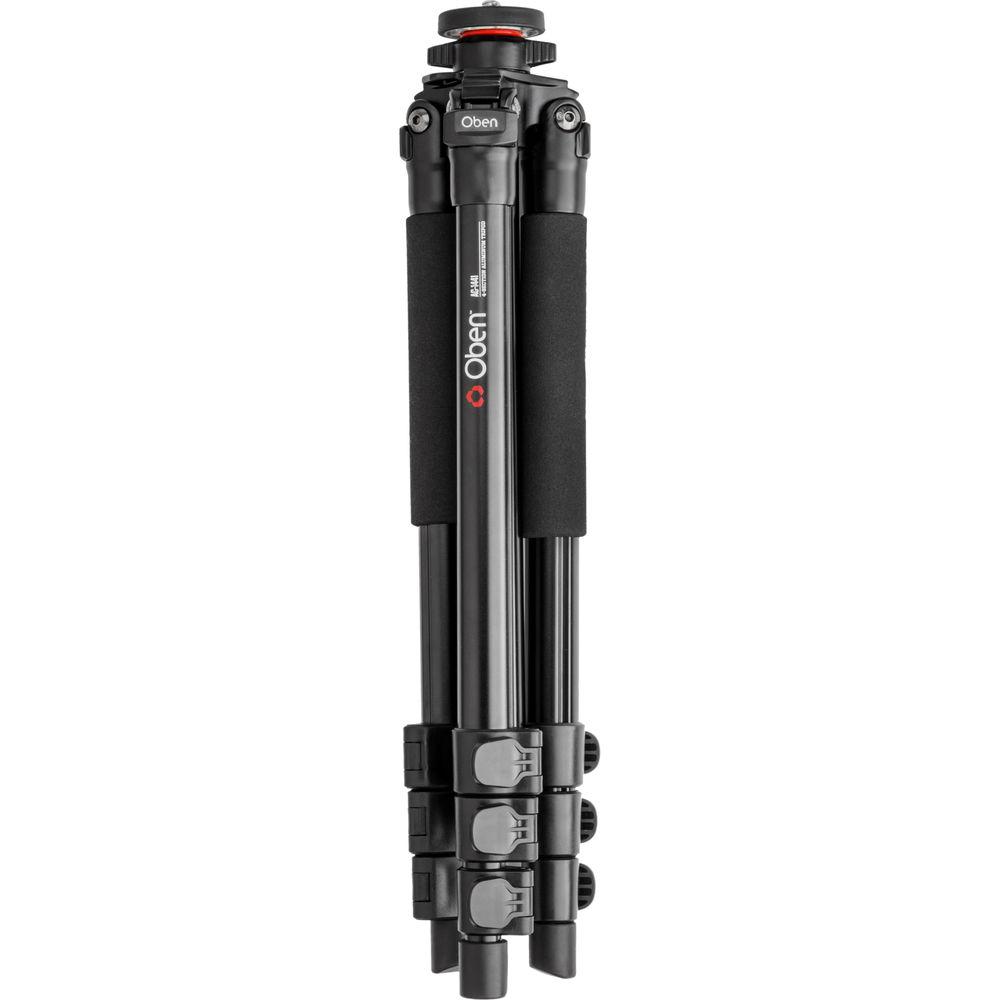

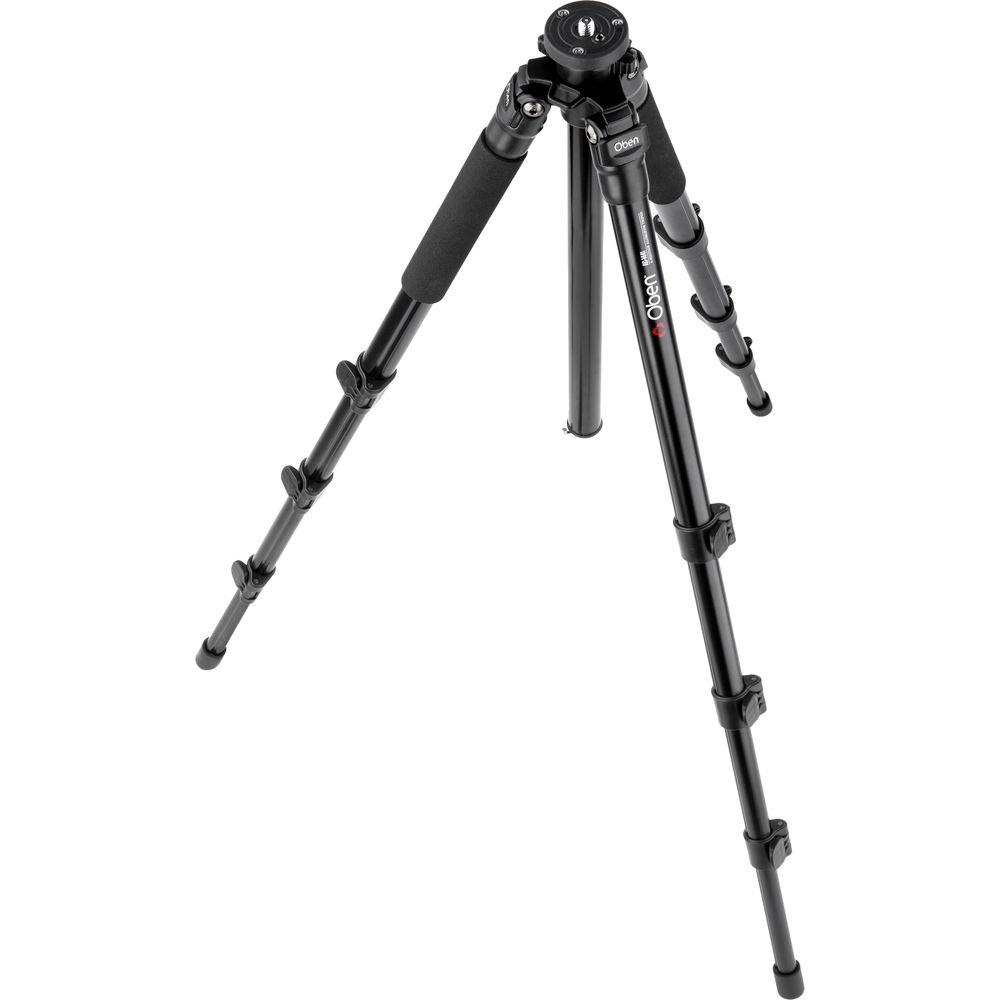

Product description The Oben AC-1441 Aluminum Tripod is a camera support that extends to 59" with its center column fully extended and folds down to 18.25" for transport. Flip locks on the 4-section legs facilitate rapid setup and break down. Three leg angles (24°, 55°, and 80°) are available via angle adjustment tabs at the joint of each leg.

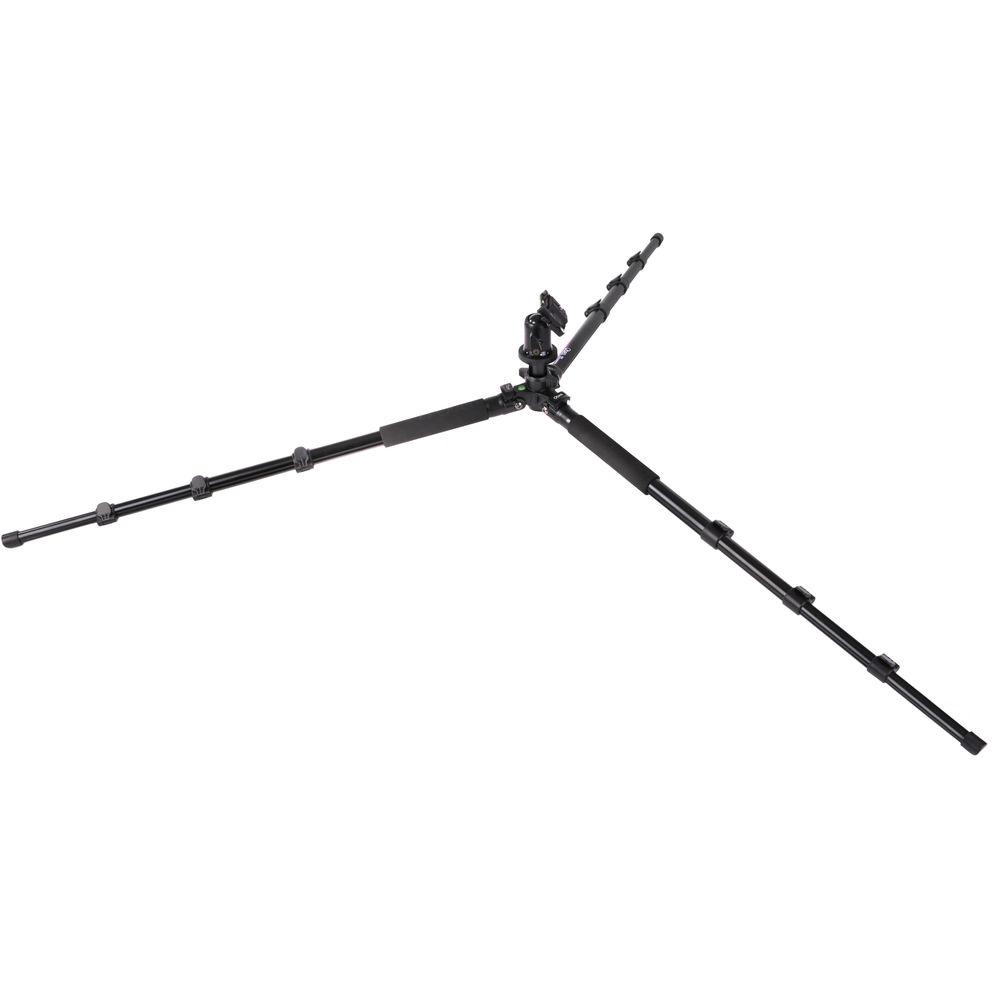

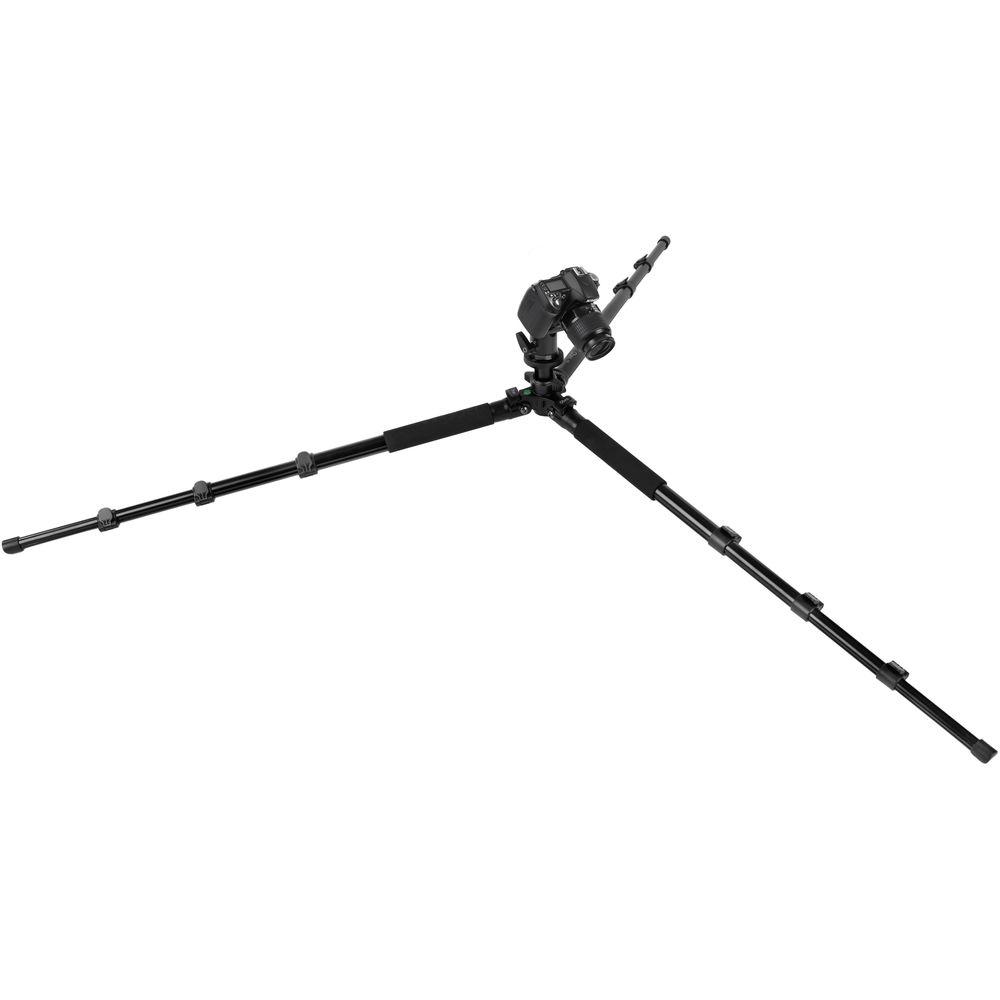

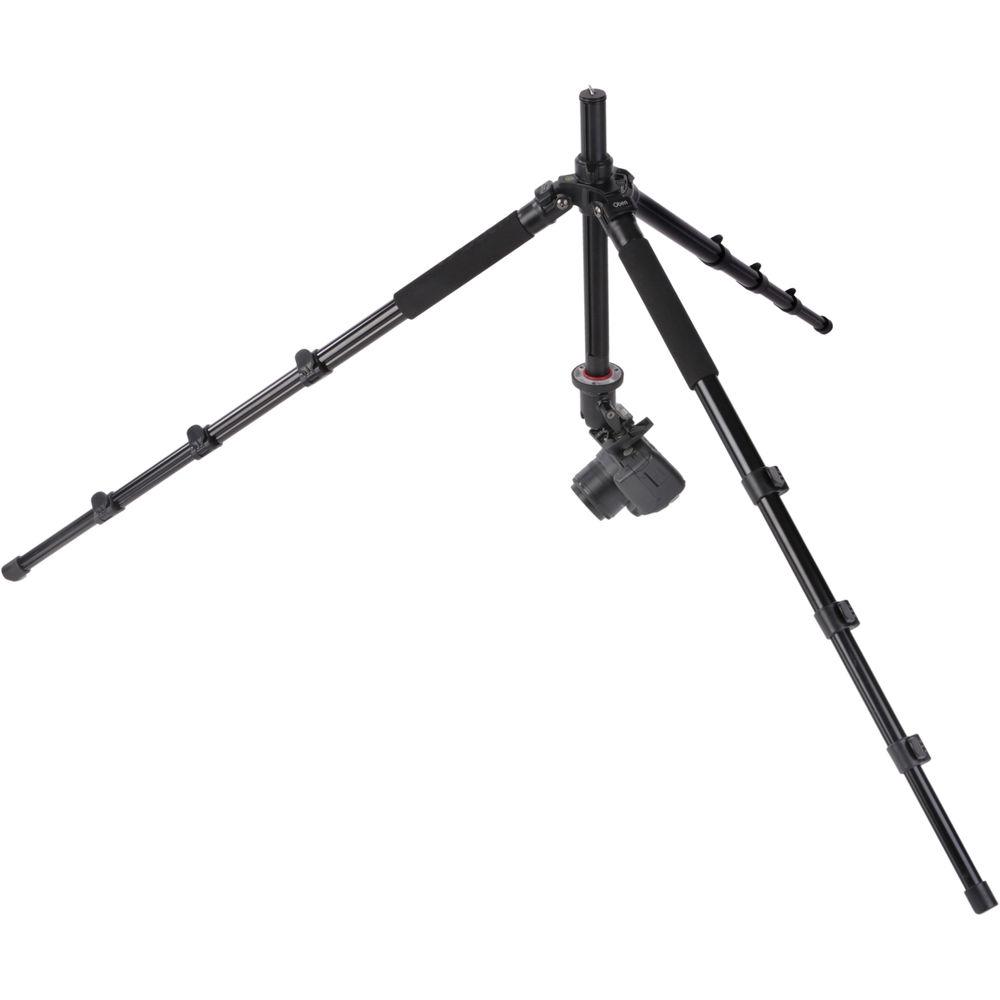

The center column is adjustable with a twist of the butterfly knob and can be split in two to use as a short column for macro and low angle shooting as low as 5.75" from the ground. With the center column reversed, you can place your camera at ground level. Any combination of leg angles can be combined to accommodate uneven terrain, stairs or obstructions. A built-in bubble level helps you align your composition. For extra stability, you can hang weight from a spring-loaded ballast hook on the center column. A strap mount enables attachment of an optional shoulder strap, and a foam leg grip adds comfort when carrying. In the Box Oben AC-1441 Aluminum Tripod Padded Carrying Case 2 x Allen Wrenches Leg Tool Clip Limited 5-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-1441 Aluminum Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben AC-1441 Specs | | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 59" / 149.9 cm | | Max Height without Center Column | 46.8" / 118.9 cm | | Minimum Working Height | 5.8" / 14.7 cm | | Folded Length | 18.3" / 46.5 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.8 lb / 1.3 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Features | Reversible, Split | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 5.0" |
