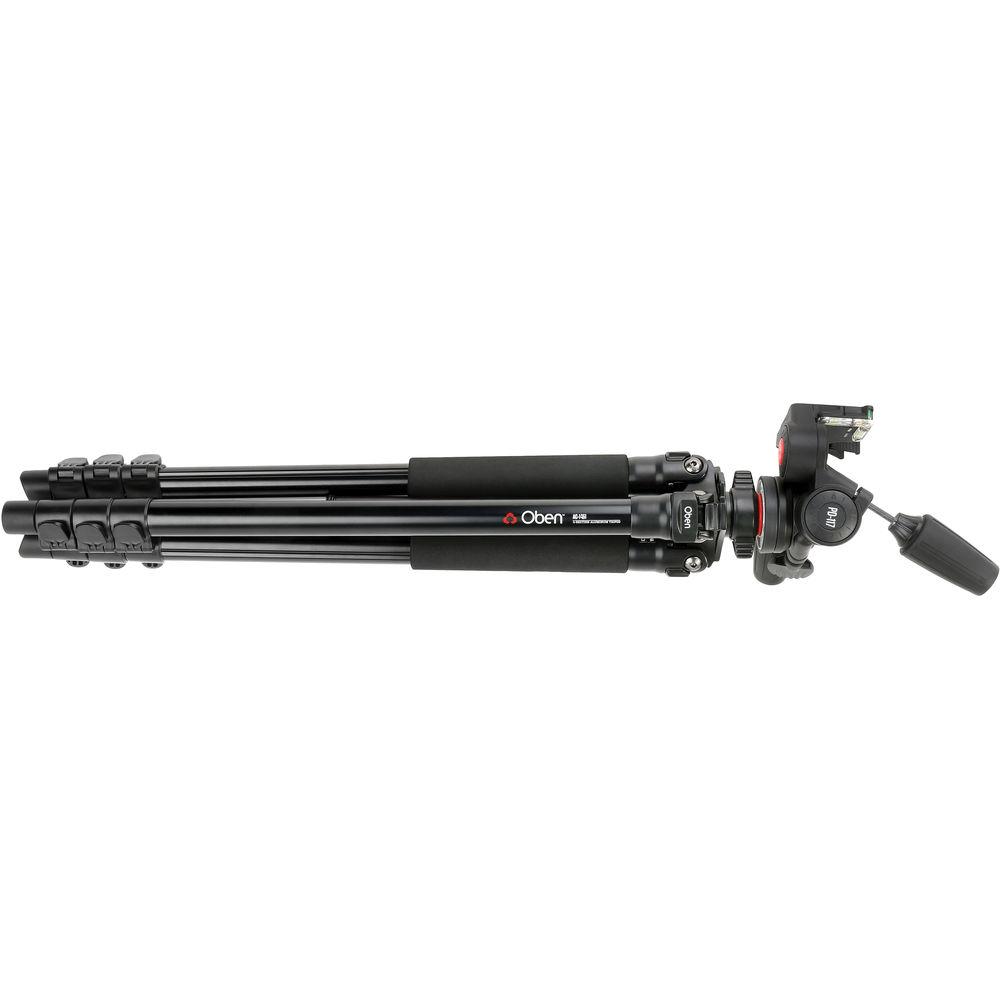

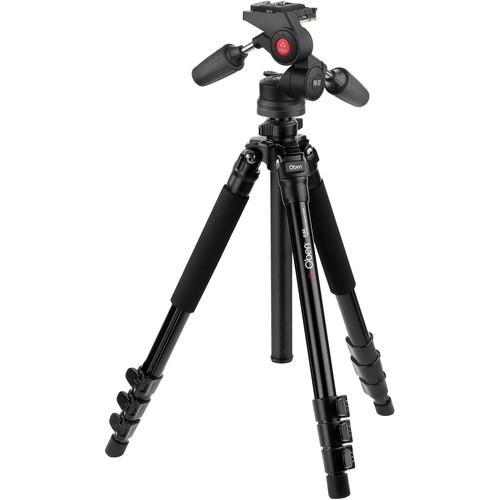

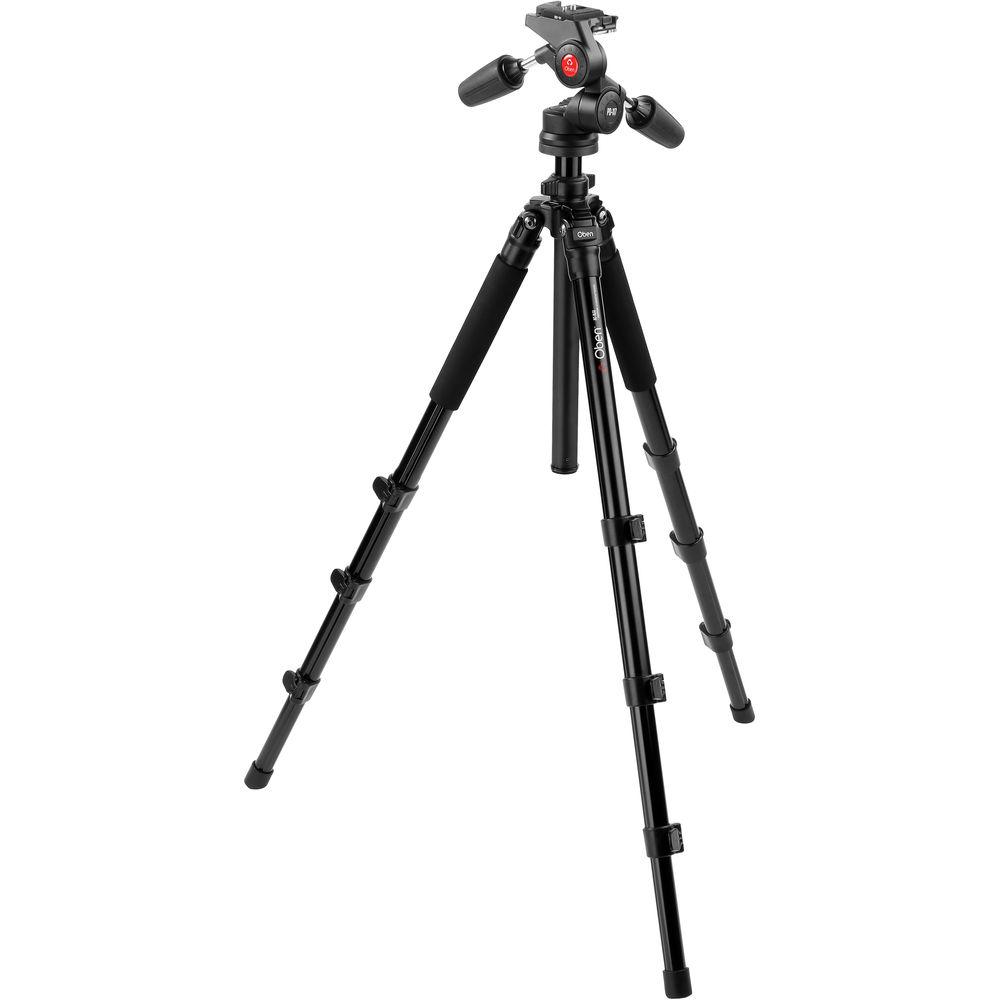

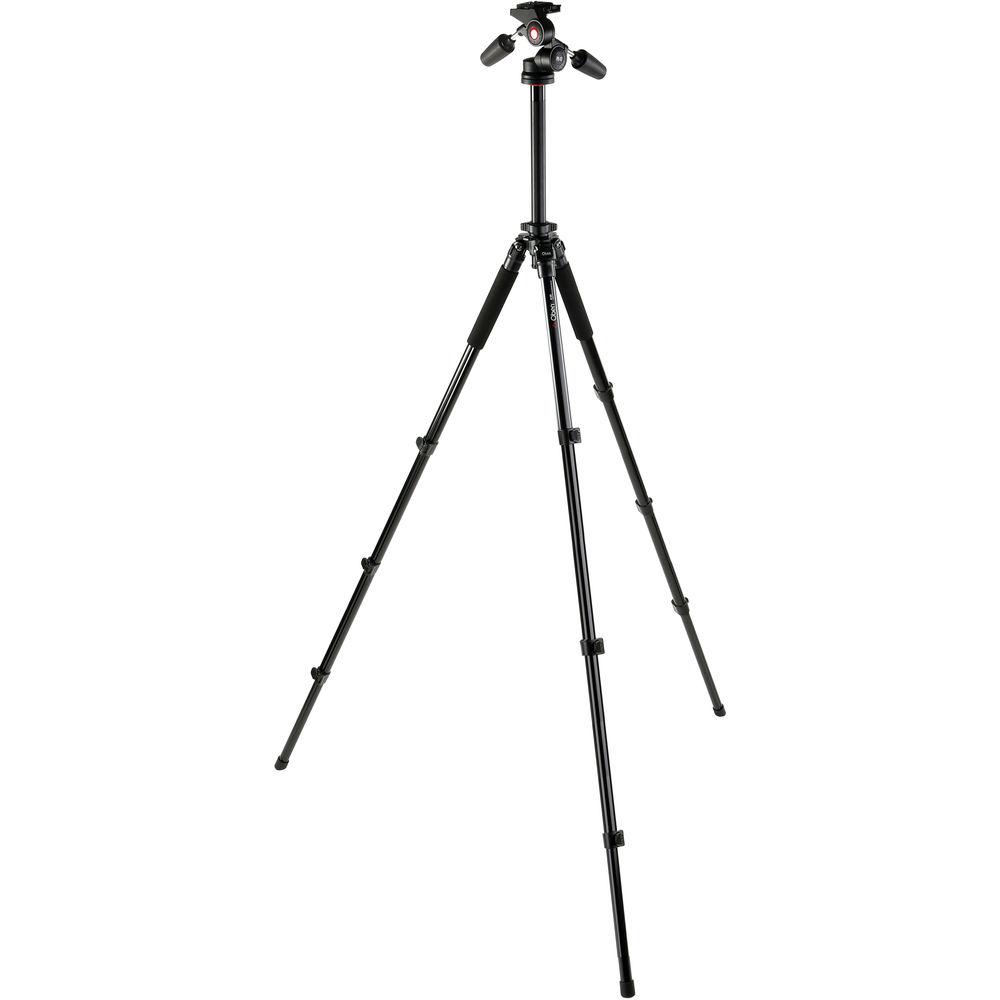

Product description Time-Lapse Tips and Tools Read More sscbaabwzbxrwc The AC-1451 4-Section Aluminum Tripod with PD-117 Pan/Tilt Head from Oben is an ideal tripod head combo for photographers looking for individual control on all axes. The sturdy 4-section aluminum legs can hold a camera or camcorder up to 13.2 lb, and will extend up to 68.3".

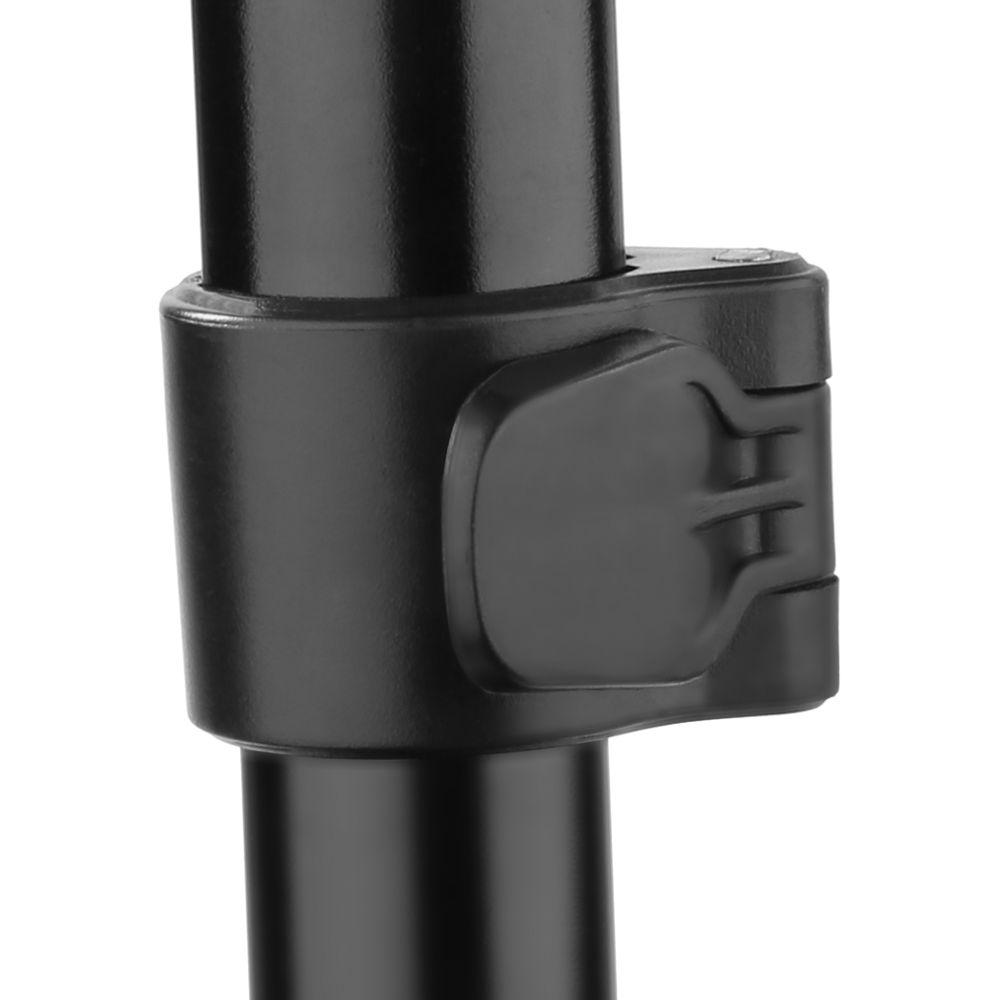

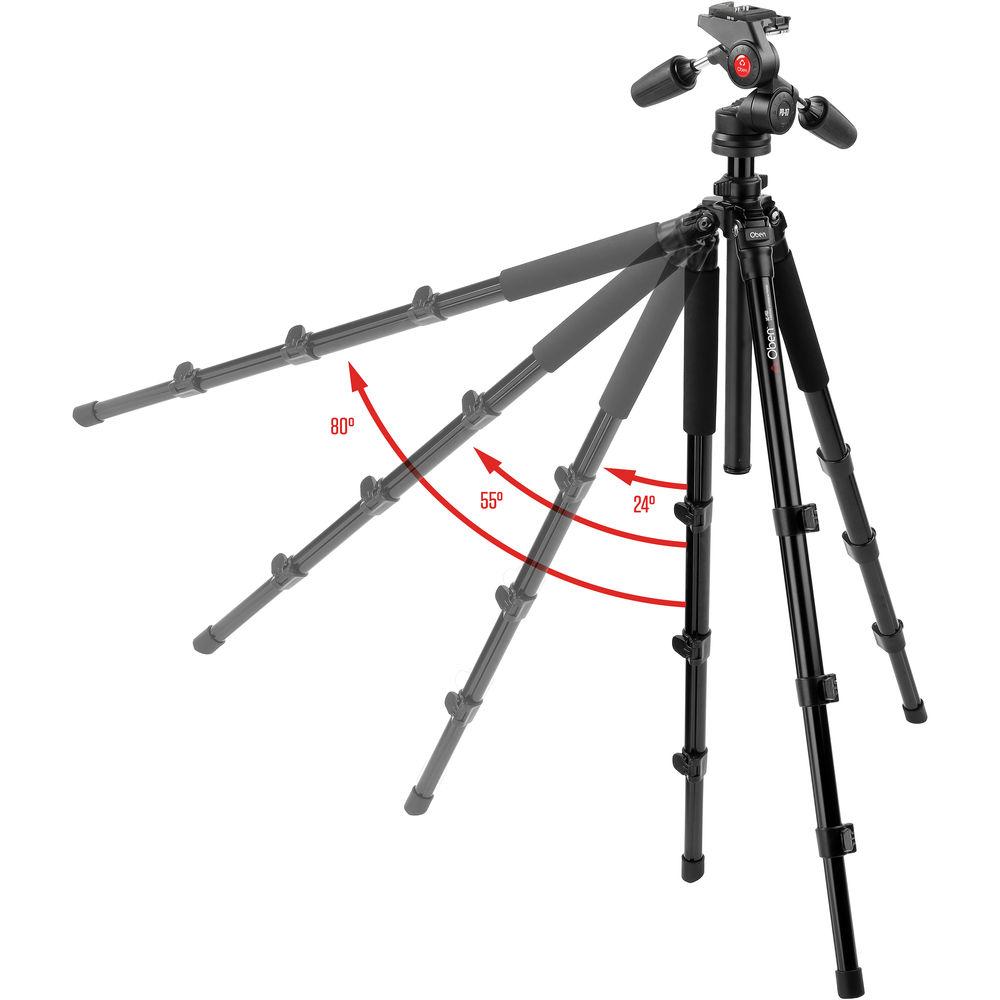

The legs are non-rotating, and have flip locks on each leg to adjust the height of the tripod. Each leg is independently adjustable, and they can be locked securely at three different angles. The tripod's feet feature rubber tips which are great for shooting on slippery or hard surfaces.

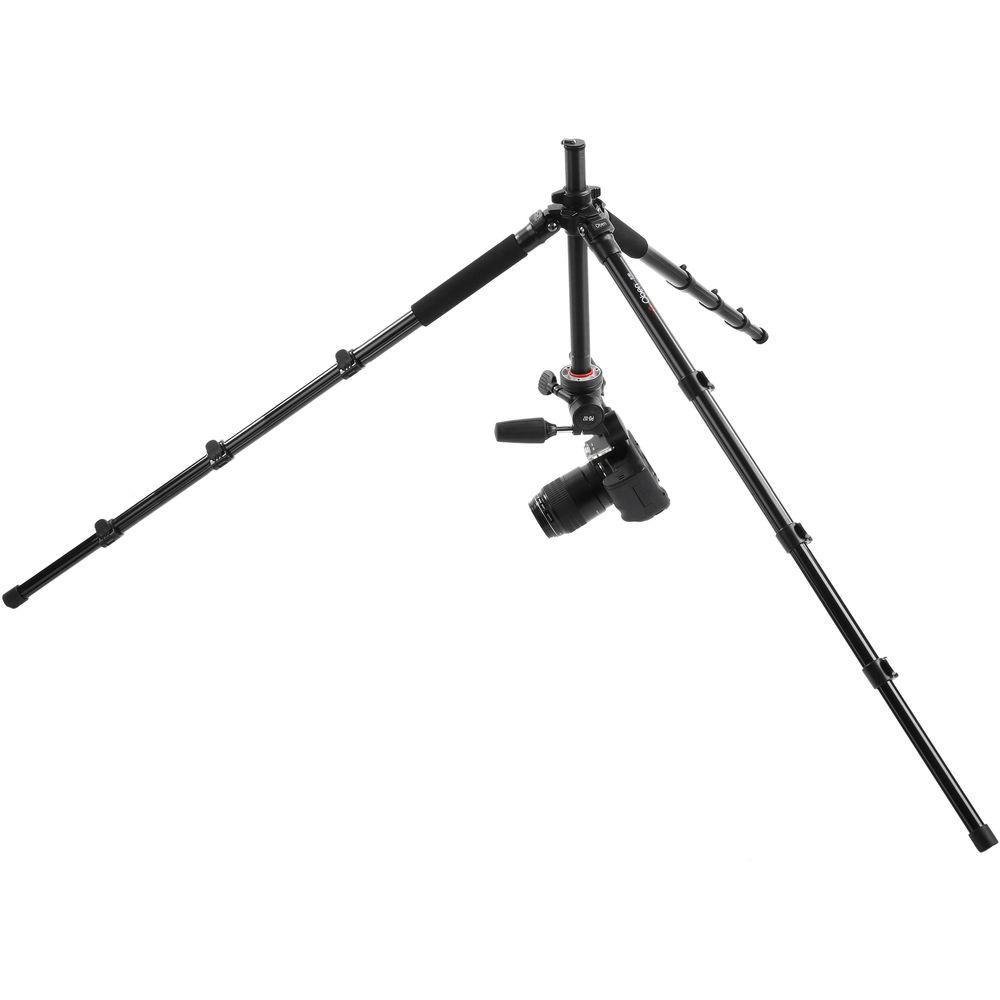

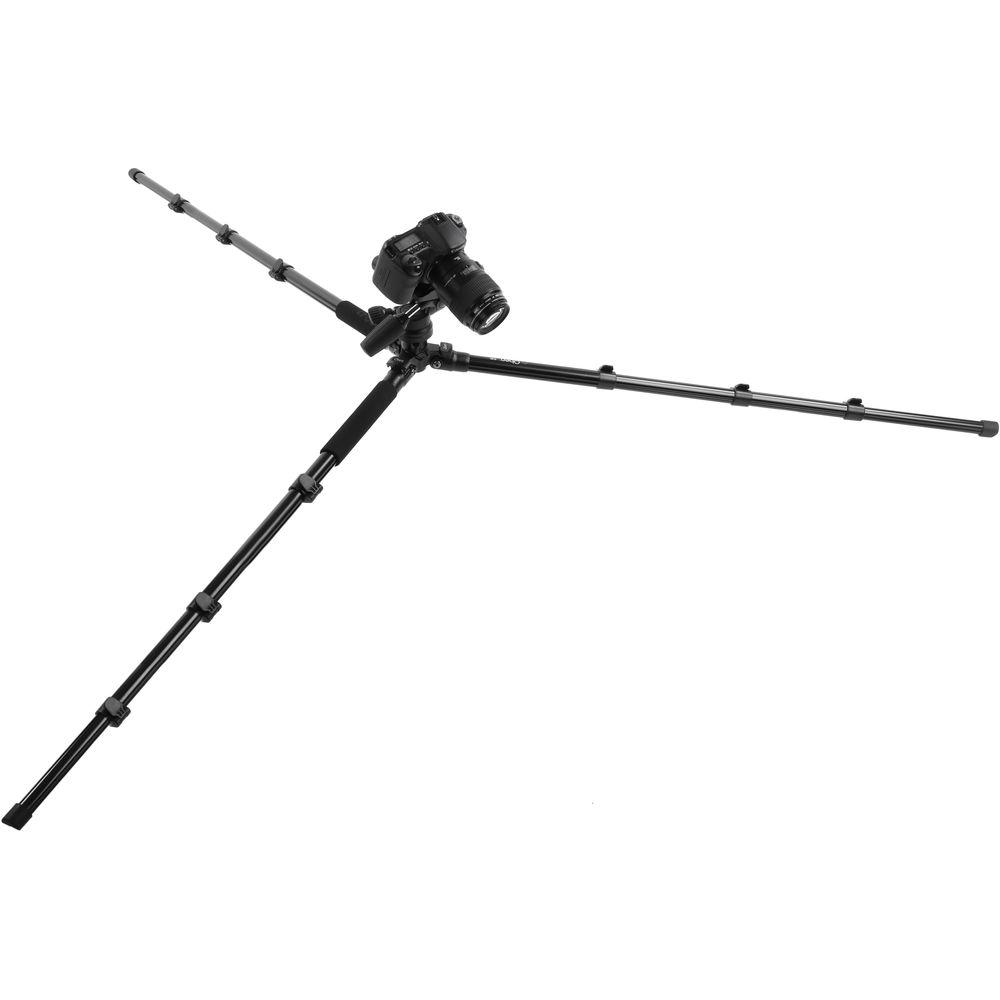

The center column features a twist lock that frees up its extension and retraction. For protection when it's retracted quickly, there's a rubber damper that protects the center-post collar. At the bottom of the center column is a spring-loaded ballast hook that allows you to attach a counterweight for extra stability. The detachable hook doubles as a stopper for the center column, which can be removed and reversed for low-angle shooting.
The PD-117 head allows independent camera adjustment on the horizontal and vertical planes as well as 360° panning. Two locking handles control the front-to-back and side-to-side tilt, and a thumb screw locks and unlocks the panning motion.
The quick release system includes an RP-20 plate with a video pin, and a safety lock on the release lever, preventing accidental release of the camera. Two bull's eye levels, and three tubular levels ensure your camera will be level on both the horizontal and vertical axes.
This tripod also includes a fitted, padded carry case with a removable shoulder strap, two heavy-duty zippers, and an interior zipper pocket. A tool clip with two hex wrenches for adjusting the center column and the leg joints is also included. It snaps onto any of the tripod legs for easy access. - Center column can be separated into 2 parts to give you a short column for low angle and macro work

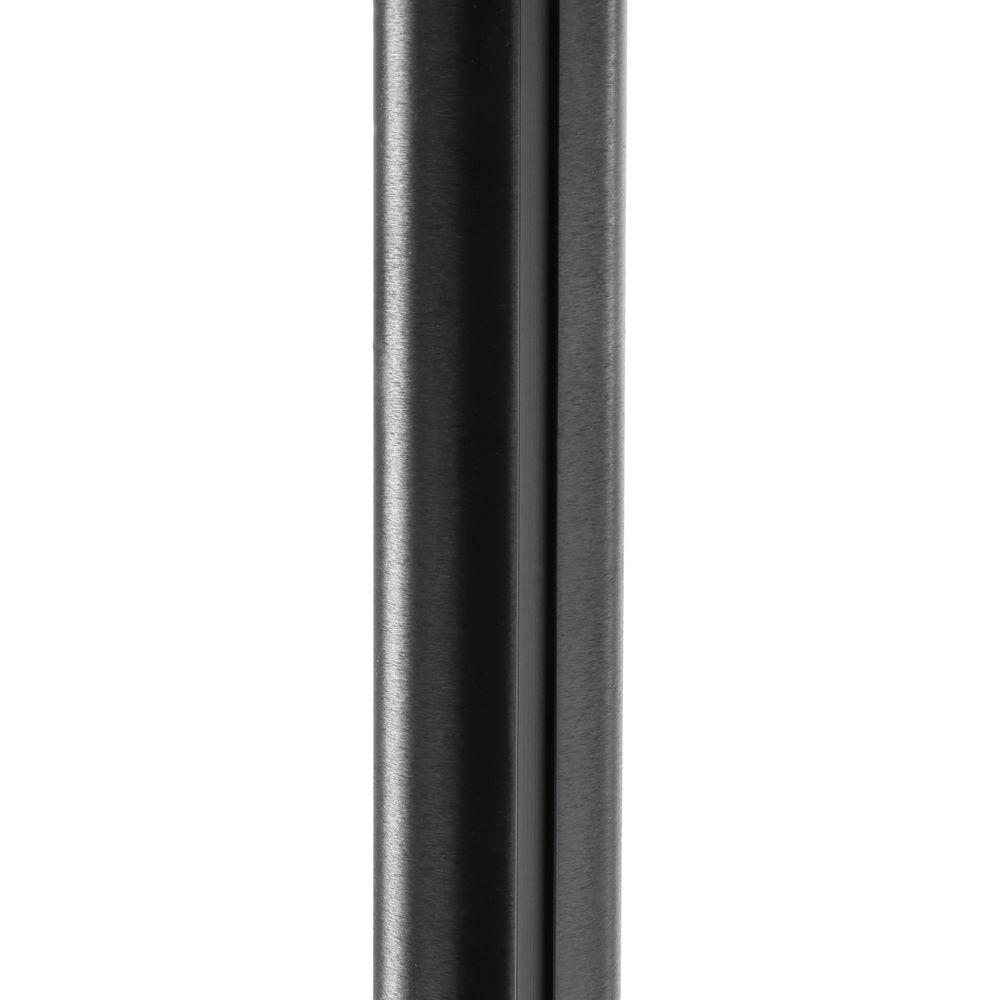

- Center column is grooved to prevent rotation
- Spring-loaded counterweight hook is located at the bottom of the center column
- Leg cushions on 2 legs provide a firm grip in cold or wet weather
- Tripod features reversible 1/4"-20 and 3/8"-16 screw to fit almost any head

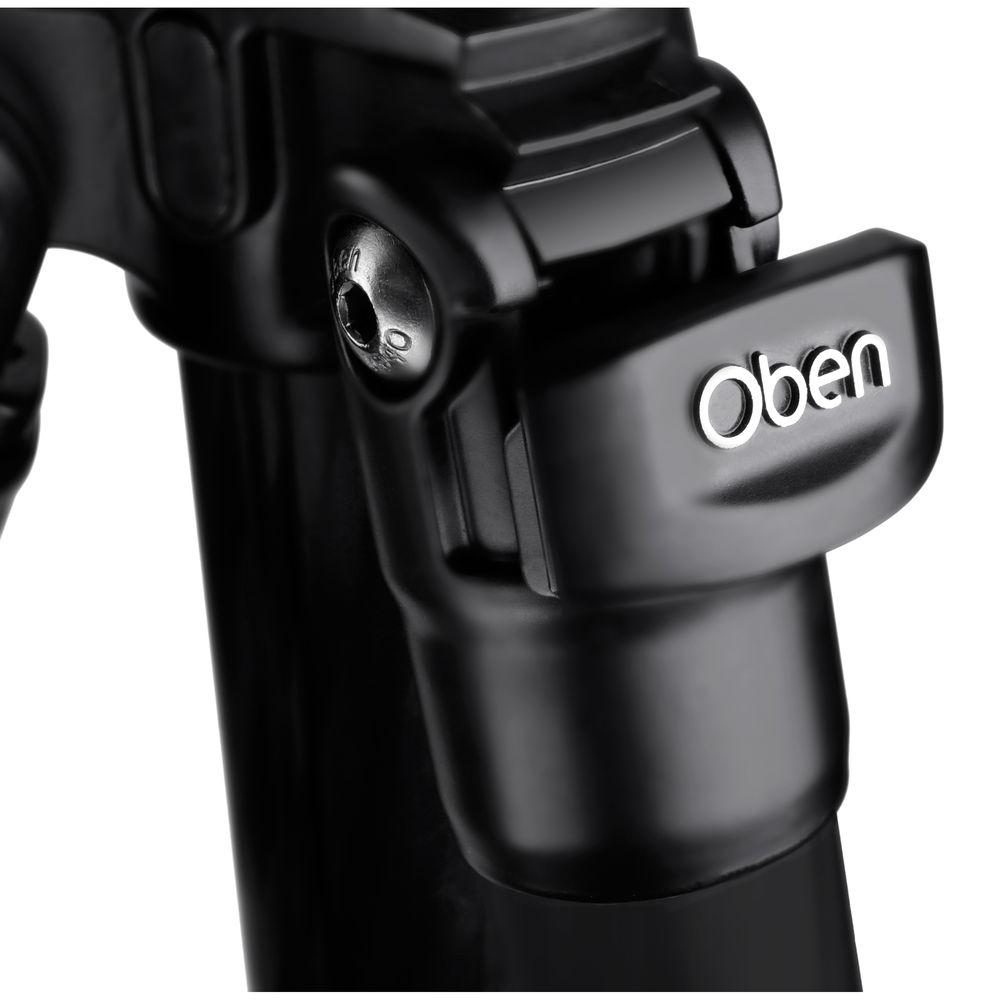

- Angle adjustment locks keep legs at the chosen angles
- Angled rubber feet for maximum contact with the ground
- Two included Allen keys attach to a tripod leg, so you're always ready to tighten components
- Padded carry bag provides a snug fit for the tripod/head combination and features two heavy-duty zippers, an interior pocket with a zipper, and a shoulder strap
UPC: 847628566606 In the Box Oben AC-1451 4-Section Aluminum Tripod with PD-117 Pan/Tilt Head RP-20 Quick Release Plate Tool Clip with 2 Hex Keys Padded Carrying Case Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-1451 4-Section Aluminum Tripod with PD-117 Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Oben AC-1451 4-Section Aluminum Tripod with PD-117 Pan Tilt Head can be downloaded in PDF format at the link stated below.
Technical parametersOben AC-1451 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Number of Bubble Levels | 5 | | | | Load Capacity | 13.2 lb / 6 kg | | Maximum Working Height | 68.3" / 173.5 cm | | Max Height without Center Column | 58" / 147.3 cm | | Minimum Working Height | 10.2" / 25.9 cm | | Folded Length | 25.2" / 64 cm | | Materials | Aluminum Alloy | | Weight | 5.3 lb / 2.4 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Features | Reversible | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 30.0 x 5.0 x 5.0" |
