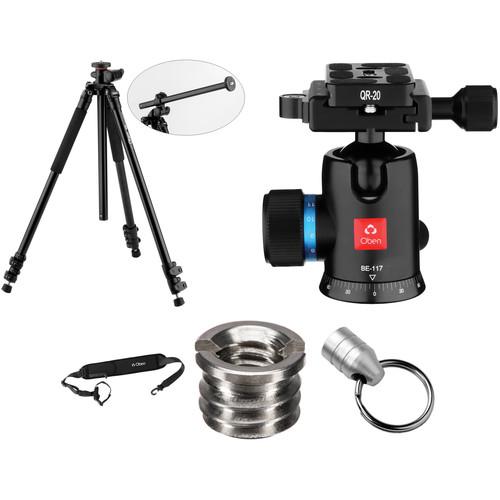

Oben AC-2341L Tripod with BE-117 Ball

User Manual for Oben AC-2341L Tripod with BE-117 Ball Head Kit

• Product category: Tripods with Heads Oben
• Brand: Oben
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Oben Tripods with Heads

Product description

• Oben AC-2341L 3-Section Aluminum Tripod Legs The AC-2341L 3-Section Aluminum Lateral Tripod Legs from Oben is a sturdy, professional support for any DSLR, point-and-shoot camera, or a compact camcorder. With a load capacity of 11 lb and a generous maximum height of 65.8", the lateral tripod features a tilting, swiveling center column that enables infinitely flexible positioning for macro photography and other uses. Engaging the lateral adjustment lever frees the tilting of the center column once it's been extended past the chassis, which becomes possible by pressing the button at the column's bottom to disengage the safety bolt. Once extended, the column can tilt, with no ratcheting, from its original 0°, straight-up-and-down orientation, to a 180° upside-down orientation – with possible stops everywhere in between, including a 90° lateral position. Twisting a knob on the chassis locks and unlocks the 360° swiveling of the center column and its upper collar. The tripod's flip locks, which enable the extension and securing of the leg stages, are user-adjustable. By using a supplied Allen key, the user can tighten two points on each spring-loaded flip lock to safeguard their continued reliable performance. With its anodized aluminum construction, the AC-2341L is ready to survive the rigors of professional work. The tripod chassis is cast aluminum for further durability. When it's not being used in its lateral mode, the AC-2341L's rapid center column functions like any professional tripod, extending after a twist of the knob on the upper collar. The tripod's center column can also be removed from both the chassis and the upper collar so that it can be reversed. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the center-post collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the AC-2341L features metal spikes that retract and emerge by twisting the foot's rubber portion.
  • Center column adjusts throughout a complete sphere of possible positions, so you can take steady shots from virtually any angle
  • Leg warmers on two legs mitigate the effects of extreme heat & cold and provide grip
  • The two included Allen keys attach to a tripod leg, so you're always ready to tighten components
  • Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
  • Bubble level on tripod chassis
  • Center column is grooved to prevent its rotation within the upper collar
  • Integrated aluminum loop for attaching the optional shoulder strap
  • Rugged rubber tips with retractable spikes for shooting both indoors and outdoors on any terrain
  • Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
  UPC: 847628556751
• Oben BE-117 Ball Head The BE-117 Ball Head from Oben is a lightweight aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob to control the movement of the ball, and a separate knob for the 360° panning movement.

  The BE-117's multiple knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple, for instance, because you can pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BE-117 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.

  The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, both ensure that your camera will be level with the horizon. UPC: 847628563476
• Oben TS-110 Deluxe Tripod Strap with Swivel Clip The TS-110 Deluxe Tripod Strap with Swivel Clip from Oben provides you with an easy way to always have your tripod with you. The strap is designed to fit tripods that have an attachment hook. It's adjustable from 34 to 40" and features a 3.25" wide neoprene shoulder pad. One end of the strap contains a swivel clip that attaches to the tripod's attachment hook. The other end contains a quick-release connector that wraps around your tripod's leg. The strap features an accessory pocket for small items. UPC: 847628540194
• Oben 3/8"-16 to 1/4"-20 Reducer Bushing This 3/8"-16 to 1/4"-20 Reducer Bushing from Oben allows you to convert any standard 3/8"-16 thread for the insertion of a standard 1/4"-20 screw. This way you can, for instance, mount a professional-style head with a 3/8"-16 threaded hole on a tripod that has a 1/4"-20 screw.The bushing is a replacement part for Oben heads, and it will work with all Oben monopods and tripods also. UPC: 847628536128
• Oben Tripod Hanger (1/4"-20) The Oben Tripod Hanger attaches to a tripod's 1/4"-20 camera screw, allowing you to hang it from a hook for convenient storage or display. The hanger is an ideal accessory for studios, newsrooms, rental houses or for anyone who wants to organize their gear and free up floor space. UPC: 847628571525

• AC-2341L 3-Section Aluminum Tripod Legs uyxqvcud
• Padded Tripod Bag
• Shoulder Strap for Bag
• Tool Clip with 2 Hex Keys
• Limited 5-Year Warranty

• BE-117 Ball Head

• TS-110 Deluxe Tripod Strap with Swivel Clip

Includes Free

• 3/8"-16 to 1/4"-20 Reducer Bushing

• Tripod Hanger (1/4"-20)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Oben AC-2341L 3-Section Aluminum Tripod Legs

  Load Capacity	11 lb / 5 kg
  Maximum Working Height	65.8" / 167.1 cm
  Max Height without Center Column	53.2" / 135.1 cm
  Minimum Working Height	6" / 15.2 cm
  Folded Length	25.4" / 64.5 cm
  Head Mount Type	1/4"-20 Screw, 3/8"-16 Screw
  Weight	4.3 lb / 2 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3
  Feet Features	Retractable, Spiked

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	33.0 x 5.0 x 5.0"

• Oben BE-117 Ball Head

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Quick Release Plate Type	Arca-Type
  Load Capacity	17.6 lb / 7.98 kg
  Number of Bubble Levels	2
  Friction Control	No
  Independent Pan Lock	Yes

  Ball Sphere Diameter	1.26" / 32 mm
  Base Diameter	1.8" / 4.5 cm
  Dimensions	H: 3.7" / H: 9.3 cm
  Weight	13.4 oz / 380.0 g

  Box Dimensions (LxWxH)	4.8 x 4.2 x 3.5"

• Oben TS-110 Deluxe Tripod Strap with Swivel Clip

  Material	Strap: Nylon Shoulder Pad: Neoprene
  Attachment Method	Swivel Clip attaches to tripod hook Quick-release connector wraps around tripod leg
  Dimensions	Adjustable: 34.0 to 40.0" (0.8 to 1.0 m) Shoulder Pad: 17.5 x 3.25" (44.5 x 8.3 cm)

  Box Dimensions (LxWxH)	17.4 x 3.8 x 1.6"

• Oben 3/8"-16 to 1/4"-20 Reducer Bushing

  Box Dimensions (LxWxH)	3.3 x 1.95 x 0.3"

• Oben Tripod Hanger (1/4"-20)

  Box Dimensions (LxWxH)	3.5 x 3.0 x 0.5"
