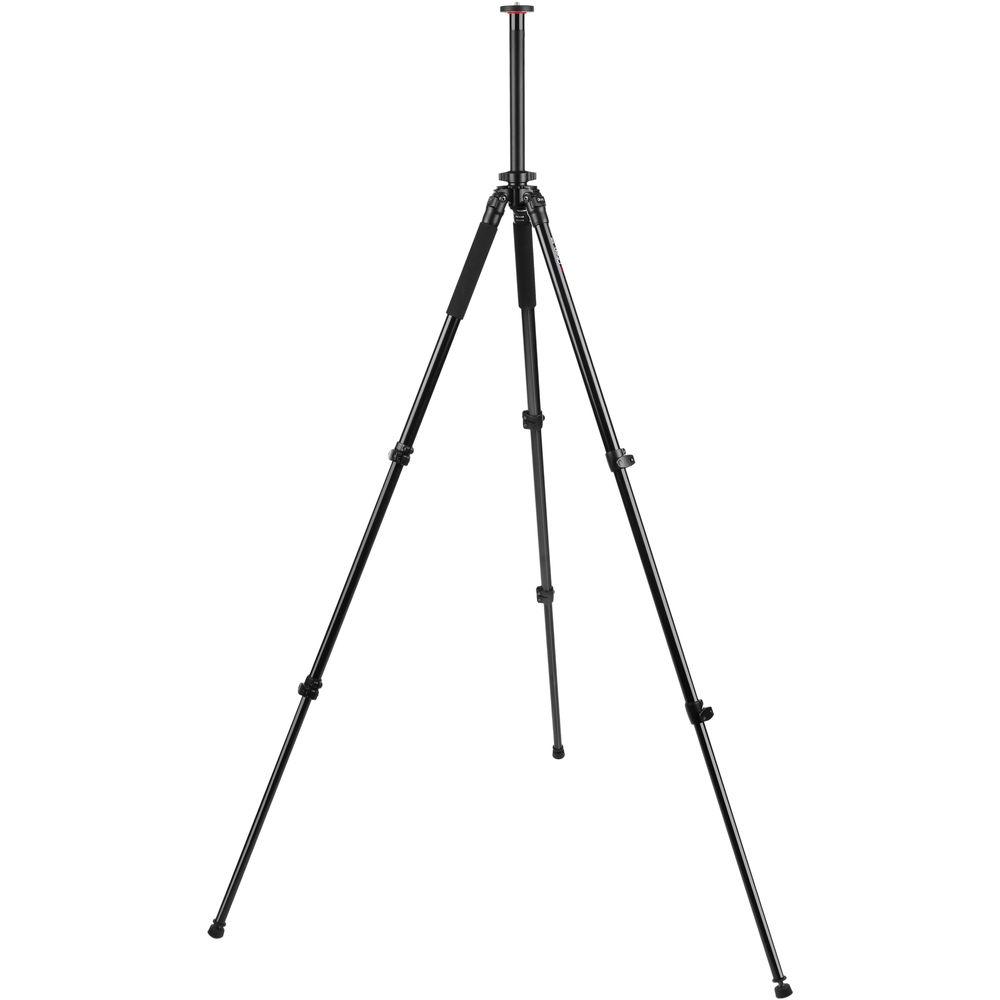

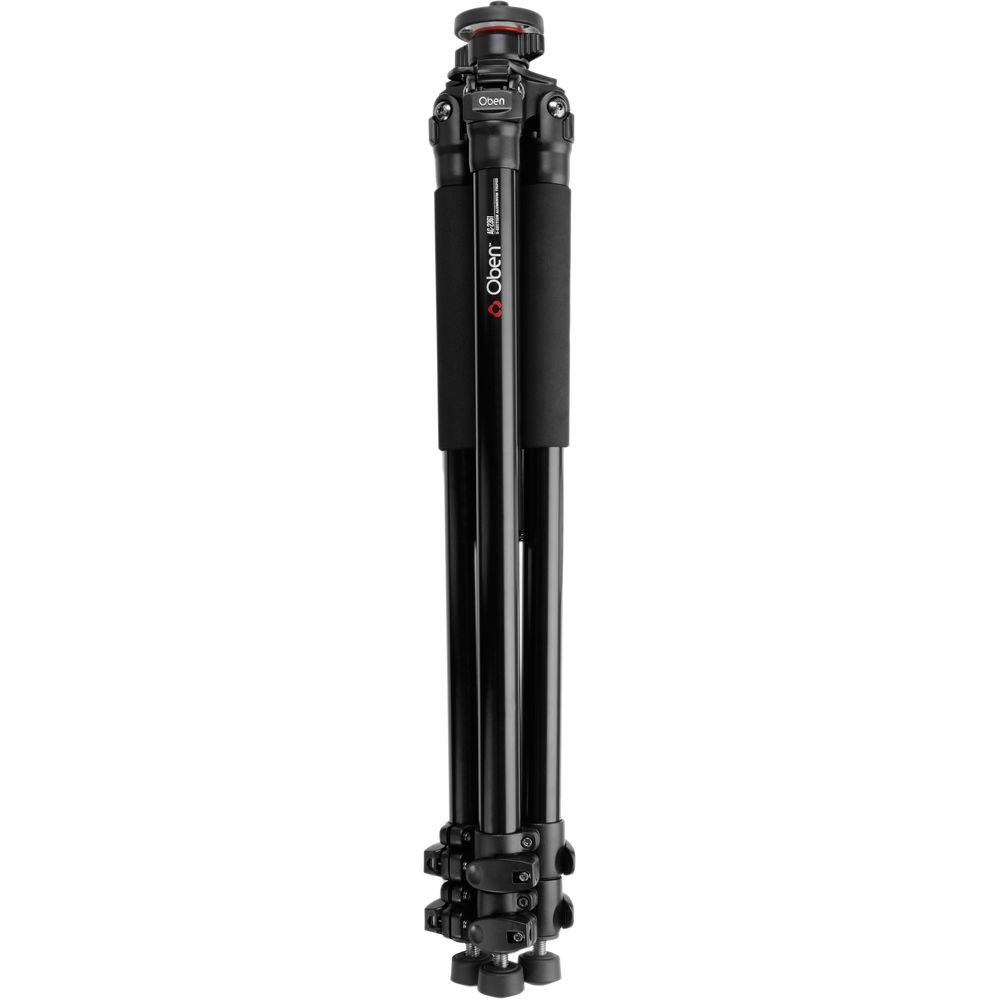

User Manual for Oben AC-2361 3-Section Aluminum Tripod Legs Click to enlarge the picture
Contents of the user manual for the Oben AC-2361 3-Section Aluminum Tripod Legs
- Product category: Tripod Legs Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripod Legs
 |
User manual for the Oben AC-2361 3-Section Aluminum Tripod Legs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

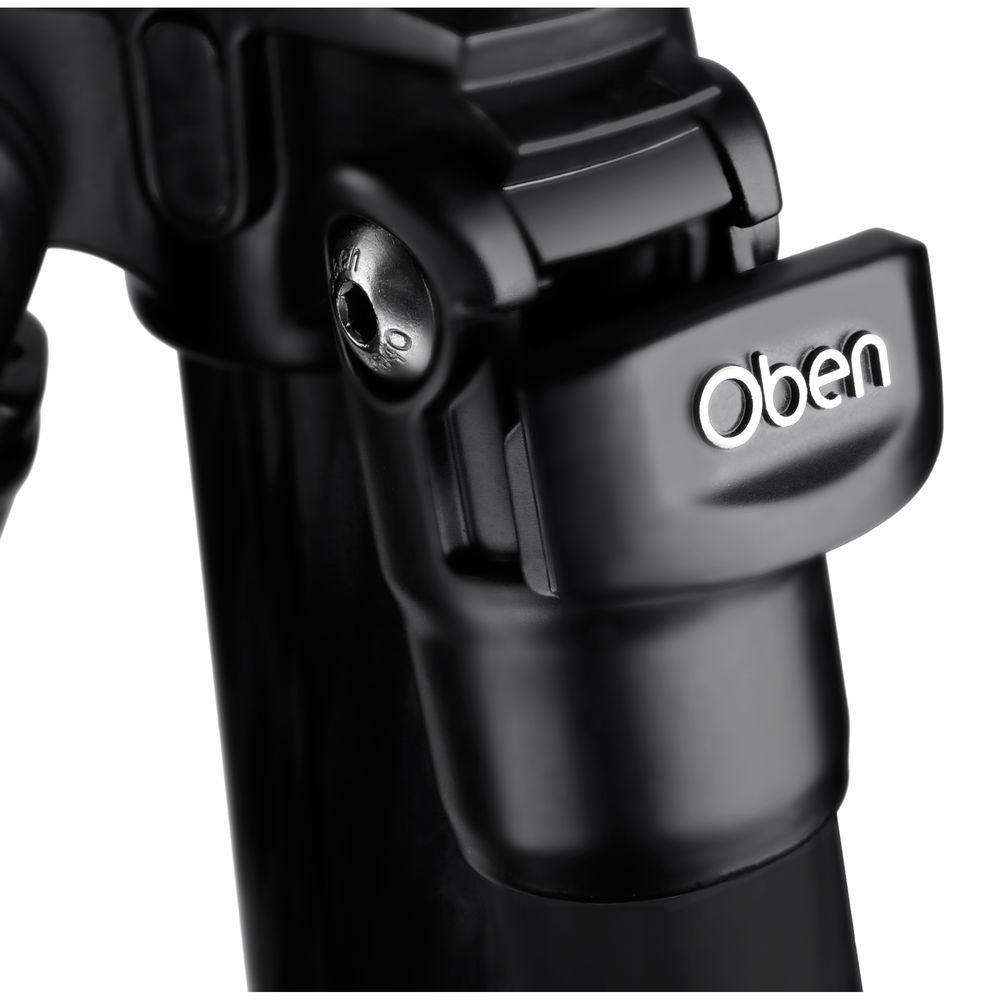

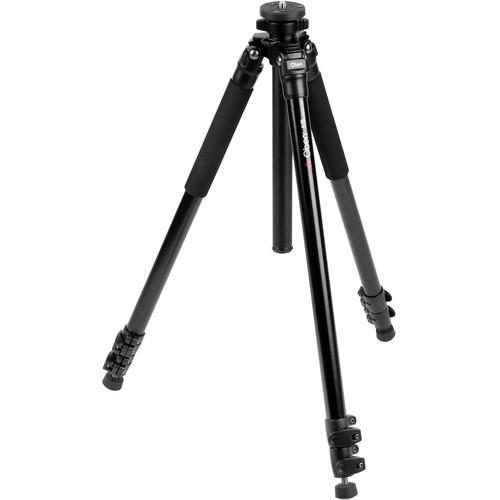

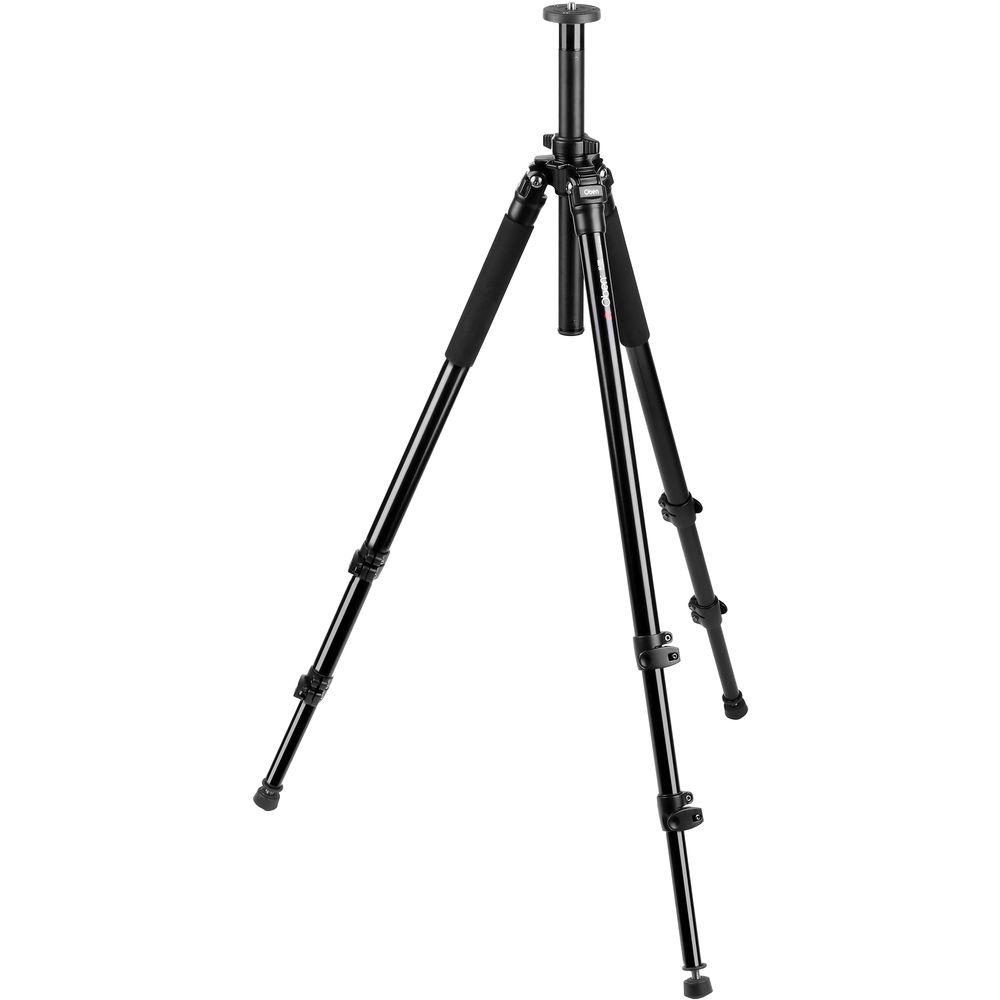

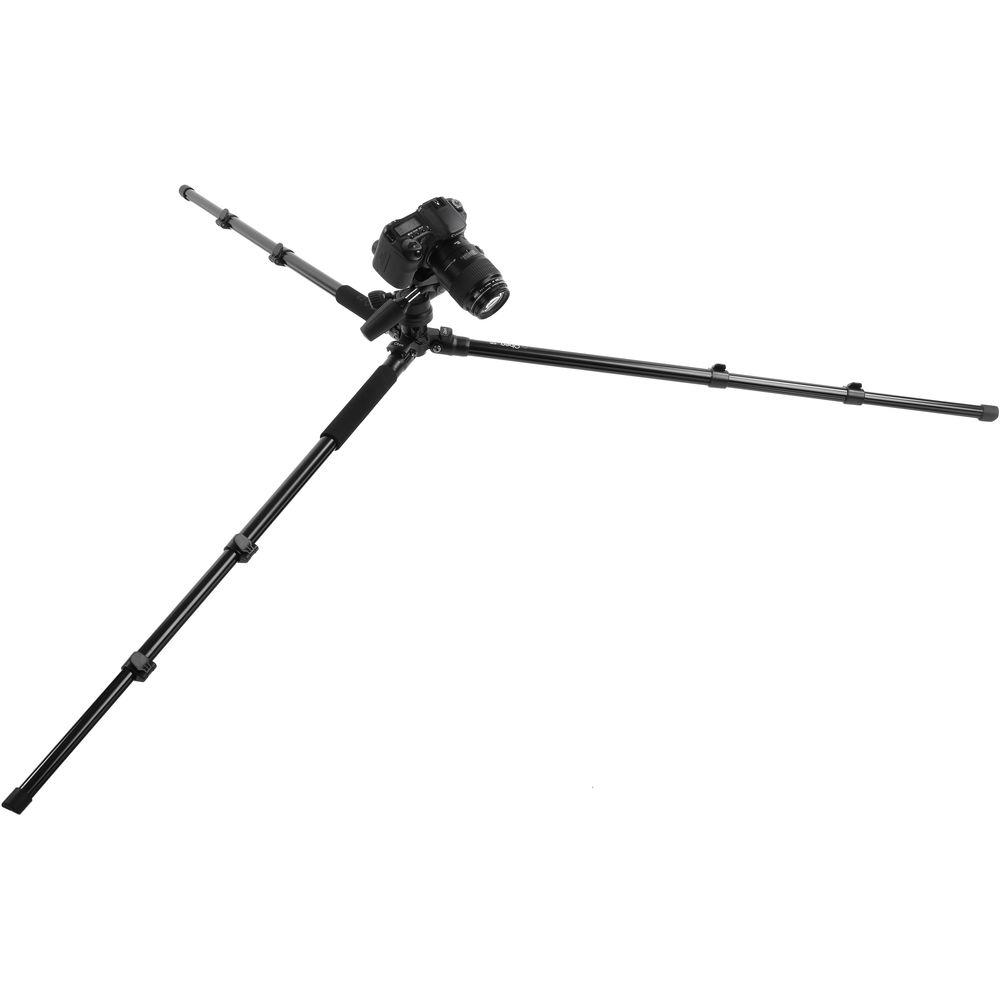

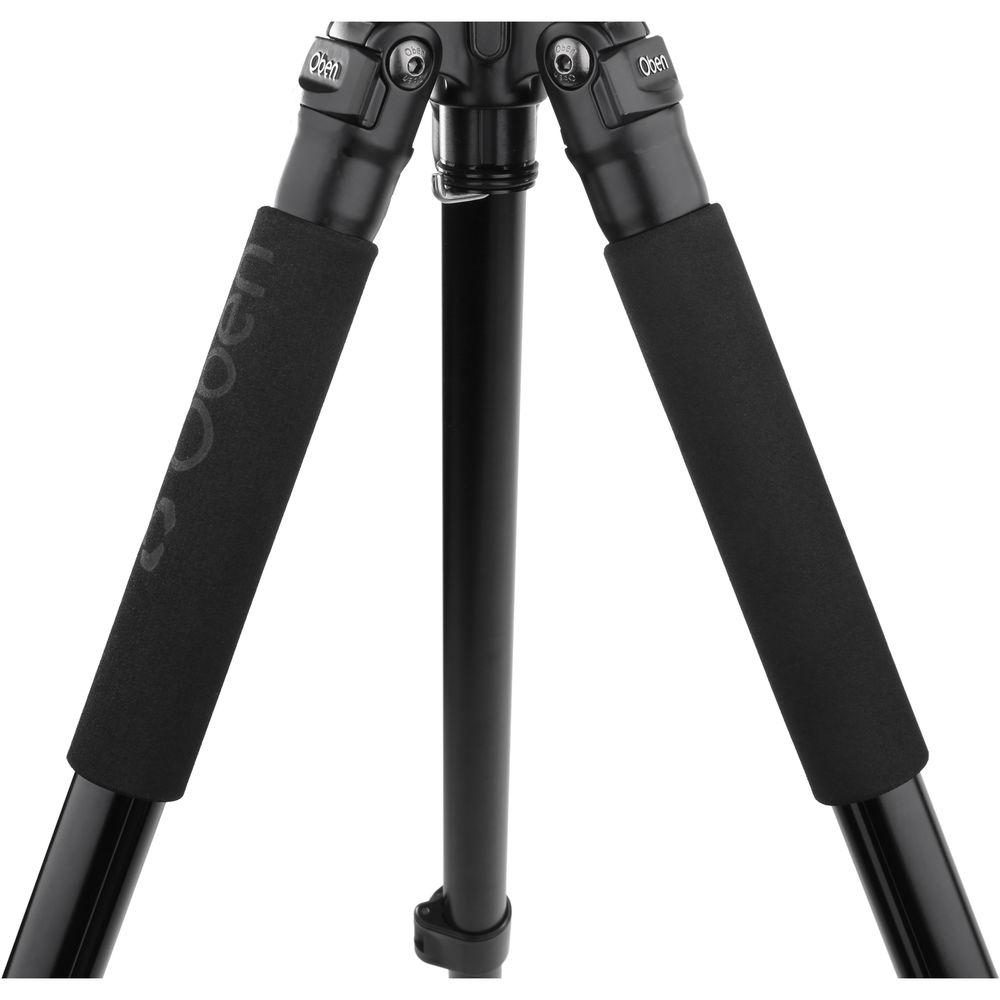

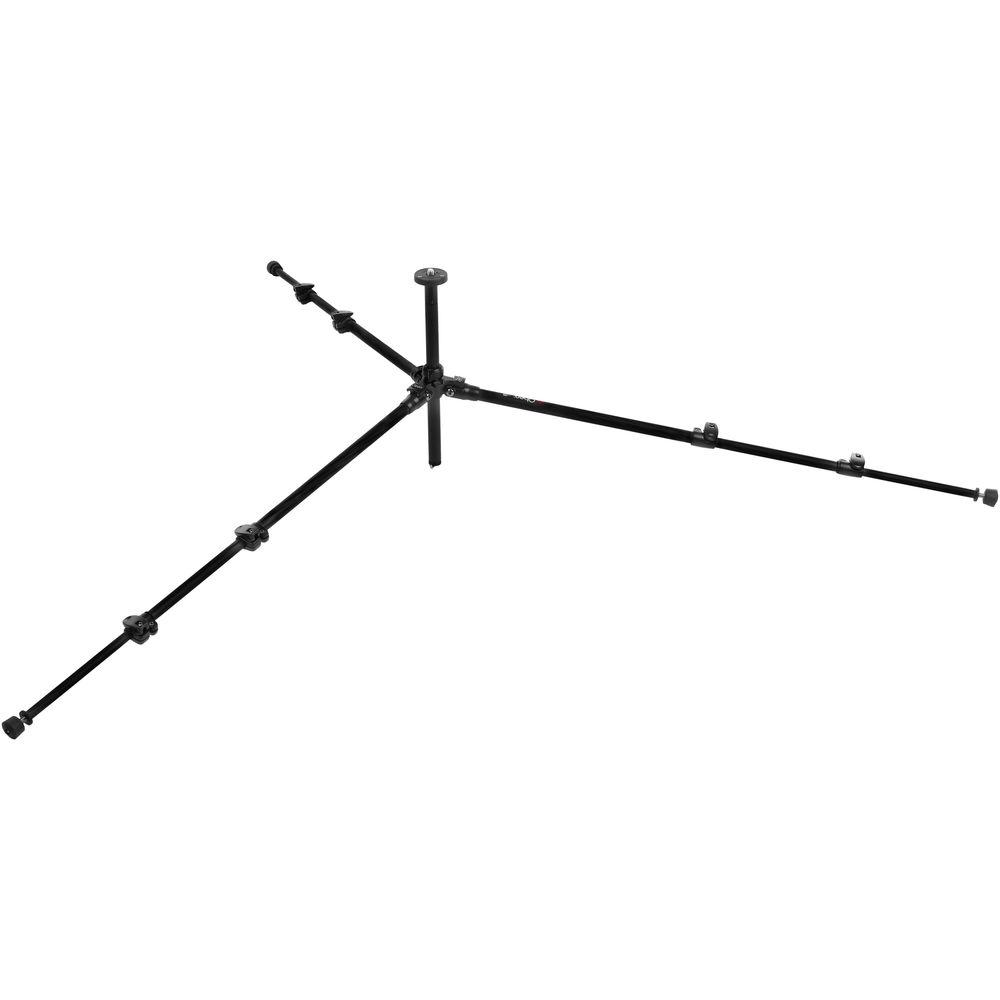

Product description The AC-2361 3-Section Aluminum Tripod Legs (Flip Lock) from Oben is a sturdy support for most DSLR, mirrorless, point-and-shoot cameras, or compact camcorders. With a load capacity of 17.6 lb and a maximum height of 66", the tripod offers a number of advanced features that ensure its stability and reliable performance. The tripod's flip locks, which enable the extension and securing of the leg stages, are user-adjustable. By using a supplied Allen key, the user can tighten two points on each spring-loaded flip lock to safeguard their continued reliable performance. With its anodized aluminum construction, the AC-2361 is durable. The tripod chassis is cast aluminum alloy for further strength. The AC-2361's rapid center column extends with a twist of the butterfly knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the AC-2361 features metal spikes that retract and emerge by twisting the foot's rubber portion. For extreme low-angle shooting, the center column can be split into two sections with the provided Allen key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For a faster method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column. - Foam grips on two legs mitigate the effects of extreme heat & cold and provide comfortable grip
- The included hex keys attach to a tripod leg, so you're always ready to tighten components
- Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
- Bubble level on tripod chassis
- Center column is grooved to prevent its rotation

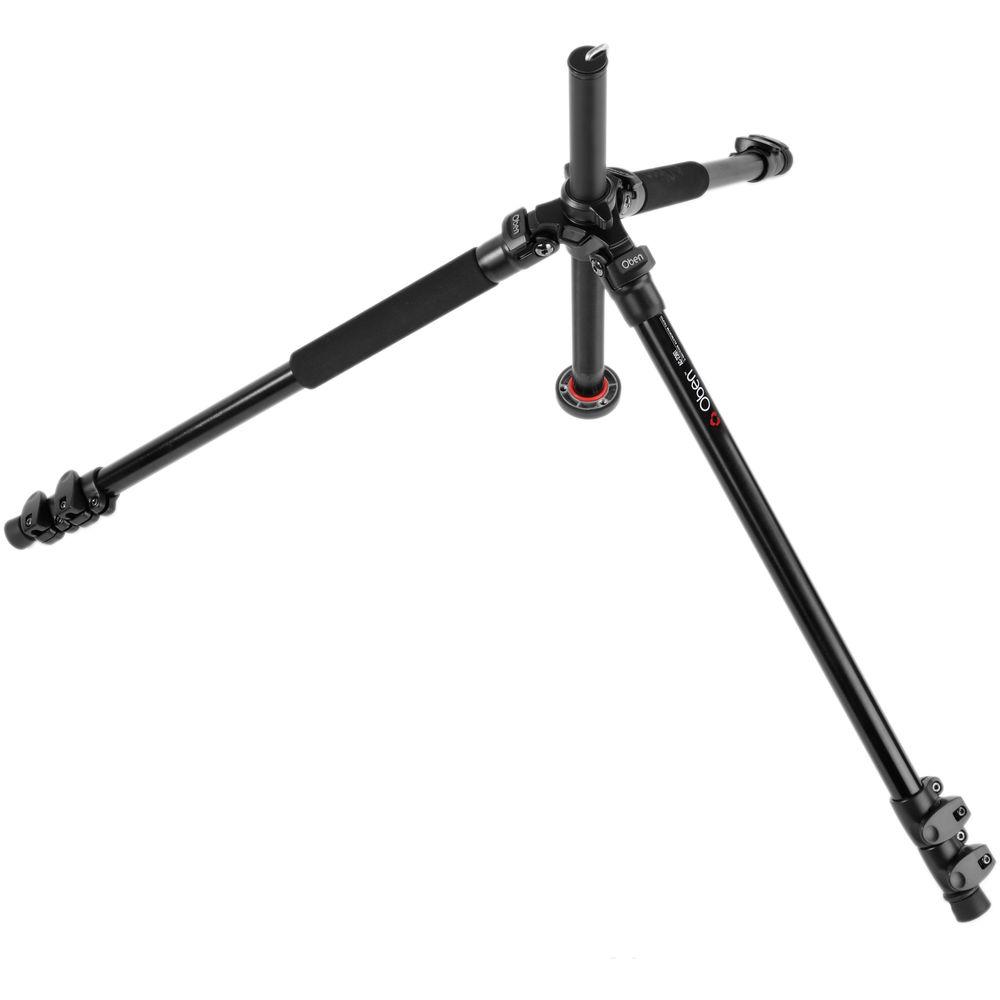

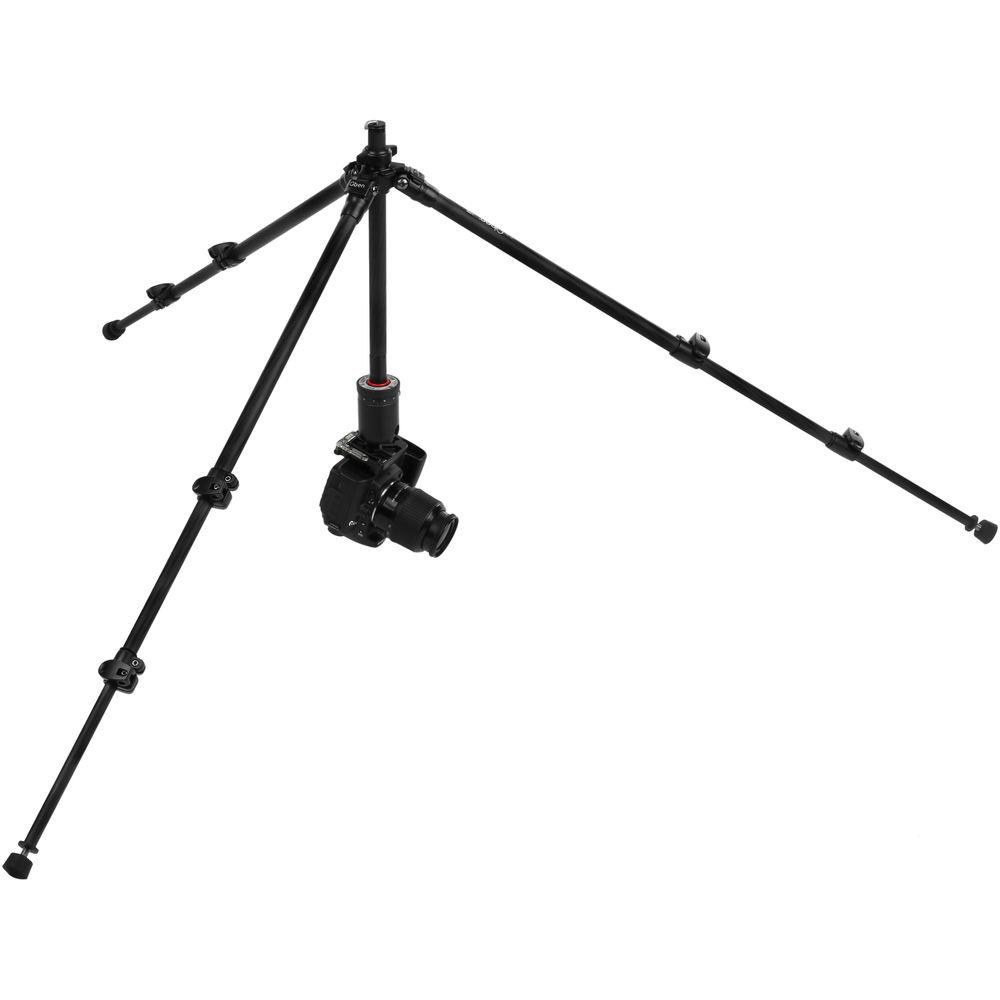

- Split center column for low angle set-up
- Spring-loaded metal counterweight hook at the bottom of the center column
- Integrated aluminum alloy loop for attaching an optional shoulder strap
- Rugged rubber tips with retractable spikes for shooting both indoors and outdoors on many surfaces
- Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
UPC: 847628556553 In the Box Oben AC-2361 3-Section Aluminum Tripod Legs (Flip Lock) Padded Tripod Bag Shoulder Strap for Bag Tool Leg Clip with 2 Hex Keys (for Flip Locks) Hex Key (for Split Center Column) Limited 5-Year Warranty Oben AC-2300 & CC-2300 & 2400 Series User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-2361 3-Section Aluminum Tripod Legs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben AC-2361 Specs | | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 66" / 167.6 cm | | Max Height without Center Column | 55.8" / 141.7 cm | | Minimum Working Height | 6.5" / 16.5 cm | | Folded Length | 25.4" / 64.5 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 5 lb / 2.3 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 1.1" / 27.9 mm | | | | Center Column Features | Split | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 33.0 x 5.0 x 5.0" |
