User Manual for Oben AC-2361L 3-Section Aluminum Tripod Click to enlarge the picture
Contents of the user manual for the Oben AC-2361L 3-Section Aluminum Tripod
- Product category: Tripod Legs Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripod Legs
 |
User manual for the Oben AC-2361L 3-Section Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

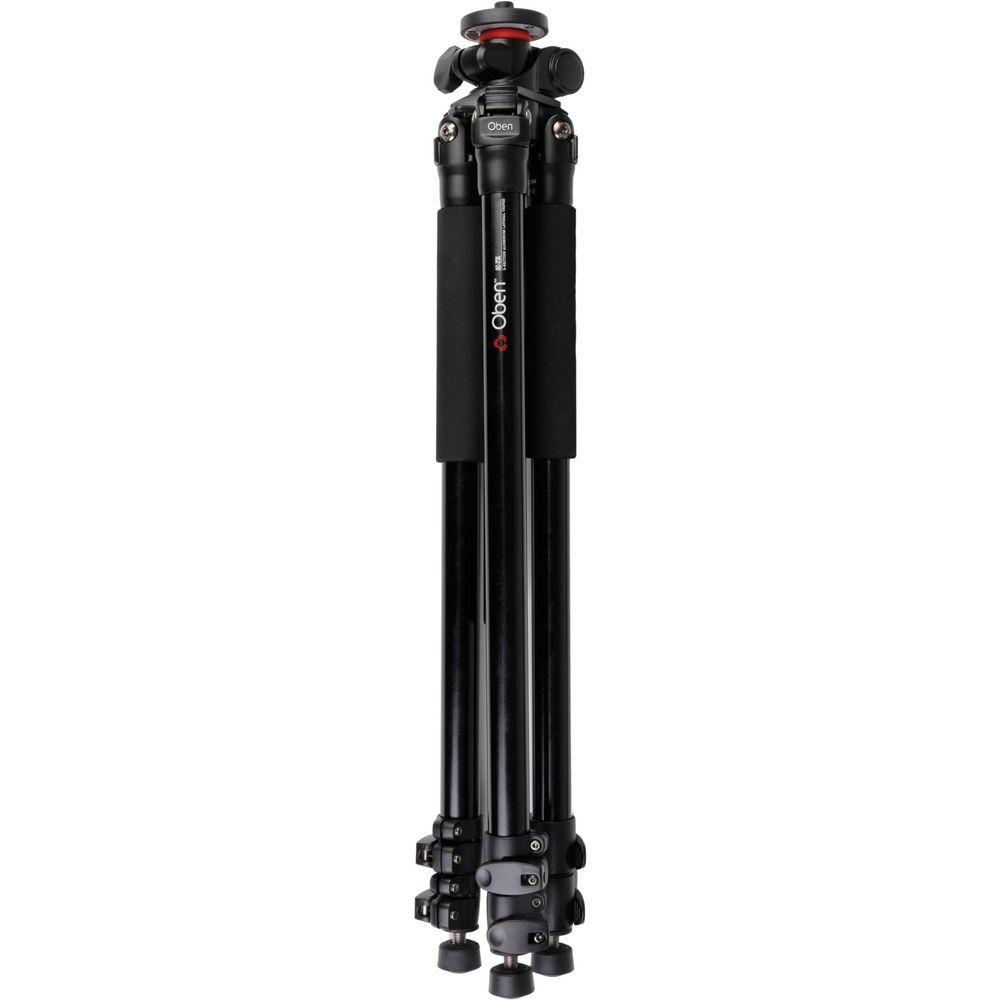

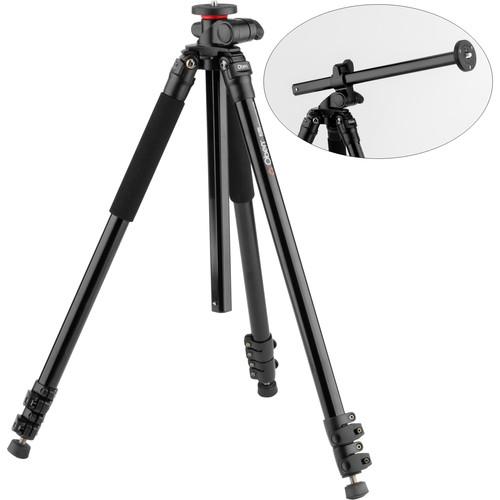

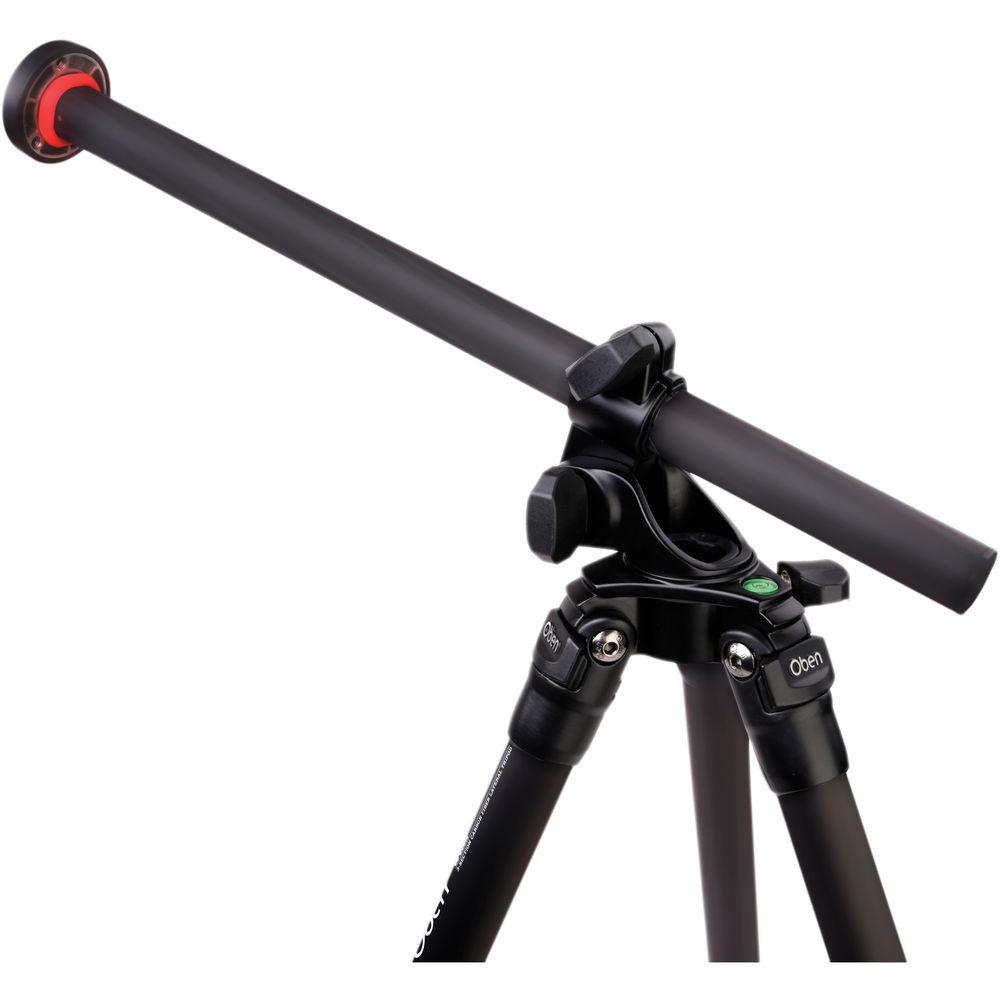

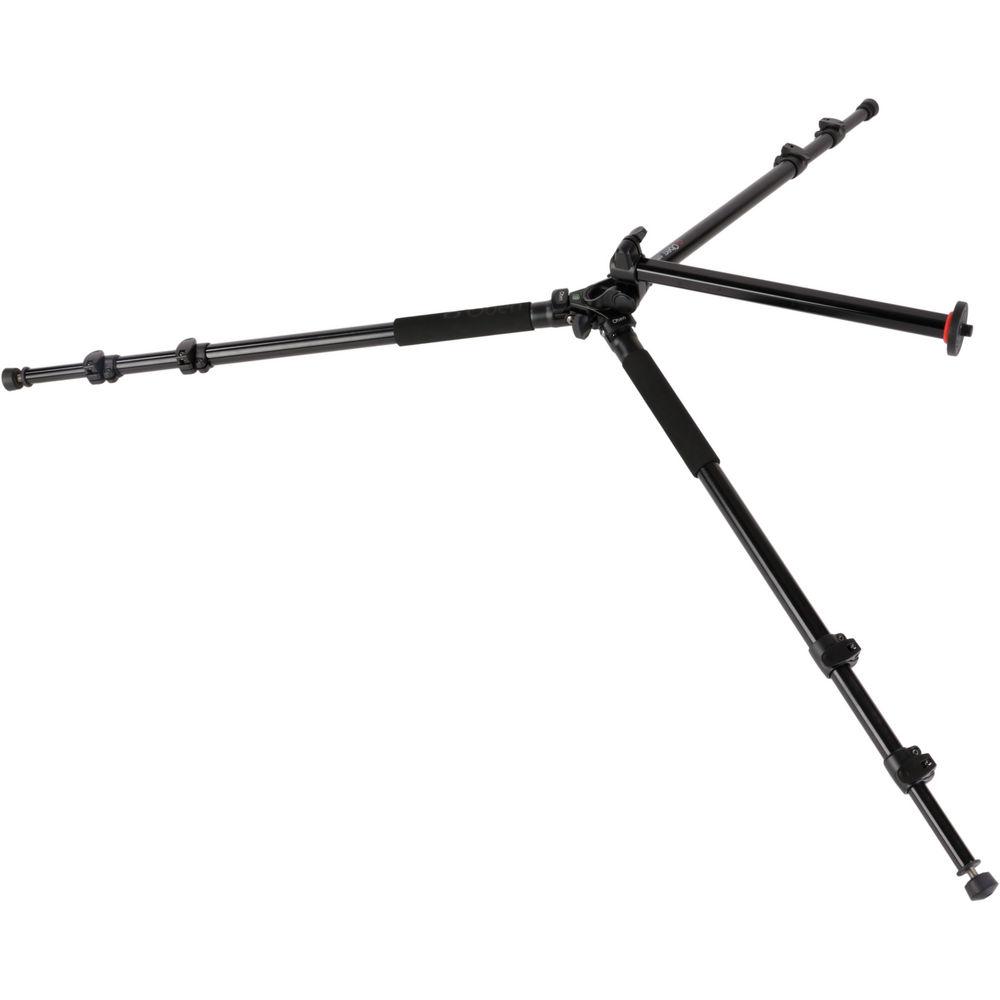

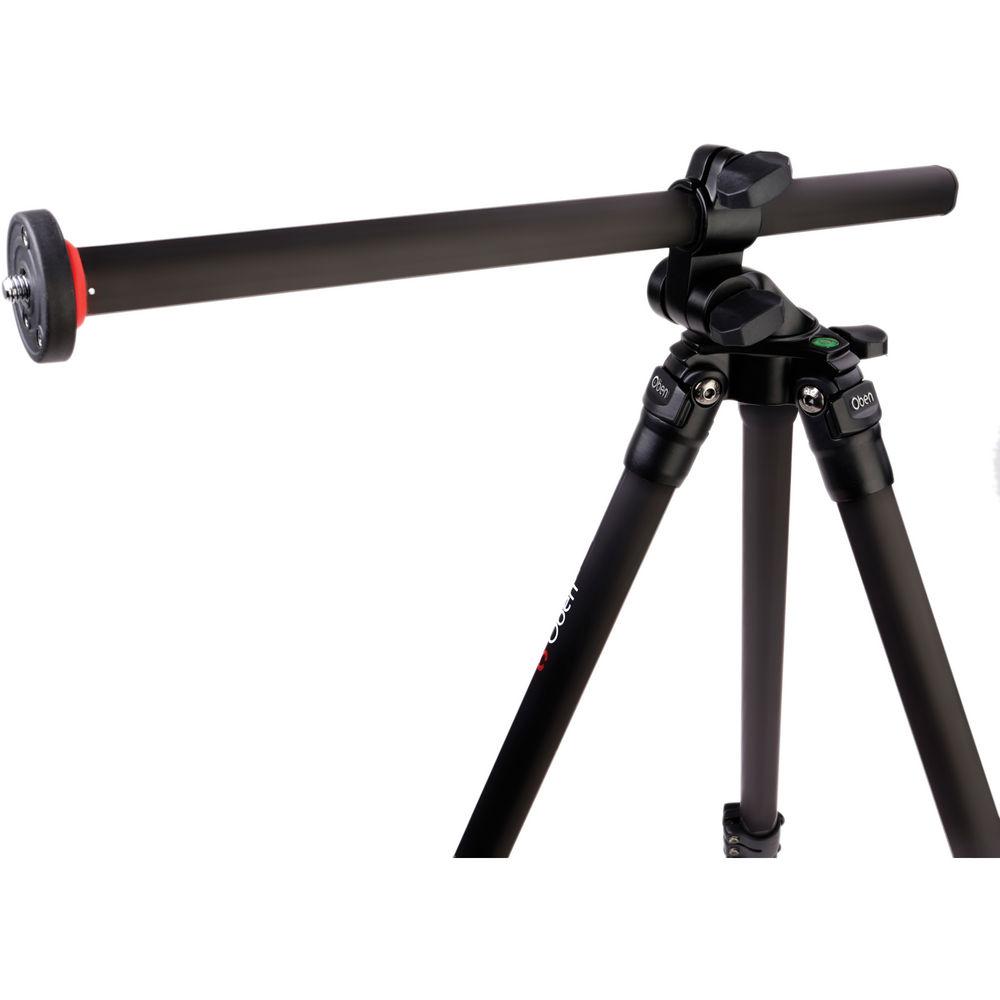

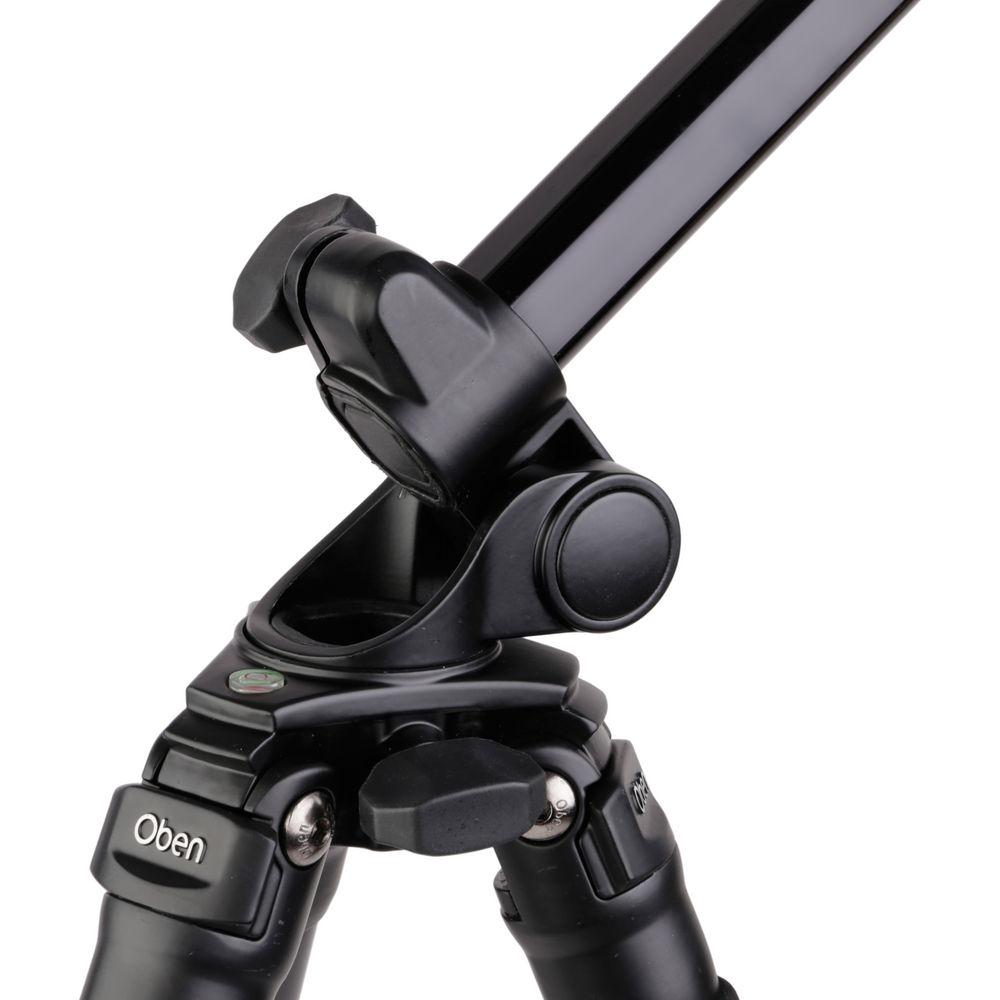

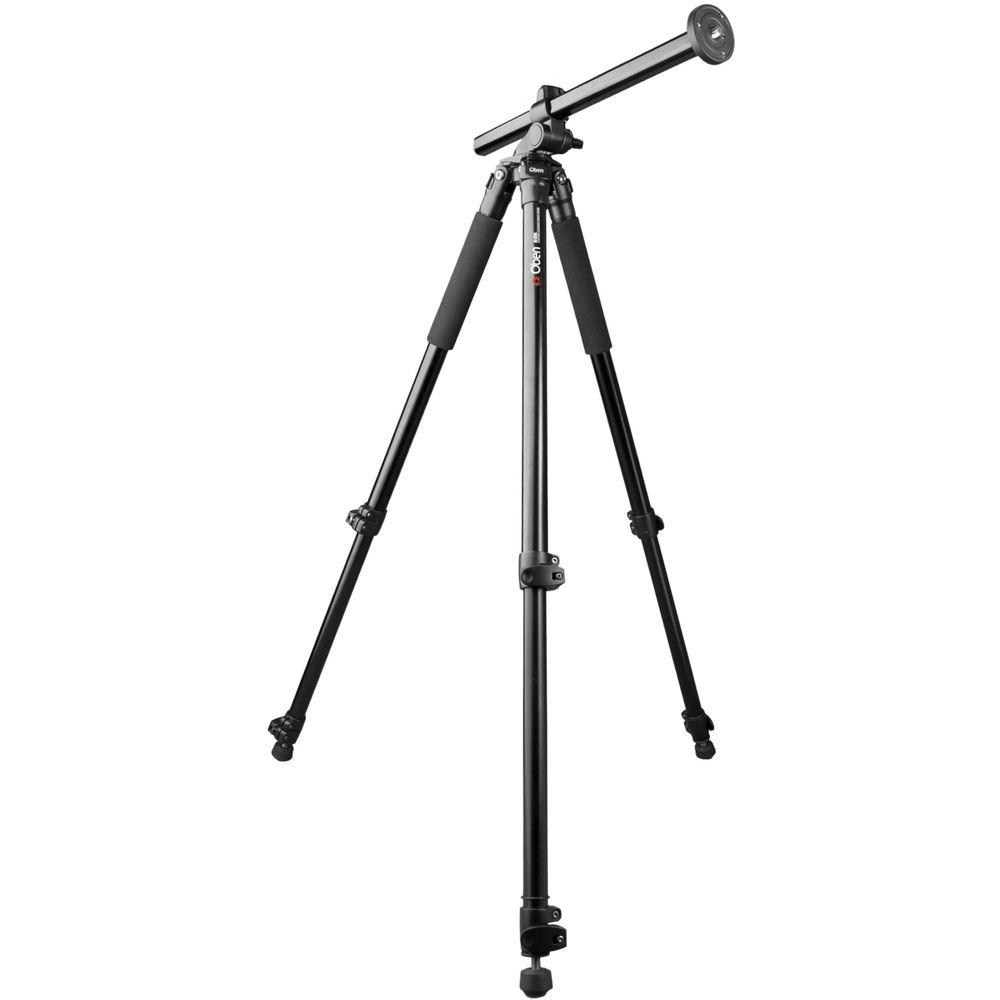

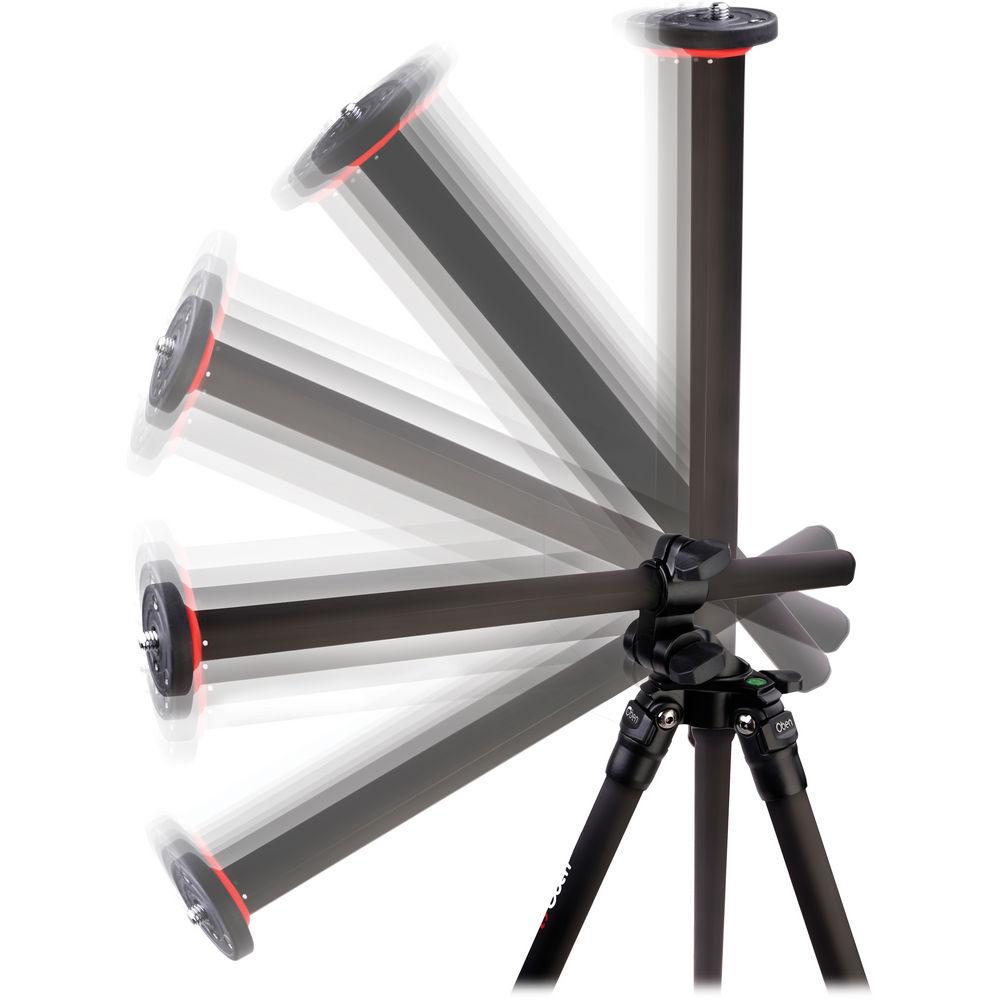

Product description The AC-2361L 3-Section Aluminum Lateral Tripod from Oben is a sturdy, professional support for any DSLR, point-and-shoot camera, or a compact camcorder. With a load capacity of 17.6 lb and a generous maximum height of 68.2", the lateral tripod features a tilting, swiveling center column that enables infinitely flexible positioning for macro photography and other uses. Engaging the lateral adjustment lever frees the tilting of the center column once it's been extended past the chassis, which becomes possible by pressing the button at the column's bottom to disengage the safety bolt. Once extended, the column can tilt, with no ratcheting, from its original 0°, straight-up-and-down orientation, to a 180° upside-down orientation – with possible stops everywhere in between, including a 90° lateral position. Twisting a knob on the chassis locks and unlocks the 360° swiveling of the center column and its upper collar. The tripod's flip locks, which enable the extension and securing of the leg stages, are user-adjustable. By using a supplied Allen key, the user can tighten two points on each spring-loaded flip lock to safeguard their continued reliable performance. With its anodized aluminum construction, the AC-2361L is ready to survive the rigors of professional work. The tripod chassis is cast aluminum for further durability. When it's not being used in its lateral mode, the AC-2361L's rapid center column functions like any professional tripod, extending after a twist of the knob on the upper collar. The tripod's center column can also be removed from both the chassis and the upper collar so that it can be reversed. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the center-post collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the AC-2361L features metal spikes that retract and emerge by twisting the foot's rubber portion. - Center column adjusts throughout a complete sphere of possible positions, so you can take steady shots from virtually any angle
- Leg warmers on two legs mitigate the effects of extreme heat & cold and provide grip
- The two included Allen keys attach to a tripod leg, so you're always ready to tighten components

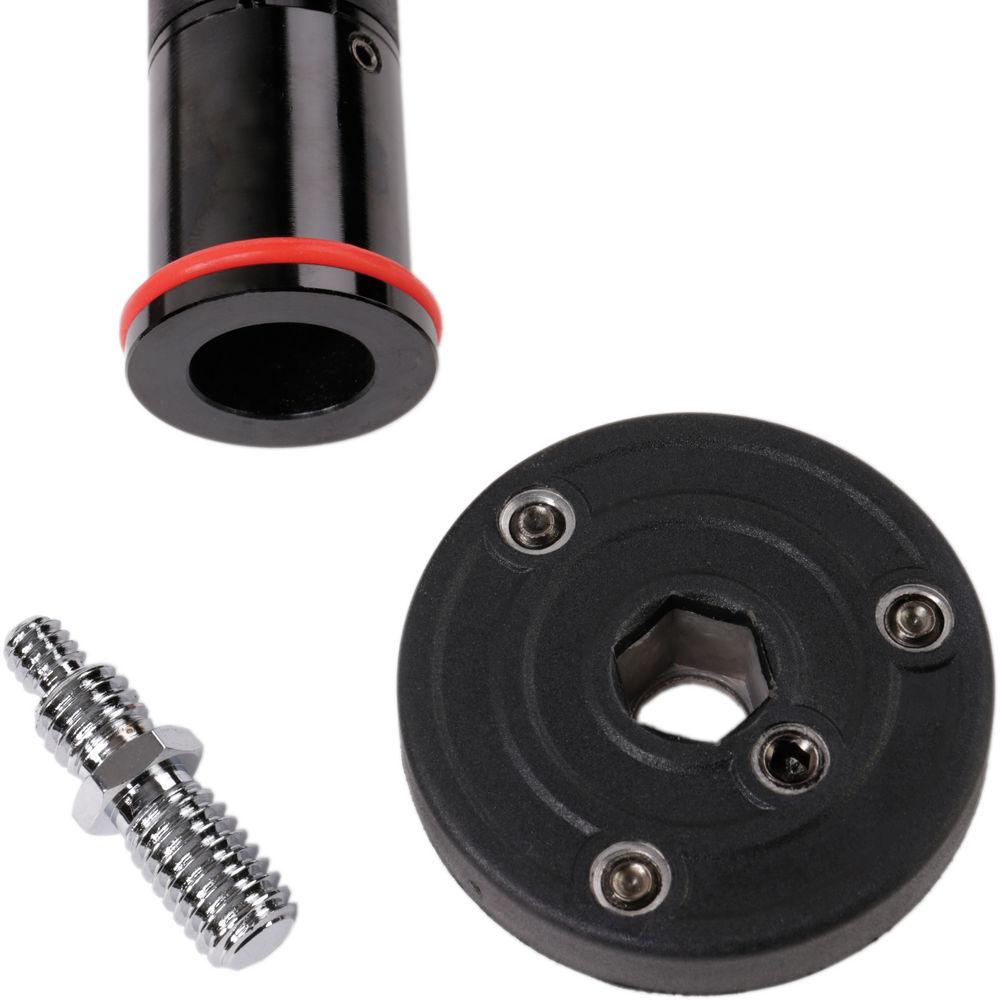

- Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
- Bubble level on tripod chassis
- Center column is grooved to prevent its rotation within the upper collar
- Integrated aluminum loop for attaching the optional shoulder strap
- Rugged rubber tips with retractable spikes for shooting both indoors and outdoors on any terrain

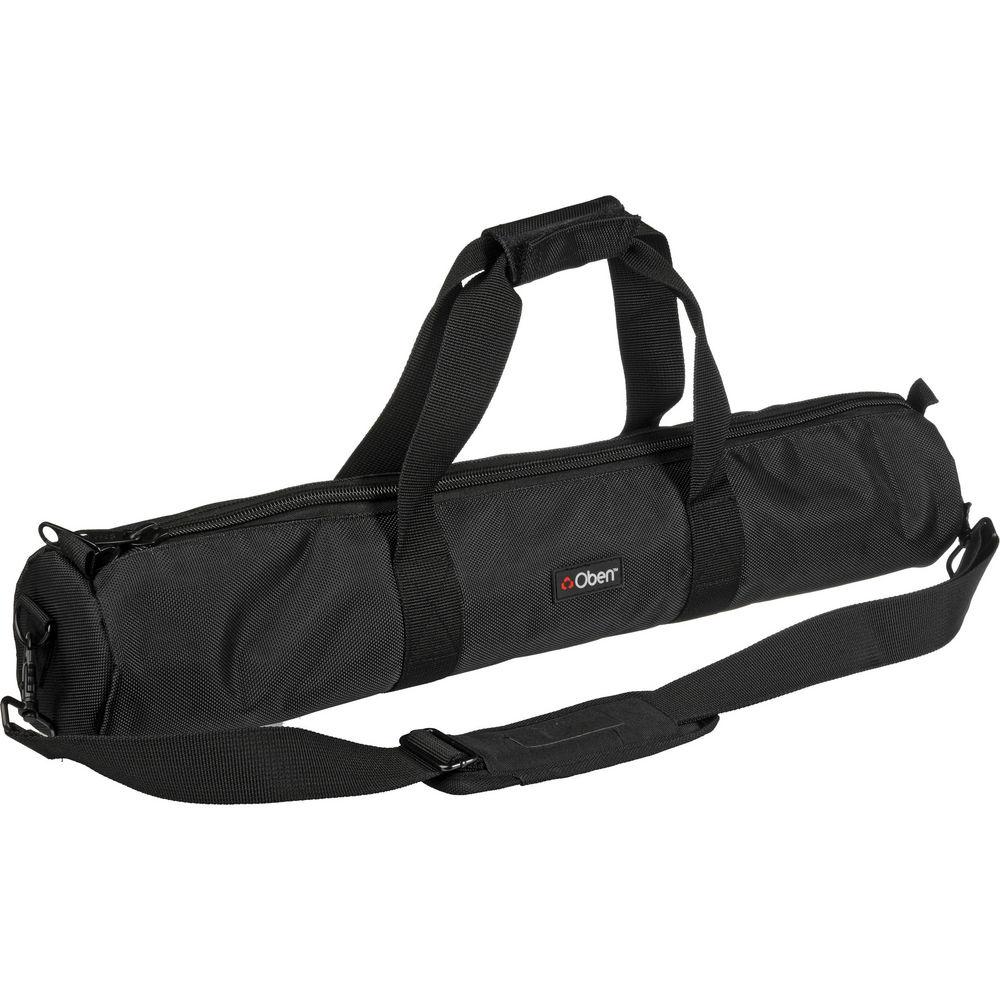

- Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
UPC: 847628556768 In the Box Oben AC-2361L 3-Section Aluminum Tripod Padded Tripod Bag Shoulder Strap for Bag Tool Clip with 2 Allen Keys Limited 5-Year Warranty Oben AC-2300L, CC-2300L & 2400L Series User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AC-2361L 3-Section Aluminum Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben AC-2361L Specs | | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 68.2" / 173.2 cm | | Max Height without Center Column | 55.6" / 141.2 cm | | Minimum Working Height | 8.3" / 21.1 cm | | Folded Length | 26.2" / 66.5 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 5.5 lb / 2.5 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Spiked, Retractable | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 33.0 x 5.0 x 5.0" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
