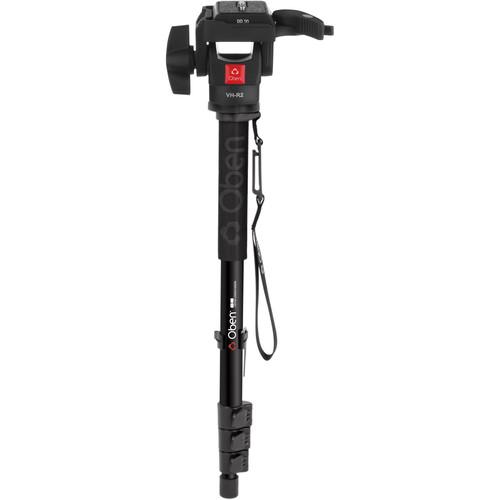

User Manual for Oben ACM-1400 4-Section Aluminum Monopod with Tilt Head Kit Click to enlarge the picture
Contents of the user manual for the Oben ACM-1400 4-Section Aluminum Monopod with
- Product category: Monopods Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Monopods
|
User manual for the Oben ACM-1400 4-Section Aluminum Monopod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|
Product description 9 Alternative Camera Supports Read More The Oben ACM-1400 4-Section Aluminum Monopod with Tilt Head Kit is a Photo Kit which includes the ACM-1400 4-Section Aluminum Monopod and the VH-R2 Tilt Monopod Head. The Oben ACM-1400 4-Section Aluminum Monopod is a lightweight, sturdy one-legged camera support that enables you to capture steady shots without needing to carry or set up a full tripod. The monopod's flip-lock leg stages descend easily and lock into place securely, so setup is a breeze. The Oben VH-R2 Tilt Monopod Head is a compact head specifically designed for monopods. The tilt head has 180° one-axis movement, allowing you to position your camera for a 90° vertical format when using a monopod. Included is a 1/4-20"-3/8" reducer bushing, which makes this head compatible with either 1/4"-20 or 3/8" mounting threads. - Oben ACM-1400 4-Section Aluminum Monopod The Oben ACM-1400 4-Section Aluminum Monopod is a lightweight, sturdy one-legged camera support that enables you to capture steady shots without needing to carry or set up a full tripod. The monopod's flip-lock leg stages descend easily and lock into place securely, so setup is a breeze. Maximum height is 61", which facilitates comfortable operation for most users. It can support up to 17.6 lb, so you can mount any DSLR camera with most lenses, a point & shoot model, or even a compact camcorder. For fine control over camera orientation, you can also attach a head to the monopod's reversible 3/8"-16 & 1/4"-20 mounting screw. Three set screws underneath the collar enable you to fasten the head securely to the plate. An Allen key is included & attached to the top leg section, so you're always ready to make adjustments. The monopod collapses to just 19.2", so you can stow it in most carry-on bags. At only 1.05 lb, it's the perfect travel companion – lightweight, compact, and simple to operate – but highly capable and ready in an instant to help you capture the perfect shot.
- Reversible 1/4"-20 & 3/8"-16 screw for mounting any camera or head
- Foam grip mitigates the effects of extreme temperatures and protects your camera by ensuring that your grip doesn't slip
- For a second line of security and more stable shooting, wrap the attached strap snugly around your wrist
- Wrist strap features belt clip for convenient hands-free carrying
UPC: 847628014268 - Oben VH-R2 Tilt Head for Monopods The Oben VH-R2 Tilt Head for Monopods is a compact head specifically designed for monopods. The head has 180° one-axis movement, allowing you to position your camera for a 90° vertical format when using a monopod. Included is a 1/4-20"-3/8" reducer bushing, which makes this head compatible with either 1/4"-20 or 3/8" mounting threads.
- A locking knob on the head provides smooth, accurate, and quick operation to rotate the head 180° for horizontal or vertical shooting.
- Has a locking pin to prevent accidental camera release.
- A snap-in RP-20 Quick-Release Plate for rapid mounting and dismounting of the camera is included.
- A 3/8"-1/4" reducer bushing is included to ensure a proper fit for your monopod.
UPC: 847628016811 In the Box - ACM-1400 4-Section Aluminum Monopod svwrqwsscuvfwsuwebzxu
- Allen Key
- Dust Bag
- Limited 5-Year Warranty
- VH-R2 Tilt Head for Monopods
User Manual PDF 980kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben ACM-1400 4-Section Aluminum Monopod with Tilt Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Oben ACM-1400 4-Section Aluminum Monopod
| | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | | | Leg Lock Type | Flip Lock | | Leg Sections | 4 | | | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 61" / 154.9 cm | | Folded Length | 19.2" / 48.2 cm | | Materials | Aluminum Alloy | | Weight | 1 lb / 470 g | | | | Box Dimensions (LxWxH) | 20.5 x 3.1 x 3.0" | - Oben VH-R2 Tilt Head for Monopods
| Load Capacity | 11 lb (5 kg) | | Tilt | 180° | | Working Temperature | -4° to 158°F (-20° to 70°C) | | Quick Release Plate | Yes, RP-20 QR plate is included | | Tripod Mount Thread Size | 1/4" or 3/8" (with included bushing) | | Height | 2.6" (67mm) | | Weight | 10.2 oz (290 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.3 x 3.3" |
