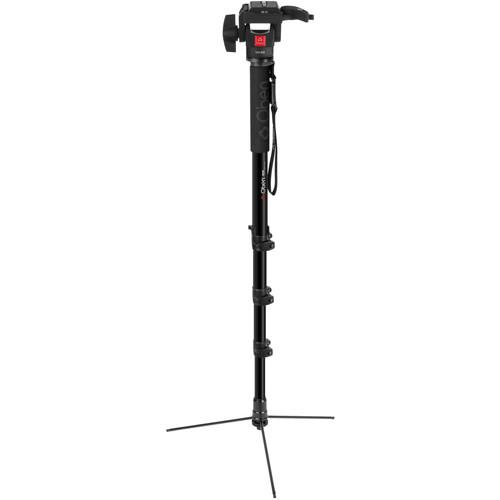

User Manual for Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod w VH-R2 Tilt Monopod Head Kit Click to enlarge the picture
Contents of the user manual for the Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod
- Product category: Monopods Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Monopods
|
User manual for the Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|
Product description 9 Alternative Camera Supports Read More The Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod w/ VH-R2 Tilt Monopod Head Kit is a Photo Kit which includes the ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs and the VH-R2 Tilt Monopod Head. The Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs is an extremely sturdy camera support of the one-legged variety, but with a twist: Unscrew the bottom, and from the lower section of the monopod emerge three 9" aluminum legs that flip out to form a miniature tripod at the base. With this function, you can take your monopod to areas where tripods are prohibited, such as certain tourist attractions, and capture steady shots without the usual need to hold onto your monopod for dear life. The Oben VH-R2 Tilt Monopod Head is a compact head specifically designed for monopods. The tilt head has 180° one-axis movement, allowing you to position your camera for a 90° vertical format when using a monopod. Included is a 1/4-20"-3/8" reducer bushing, which makes this head compatible with either 1/4"-20 or 3/8" mounting threads. - Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs The Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs is an extremely sturdy camera support of the one-legged variety, but with a twist: Unscrew the bottom, and from the lower section of the monopod emerge three 9" aluminum legs that flip out to form a miniature tripod at the base. With this function, you can take your monopod to areas where tripods are prohibited, such as certain tourist attractions, and capture steady shots without the usual need to hold onto your monopod for dear life. The three leg stages of the ACM-2400L descend to achieve a maximum height of 66.8", which facilitates comfortable operation for almost all users. Not only tall, this is quite a robust piece of gear: It bears up to 26.4 lb, so add just about any head, camera & lens combination that you want. The monopod's rubber-footed mini-legs, foam grip, and wrist strap will conspire to keep your setup stable.The flip locks of the ACM-2400L are adjustable, which means you can use the included Allen key to tighten them if they expand and loosen slightly due to normal wear & tear. You can also adjust the action of the locks to suit your operating preference. Leg stages descend easily and lock into place securely, so setup is a breeze. The ACM-2400L is composed of anodized aluminum to ensure its solidity.For fine control over camera orientation, attach a head to the monopod's reversible 3/8"-16 & 1/4"-20 mounting screw. Three set screws underneath the collar enable you to fasten the head securely to the plate. The Allen key is attached to the top leg section, so you're always ready to make adjustments. This leggy monopod is extremely compact for its (small) product class, collapsing to 23.2" to make it easily transportable. The self-standing ACM-2400L will handle with aplomb many one-of-a-kind shooting situations.
- Reversible 1/4"-20 & 3/8"-16 screw for mounting any camera or head
- Foam grip mitigates the effects of extreme temperatures and protects your camera by ensuring that your grip doesn't slip
- For a second line of security and more stable shooting, wrap the attached strap snugly around your wrist
- Wrist strap features belt clip for convenient hands-free carrying
- Mini-tripod unit unscrews, folds out, and screws back into place quickly & easily without the need for tools
UPC: 847628014282 - Oben VH-R2 Tilt Head for Monopods The Oben VH-R2 Tilt Head for Monopods is a compact head specifically designed for monopods. The head has 180° one-axis movement, allowing you to position your camera for a 90° vertical format when using a monopod. Included is a 1/4-20"-3/8" reducer bushing, which makes this head compatible with either 1/4"-20 or 3/8" mounting threads.
- A locking knob on the head provides smooth, accurate, and quick operation to rotate the head 180° for horizontal or vertical shooting.
- Has a locking pin to prevent accidental camera release.
- A snap-in RP-20 Quick-Release Plate for rapid mounting and dismounting of the camera is included.
- A 3/8"-1/4" reducer bushing is included to ensure a proper fit for your monopod.
UPC: 847628016811 In the Box - ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs svwrqwsscuvfwsuwebzxu
- Allen Key
- Dust Bag
- Limited 5-Year Warranty
- VH-R2 Tilt Head for Monopods
User Manual PDF 899.3kbsvwrqwsscuvfwsuwebzxu Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod w VH-R2 Tilt Monopod Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Oben ACM-2400L 4-Section Aluminum Self-Standing Monopod with Mini-Legs
| | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | | | Leg Lock Type | Flip Lock | | Leg Sections | 4 | | | | Load Capacity | 26.4 lb / 12 kg | | Maximum Working Height | 66.8" / 167.6 cm | | Folded Length | 23.2" / 58.9 cm | | Materials | Aluminum Alloy | | Weight | 2.5 lb / 1.13 kg | | | | Box Dimensions (LxWxH) | 24.5 x 3.0 x 3.0" | - Oben VH-R2 Tilt Head for Monopods
| Load Capacity | 11 lb (5 kg) | | Tilt | 180° | | Working Temperature | -4° to 158°F (-20° to 70°C) | | Quick Release Plate | Yes, RP-20 QR plate is included | | Tripod Mount Thread Size | 1/4" or 3/8" (with included bushing) | | Height | 2.6" (67mm) | | Weight | 10.2 oz (290 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.3 x 3.3" |
