User Manual for Oben AT-3535 Folding Aluminum Travel Tripod with BE-208T Ball Head Click to enlarge the picture
Contents of the user manual for the Oben AT-3535 Folding Aluminum Travel Tripod
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
 |
User manual for the Oben AT-3535 Folding Aluminum Travel Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

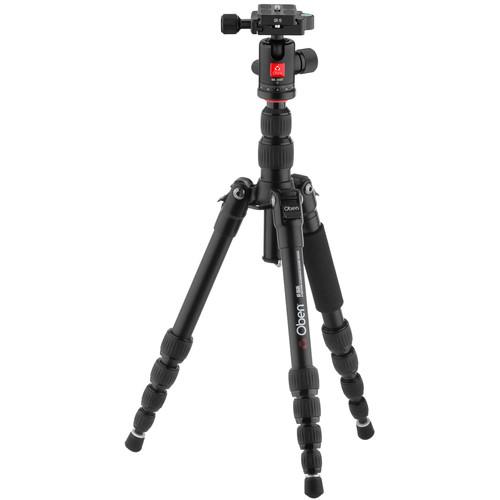

Product description Solid Support: New Folding Tripod and Ball Head Kits from Oben Read More The versatile and portable AT-3535 Folding 5-Section Aluminum Travel Tripod with BE-208T Ball Head from Oben is a compact and lightweight kit that sets up quickly, folds up neatly into its own carry bag, and offers a variety of options for the photographer on the go.

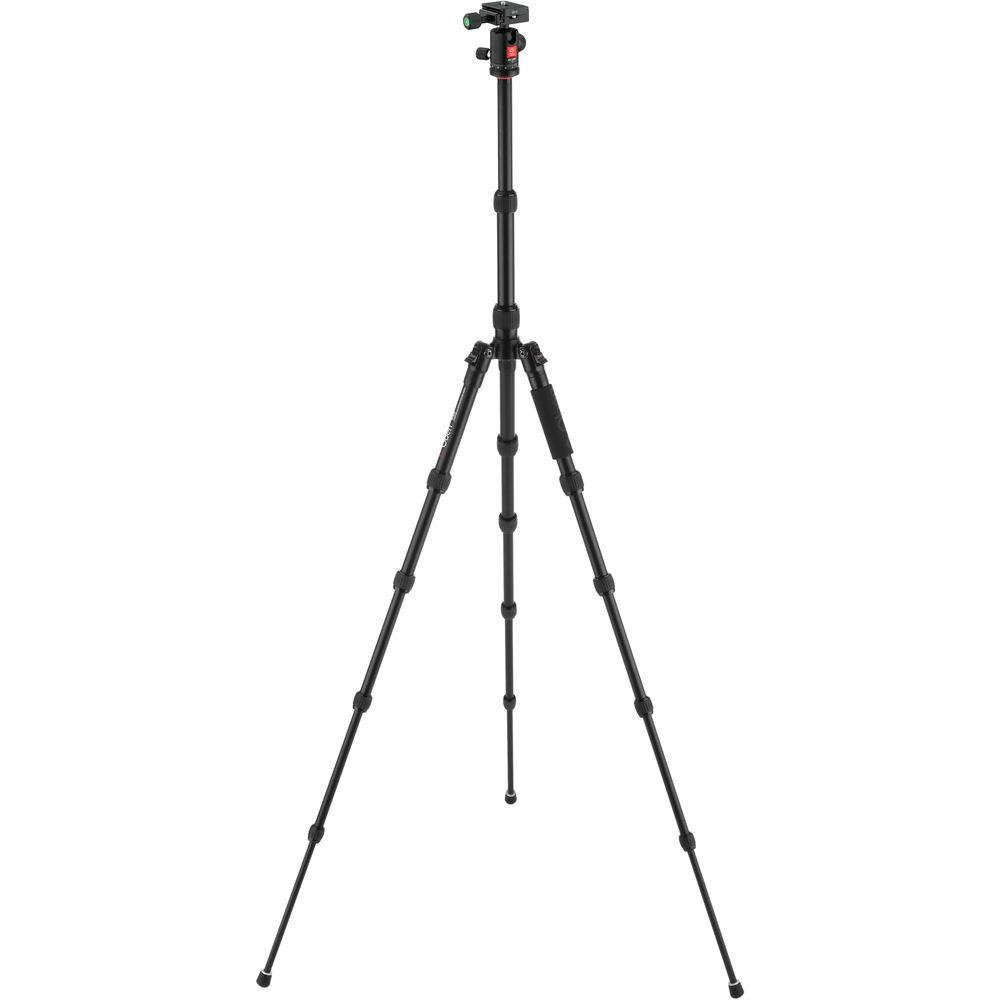

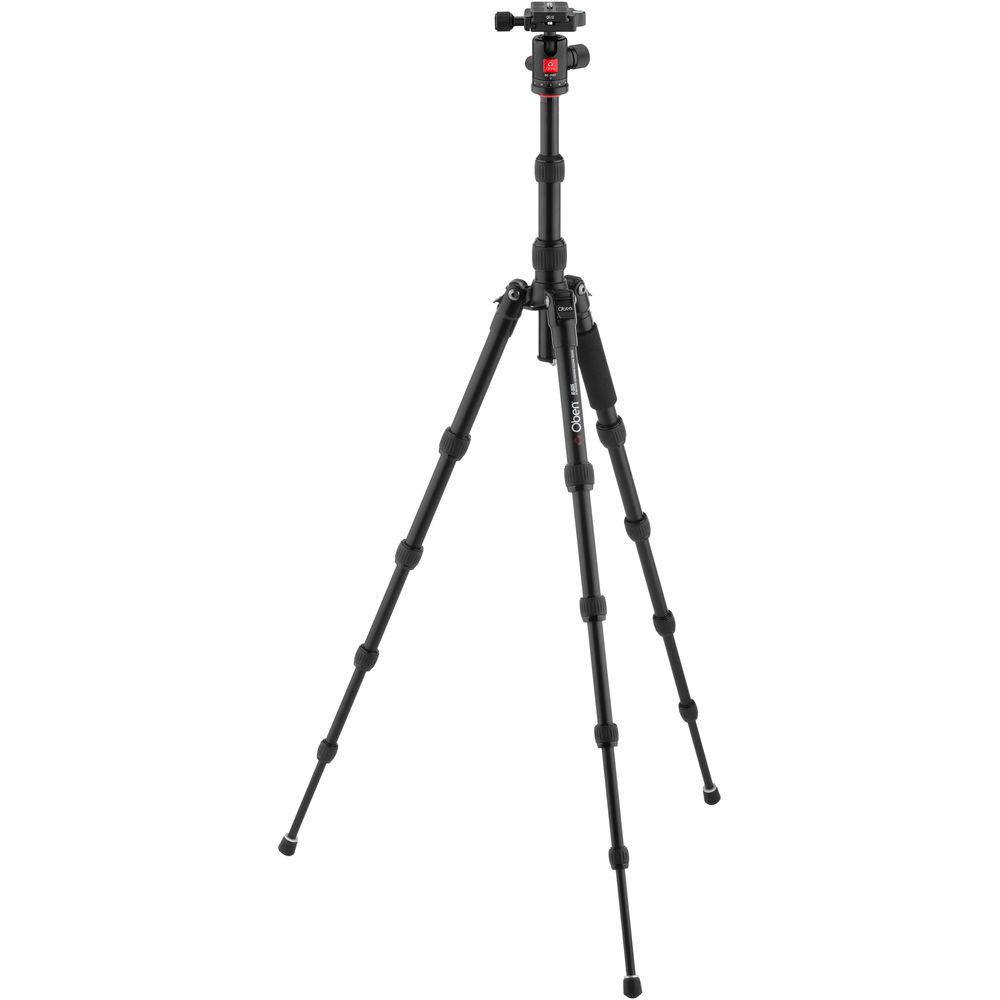

The Oben AT-Series 5-section tripod reaches a maximum height of 51.6" via the integrated twist locks, which also permit fast and effortless height adjustment. Each leg can be positioned independently at three locking angles (22.5°-24°, 50°, or 80°) to ensure stable support when shooting on uneven terrain. Integrated spiked feet, beneath the non-slip rubber feet, provide steadiness on soft ground, grass, or sand. The adjustable center column is equipped with a spring-loaded weight hook for added stability in windy conditions.

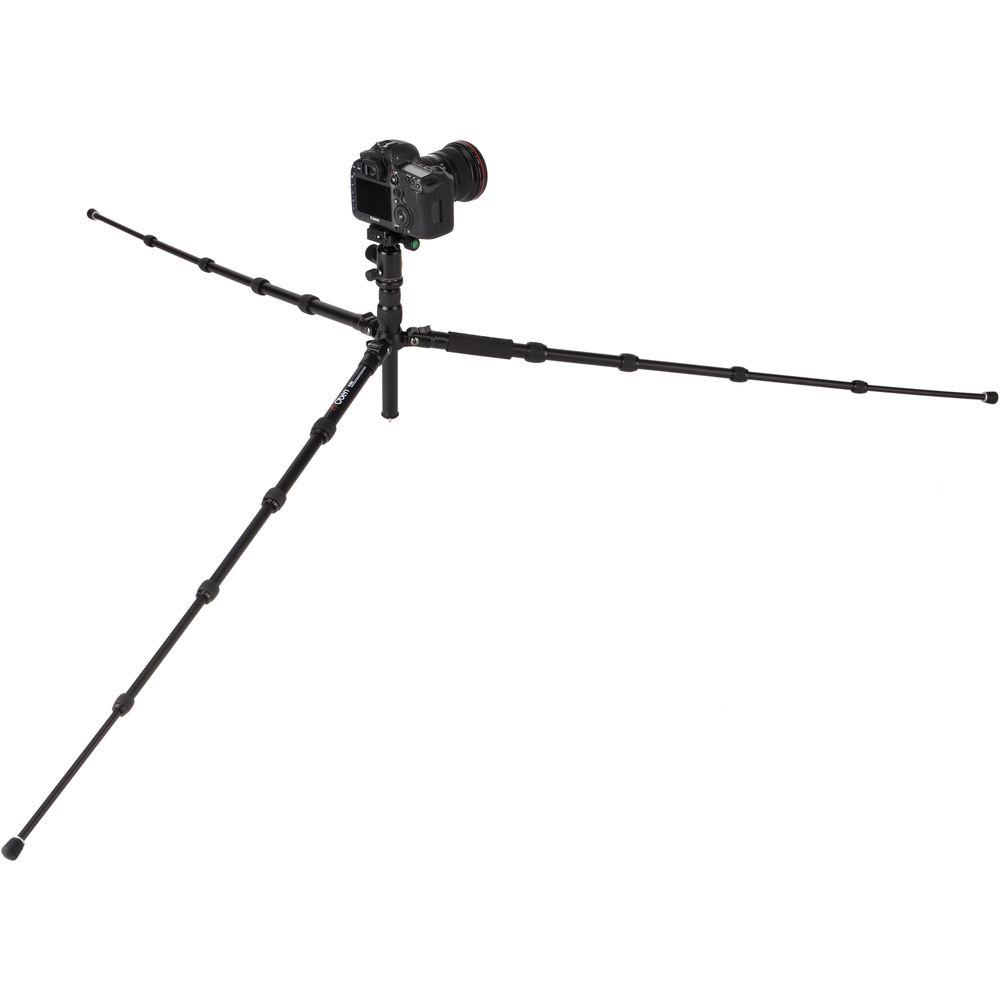

This tripod boasts several options for low-angle shooting, including a separate, reversible low-angle center column that enables shooting at a height of just 8.6". For additional adaptability, one leg of the tripod can be removed and used as a monopod.

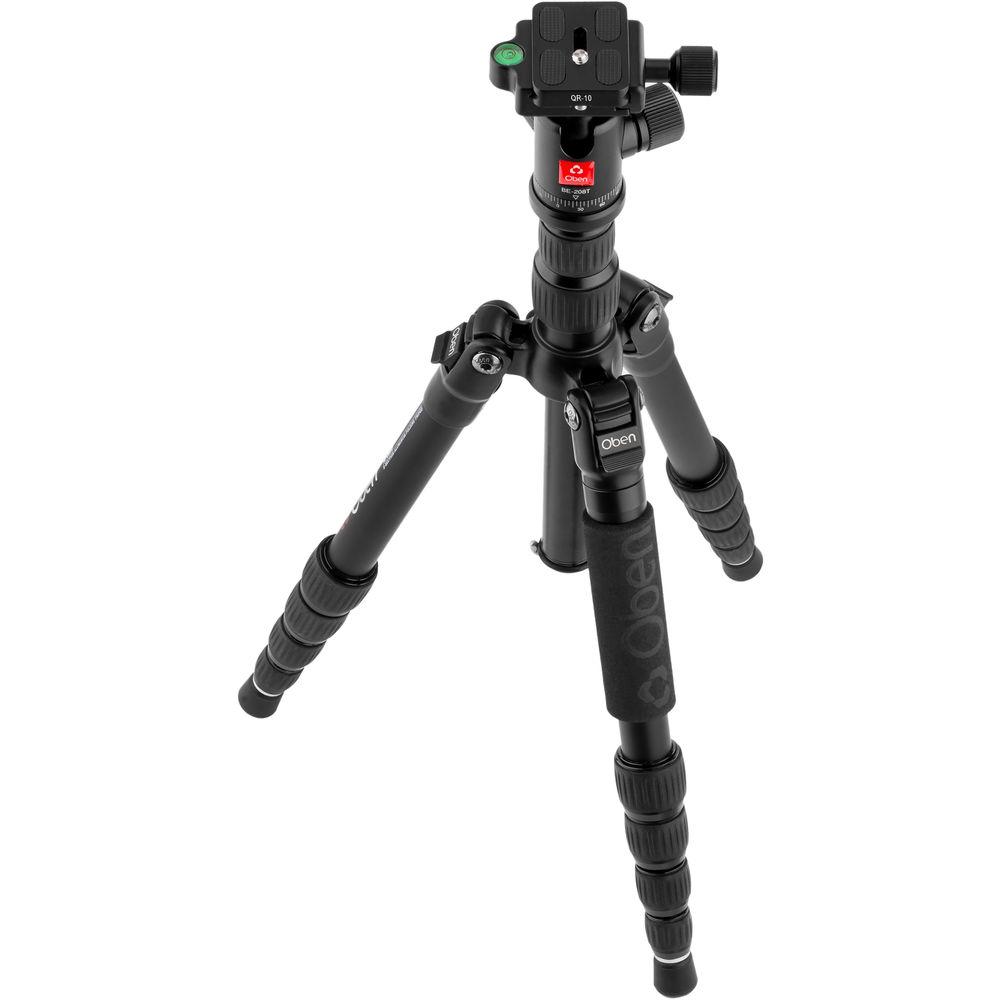

Oben's BE-Series dual-action ball head is included with the tripod to match its portability and performance. It features a dual-lock design that allows independent adjustment of the ball and panoramic base. The integrated bubble level ensures accurate camera alignment with the horizon and an Arca-type compatible quick release plate permits effortless mounting and dismounting of your camera.
Enhancing its portability, the entire kit weighs just 2.9 lb and folds down to a easy-to-transport 12". A shoulder strap and custom carrying case are included for portability and added protection. - 5-Section Tripod
- The lightweight and durable aluminum tripod features 5-section telescoping legs secured by ergonomic twist locks.

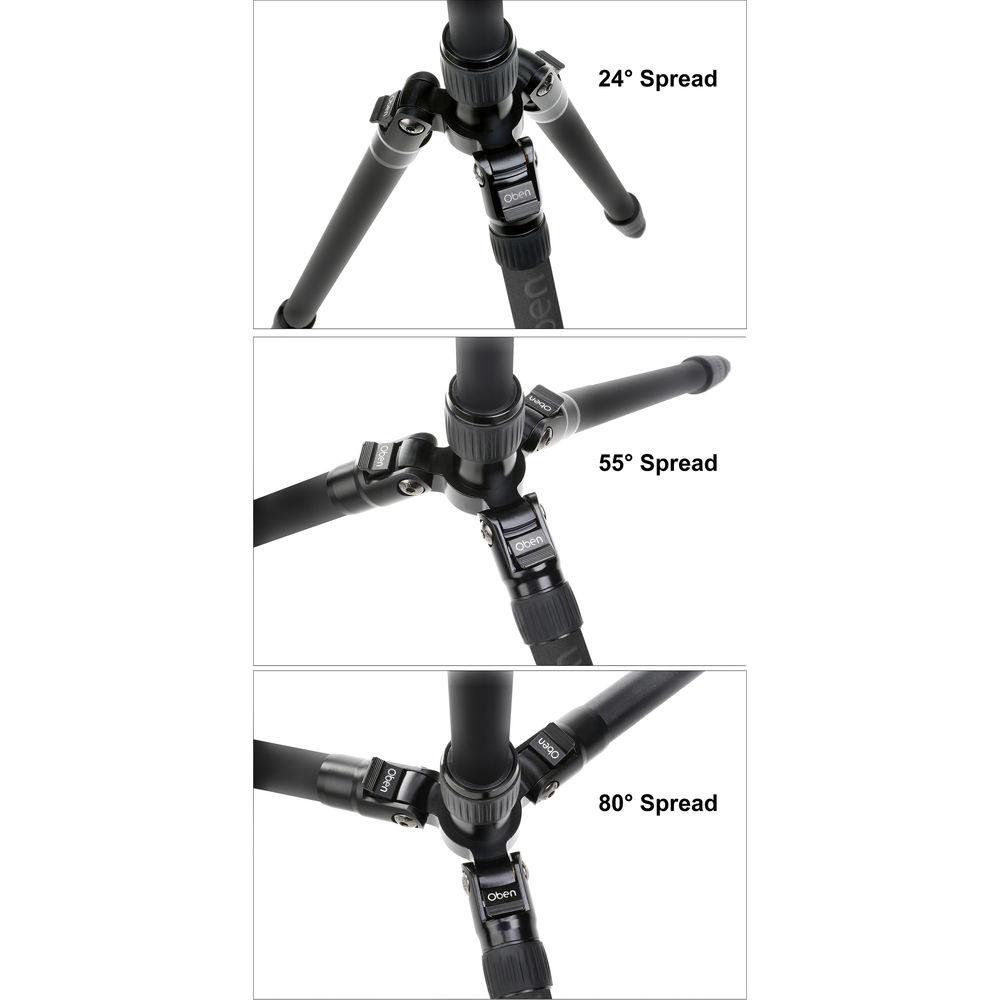

- Three Locking Angles

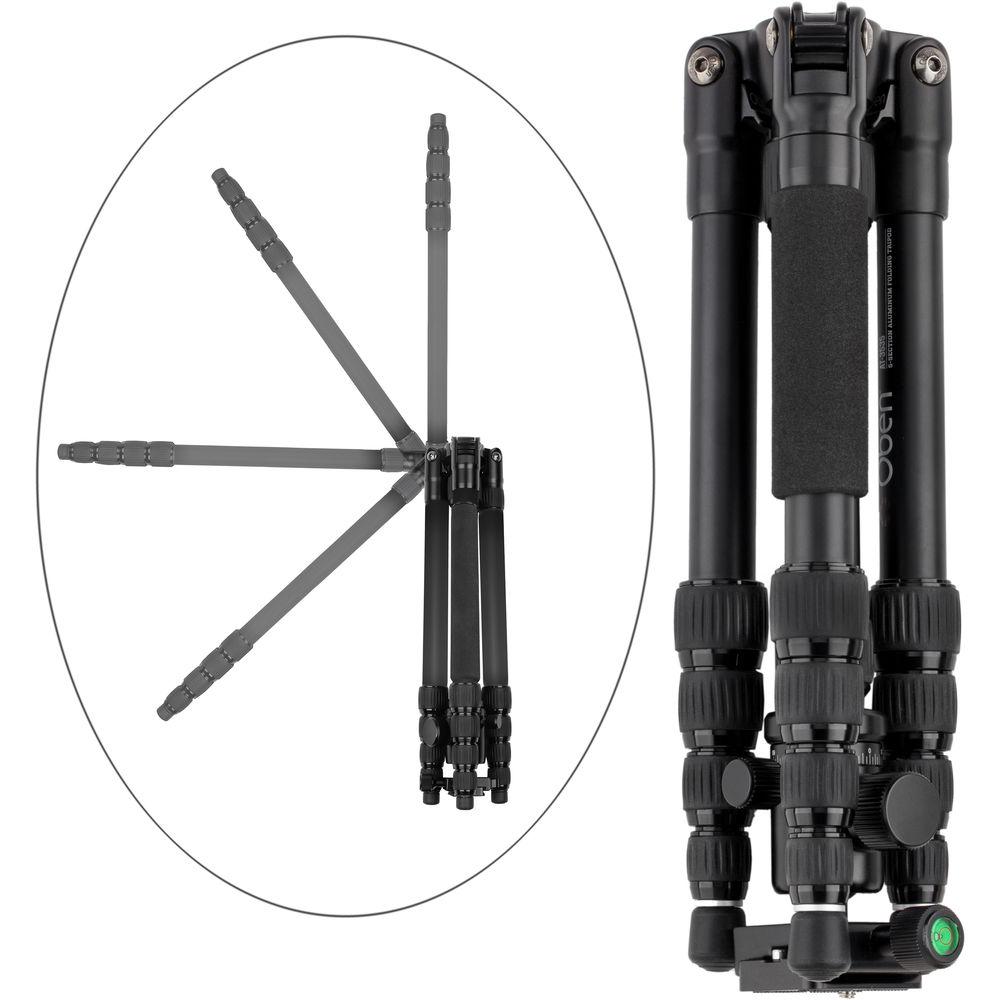

- The legs can be set at three different locking angles of 22.5°-24°, 50°, or 80° for stable support on uneven terrain. The leg-angle adjustment lock also allows the legs to be folded up to a compact size for transport or storage.
- Spiked Feet
- Removing the tripod's rubber feet exposes the spiked feet that provide steadiness and won't slip or move when placed on soft ground, grass, or sand.
- Two-Piece Center Column
- The two-piece adjustable center column has a telescoping section secured by twist locks for extra height and easy adjustment.
- Reversible Low-Angle Center Column

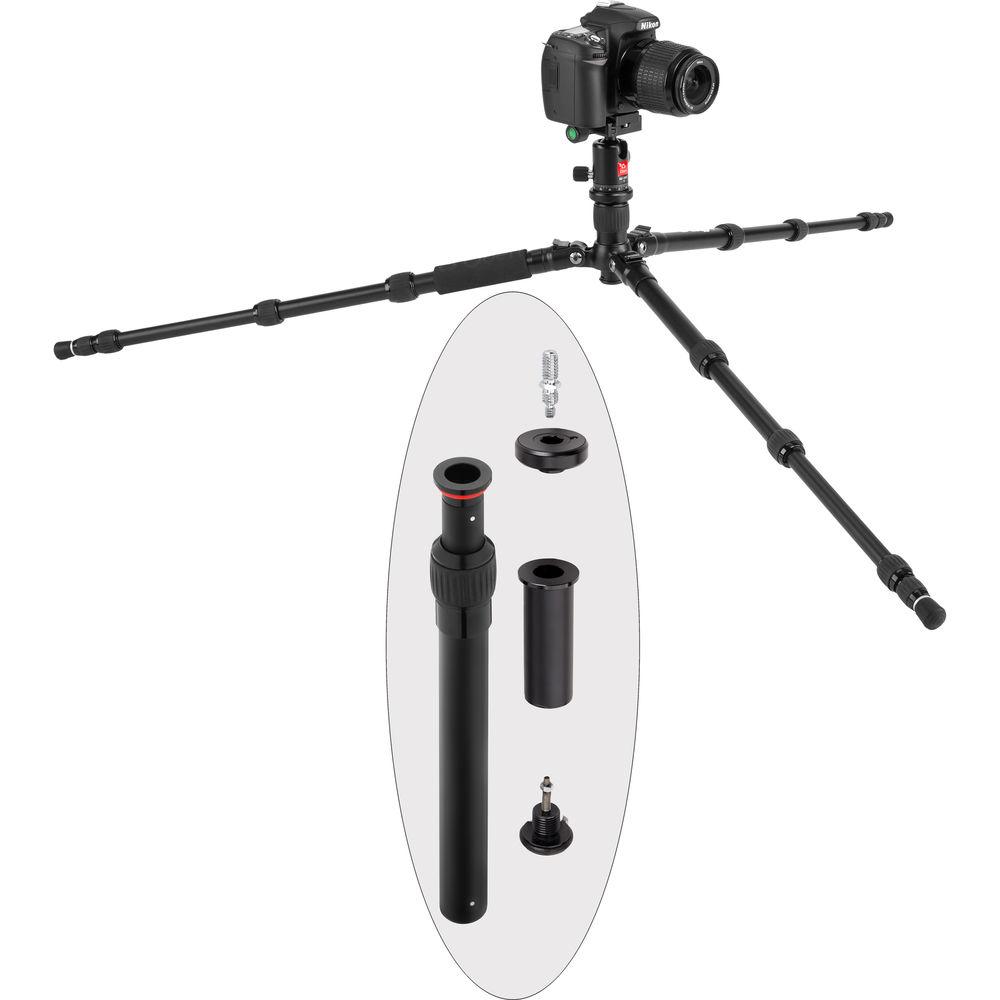

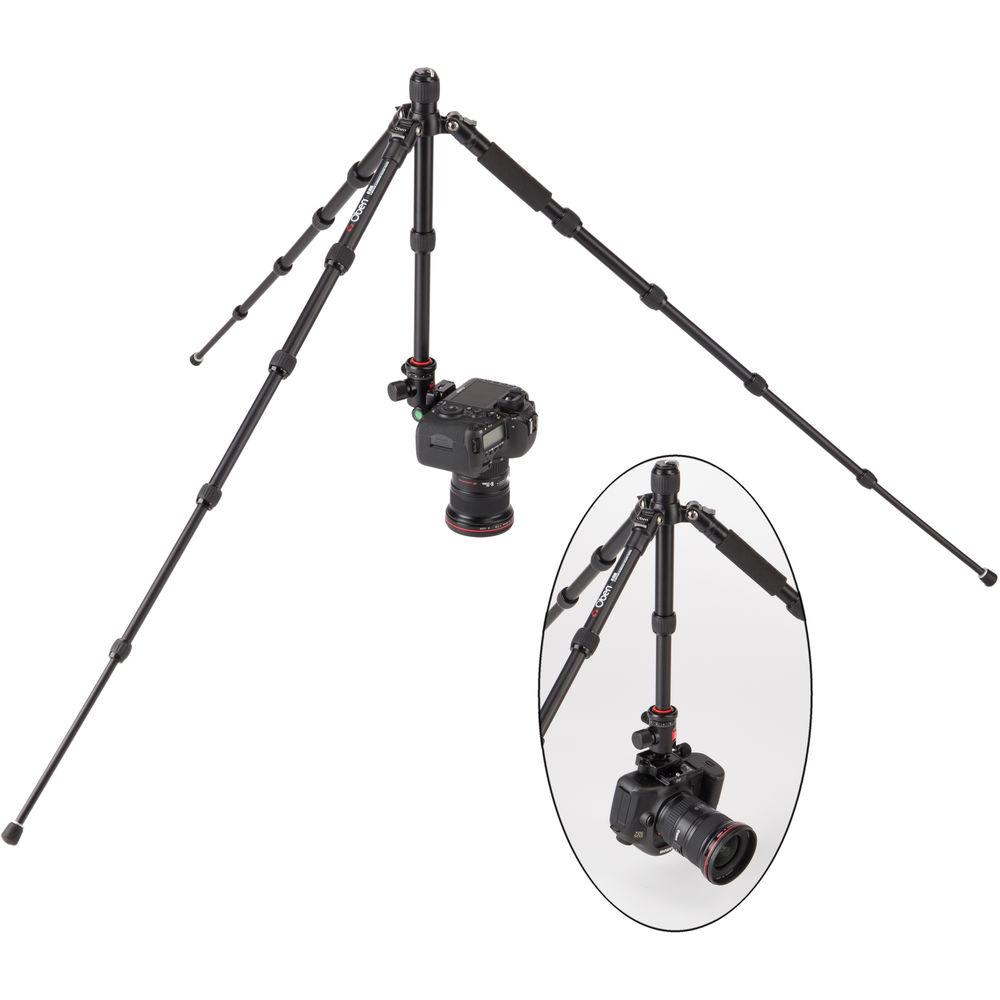

- The low-angle center column is ideal for low-angle photography. Reversing the center column makes it possible to mount your camera extremely close to the ground.

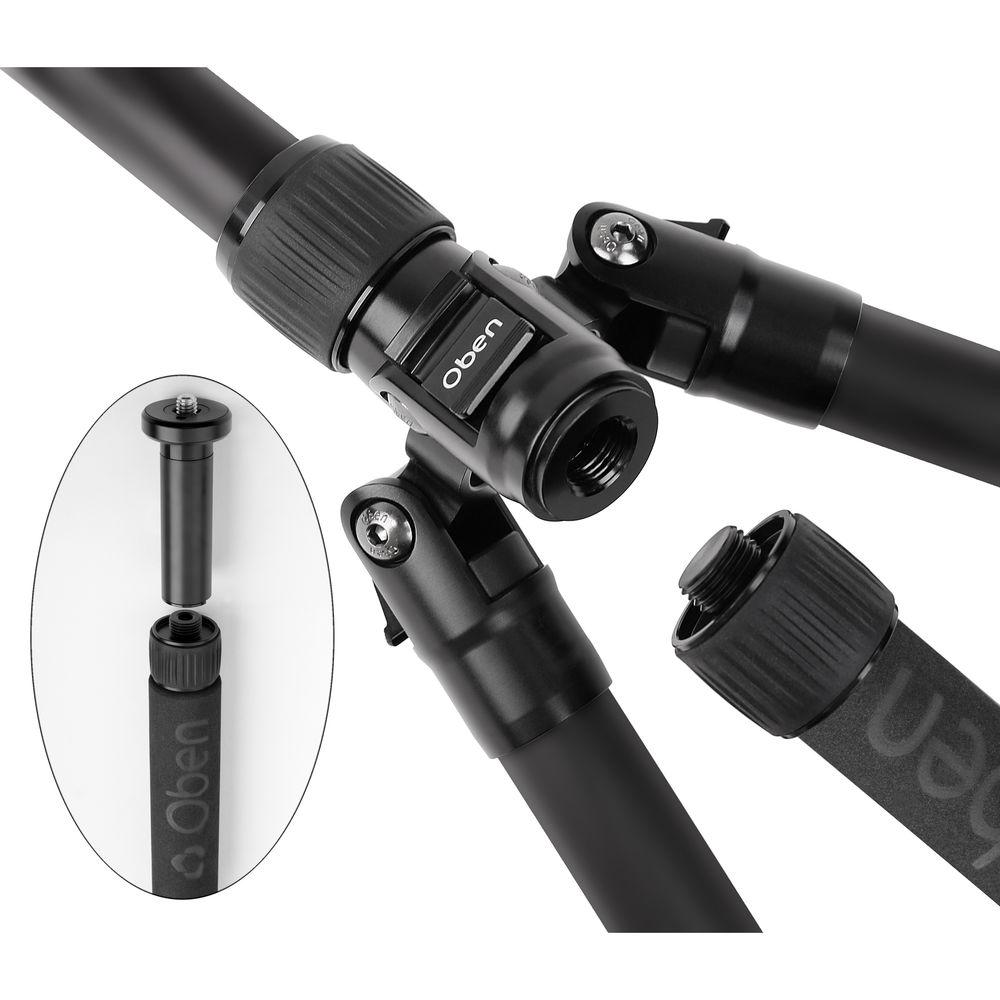

- Integrated Monopod
- One leg can be removed and in seconds becomes a monopod that extends up to 53".
- Dual-Action Ball Head
- Oben's BE-Series dual-action ball head boasts smooth and effortless operation and features separate locking knobs for independently adjusting the ball and panoramic base.
- Arca Swiss-Type Quick-Release
- The BE-Series ball head includes an Arca-type compatible quick release plate for ease in mounting and dismounting your camera.
- Bubble Level
- The ball head has an integrated bubble level to assure accurate camera alignment with the horizon.
UPC: 847628586307 In the Box Oben AT-3535 Folding Aluminum Travel Tripod with BE-208T Ball Head QR-10 Quick Release Plate 2 x Hex Wrench Low-Angle Center Column Shoulder Strap Carrying Case User Manual Limited 5-Year Warranty Time-Lapse Tips and Tools Shawn C. Steiner 07/24/2018 User Manual PDF 2mbtsqzvrrybrtdyerzaeryarwxtezxdsyuft Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben AT-3535 Folding Aluminum Travel Tripod with BE-208T Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben AT-3535 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | | | Load Capacity | 9 lb / 4.1 kg | | Maximum Working Height | 51.6" / 130 cm | | Max Height without Center Column | 41.4" / 100 cm | | Minimum Working Height | 8.6" / 21.8 cm | | Folded Length | 12" / 30.5 cm | | Materials | Aluminum Alloy | | Weight | 2.9 lb / 1.3 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Feet Features | Rubber, Spiked | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.0 x 4.9 x 4.7" |
