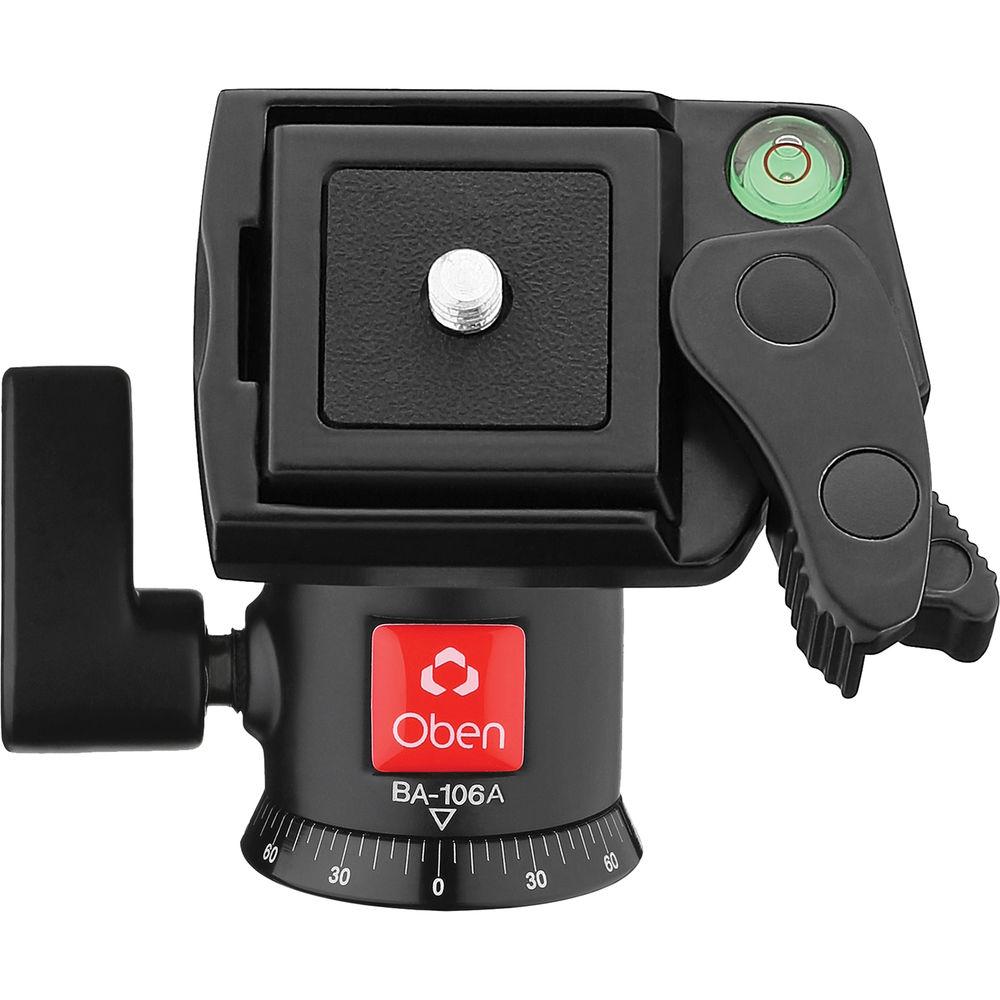

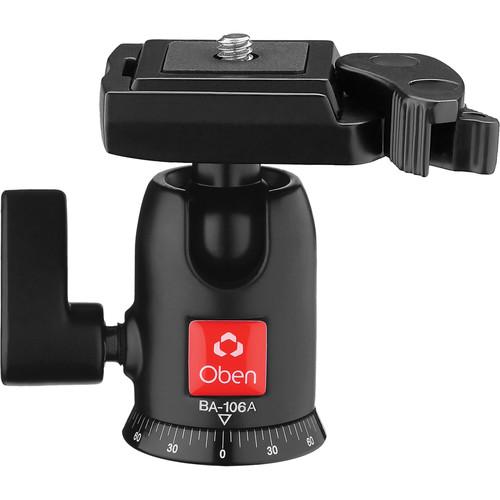

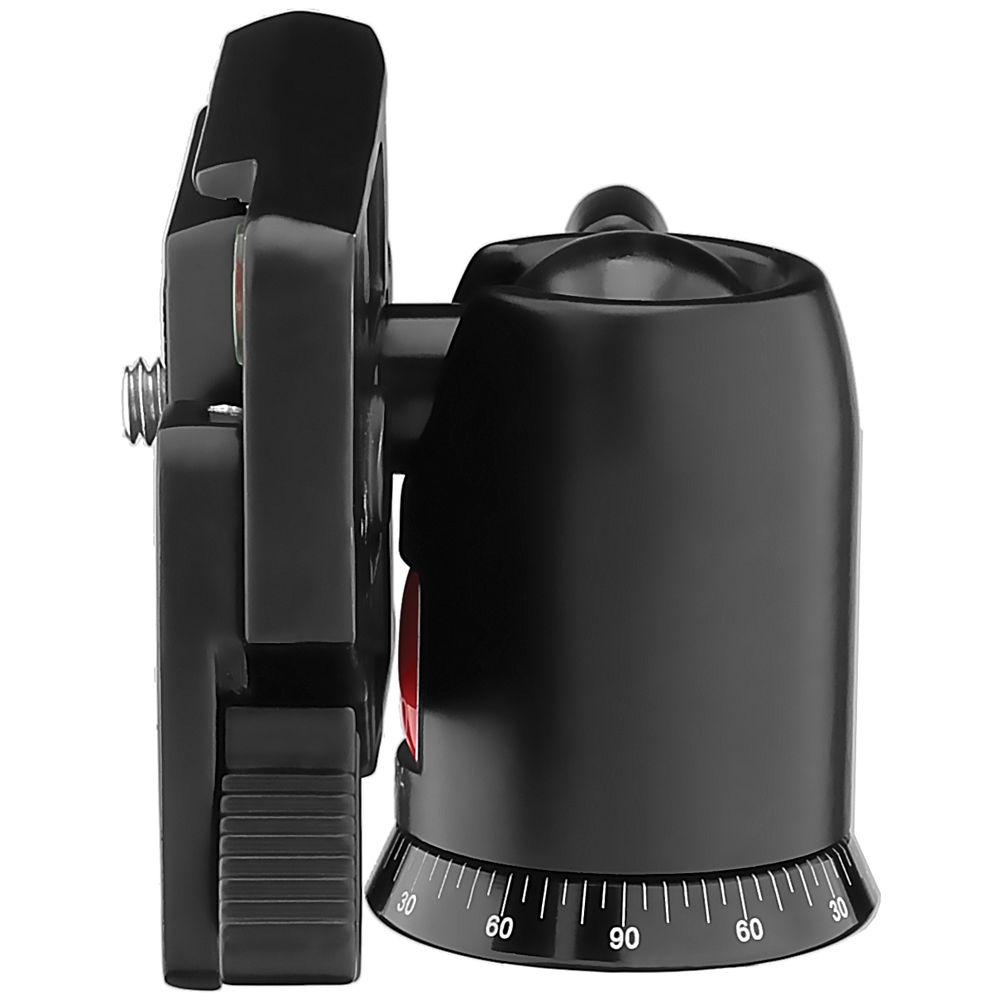

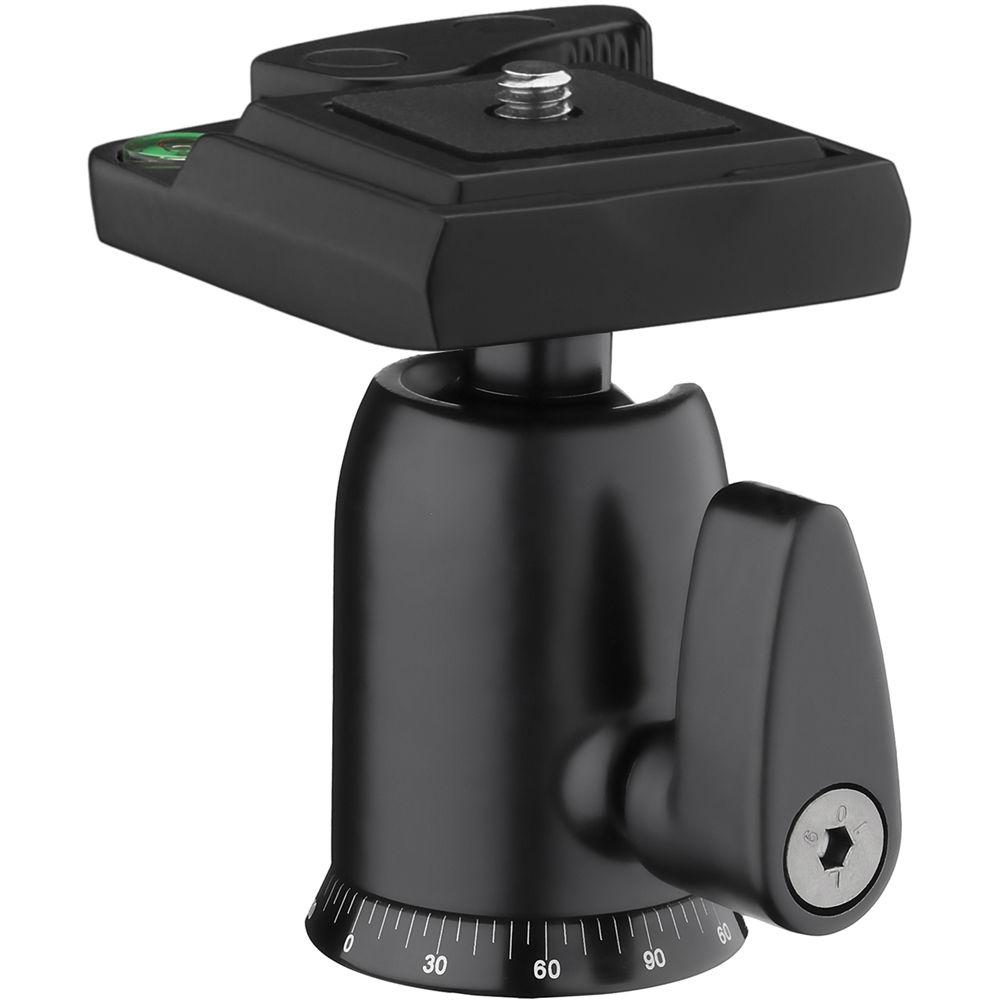

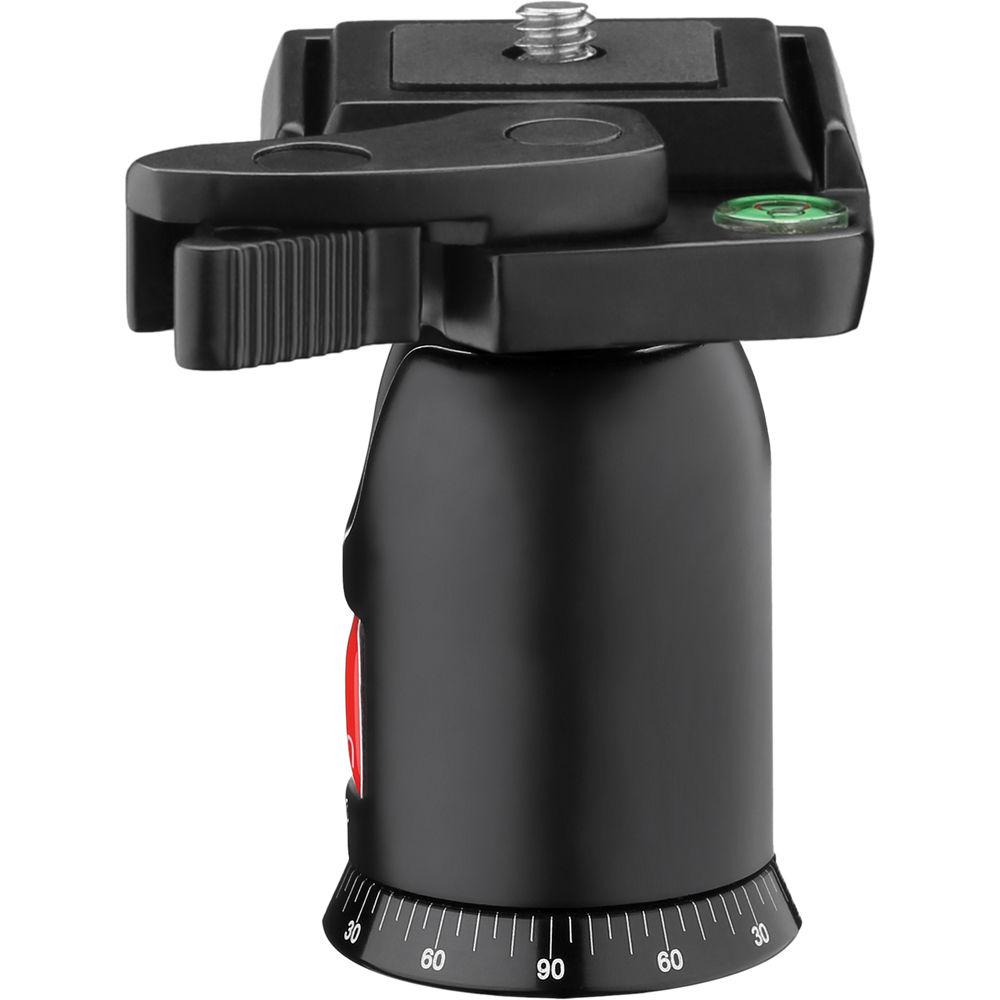

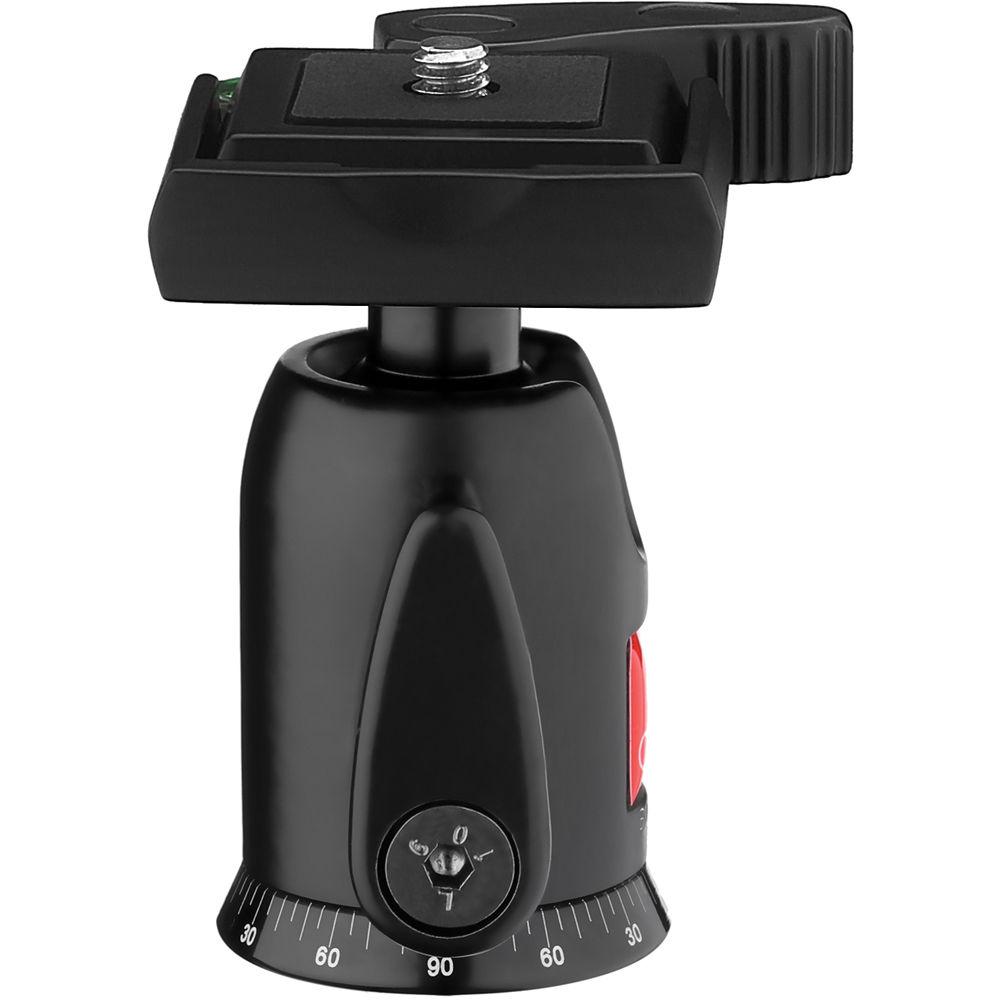

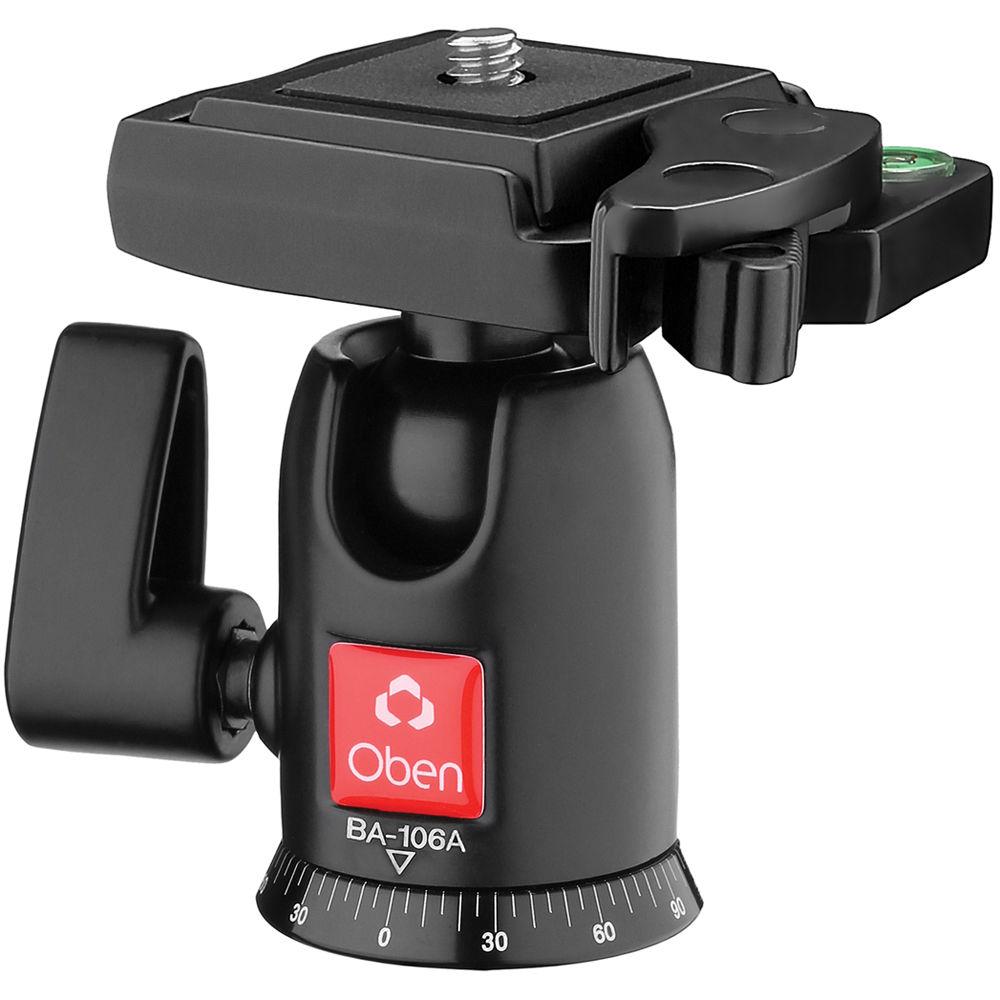

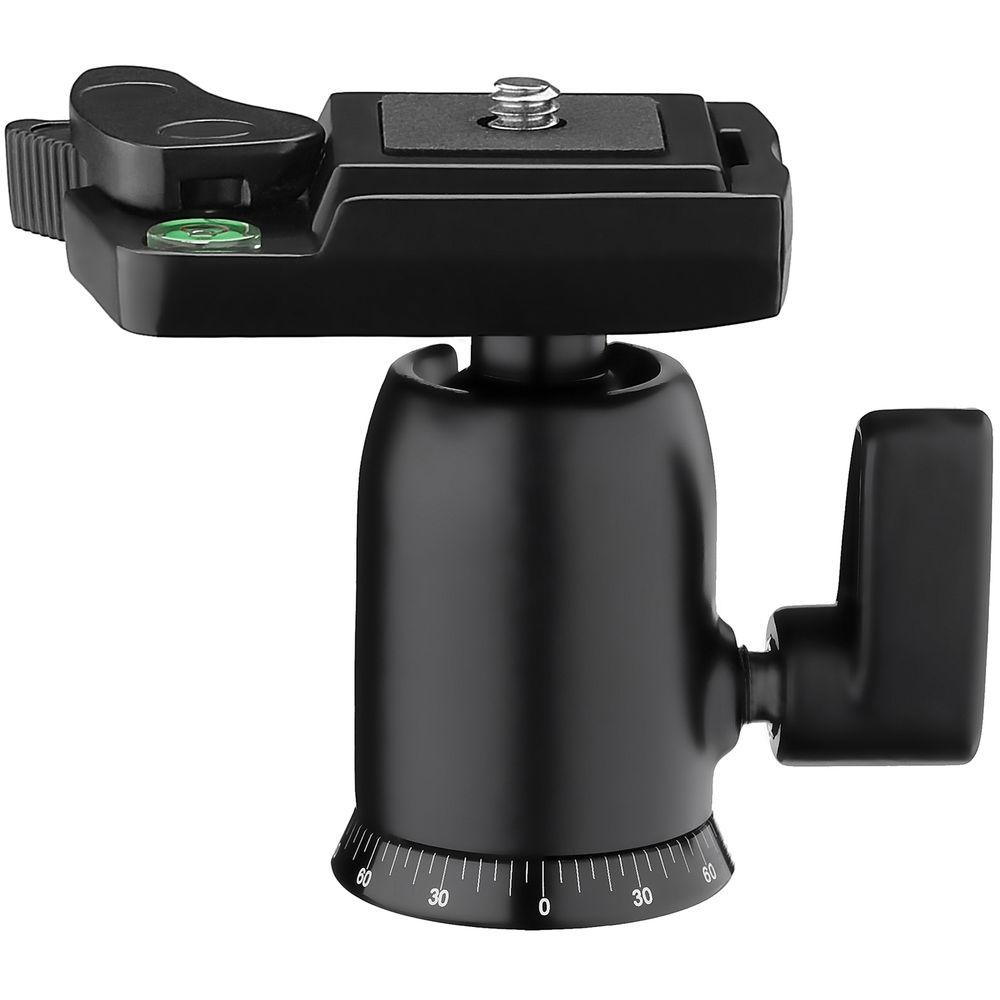

Product description The BA-106A Single Lever Ball Head from Oben is a simple ball head with one ratcheting locking knob to control all motion. The knob allows you to unlock the ball so that you can quickly orient your camera properly, retighten the knob, and return to shooting. This enables fast setup changes, and frees you to keep a finger on the trigger while you're making a quick adjustment to the head's orientation.

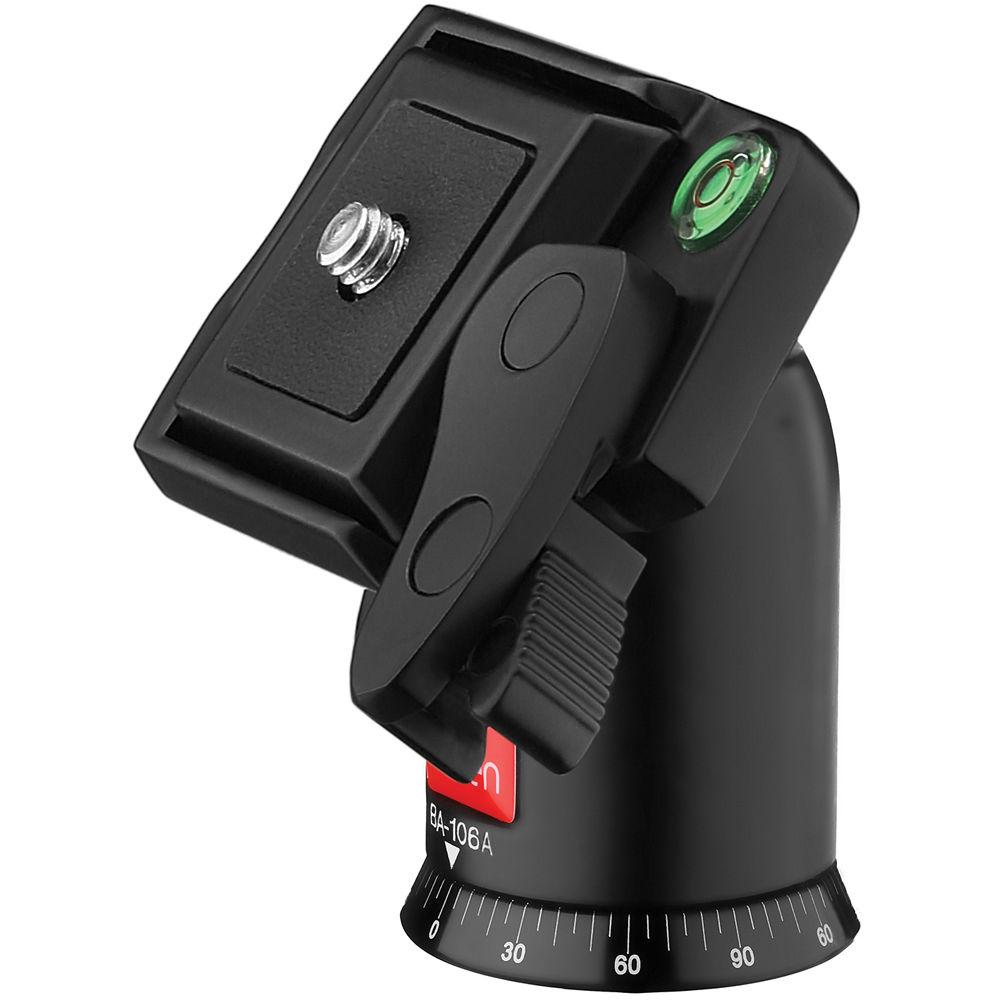

The ball head has a 90° notch which facilitates shooting in portrait orientation. A bull's eye bubble level ensures your camera is level on both the horizontal and vertical axes.

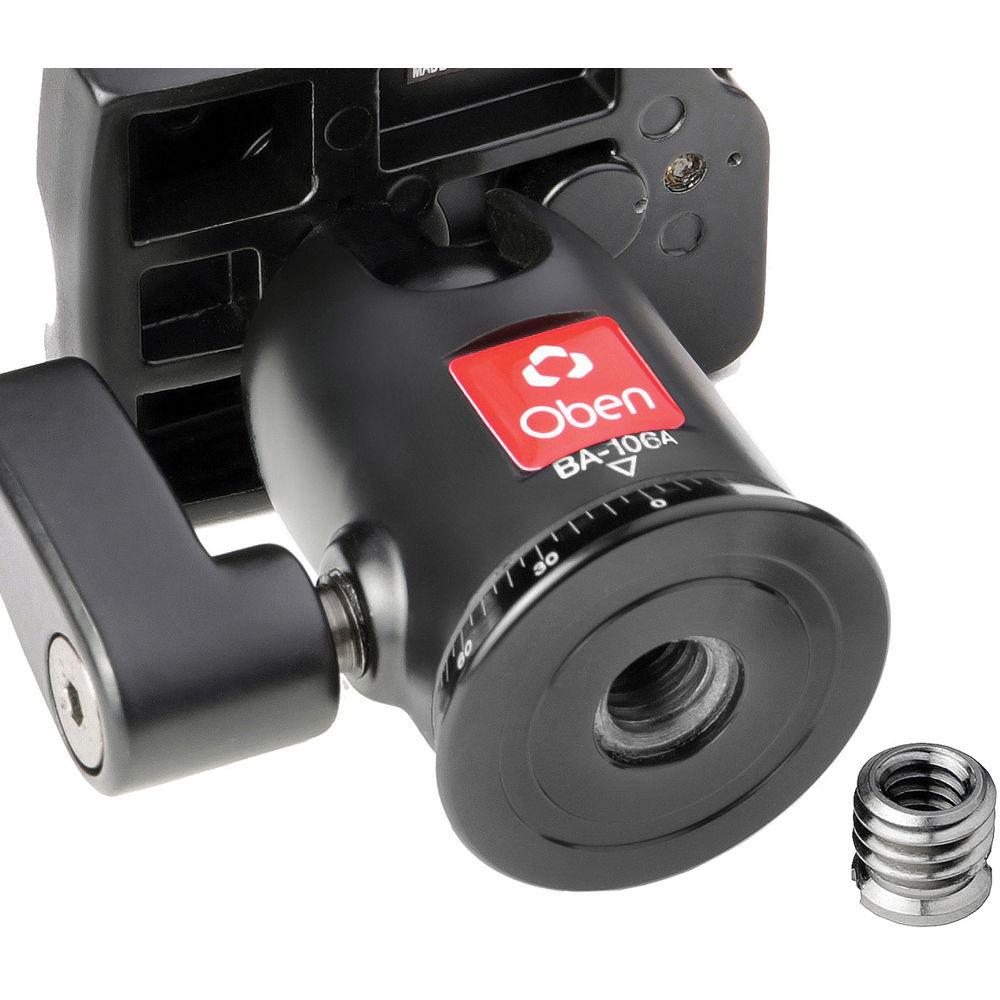

The included quick-release plate attaches to your camera via its standard 1/4"-20 screw. With your camera attached to the quick-release plate, it easily snaps and locks into place on the ball head, and is quickly removed by pressing the locking lever. A safety lock on the lever prevents your QR plate and camera from accidental release. UPC: 847628585805 In the Box Oben BA-106A Single Lever Ball Head RP-5 Quick-Release Plate 3/8"-16 to 1/4"-20 Reducer Bushing Limited 5-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben BA-106A Single Lever Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben BA-106A Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Load Capacity | 6.6 lb / 3 kg | | Number of Bubble Levels | 1 | | Friction Control | No | | Independent Pan Lock | No | | | | Ball Sphere Diameter | 0.86" / 22 mm | | Dimensions |
