User Manual for Oben BC-126 Ball Head Click to enlarge the picture
Contents of the user manual for the Oben BC-126 Ball Head
- Product category: Tripod Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripod Heads
 |
User manual for the Oben BC-126 Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

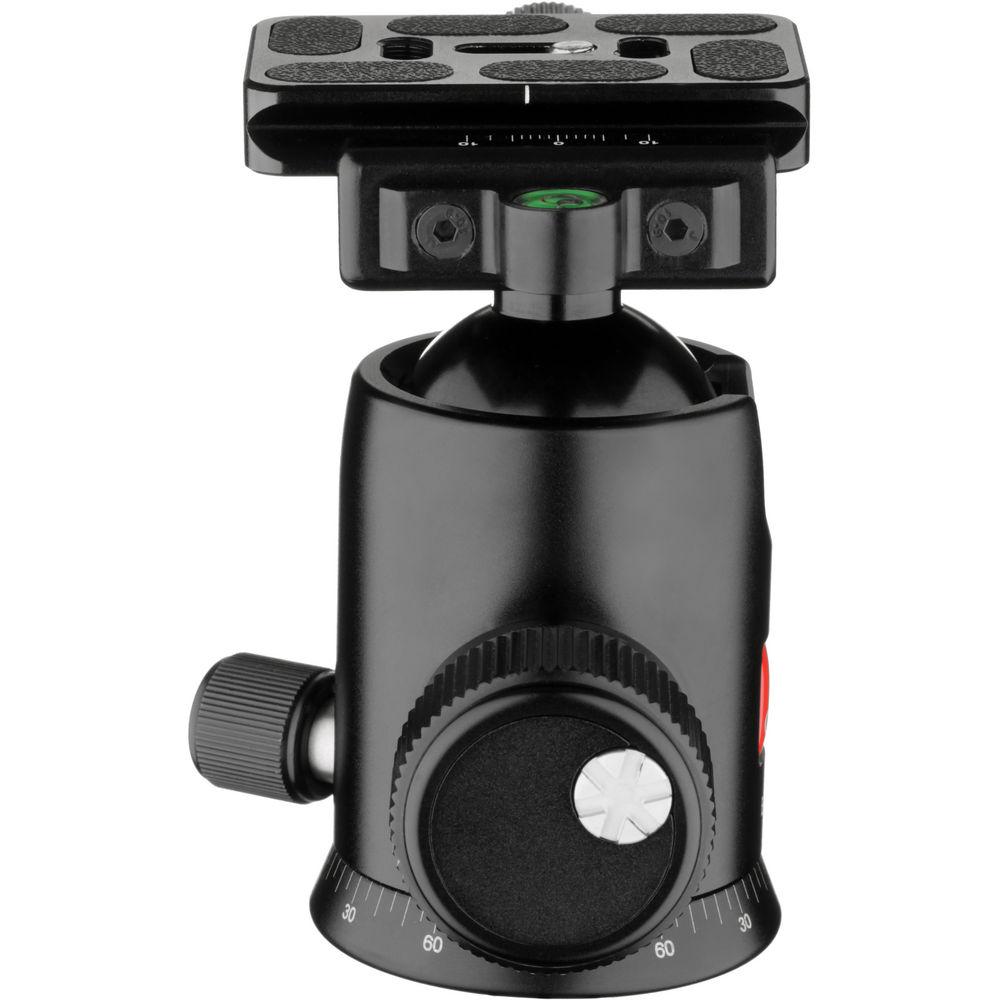

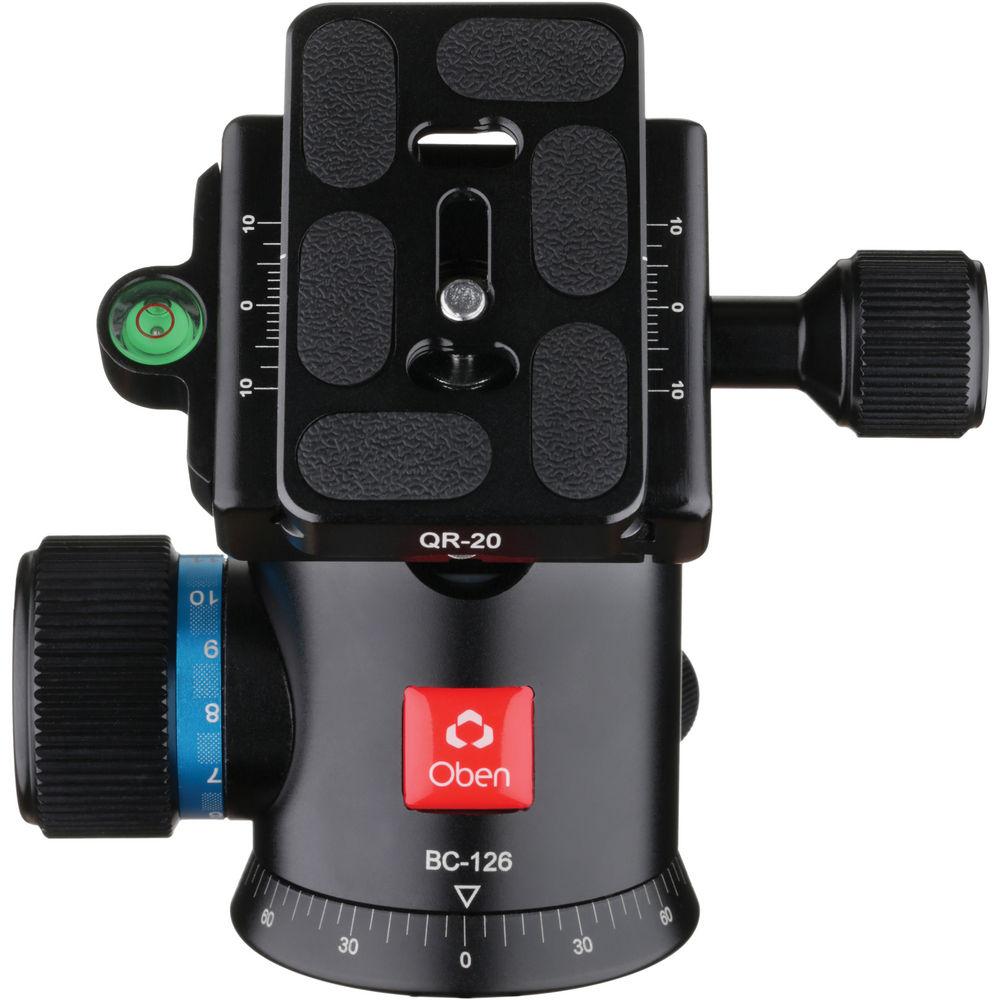

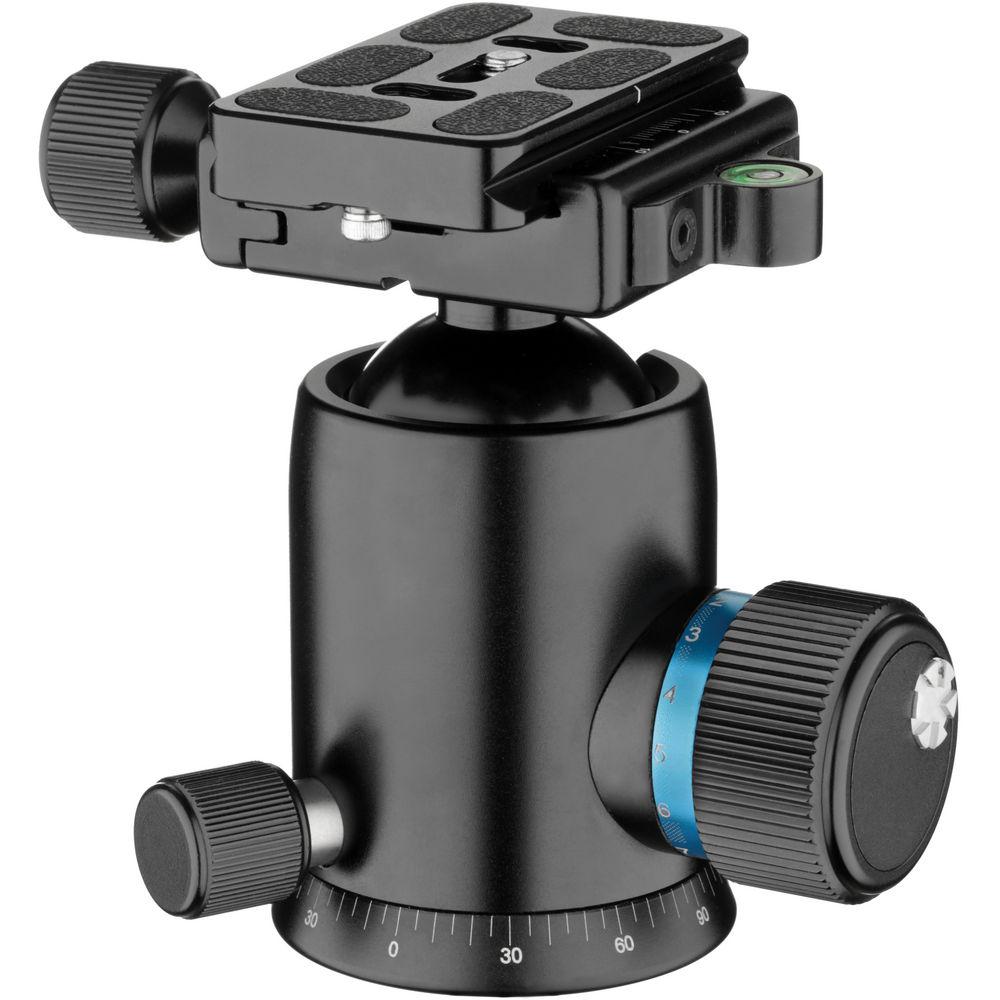

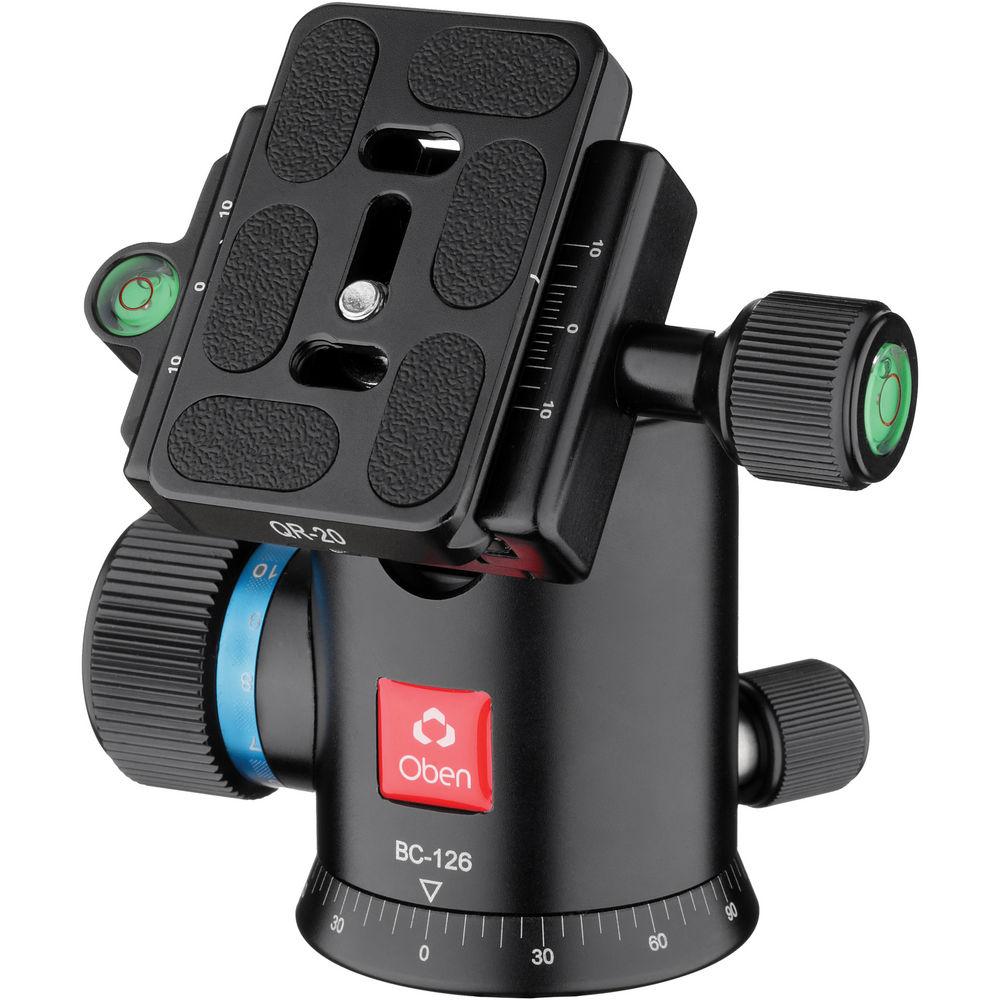

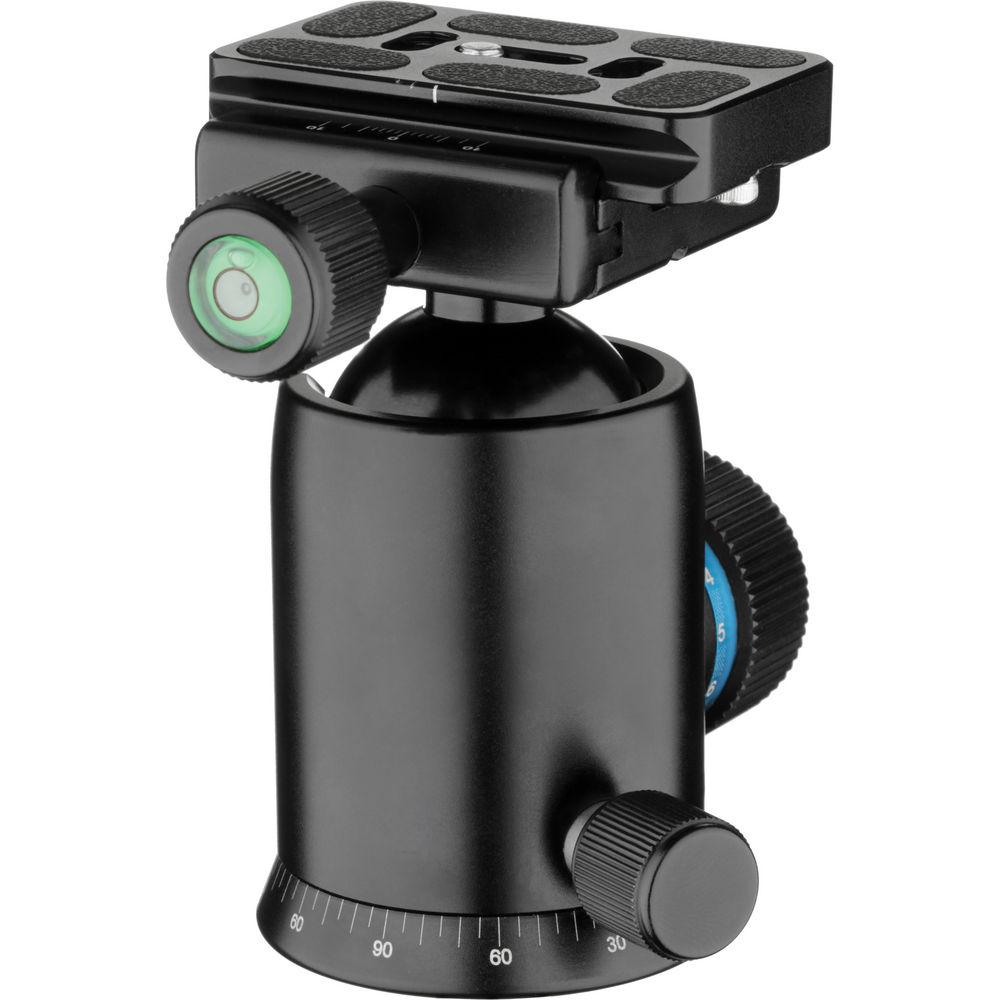

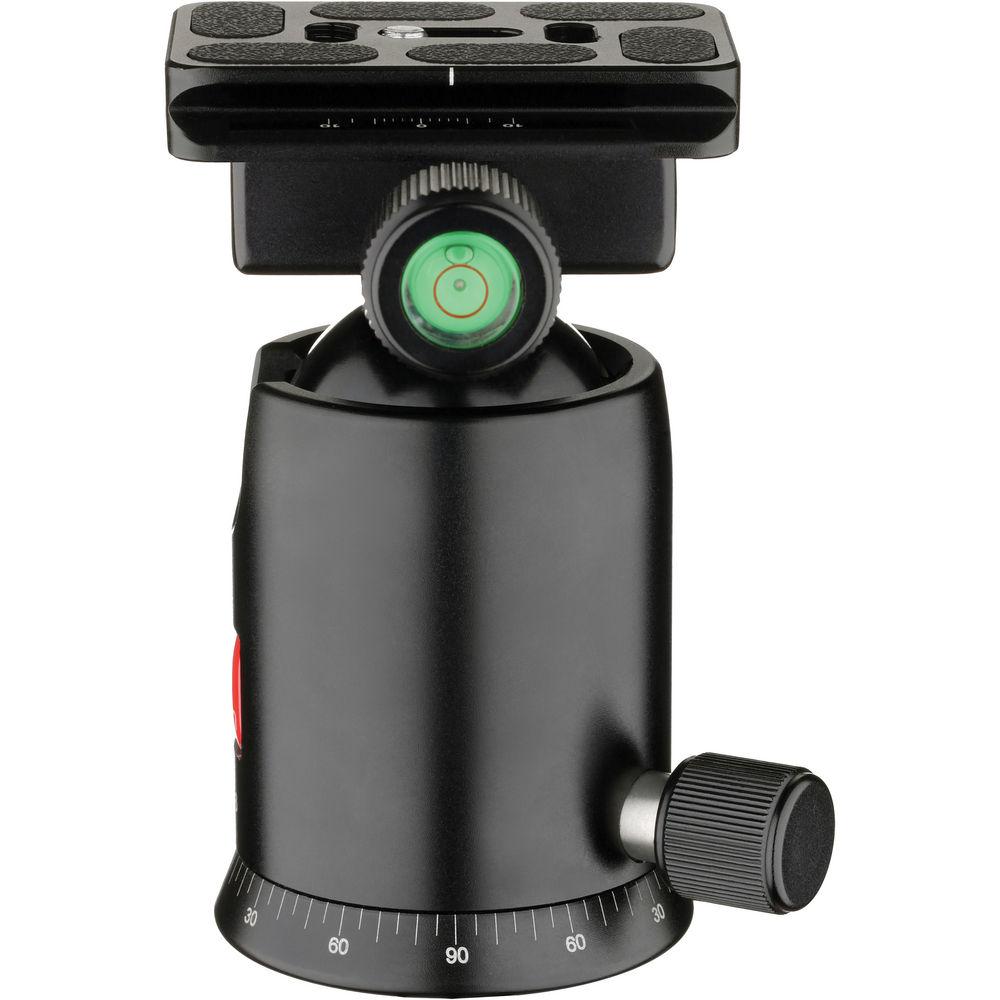

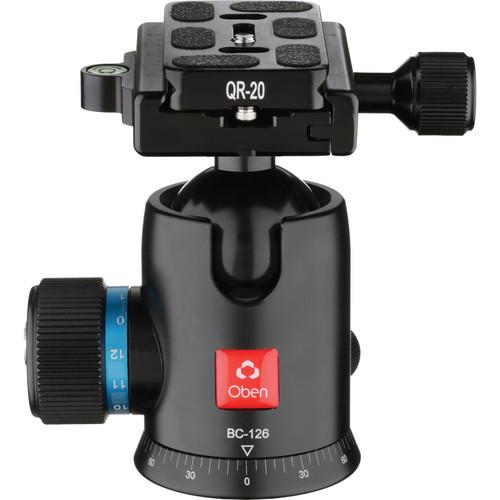

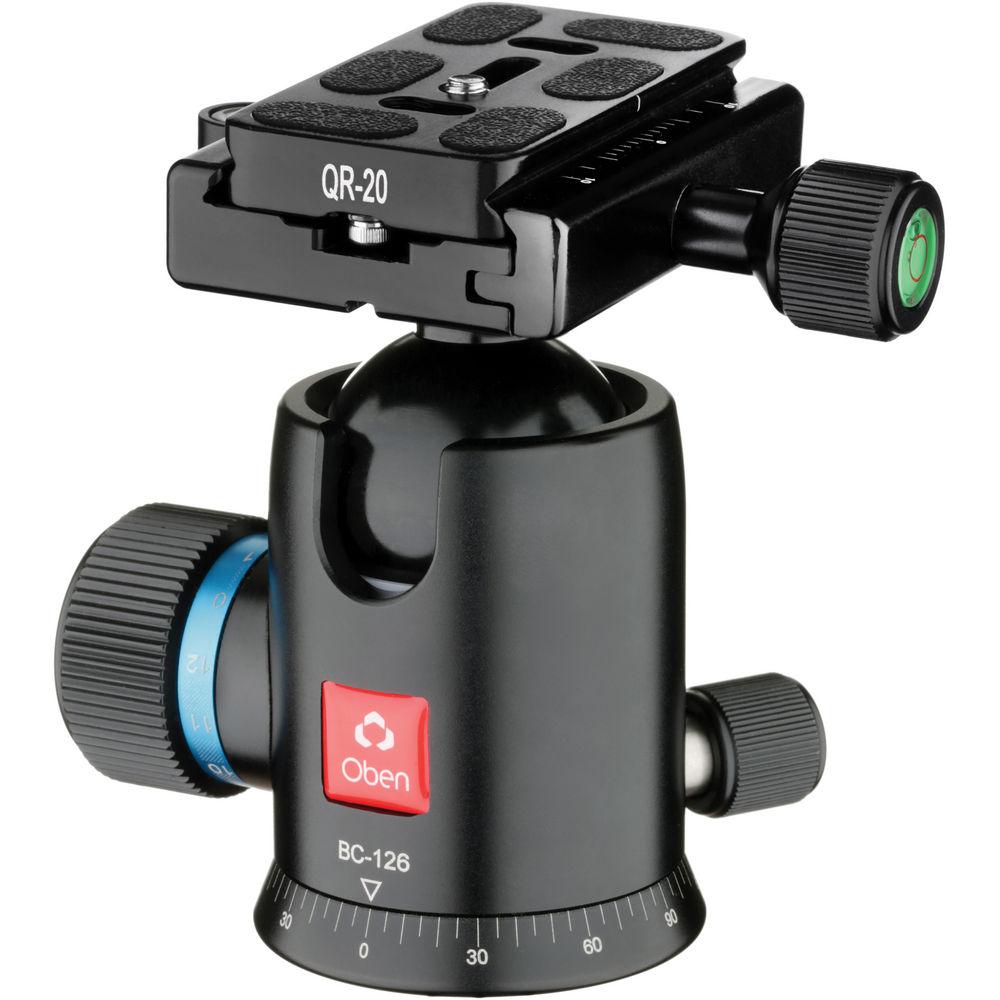

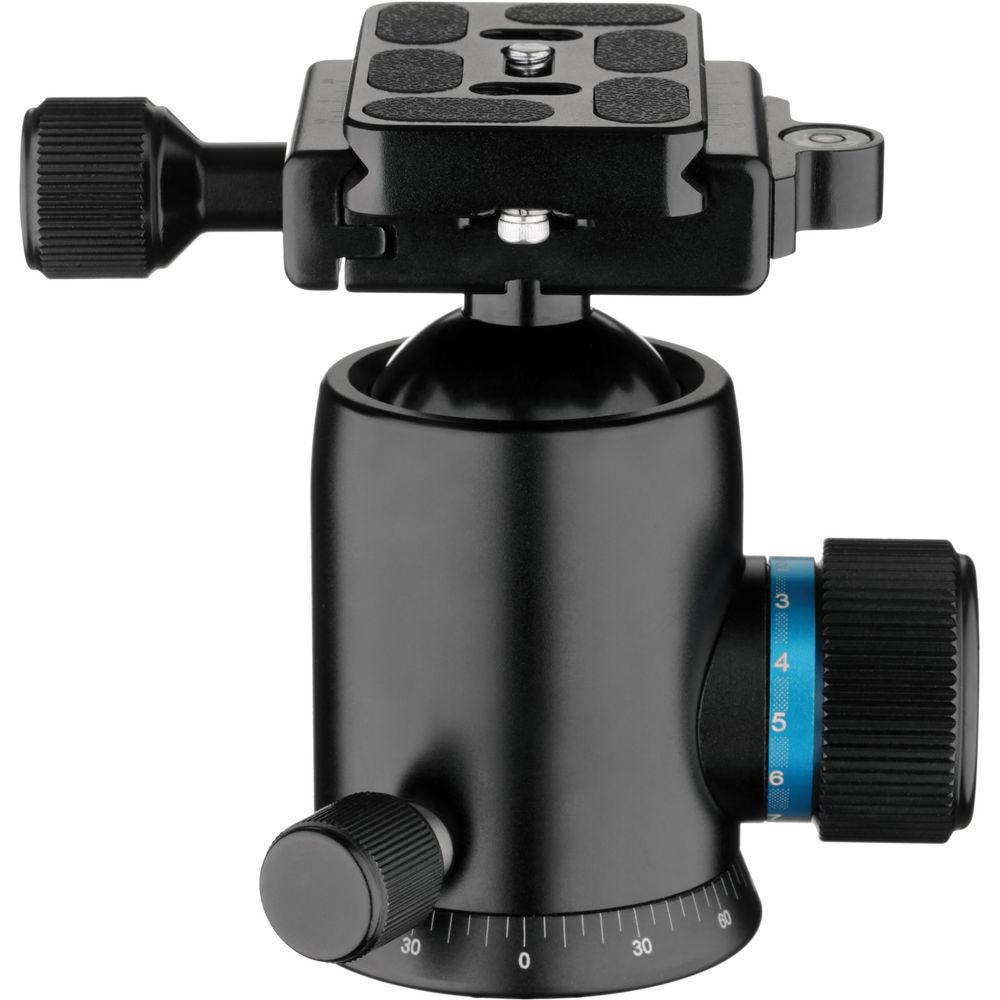

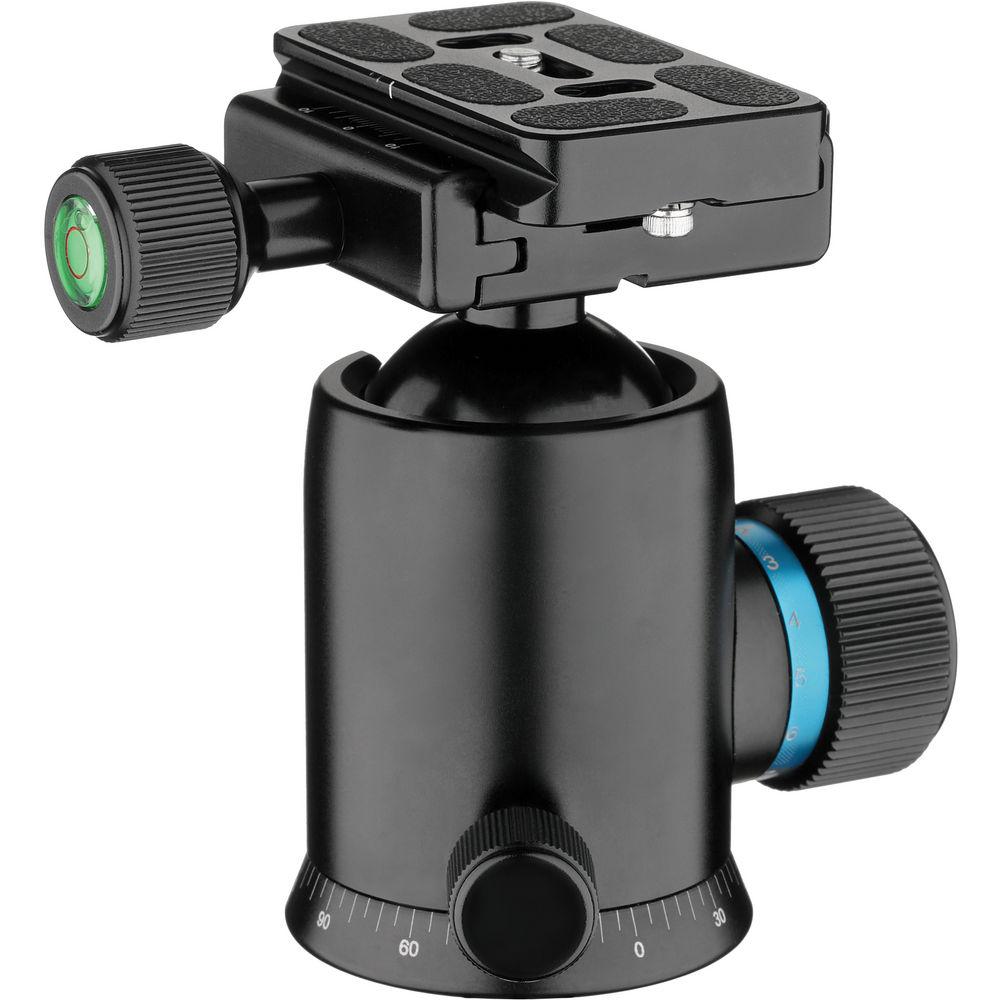

Product description The BC-126 Ball Head from Oben is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.
The BC-126's multiple knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple, for instance, because you can pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-126 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, both ensure that your camera will be level with the horizon. UPC: 847628563520 In the Box Oben BC-126 Ball Head QR-20 Quick Release Plate 3/8"-16 to 1/4"-20 Reducer Bushing Limited 5-Year Warranty User Manual PDF 3.6mbseyzyedfcezxevyaxezubswct Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben BC-126 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben BC-126 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 26.4 lb / 12 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 1.5" / 38 mm | | Base Diameter | 2" / 5 cm | | Dimensions | H: 3.9" / H: 9.9 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.0 x 4.2 x 3.3" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
