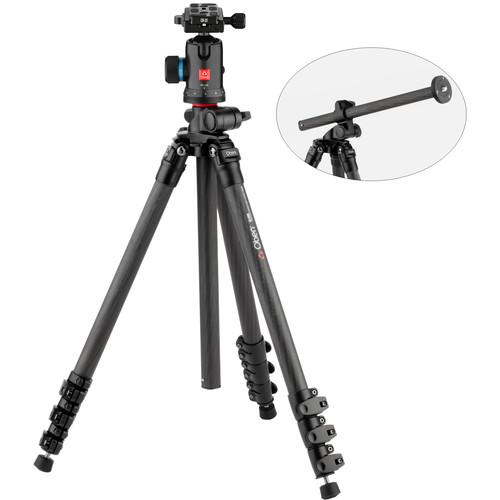

User Manual for Oben CC-2481L Carbon Fiber Tripod with BC-126 Ball Head Click to enlarge the picture
Contents of the user manual for the Oben CC-2481L Carbon Fiber Tripod with
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
|
User manual for the Oben CC-2481L Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More This kit from includes a CC-2481L Carbon Fiber Lateral Tripod and BE-126 Ball Head. The tripod is a sturdy support for any DSLR or point-and-shoot camera. With a load capacity of 25 lb and a maximum height of 71.9", including the head, the lateral tripod features a tilting, swiveling center column that enables flexible positioning for macro photography and other uses.
Engaging the lateral adjustment lever frees the tilting of the center column once it's been extended past the chassis, which becomes possible by pressing the button at the column's bottom to disengage the safety bolt. Once extended, the column can tilt from its original 0°, straight-up-and-down orientation, to a 180° upside-down orientation - with possible stops everywhere in between, including a 90° lateral position. Twisting a knob on the chassis locks and unlocks the 360° swiveling of the center column and its upper collar.
The tripod's flip locks, which enable the extension and securing of the leg stages, are user-adjustable. By using a supplied hex key, the user can tighten each flip lock to safeguard their continued reliable performance.
When it's not being used in its lateral mode, the CC-2481L's rapid center column functions like any professional tripod, extending after a twist of the knob on the upper collar. The tripod's center column can also be removed from both the chassis and the upper collar so that it can be reversed. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the center-post collar enable you to fasten a camera head more securely.
Push/pull tabs allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the CC-2481L features metal spikes that retract and emerge by twisting the foot's rubber portion.
The included BC-126 is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.
Its multiple knobs help make taking panoramic photos simple by allowing you to pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-126 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. Multiple bubble levels help ensure that your camera will be level with the horizon. - Oben BC-126 Ball Head The BC-126 Ball Head from Oben is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.
The BC-126's multiple knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple, for instance, because you can pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-126 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, both ensure that your camera will be level with the horizon. UPC: 847628563520 - Oben TS-110 Deluxe Tripod Strap with Swivel Clip The TS-110 Deluxe Tripod Strap with Swivel Clip from Oben provides you with an easy way to always have your tripod with you. The strap is designed to fit tripods that have an attachment hook. It's adjustable from 34 to 40" and features a 3.25" wide neoprene shoulder pad. One end of the strap contains a swivel clip that attaches to the tripod's attachment hook. The other end contains a quick-release connector that wraps around your tripod's leg. The strap features an accessory pocket for small items. UPC: 847628540194
- Oben 3/8"-16 to 1/4"-20 Reducer Bushing This 3/8"-16 to 1/4"-20 Reducer Bushing from Oben allows you to convert any standard 3/8"-16 thread for the insertion of a standard 1/4"-20 screw. This way you can, for instance, mount a professional-style head with a 3/8"-16 threaded hole on a tripod that has a 1/4"-20 screw.The bushing is a replacement part for Oben heads, and it will work with all Oben monopods and tripods also. UPC: 847628536128
- Oben Tripod Hanger (1/4"-20) The Oben Tripod Hanger attaches to a tripod's 1/4"-20 camera screw, allowing you to hang it from a hook for convenient storage or display. The hanger is an ideal accessory for studios, newsrooms, rental houses or for anyone who wants to organize their gear and free up floor space. UPC: 847628571525
In the Box - BC-126 Ball Head
- QR-20 Quick Release Plate
- 3/8"-16 to 1/4"-20 Reducer Bushing
- Limited 5-Year Warranty
Includes Free - TS-110 Deluxe Tripod Strap with Swivel Clip
- 3/8"-16 to 1/4"-20 Reducer Bushing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CC-2481L Carbon Fiber Tripod with BC-126 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Oben BC-126 Ball Head
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 26.4 lb / 12 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 1.5" / 38 mm | | Base Diameter | 2" / 5 cm | | Dimensions | H: 3.9" / H: 9.9 cm | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 5.0 x 4.2 x 3.3" | - Oben TS-110 Deluxe Tripod Strap with Swivel Clip
| Material | Strap: Nylon
Shoulder Pad: Neoprene | | Attachment Method | Swivel Clip attaches to tripod hook
Quick-release connector wraps around tripod leg | | Dimensions | Adjustable: 34.0 to 40.0" (0.8 to 1.0 m)
Shoulder Pad: 17.5 x 3.25" (44.5 x 8.3 cm) | | | | Box Dimensions (LxWxH) | 17.4 x 3.8 x 1.6" | - Oben 3/8"-16 to 1/4"-20 Reducer Bushing
| | | Box Dimensions (LxWxH) | 3.3 x 1.95 x 0.3" | - Oben Tripod Hanger (1/4"-20)
| | | Box Dimensions (LxWxH) | 3.5 x 3.0 x 0.5" |
