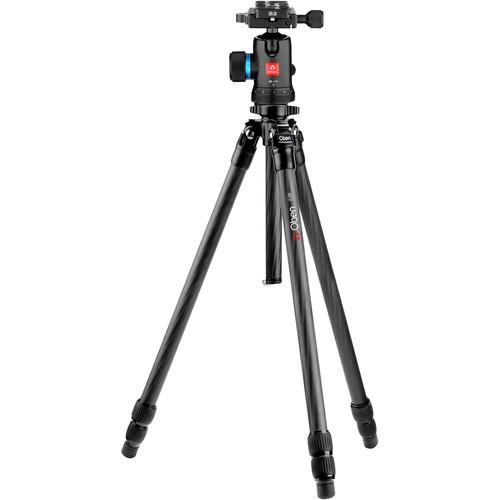

User Manual for Oben CT-2331 Carbon Fiber Tripod and BE-117 Ball Head Kit Click to enlarge the picture
Contents of the user manual for the Oben CT-2331 Carbon Fiber Tripod and
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
|
User manual for the Oben CT-2331 Carbon Fiber Tripod and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More This Kit includes the Oben CT-2331 Carbon Fiber Tripod and BE-117 Ball Head. The tripod is a sturdy support for most compact DSLR, point-and-shoot, and mirrorless cameras. With a load capacity of 8 lb and a maximum height of 58.5" including the head, the tripod offers a number of advanced features that ensure its stability and reliable performance.
The tripod features ergonomically designed rubber twist locks on each leg. Because legs are non-rotating, both of a leg's locks can be disengaged at once with a single twist of the wrist. This enables extremely fast setup of the CT-2331. A thoughtful leg design makes it a simpler task to service and maintain the leg sections.
The CT-2331's rapid center column extends with a twist of a knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely.
Push/pull tabs allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For additional stability on softer ground, the CT-3431 also features metal spikes underneath the removable rubber feet caps.
For extreme low-angle shooting, the center column can be split into two sections with the provided hex key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For another method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column.
The included BE-117 is a lightweight aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob to control the movement of the ball, and a separate knob for the 360° panning movement.
Its multiple knobs help make taking panoramic photos simple by allowing you to pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BE-117 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. Multiple bubble levels help ensure that your camera will be level with the horizon. - Oben CT-2331 Carbon Fiber Tripod The CT-2331 Carbon Fiber Tripod from Oben is a sturdy support for most compact DSLRs, point-and-shoot cameras, or a compact camcorder. With a load capacity of 8.8 lb and a maximum height of 54.8", the tripod offers a number of advanced features that ensure its stability and reliable performance. The tripod features ergonomically designed rubber twist locks on each leg. Because legs are non-rotating, both of a leg's locks can be disengaged at once with a single twist of the wrist. This enables extremely fast setup of the CT-2331. A thoughtful leg design makes it a simpler task to service and maintain the leg sections. With its 6x carbon fiber legs and center column, the CT-2331 is both lightweight (weighs just 1.65 lb) and solid, ready to survive the rigors of professional work. The tripod chassis is aluminum alloy for further strength. The CT-2331's rapid center column extends with a twist of the butterfly knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For extreme low-angle shooting, the center column can be split into two sections with the provided hex key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For a faster method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column.
- Ergonomically designed rubber twist locks on each leg are non-rotating so both of a leg's locks can be disengaged at once with a single twist of the wrist enabling fast setup.
- Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
- Bubble level on tripod chassis
- Center column is grooved to prevent rotation
- Split center column for low angle set-up
- Spring-loaded metal counterweight hook at the bottom of the center column
- Integrated aluminum loop for attaching a shoulder strap
- A removable rubber cap on each leg provides stability on flooring and stable ground and underneath, a metal spike offers stability on ice and soft terrain.
- Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
UPC: 847628556669 - Oben BE-117 Ball Head The BE-117 Ball Head from Oben is a lightweight aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob to control the movement of the ball, and a separate knob for the 360° panning movement.
The BE-117's multiple knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple, for instance, because you can pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BE-117 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, both ensure that your camera will be level with the horizon. UPC: 847628563476 In the Box - CT-2331 Carbon Fiber Tripod zasqyurbdryywqtbxrsdazw
- Padded Tripod Bag
- Shoulder Strap for Bag
- Tool Leg Clip with 2 Hex Keys
- Hex Key (for Split Center Column)
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CT-2331 Carbon Fiber Tripod and BE-117 Ball Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Oben CT-2331 Carbon Fiber Tripod
| | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 54.8" / 139.2 cm | | Max Height without Center Column | 45" / 114.3 cm | | Minimum Working Height | 5.5" / 14 cm | | Folded Length | 20.9" / 53.1 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 1.7 lb / 0.8 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 0.8" / 20.3 mm | | Feet Features | Spiked | | | | Center Column Features | Split | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 25.9 x 5.0 x 5.0" | - Oben BE-117 Ball Head
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 17.6 lb / 7.98 kg | | Number of Bubble Levels | 2 | | Friction Control | No | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 1.26" / 32 mm | | Base Diameter | 1.8" / 4.5 cm | | Dimensions | H: 3.7" / H: 9.3 cm | | Weight | 13.4 oz / 380.0 g | | | | Box Dimensions (LxWxH) | 4.8 x 4.2 x 3.5" |
