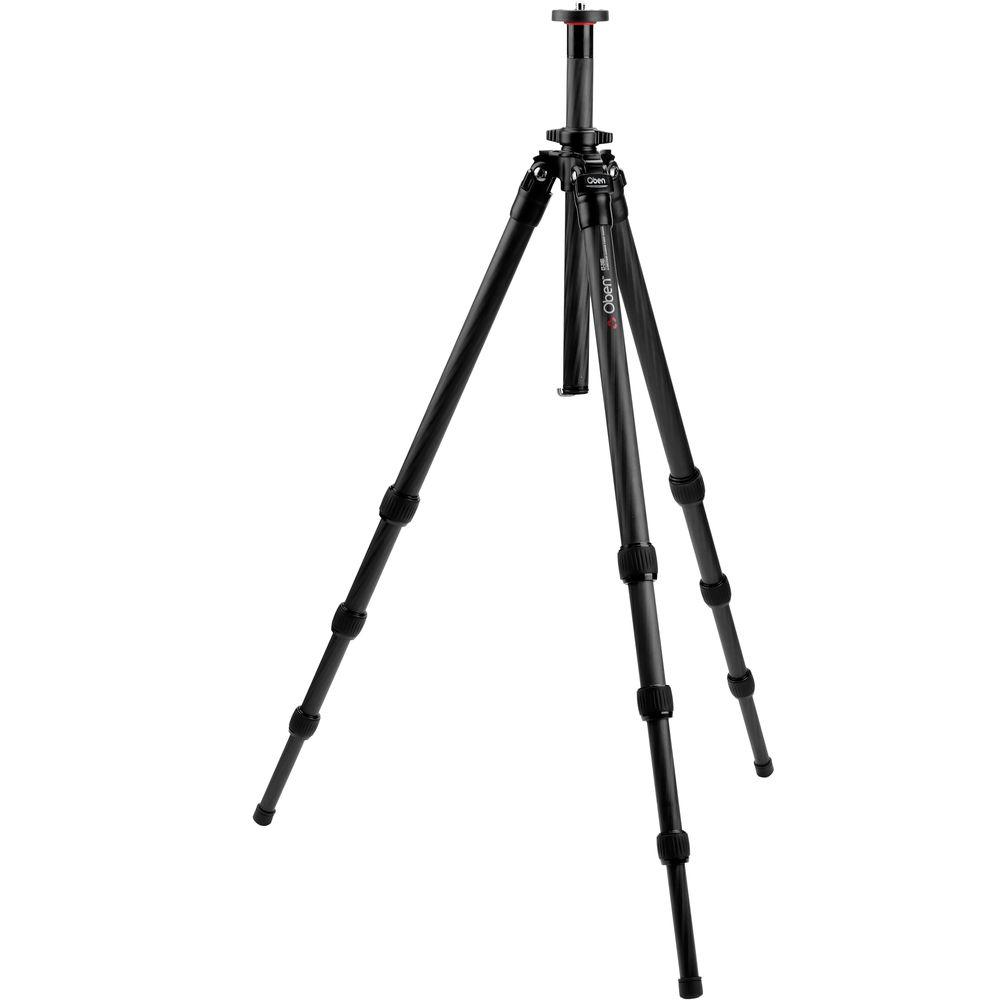

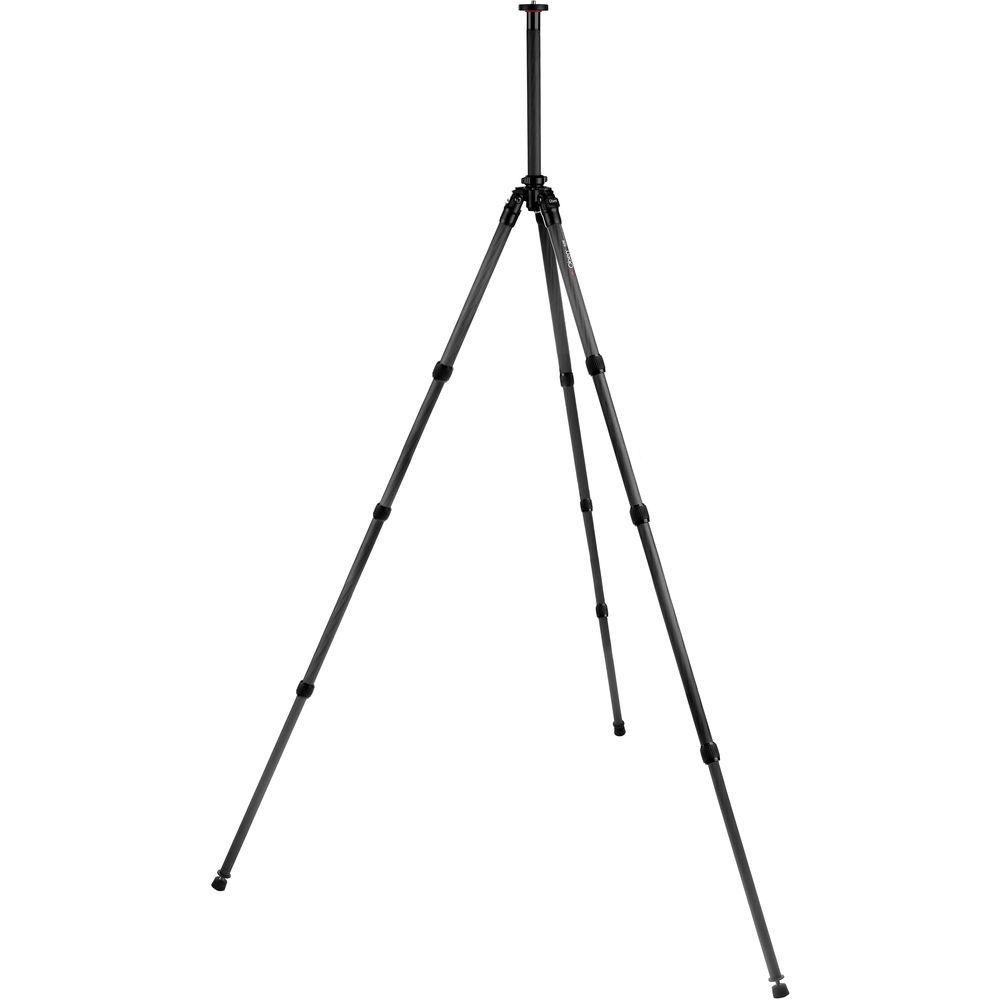

Product description The CT-2461 Carbon Fiber Tripod from Oben is a sturdy support for most DSLRs, any mirrorless or point-and-shoot camera or most camcorders. With a load capacity of 17.6 lb and a maximum height of 62.5", the tripod offers a number of advanced features that ensure its stability and reliable performance. The tripod features ergonomically designed rubber twist locks on each leg. Because legs are non-rotating, all three of a leg's locks can be disengaged at once with a single twist of the wrist. This enables extremely fast setup of the CT-2461. A thoughtful leg design makes it a simpler task to service and maintain the leg sections. With its 6x carbon fiber legs and center column, the CT-2461 is lightweight (2.45 lb) and solid, ready to survive the rigors of professional work. The tripod chassis is cast aluminum for further strength. The CT-2461's rapid center column extends with a twist of the butterfly knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the CT-2461 features metal spikes that retract and emerge by twisting the foot's rubber portion. For extreme low-angle shooting, the center column can be split into two sections with the provided hex key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For a faster method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column. - Ergonomically designed rubber twist locks on each leg are non-rotating so all three of a leg's locks can be disengaged at once with a single twist of the wrist, enabling fast setup.

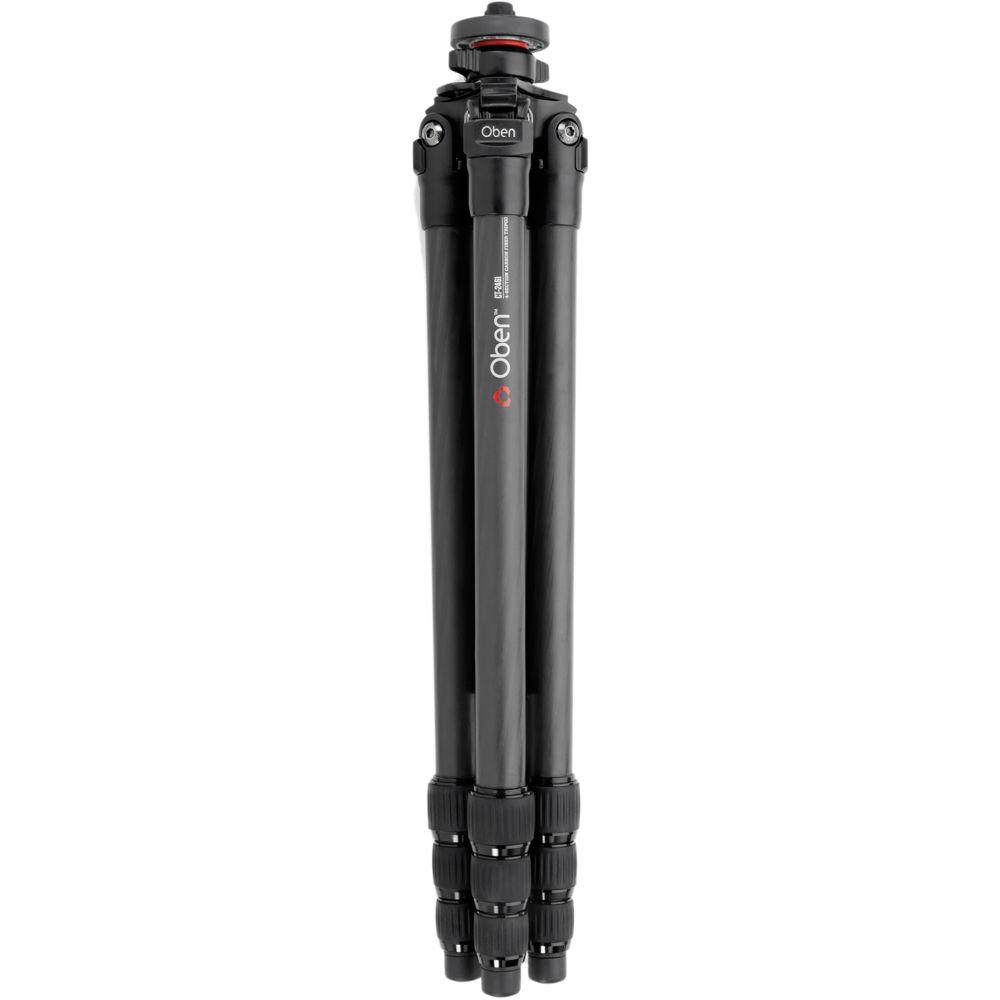

- Legs with 4-sections tend to collapse shorter for easier portability. The CT-2461 folds to 19.5".
- Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
- Bubble level on tripod chassis

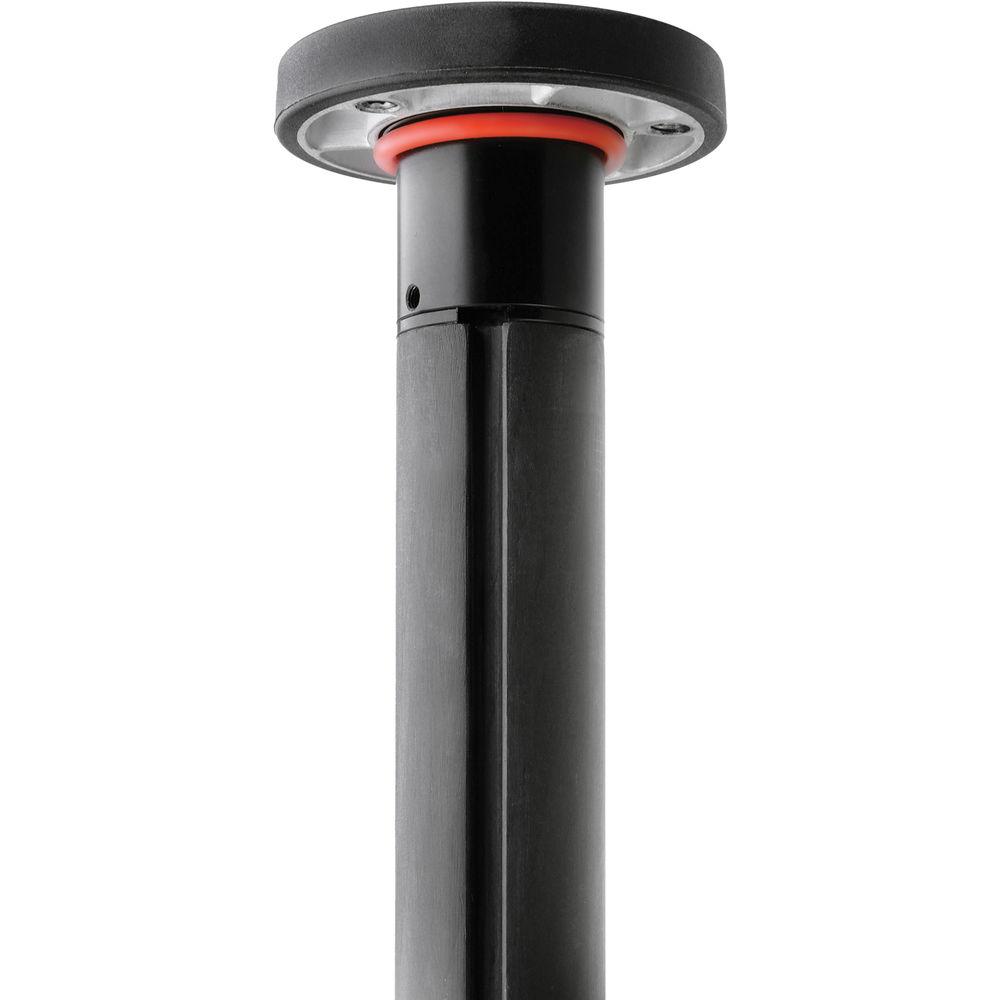

- Center column is grooved to prevent its rotation

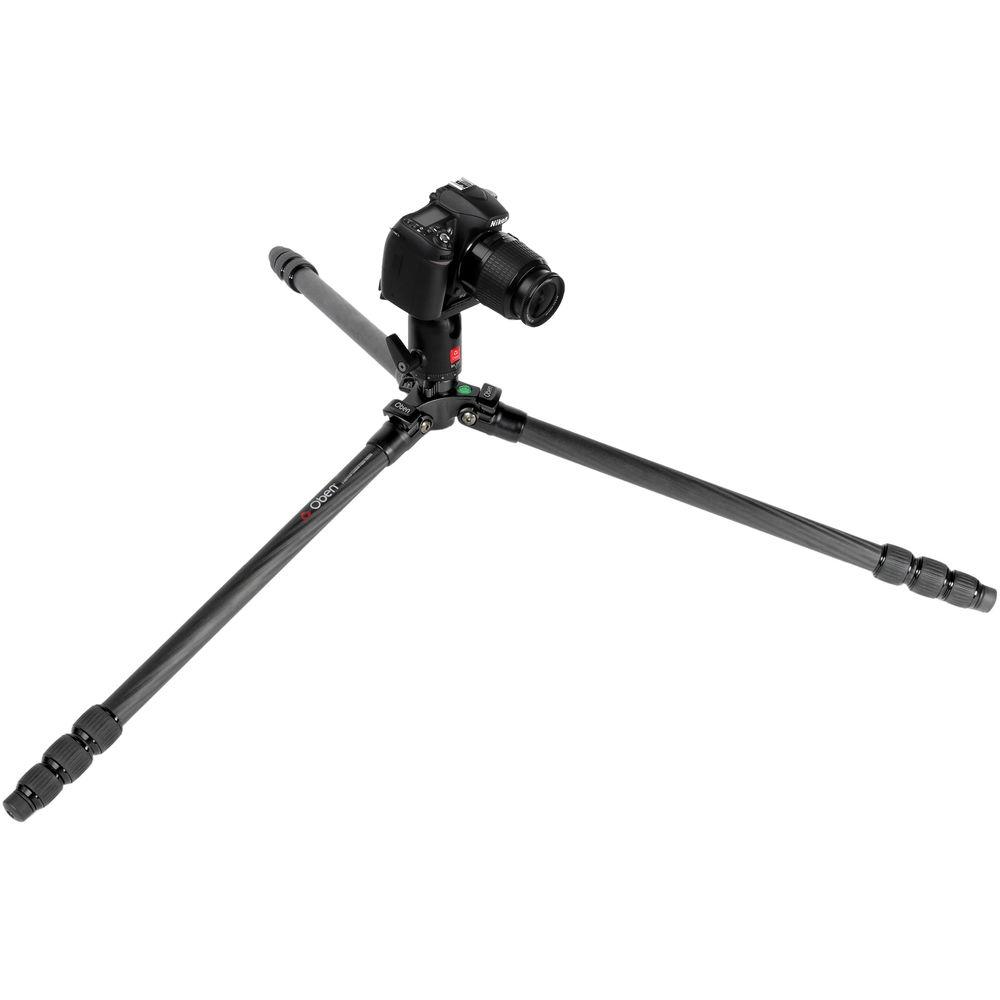

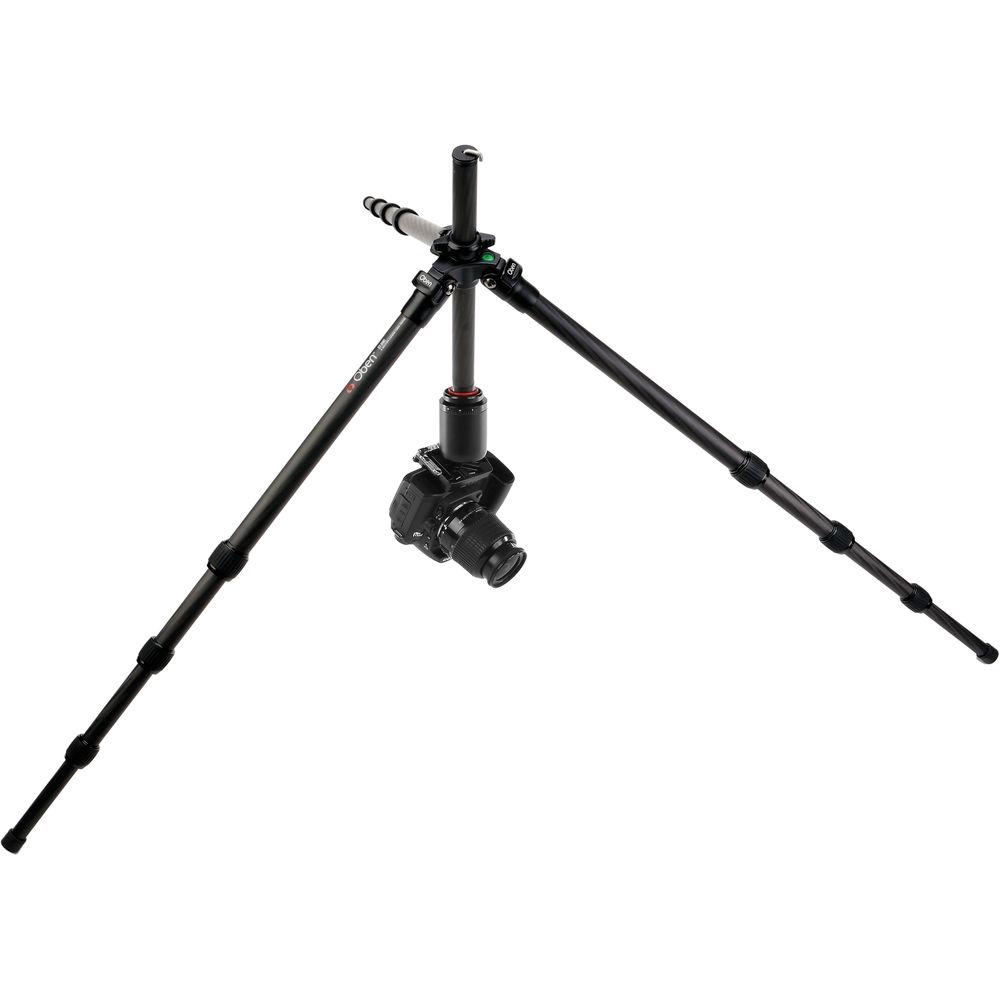

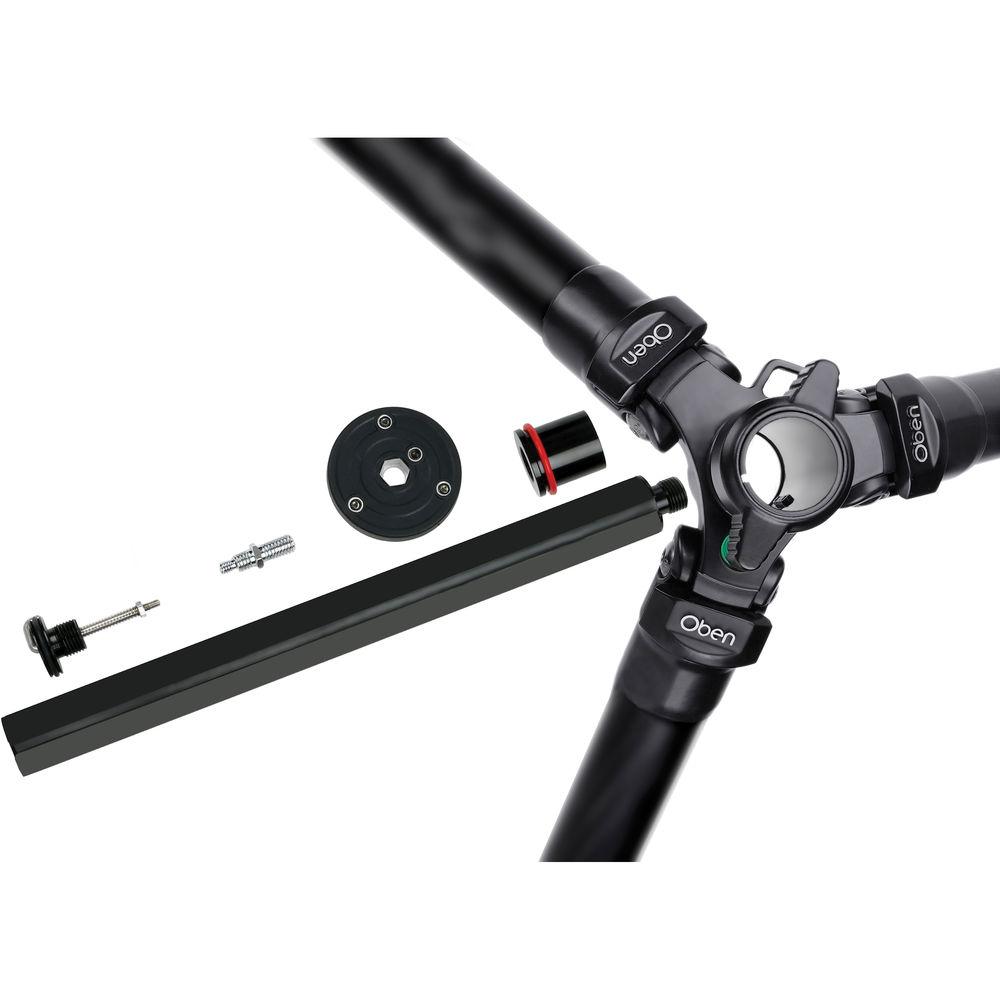

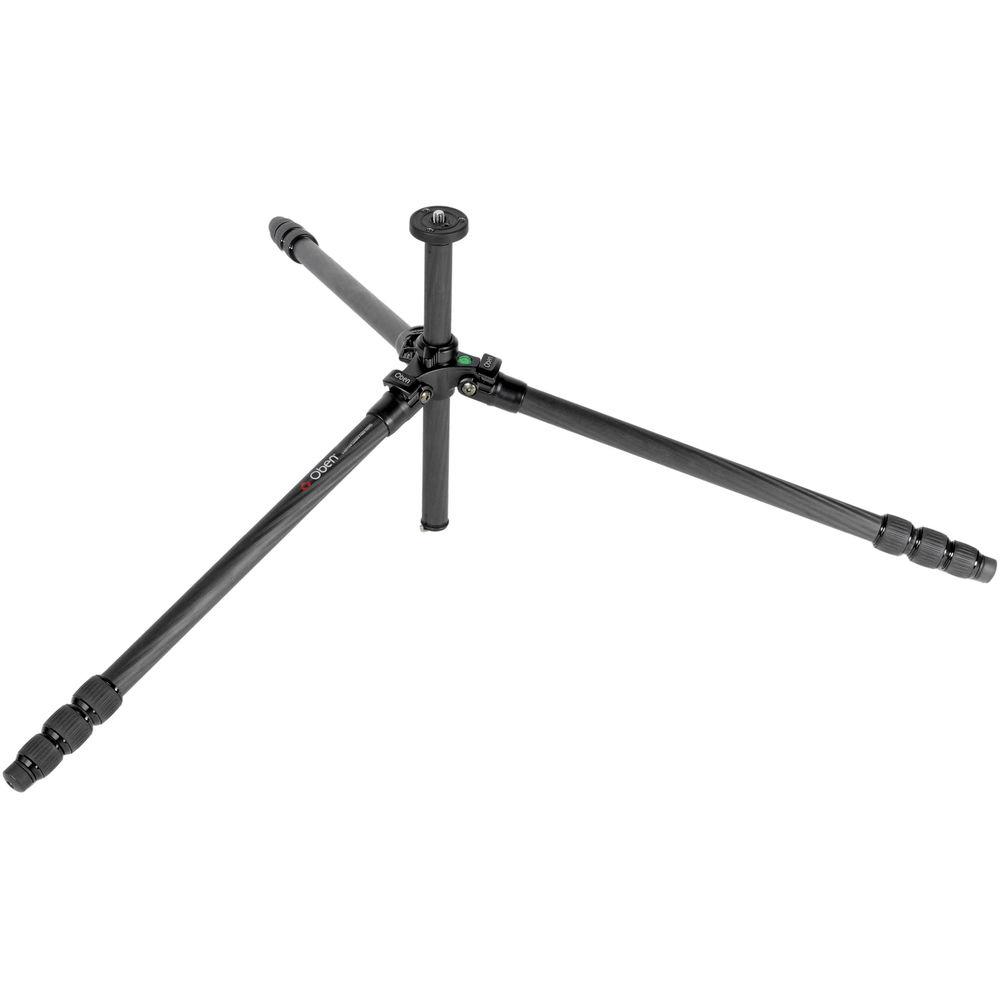

- Split center column for low angle set-up

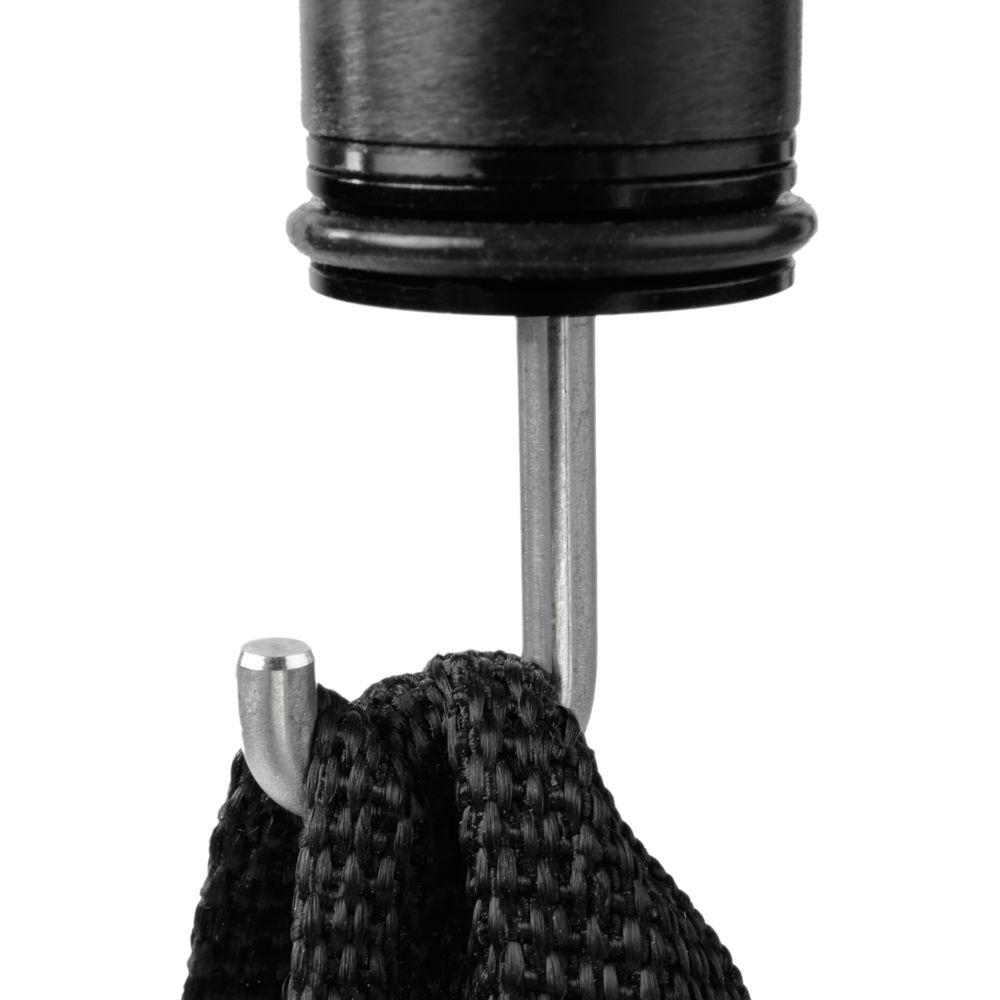

- Spring-loaded metal counterweight hook at the bottom of the center column
- Integrated aluminum loop for attaching an optional shoulder strap
- Retractable metal spiked feet provided stability on ice and soft terrain.
- Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
UPC: 847628556737 In the Box Oben CT-2461 Carbon Fiber Tripod Padded Tripod Bag Shoulder Strap for Bag Tool Leg Clip with 2 Hex Keys Hex Key (for Split Center Column) Limited 5-Year Warranty CT Series User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CT-2461 Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben CT-2461 Specs | Load Capacity | 17.6 lb / 8 kg | Maximum Working Height | 62.5" / 158.8 cm | Max Height without Center Column | 52" / 132.1 cm | Minimum Working Height | 5.4" / 13.7 cm | Folded Length | 19.5" / 49.5 cm | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | Weight | 2.4 lb / 1.1 kg | Materials | Carbon Fiber | Bubble Level | Yes | | Leg Lock Type | Twist Lock | Independent Leg Spread | Yes | Leg Sections | 4 | Leg Diameter | 1" / 25.4 mm | Feet Features | Spiked, Retractable | | Center Column Features | Split | Center Column Sections | 2 | Center Column Extension Type | Rapid | Lateral / 90-Degree Center Column | No | | Package Weight | 4.45 lb | Box Dimensions (LxWxH) | 26.2 x 5.0 x 5.0" |
