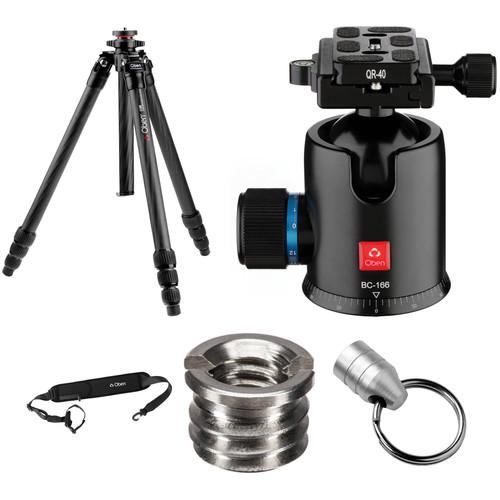

Product description Time-Lapse Tips and Tools Read More This Kit includes the Oben CT-2491 Carbon Fiber Tripod and BC-166 Ball Head. The tripod is an extremely sturdy support for any DSLR, point-and-shoot, or mirrorless cameras. With a load capacity of 38 lb and a maximum height of 77.2" including the head, the tripod offers a number of advanced features that ensure its stability and reliable performance.
The tripod features ergonomically designed rubber twist locks on each leg. Because legs are non-rotating, all three of a leg's locks can be disengaged at once with a single twist of the wrist. This enables extremely fast setup of the CT-2491. A thoughtful leg design makes it a simpler task to service and maintain the leg sections.
The CT-2491's rapid center column extends with a twist of a knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely.
Push/pull tabs allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For additional stability on softer ground, the CT-2491 also features metal spikes that retract and emerge by twisting the foot's rubber portion.
For extreme low-angle shooting, the center column can be split into two sections with the provided hex key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For another method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column.
The BC-166 is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.
Its multiple knobs help make taking panoramic photos simple by allowing you to pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-166 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. Multiple bubble levels help ensure that your camera will be level with the horizon. - Oben CT-2491 Carbon Fiber Tripod The CT-2491 Carbon Fiber Tripod from Oben is an extremely sturdy support for any DSLR, mirrorless or point-and-shoot camera or camcorder. With a load capacity of 39.6 lb and a maximum height of 72.5", the tripod offers a number of advanced features that ensure its stability and reliable performance. The tripod features ergonomically designed rubber twist locks on each leg. Because legs are non-rotating, all three of a leg's locks can be disengaged at once with a single twist of the wrist. This enables extremely fast setup of the CT-2491. A thoughtful leg design makes it a simpler task to service and maintain the leg sections. With its 6x carbon fiber legs and center column, the CT-2491 is relatively lightweight (3.50 lb) and solid, ready to survive the rigors of professional work. The tripod chassis is cast aluminum alloy for further strength. The CT-2491's rapid center column extends with a twist of the butterfly knob. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the collar enable you to fasten a camera head more securely. Pull-in/push-out positive leg locks allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the CT-2491 features metal spikes that retract and emerge by twisting the foot's rubber portion. For extreme low-angle shooting, the center column can be split into two sections with the provided hex key. The shorter column leaves no protruding parts under the tripod collar, allowing you to extend the legs out to their maximum angle. For a faster method, the center column is also easily reversible. These features are especially ideal for macro and close-up photography. The retractable metal counterweight hook serves as a stopper at the bottom of the center column.
- Ergonomically designed rubber twist locks on each leg are non-rotating so all three of a leg's locks can be disengaged at once with a single twist of the wrist enabling fast setup
- Legs with four sections tend to collapse shorter for easier portability. The CT-2491 folds to 23.3".
- Reversible 1/4"-20 & 3/8"-16 screw fits almost any head
- Bubble level on tripod chassis
- Center column is grooved to prevent its rotation
- Split center column for low angle set-up
- Spring-loaded metal counterweight hook at the bottom of the center column
- Integrated aluminum loop for attaching an optional shoulder strap
- Retractable metal spiked feet provided stability on ice and soft terrain
- Included padded carry bag features dual heavy-duty zippers, an interior pocket, and extra room to accommodate a head
UPC: 847628556706 - Oben BC-166 Ball Head The BC-166 Ball Head from Oben is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.
The BC-166's multiple knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple, for instance, because you can pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-166 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.
The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, both ensure that your camera will be level with the horizon. UPC: 847628563544 - Oben TS-110 Deluxe Tripod Strap with Swivel Clip The TS-110 Deluxe Tripod Strap with Swivel Clip from Oben provides you with an easy way to always have your tripod with you. The strap is designed to fit tripods that have an attachment hook. It's adjustable from 34 to 40" and features a 3.25" wide neoprene shoulder pad. One end of the strap contains a swivel clip that attaches to the tripod's attachment hook. The other end contains a quick-release connector that wraps around your tripod's leg. The strap features an accessory pocket for small items. UPC: 847628540194
- Oben 3/8"-16 to 1/4"-20 Reducer Bushing This 3/8"-16 to 1/4"-20 Reducer Bushing from Oben allows you to convert any standard 3/8"-16 thread for the insertion of a standard 1/4"-20 screw. This way you can, for instance, mount a professional-style head with a 3/8"-16 threaded hole on a tripod that has a 1/4"-20 screw.The bushing is a replacement part for Oben heads, and it will work with all Oben monopods and tripods also. UPC: 847628536128
- Oben Tripod Hanger (1/4"-20) The Oben Tripod Hanger attaches to a tripod's 1/4"-20 camera screw, allowing you to hang it from a hook for convenient storage or display. The hanger is an ideal accessory for studios, newsrooms, rental houses or for anyone who wants to organize their gear and free up floor space. UPC: 847628571525
In the Box - CT-2491 Carbon Fiber Tripod sqqqruvybefqbuezcyrzrxavzq
- Padded Tripod Bag
- Shoulder Strap for Bag
- Tool Leg Clip with 2 Hex Keys
- Hex Key (for Split Center Column)
- Limited 5-Year Warranty
Includes Free - TS-110 Deluxe Tripod Strap with Swivel Clip
- 3/8"-16 to 1/4"-20 Reducer Bushing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CT-2491 Carbon Fiber Tripod and BC-166 Ball Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Oben CT-2491 Carbon Fiber Tripod
| | | Load Capacity | 39.6 lb / 18 kg | | Maximum Working Height | 72.5" / 184.2 cm | | Max Height without Center Column | 62.5" / 158.8 cm | | Minimum Working Height | 6" / 15.2 cm | | Folded Length | 23.3" / 59.2 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 3.5 lb / 1.6 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1.3" / 33 mm | | Feet Features | Spiked, Retractable | | | | Center Column Features | Split | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 32.9 x 5.3 x 4.9" | - Oben BC-166 Ball Head
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 66 lb / 30 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 2.04" / 52 mm | | Base Diameter | 2.7" / 6.8 cm | | Dimensions | H: 4.7" / H: 11.9 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 5.3 x 4.5 x 3.4" | - Oben TS-110 Deluxe Tripod Strap with Swivel Clip
| Material | Strap: Nylon
Shoulder Pad: Neoprene | | Attachment Method | Swivel Clip attaches to tripod hook
Quick-release connector wraps around tripod leg | | Dimensions | Adjustable: 34.0 to 40.0" (0.8 to 1.0 m)
Shoulder Pad: 17.5 x 3.25" (44.5 x 8.3 cm) | | | | Box Dimensions (LxWxH) | 17.4 x 3.8 x 1.6" | - Oben 3/8"-16 to 1/4"-20 Reducer Bushing
| | | Box Dimensions (LxWxH) | 3.3 x 1.95 x 0.3" | - Oben Tripod Hanger (1/4"-20)
| | | Box Dimensions (LxWxH) | 3.5 x 3.0 x 0.5" |
