User Manual for Oben CT-3531 Carbon Fiber Travel Tripod with BE-108T Ball Head Click to enlarge the picture
Contents of the user manual for the Oben CT-3531 Carbon Fiber Travel Tripod
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
 |
User manual for the Oben CT-3531 Carbon Fiber Travel Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

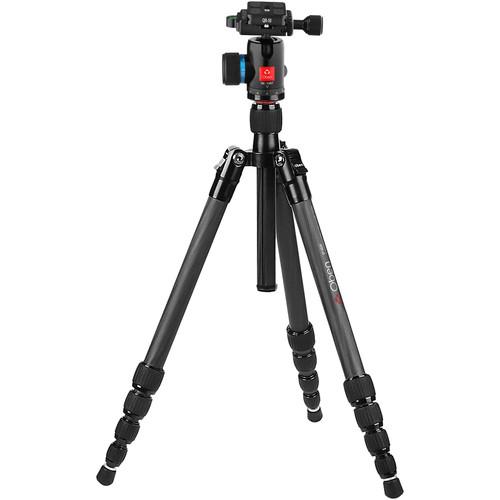

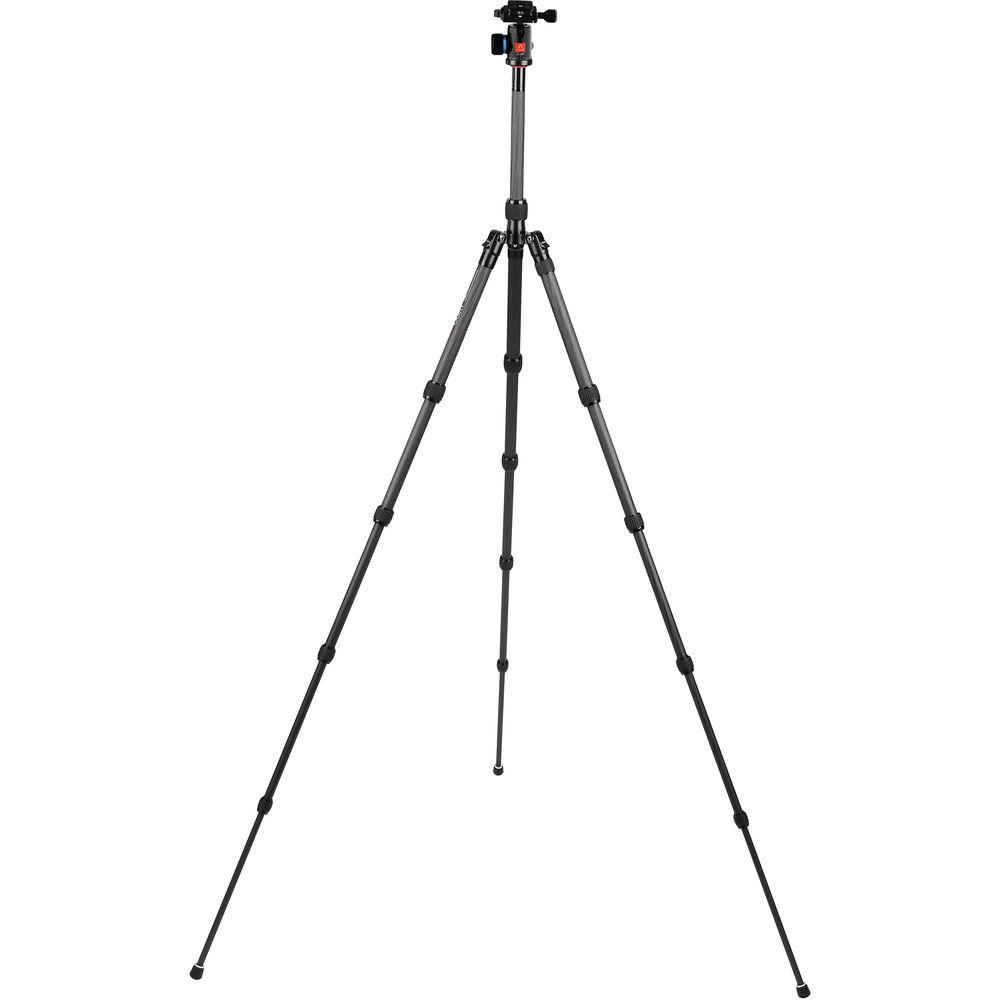

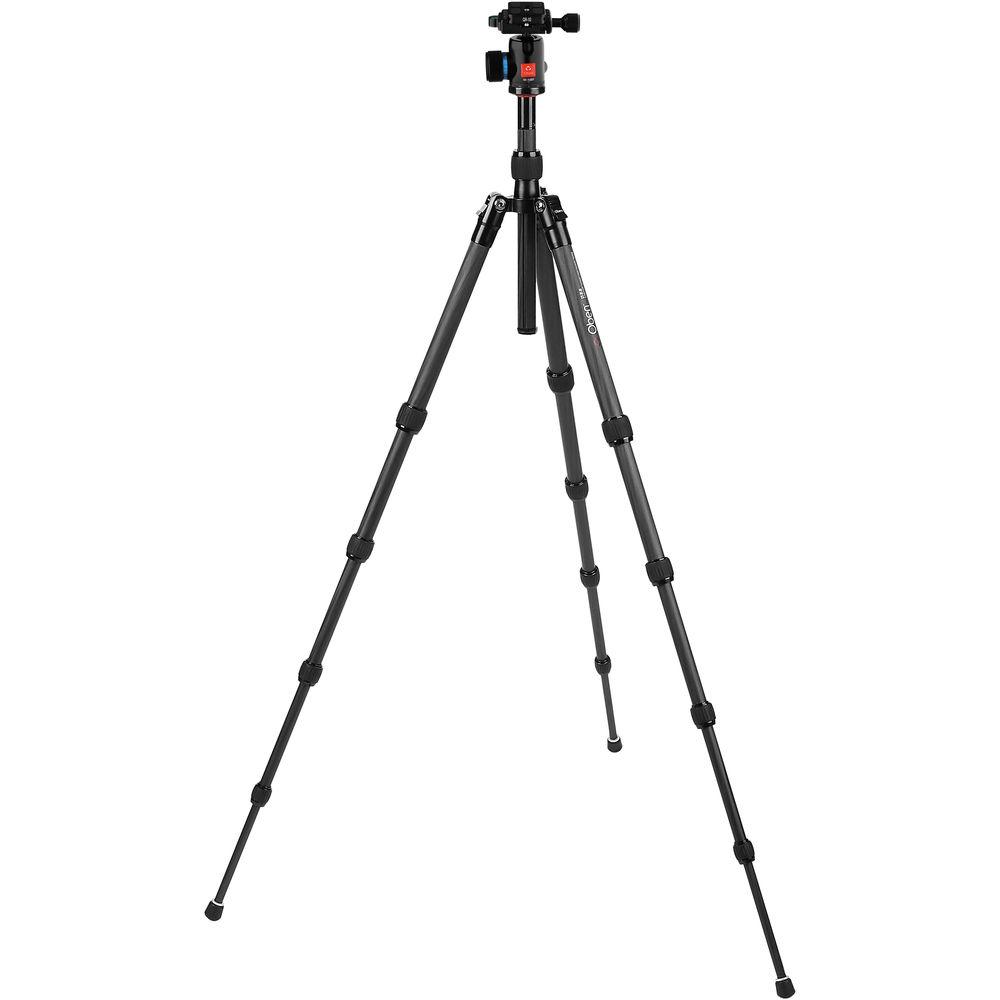

Product description Time-Lapse Tips and Tools Read More The CT-3531 Carbon Fiber Travel Tripod with BE-108T Ball Head from Oben is a sturdy yet lightweight tripod with 5-section legs that fold upward 180° to create an extremely compact package for transport – with the included head attached, folded length is only 15.5". For further versatility, one of the legs unscrews from the chassis and attaches to the head & center column to form a working-height monopod. With a system load capacity of 8.8 lb, the tripod and head ensure a stable base for many DSLR body/lens combinations.With the five leg sections and the center column extended, the maximum height of the tripod with the head is 60.8". The legs are non-rotating, which enables single-handed operation of the rubber twist locks on each leg: One twist of the wrist, and the four leg stages descend. Each leg is independently adjustable, and they can be locked securely at three different angles. The tripod's feet feature rubber tips that can be removed to reveal metal spikes, allowing you to shoot both indoors and outdoors on any terrain.To shoot in monopod mode, simply unscrew the leg that forms the base of the monopod, remove the center column from the chassis, and screw these two elements together. With the head & center column mounted on the extended leg, you have a full size monopod that's even taller than the tripod at full height.Like the legs, the center column features a twist lock that frees up its extension and retraction. For protection when it's retracted quickly, there's a rubber damper that protects the center-post collar. At the bottom of the center column is a spring-loaded ballast hook that allows you to attach a counterweight for extra stability. The detachable hook doubles as a stopper for the center column, which can be removed and reversed for low-angle shooting.The BE-108T head features one locking knob for the ball and a separate knob to control the 360° panning. This enables fast setup changes and frees you to keep a finger on the shot trigger while you're making a quick adjustment to the head's orientation. The head has a 90° notch which facilitates shooting in portrait orientation. Two bull's eye bubble levels ensure your camera is level on both the horizontal and vertical axes.The included Arca-type quick-release plate attaches to your camera via its standard 1/4"-20 screw. The quick-release plate has two safety screws to prevent the camera from accidentally being released when adjusting the plate fore and aft.
This tripod also includes a fitted, padded carry case with a removable shoulder strap, two heavy-duty zippers, and an interior zipper pocket. A tool clip with two hex wrenches for adjusting the center column and the leg joints is also included. It snaps onto any of the tripod legs for easy access. - Reverse-Folding Legs

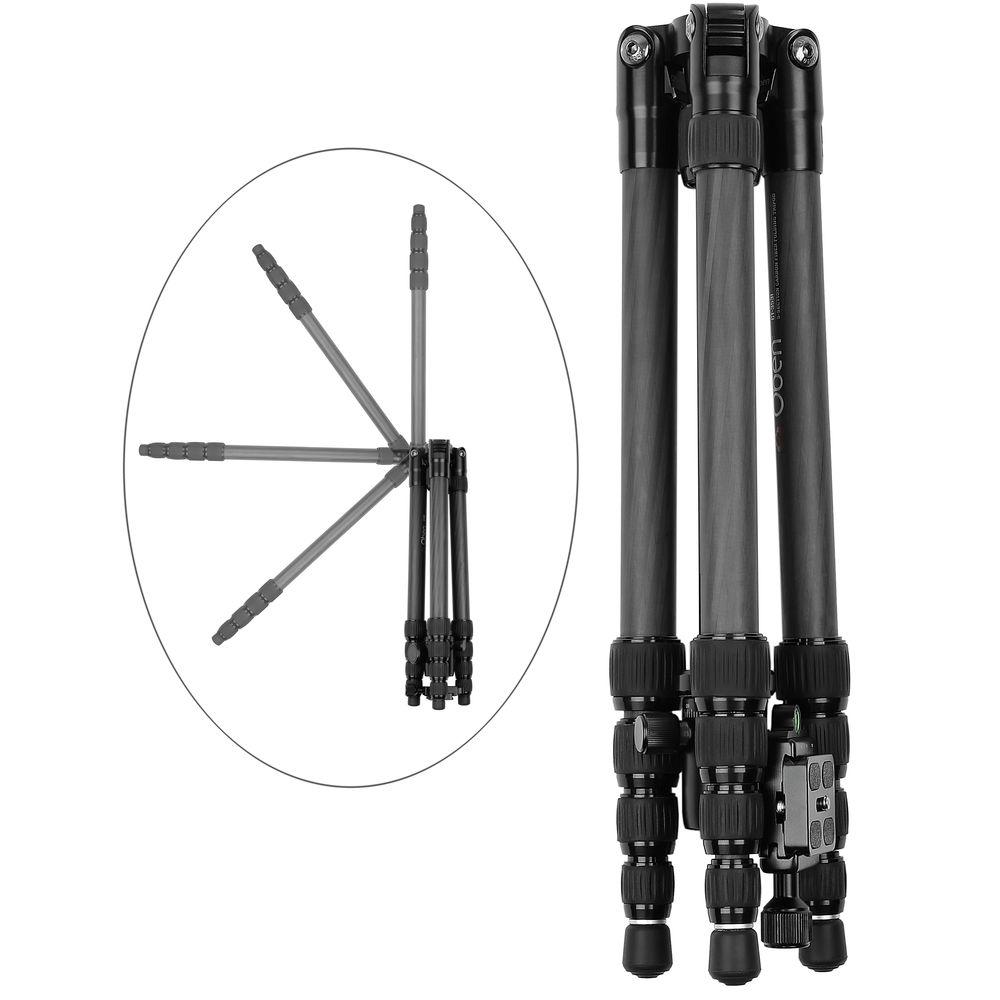

- The legs fold up 180° so that the ball head is concealed between them. This reduces the overall height of the folded tripod.

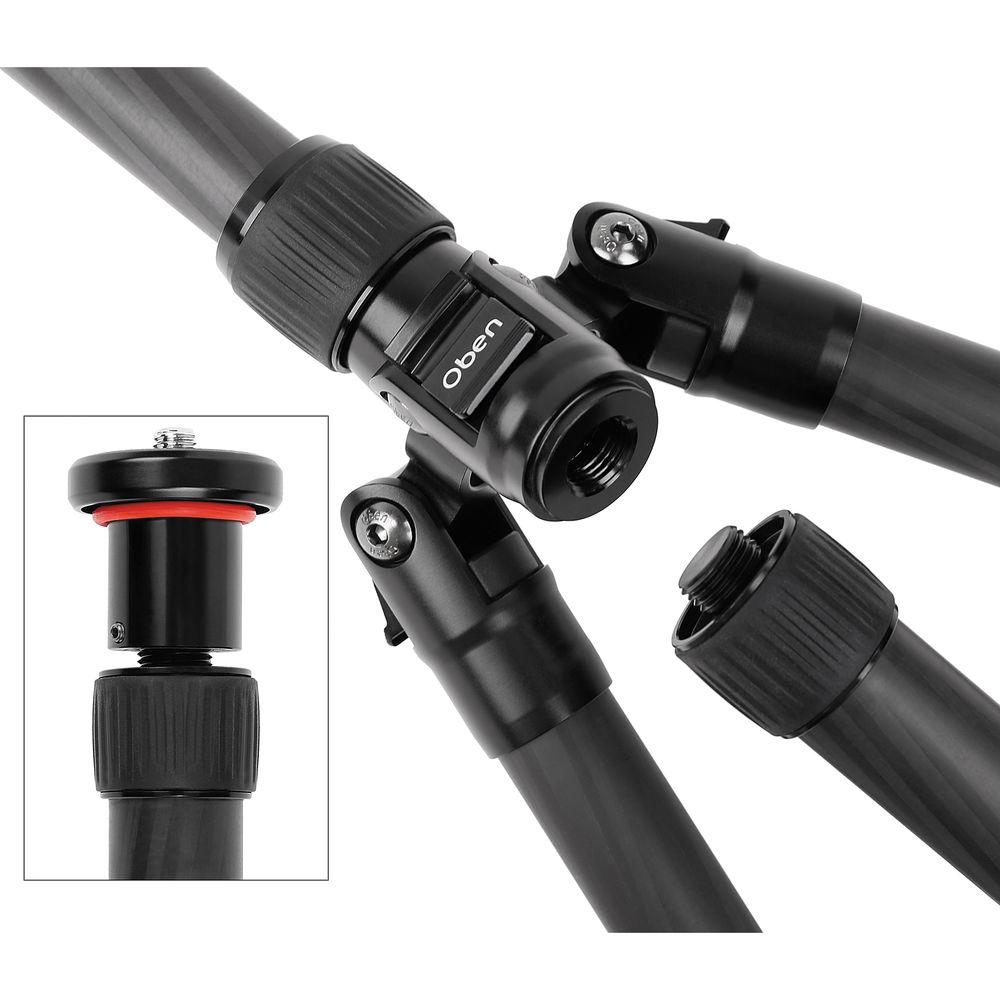

- Short Column

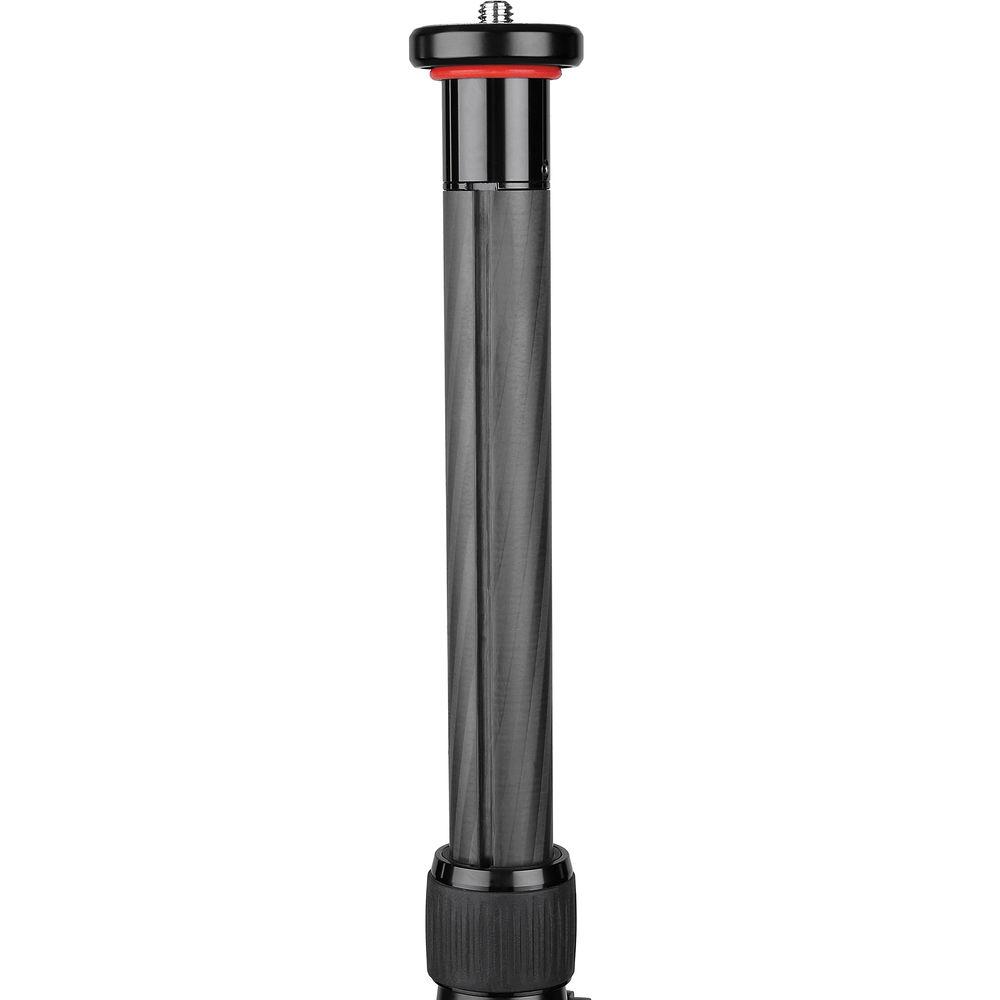

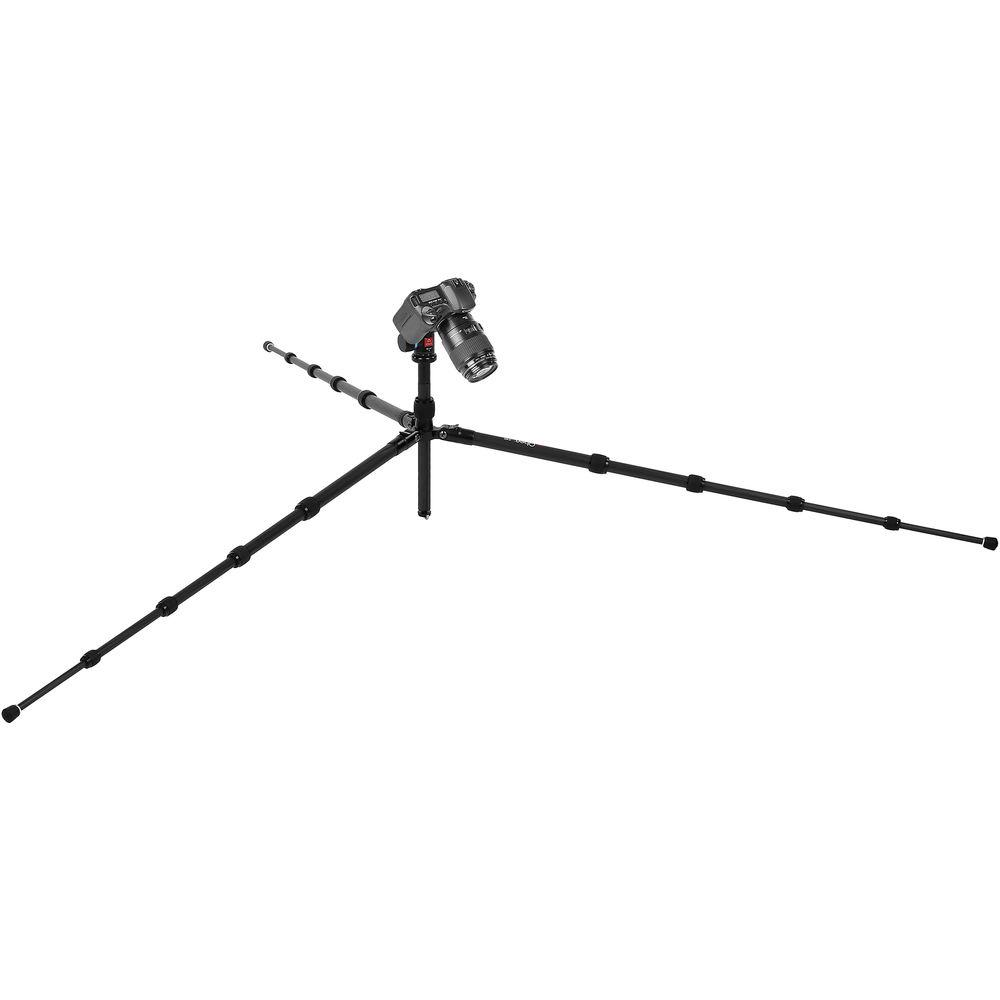

- The long section of the column can be removed, so that the head and short column section can be attached directly to the chassis.

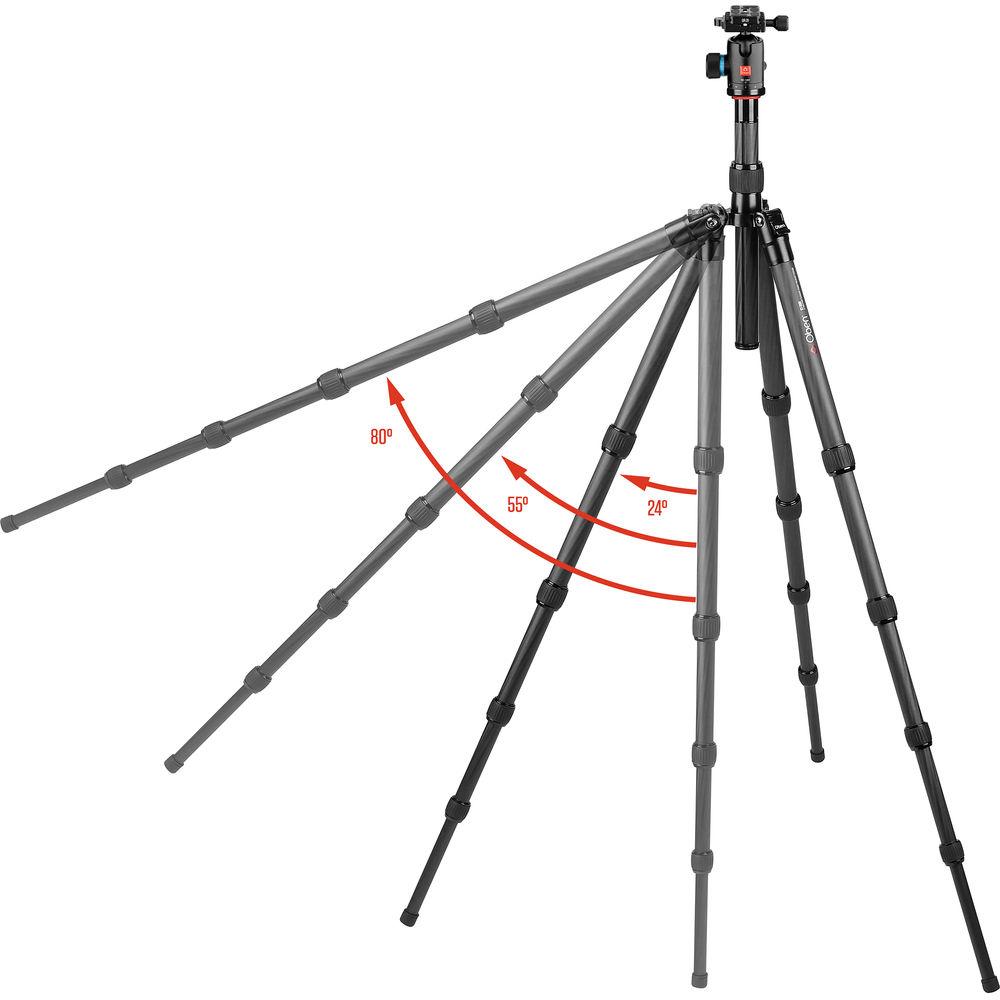

- Adjustable Legs

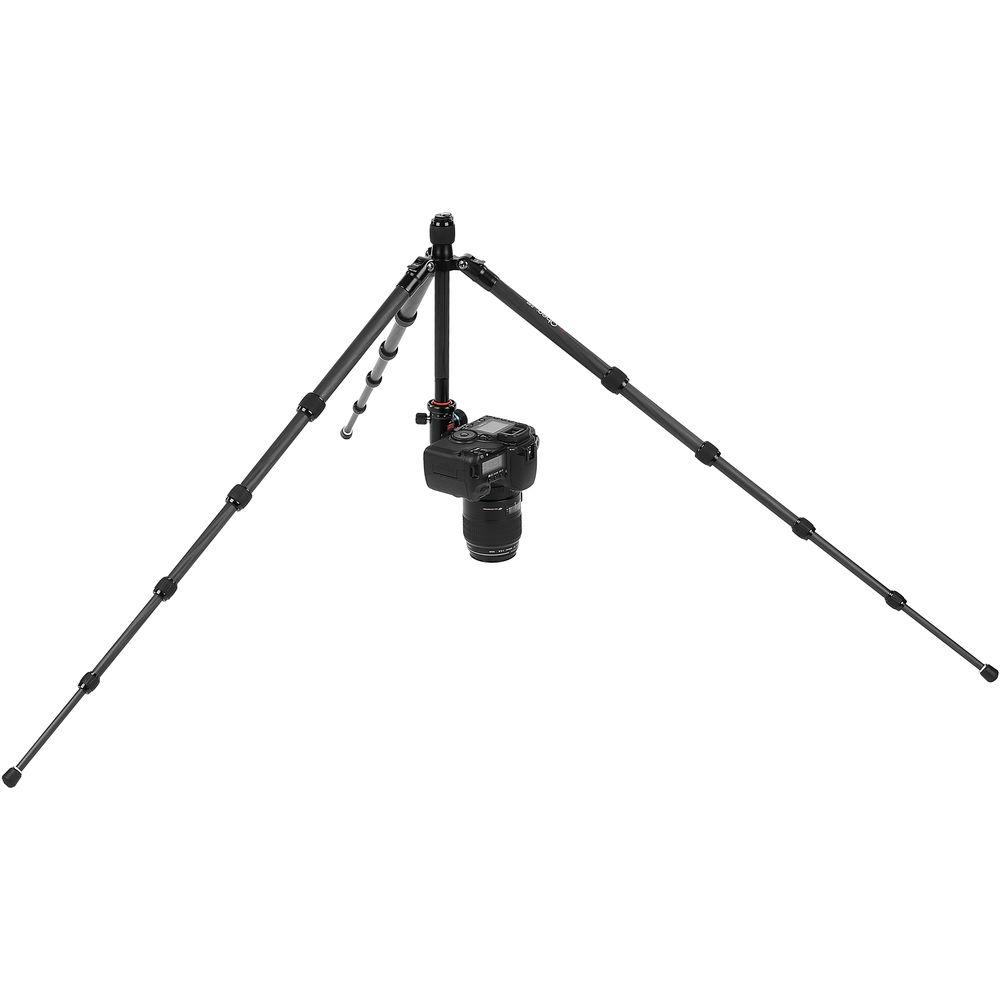

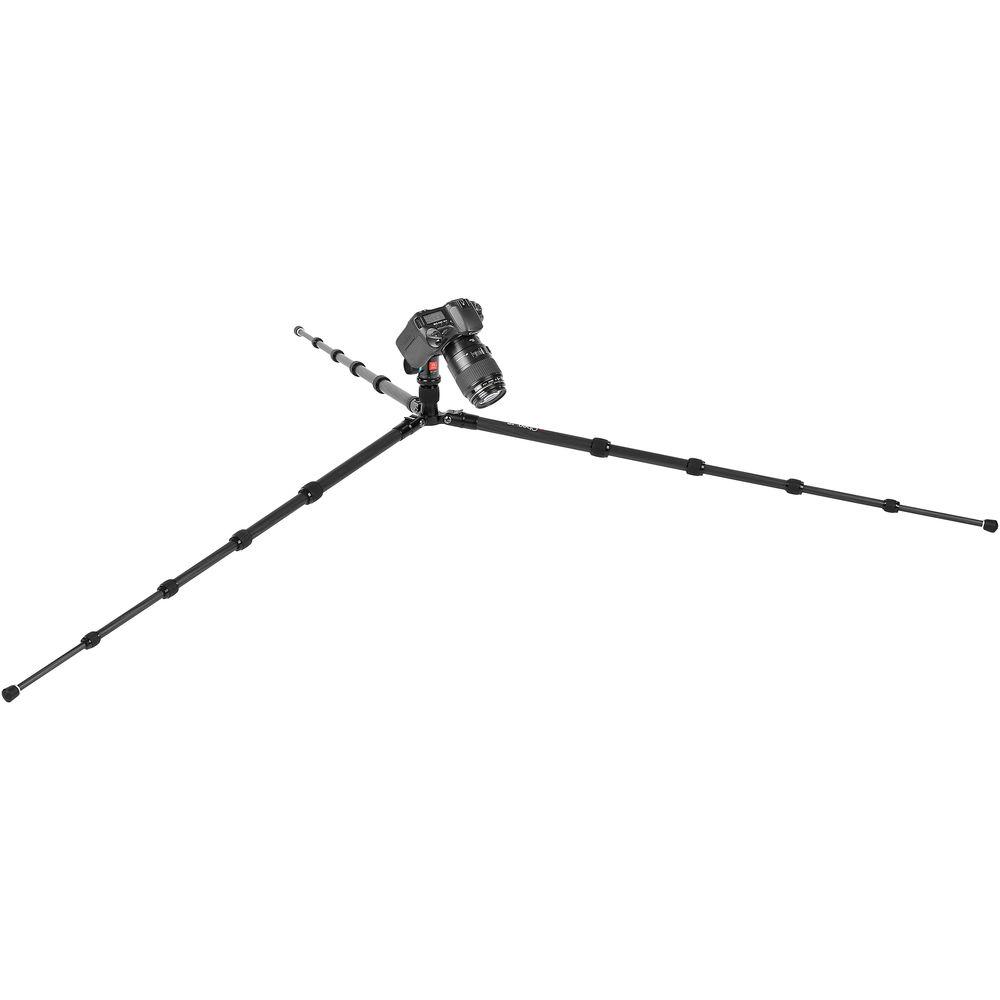

- The legs are independently adjustable to 3 leg angles: 24, 55, and 80°.
UPC: 847628556508 In the Box Oben CT-3531 Carbon Fiber Travel Tripod with BE-108T Ball Head BE-108T Ball Head QR-10 Quick Release Plate Padded Carrying Case Tool Clip with 2 Hex Keys Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CT-3531 Carbon Fiber Travel Tripod with BE-108T Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Oben CT-3531 Carbon Fiber Travel Tripod with BE-108T Ball Head can be downloaded in PDF format at the link stated below.
Technical parametersOben CT-3531 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Number of Bubble Levels | 2 | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 60.8" / 154.4 cm | | Max Height without Center Column | 53.5" / 135.9 cm | | Minimum Working Height | 9.3" / 23.6 cm | | Folded Length | 15.5" / 39.4 cm | | Materials | Carbon Fiber | | Weight | 2.5 lb / 1.1 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Feet Features | Spiked | | | | Center Column Features | Reversible | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 19.0 x 5.3 x 5.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
