User Manual for Oben CT-3565 Carbon Fiber Tripod and BZ-217T Triple-Action Ball Head Click to enlarge the picture
Contents of the user manual for the Oben CT-3565 Carbon Fiber Tripod and
- Product category: Tripods with Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripods with Heads
 |
User manual for the Oben CT-3565 Carbon Fiber Tripod and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

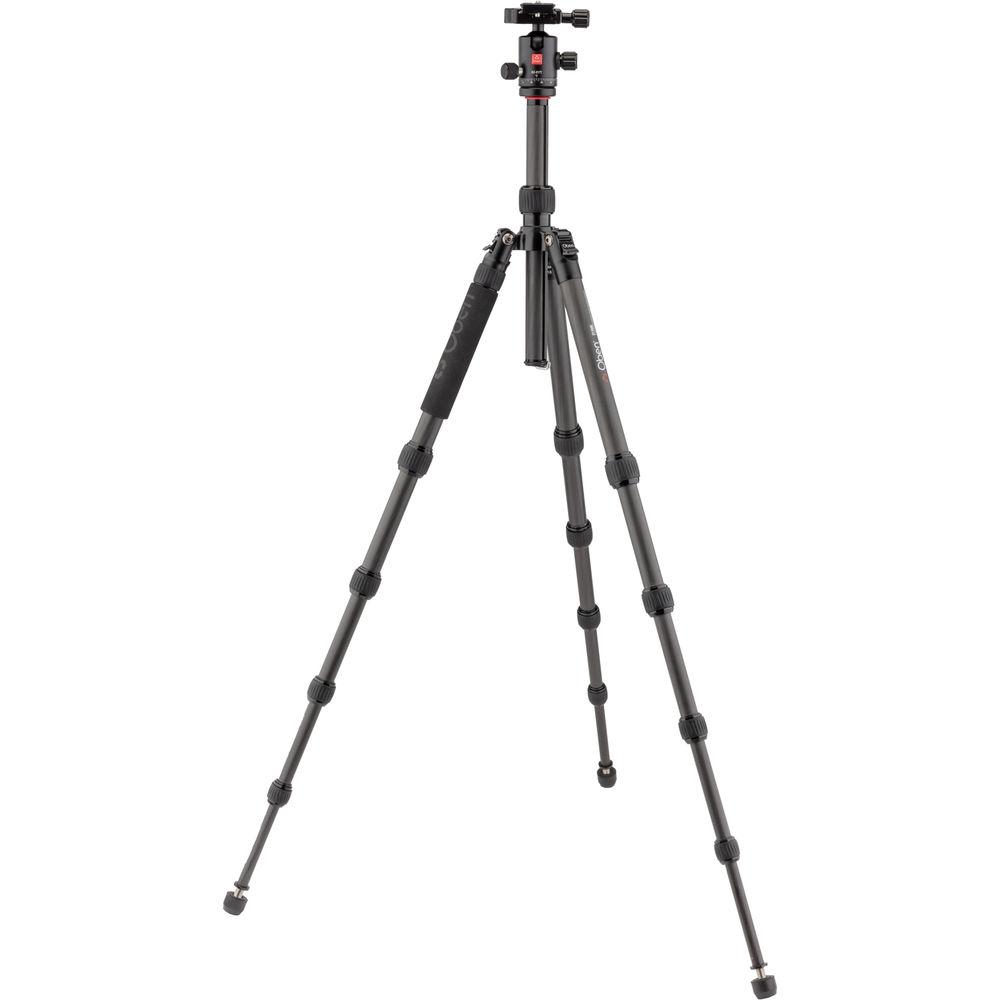

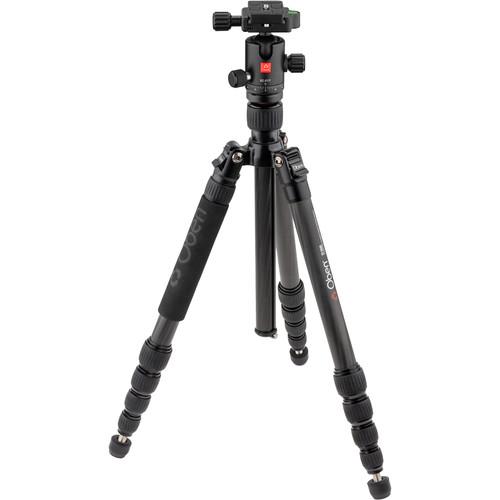

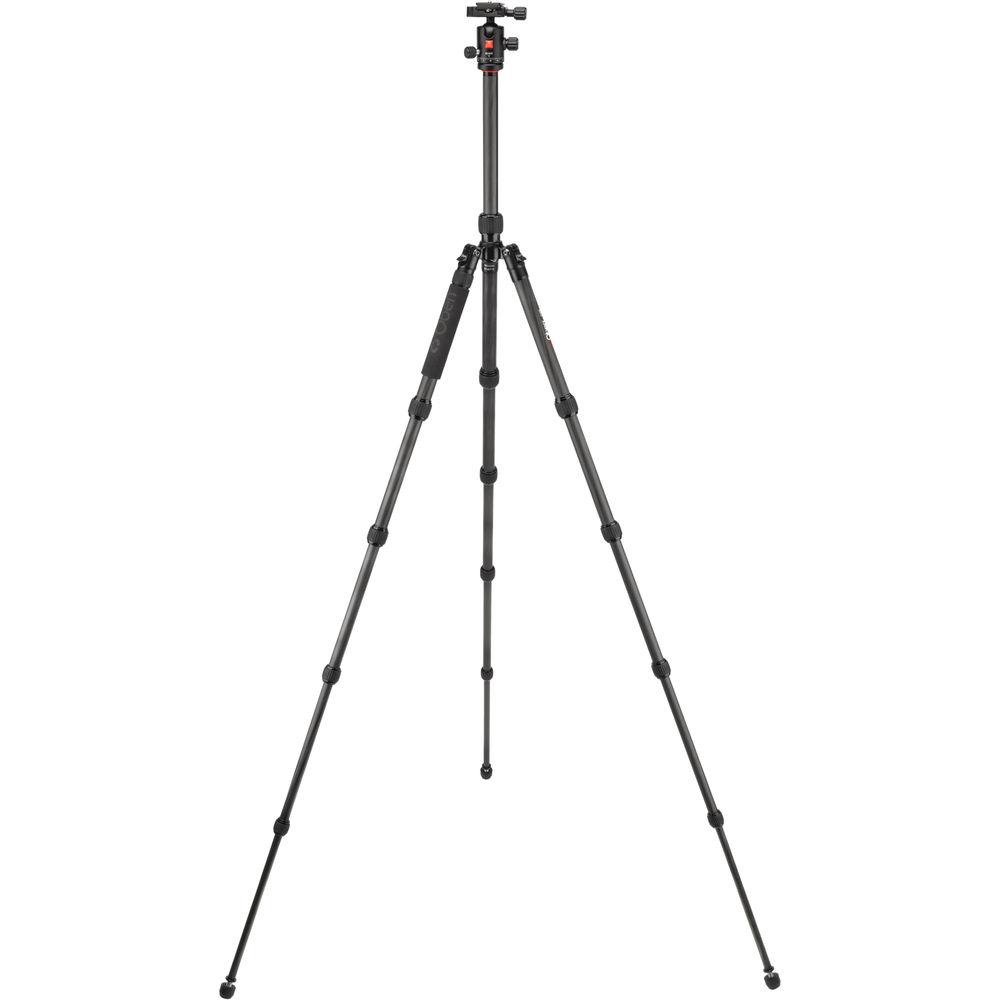

Product description Time-Lapse Tips and Tools Read More The CT-3565 Carbon Fiber Tripod and BZ-217T Triple-Action Ball Head from Oben is a lightweight 5-section support, which has twist locks that open and close with just a quarter turn. Each section extends along with the center column to a maximum height of 61.8". With three variable leg angles, it allows you to splay the legs out and replace the regular center column with the included low-angle center column, so the tripod can go to a minimum height of 9.1" to help with macro photography. To store or transport the tripod, the legs fold in the reverse to create a compact 16.1" tripod. Furthermore, one leg is detachable and can convert into a working monopod with a maximum height of 64.1". Each rubber foot retracts back to expose a metal spike that can be wedged into softer terrain for extra support and stability. The Arca-type BZ-217T ball head, which includes the QR-20 quick release plate, can support cameras that weigh up to 20 lb and can easily position the camera at a 90° angle because of the cut notch on the side of the head. There are three knobs on the ball head; one to control the movement of the ball, the second allows you to rotate and pan a full 360°, and the distinguishable knob in the middle of the other two knobs enables you to dial-in more tension to the ball. Thus, the drag of the ball is intensified and less creep is involved if more weight is added. - 5-Section Tripod Legs
- The lightweight carbon fiber telescoping legs open and close by turning the twist locks a quarter turn.

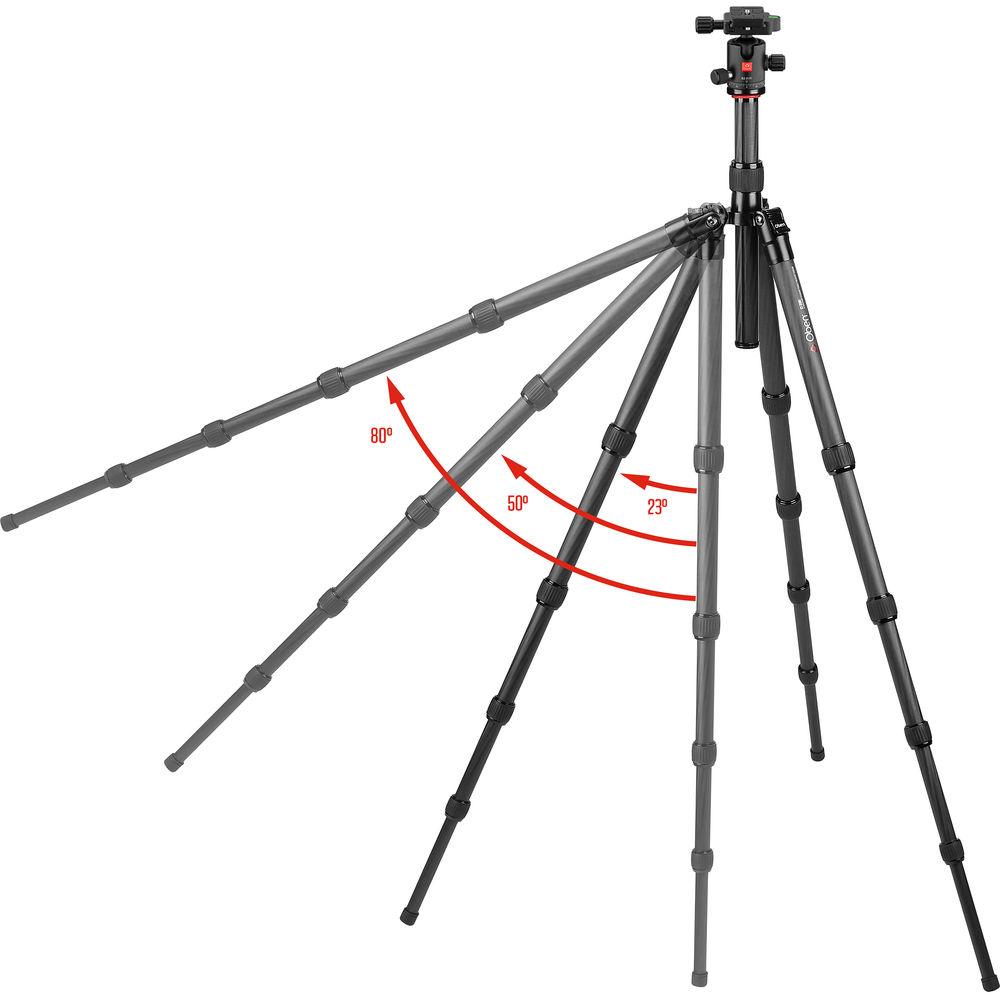

- Variable Leg Angles

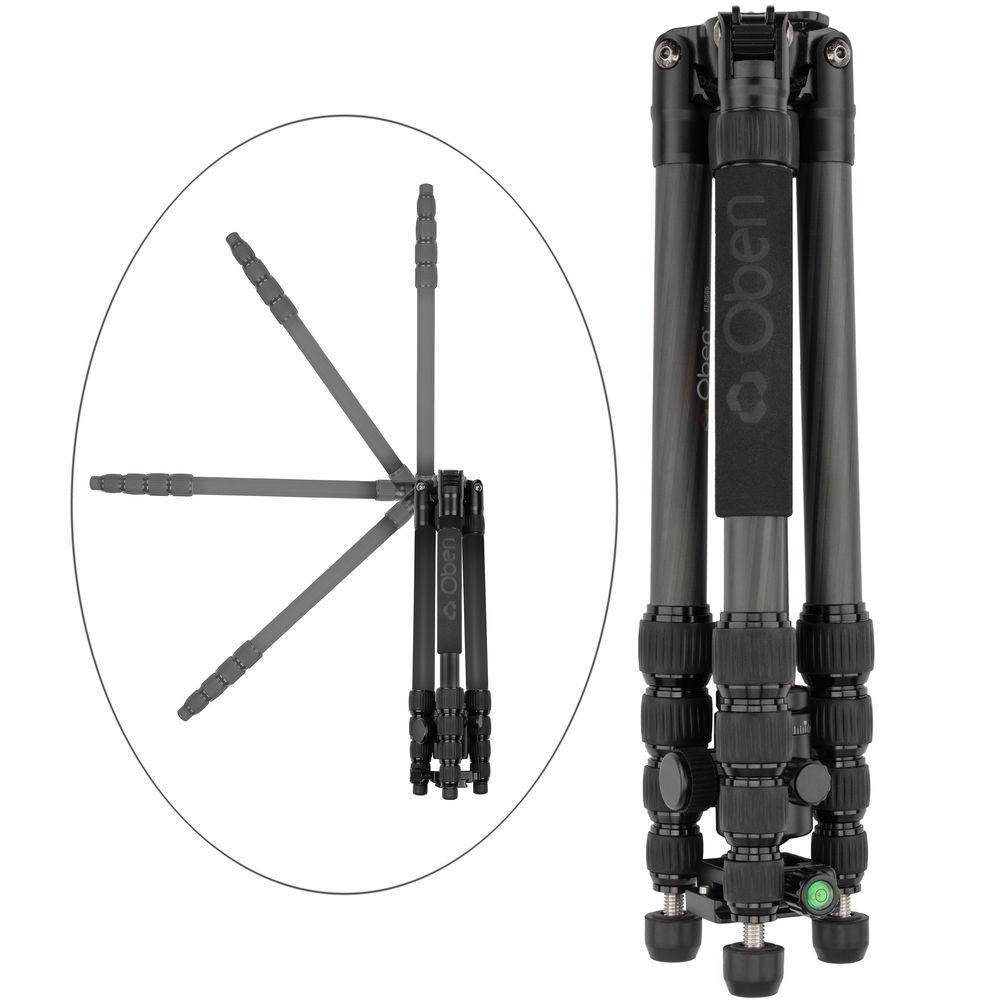

- The legs lock at three different angles for stable support on uneven terrain or at low angles. The leg angle adjustment lock also allows the legs to fold up 180° to a compact size for transport or storage.
- Two Center Columns

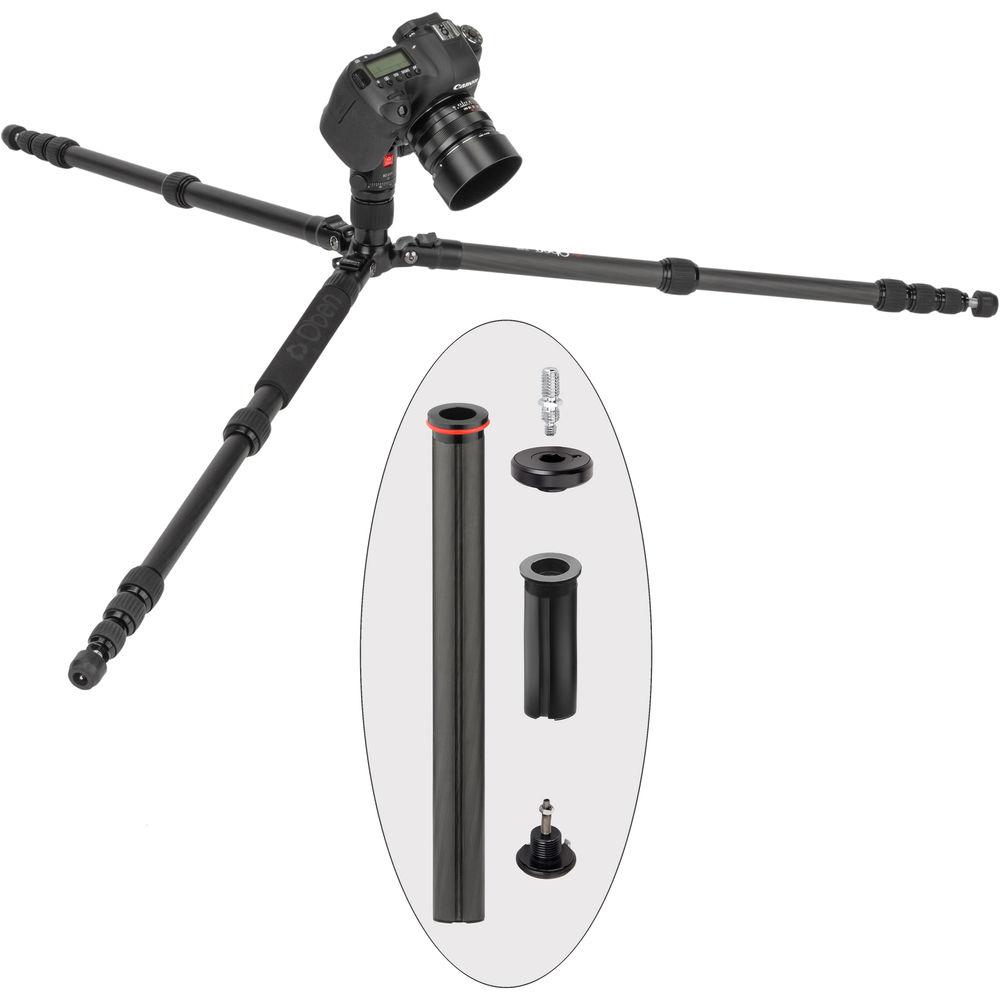

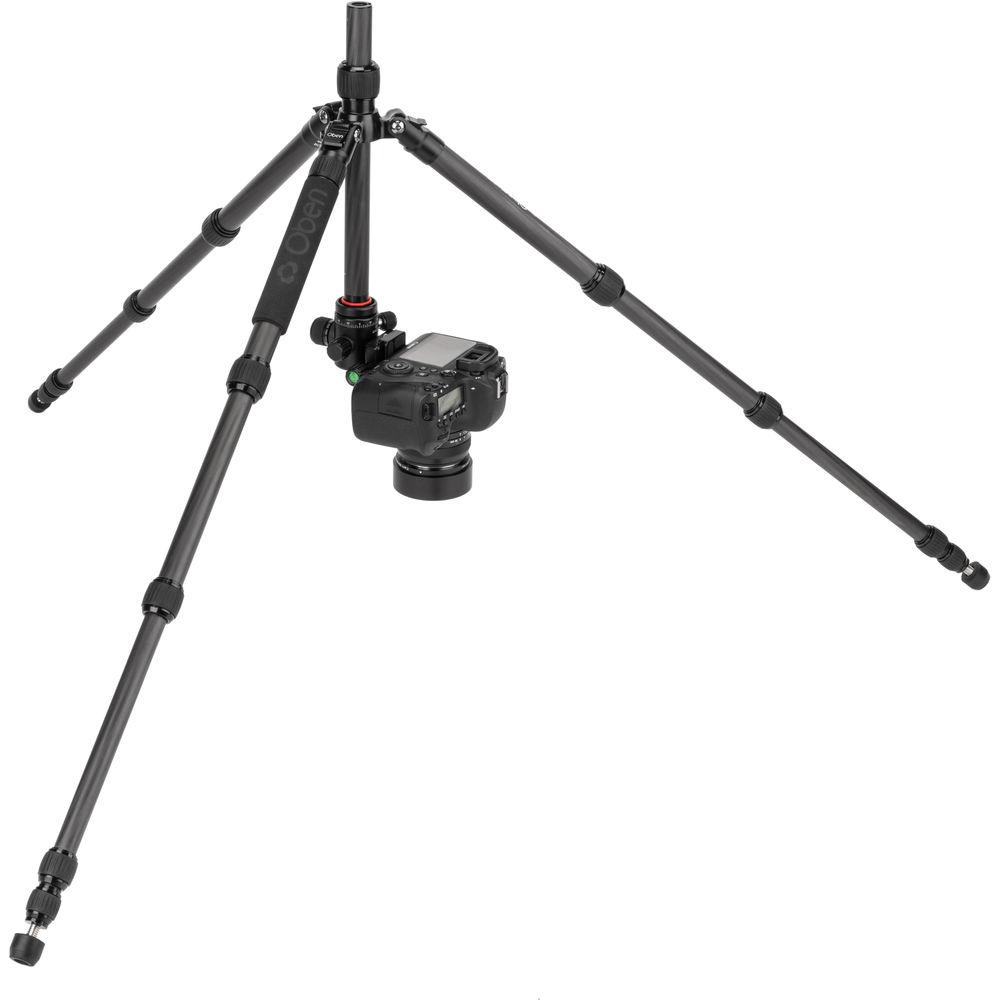

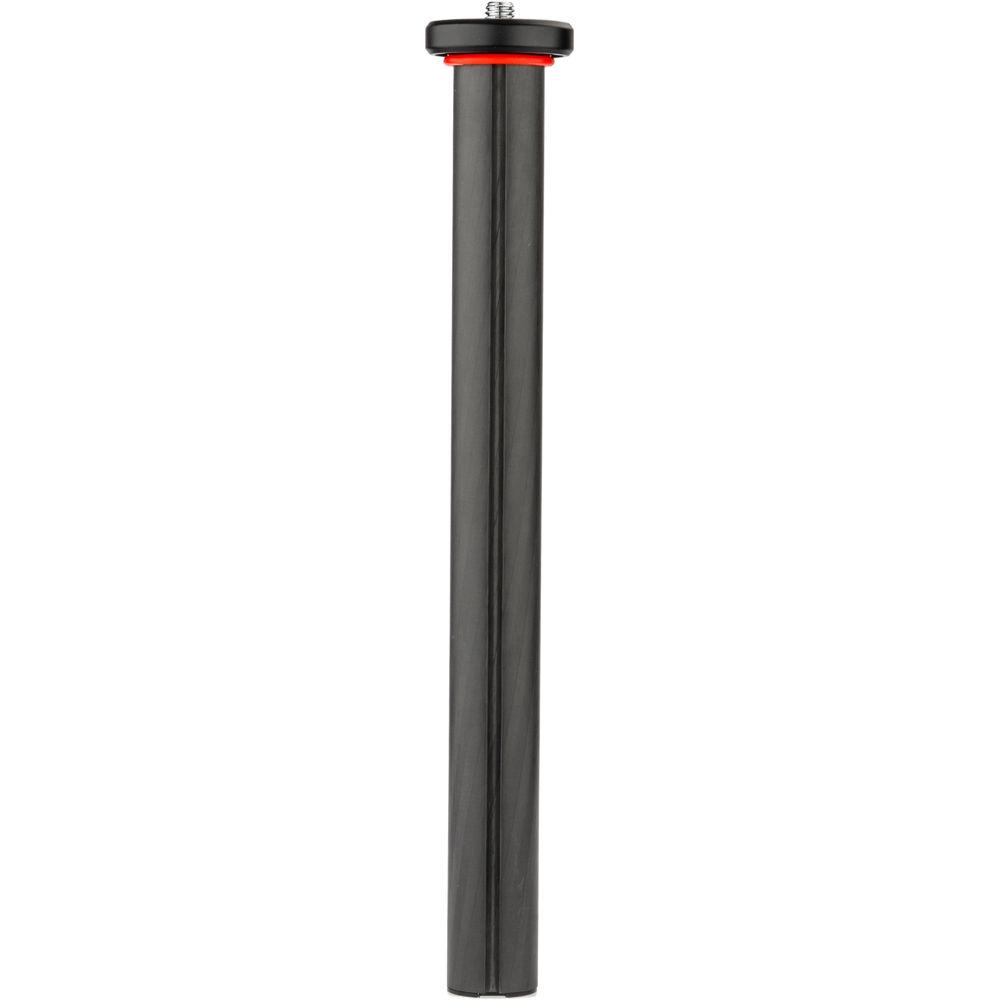

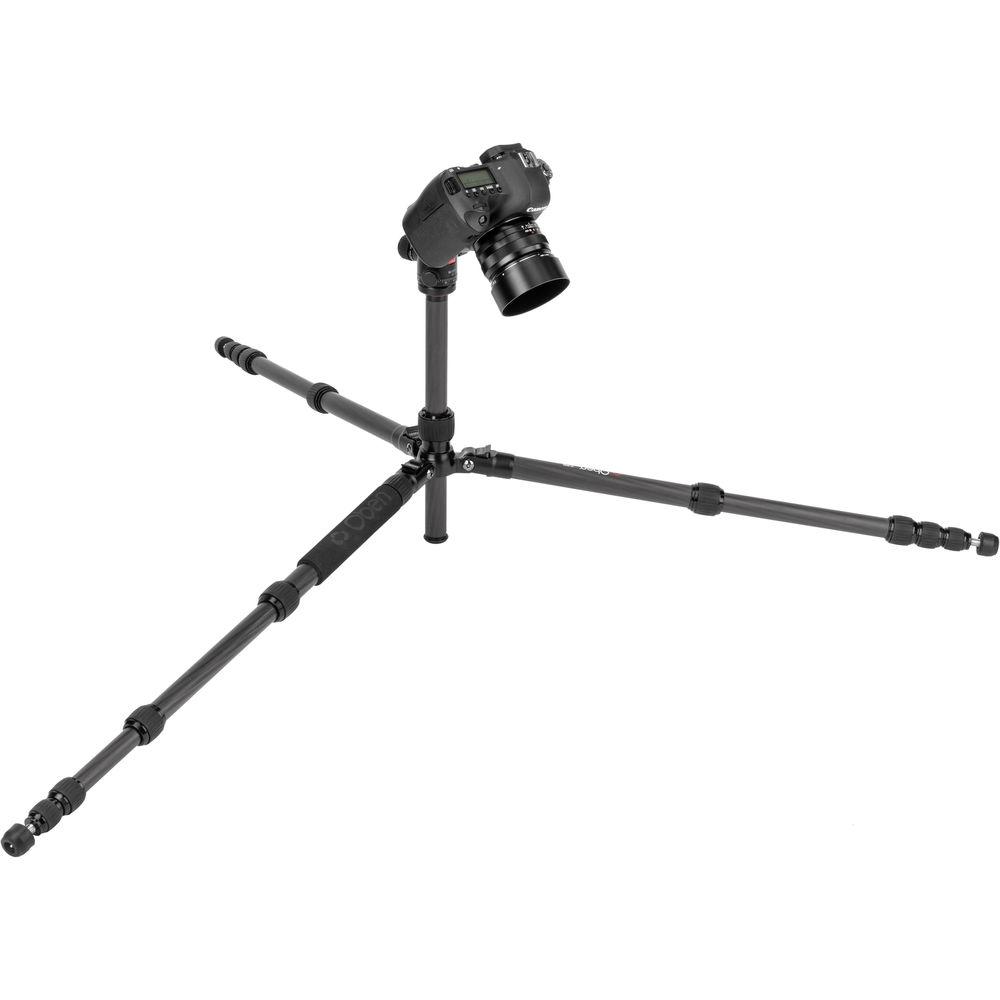

- The rapid center column, which is reversible, extends and locks into place via its twist lock. An included low-angle center column allows you to get those macro shots that are close to the ground.
- Integrated Monopod

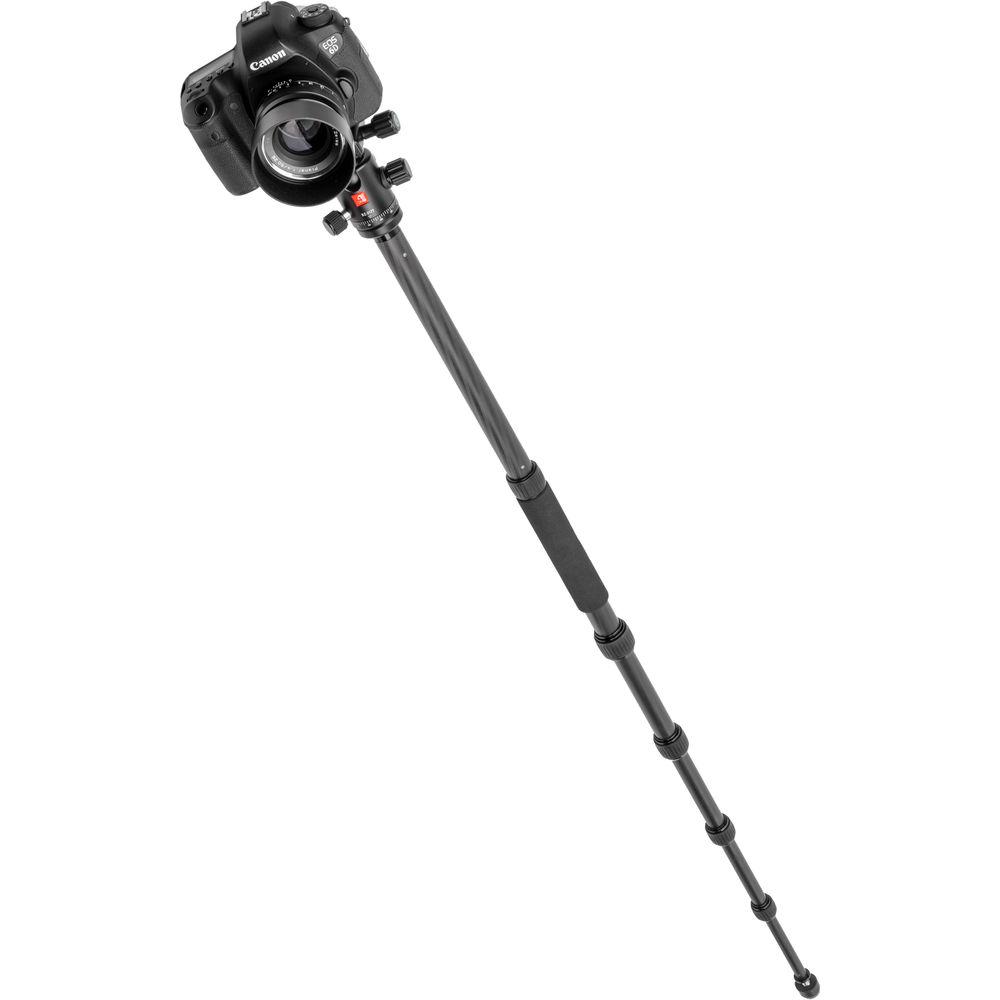

- The tripod's detachable leg converts into a working monopod with a maximum height of 64.1".
- Triple Action Ball Head
- The Arca-type BZ-217T ball head, which includes the QR-20 quick release plate, can support cameras that weigh up to 20 lb. The head features three knobs, one to control the movement of the ball, one for the pan, and the tension control knob to add or decrease drag on the ball.
- Bubble Level
- The integrated bubble level on the ball head enables you to accurately align your horizon within the camera's viewfinder.
- Spiked Feet
- The retractable rubber feet expose spikes that can be driven into softer terrain to add stability and rigidness to the tripod.
UPC: 847628009462 In the Box Oben CT-3565 Carbon Fiber Tripod and BZ-217T Triple-Action Ball Head QR-20 Quick Release Plate Low-Angle Center Column 2 x Hex Wrench Tool Clip Shoulder Strap Carry Bag Limited 5-Year Warranty User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben CT-3565 Carbon Fiber Tripod and BZ-217T Triple-Action Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben CT-3565 Specs | | | Head Type | Ball Head | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Vertical Tilt | 0
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
