User Manual for Oben GH-30 Gimbal Head Click to enlarge the picture
Contents of the user manual for the Oben GH-30 Gimbal Head
- Product category: Tripod Heads Oben
- Brand: Oben
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oben Tripod Heads
 |
User manual for the Oben GH-30 Gimbal Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oben product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oben user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oben product will considerably shorten its lifespan!
|

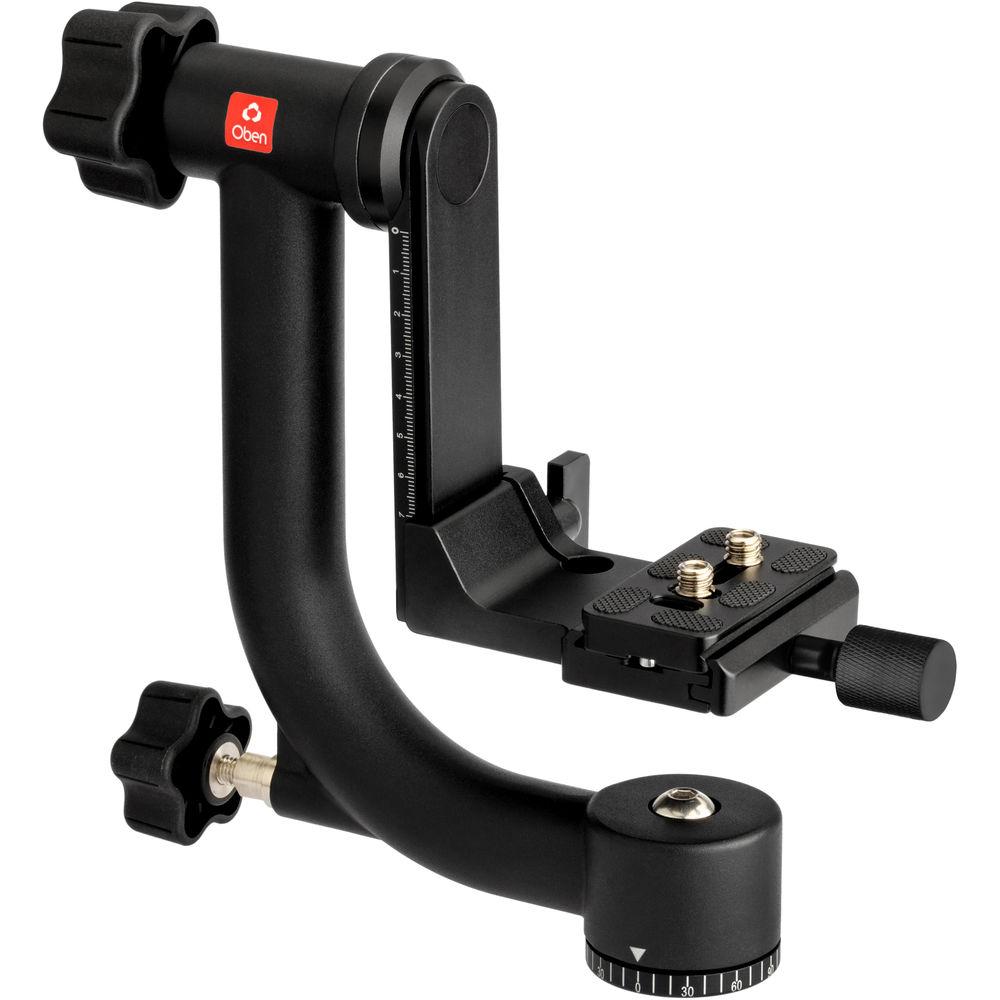

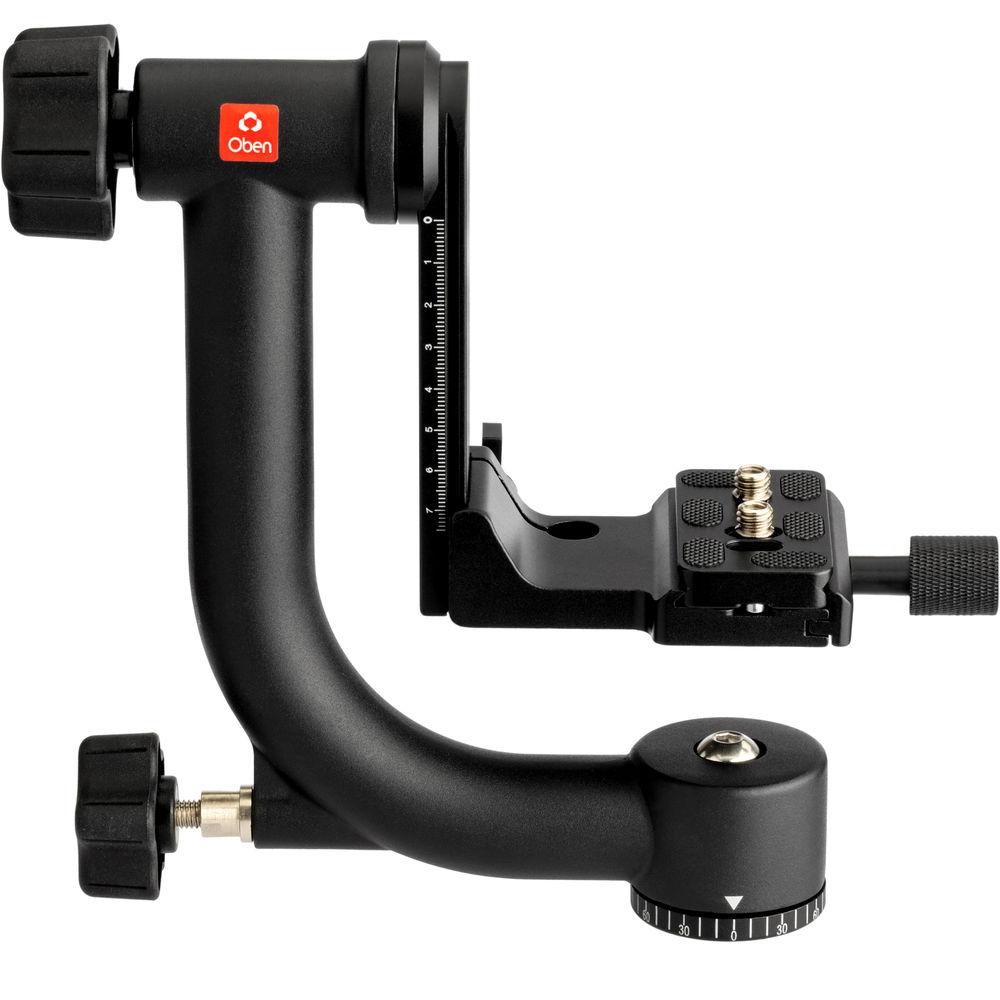

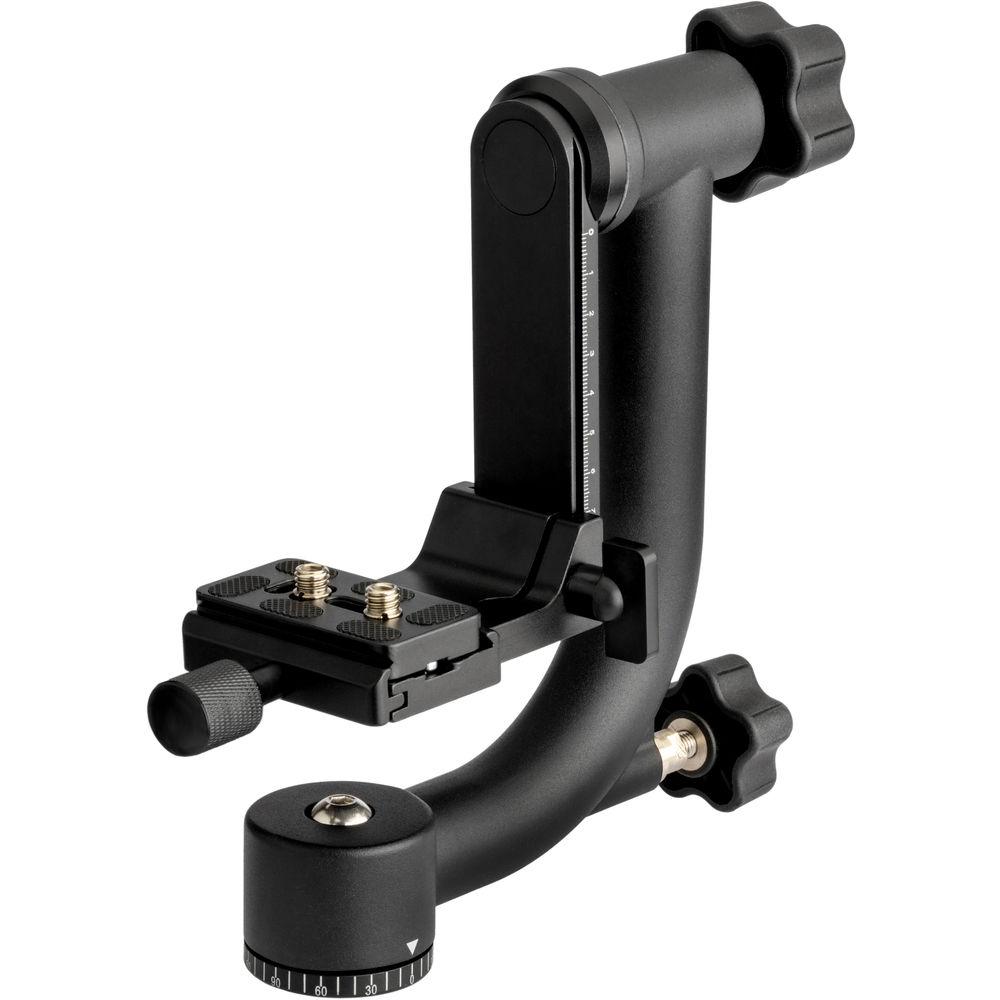

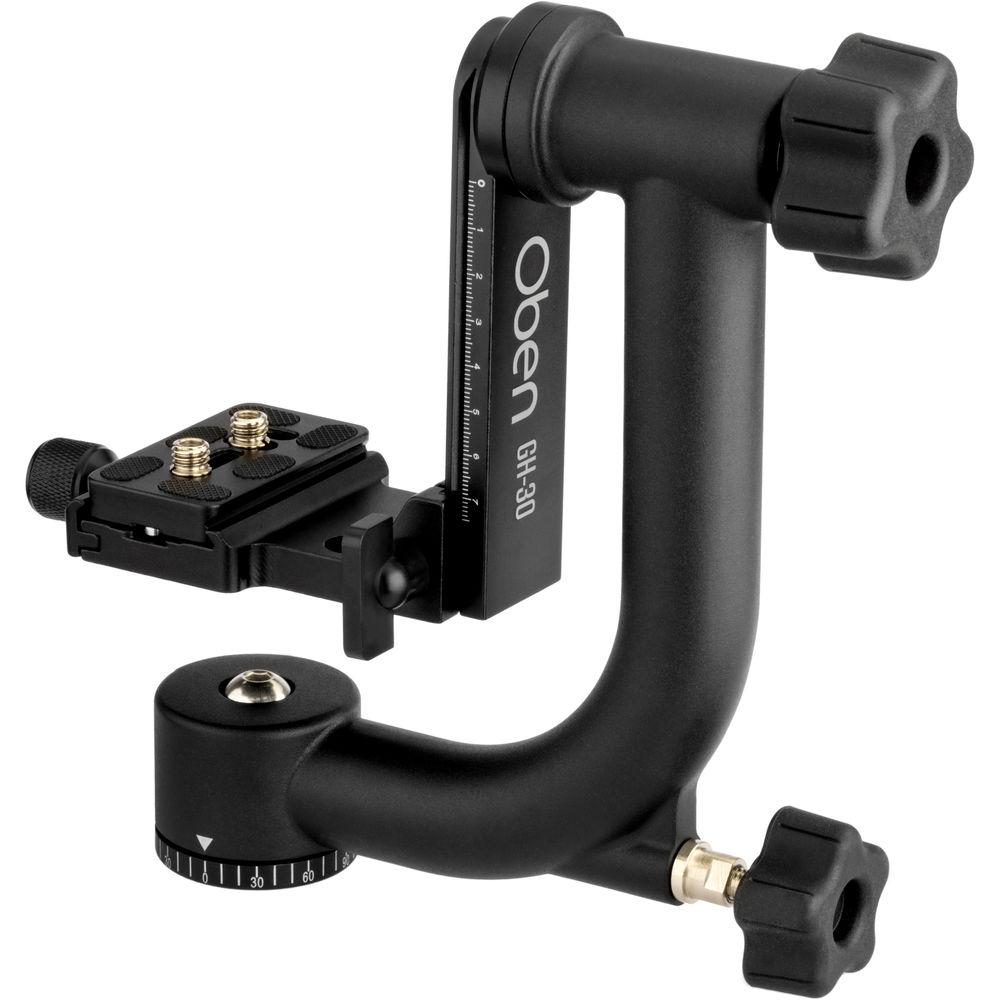

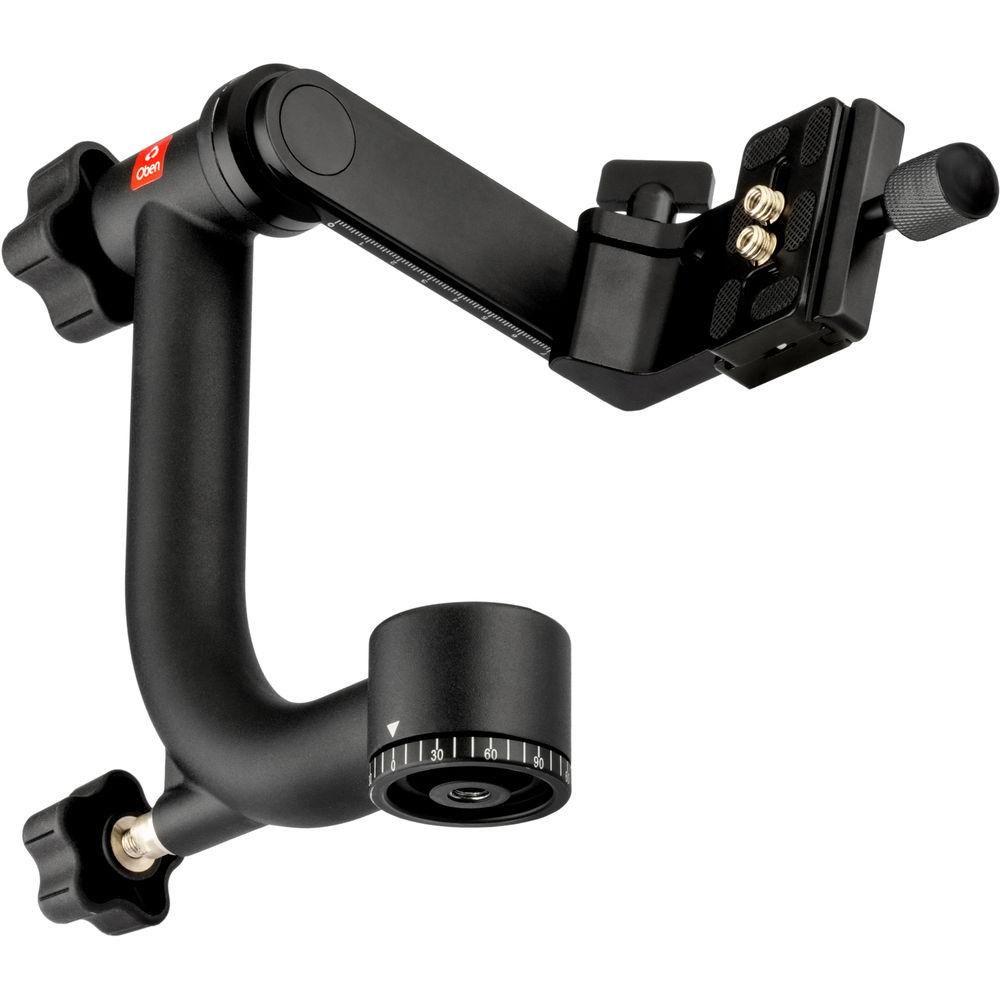

Product description Balance and maneuver large telephoto lenses effortlessly with the Oben GH-30 Gimbal Head. An ideal support for sports and wildlife photographers, this head is capable of handling a 44 lb payload and allows fluid movement on both vertical and horizontal axes. Because of the head's independent pan lock and 360° range of movement, it allows you to capture fast-moving objects. - Lens Compatibility
- 70-200mm f/2.8 or f/4, 100-400mm, 150-600mm, 300mm f/4, 400mm f/5.6, 200-500mm, and other similar-sized lenses
- Weight Capacity
- The gimbal head can support, balance, and maneuver large telephoto lenses that weigh up to 44 lb

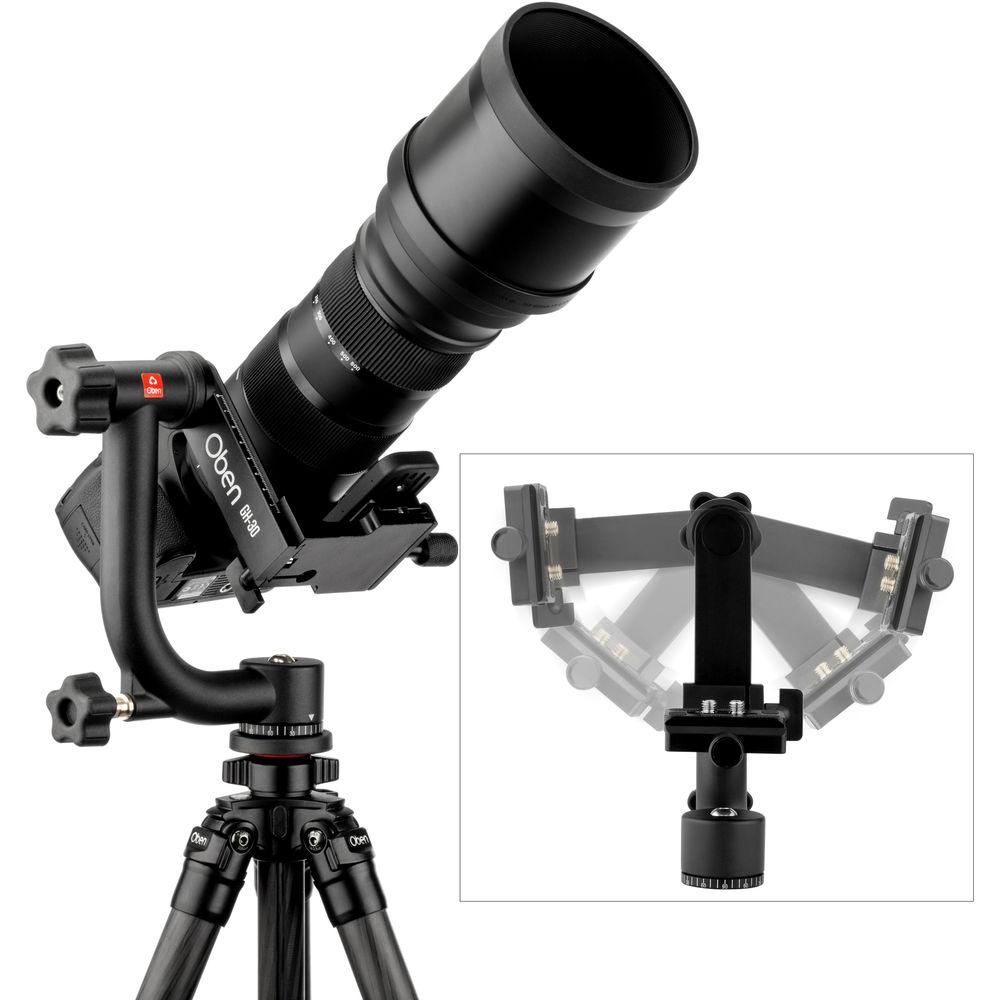

- Smooth and Fluid Motion
- Whether shooting birds, wildlife, or sports, the fluid motion and friction control built into the arm allows you to move your camera smoothly and effortlessly along either axis while tracking the subject

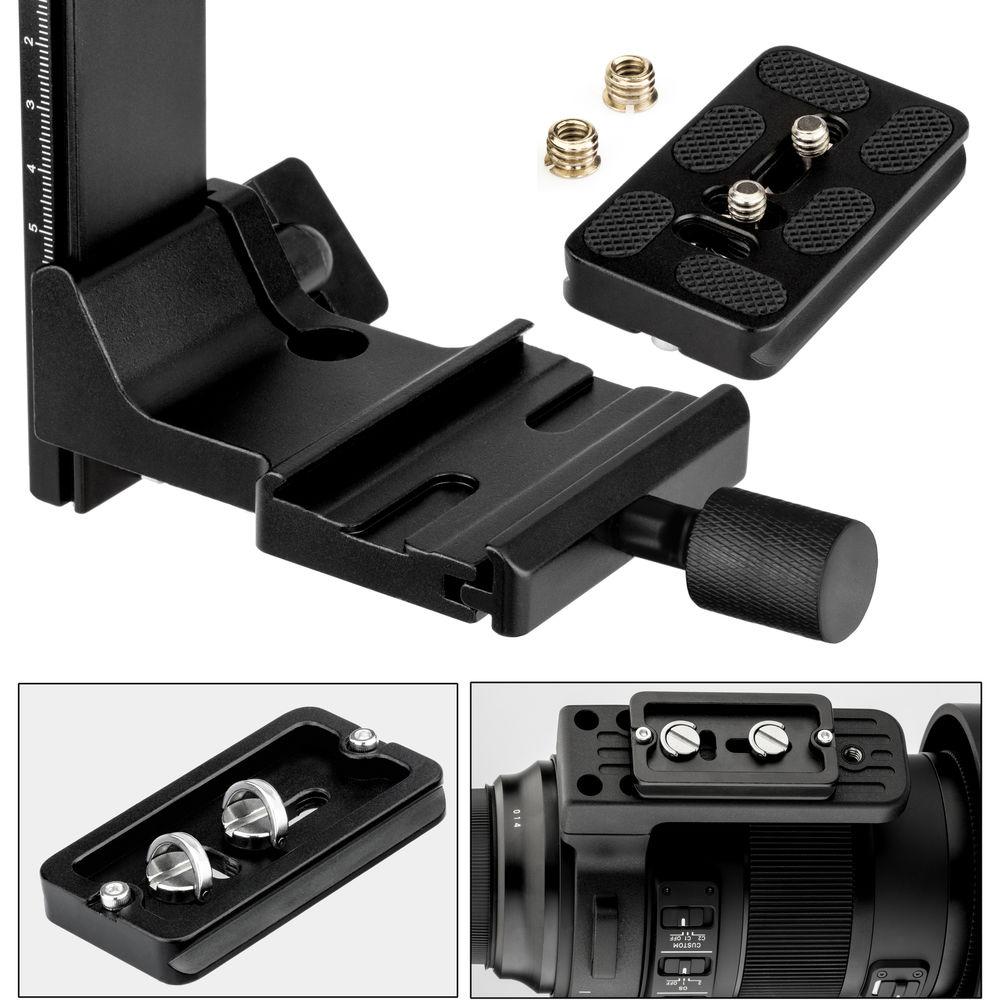

- Arca-type Mount
- The Arca-type compatible plate has two 1/4"-20 threaded mounts, but they are also supplied with two 3/8"-16 bushings
- 360° Panning with Independent pan Lock
- The 9" tall head rotates a full 360° and locks into place with its independent pan lock

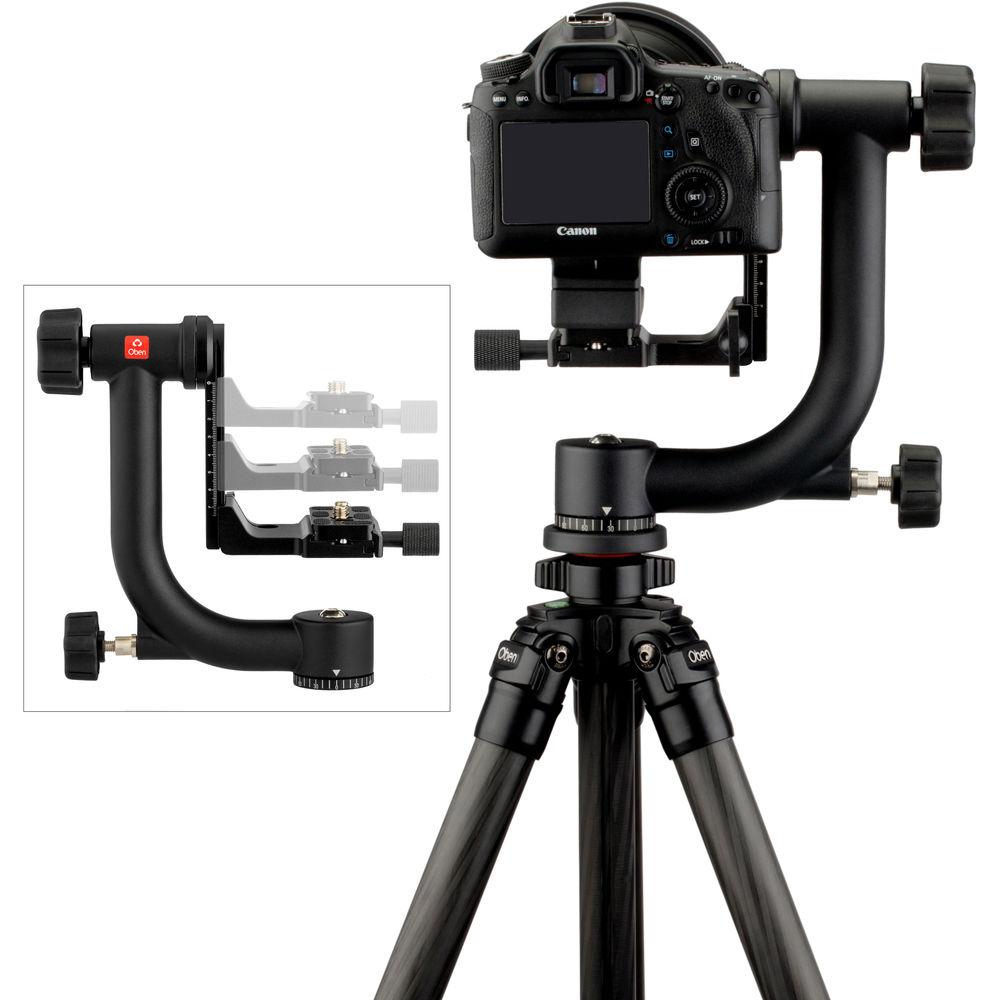

- Duplicate Set-Ups
- Numbered scales are located on the clamp and on the swing arm, so the telephoto lens can have a repeated set up on the gimbal head

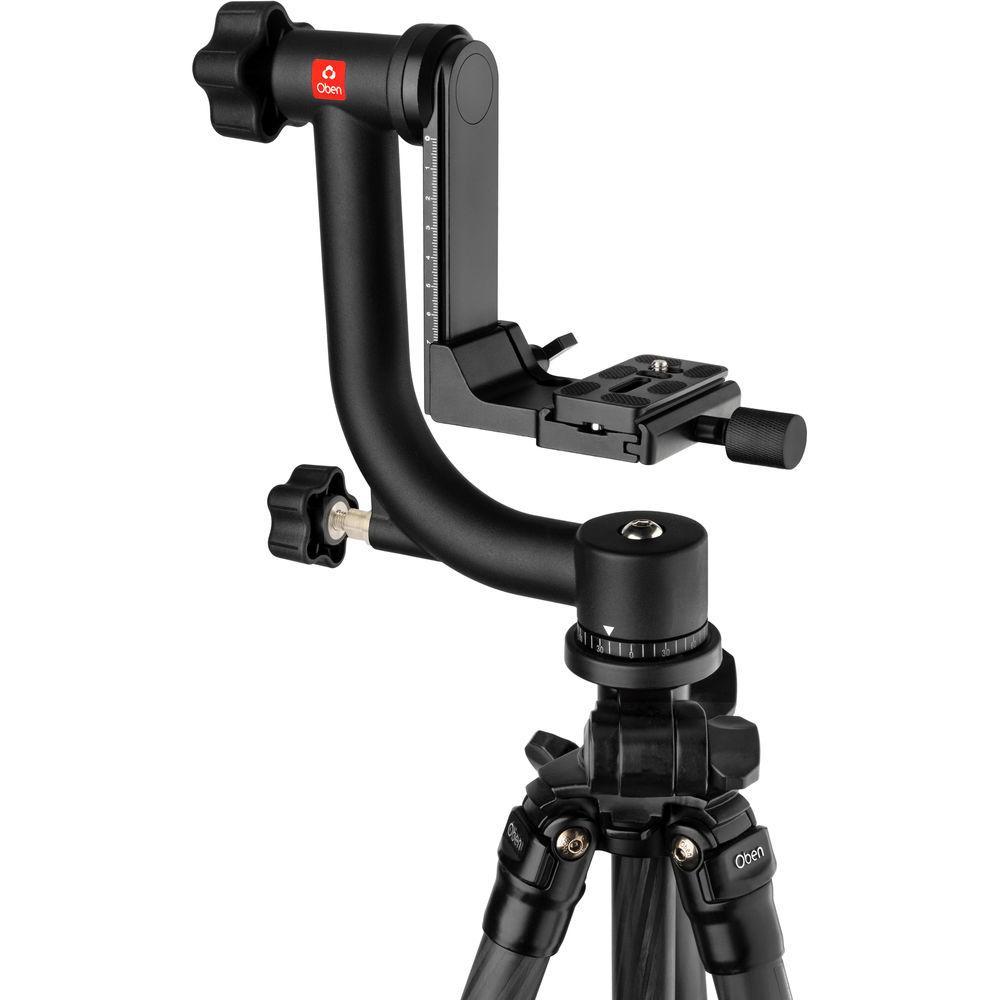

- Threaded Tripod Mount
- The gimbal head mounts directly to tripods with a 3/8"-16 threaded mount, but a reducer bushing can be utilized for smaller 1/4"-20 threads
- Material of Construction
- The gimbal head is made of aluminum and weighs 3.2 lb
UPC: 847628007345 In the Box Oben GH-30 Gimbal Head Quick Release Plate 2 x 1/4"-20 Mounting Screws 2 x 1/4'-20 to 3/8"-16 Bushing Adapters Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben GH-30 Gimbal Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben GH-30 Specs | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male & 3/8"-16 with Bushing | | Quick Release Plate Type | Arca-Type | | Load Capacity | 44 lb / 19.96 kg | | Number of Bubble Level(s) | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Panning Range | 360
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Oben GH-30 Gimbal Head
| Subject: Play in base of CH-30 Gimbal Head | | Date: 20.01.2024 21:55:42 | Name: Benny Benson | | Is there anyway to adjust the play that I have in the base of the gimbal head (CH-30) when it is screwed onto the tripod mounting screw and made sure it is tight. When the lens is placed on the head and adjusted the gimbal head has some play in the base. It is in the base that rotates where the head attaches to the tripod when the rotation knob is loosened so the gimbal head rotates. Any help with this matter would be of a great help. I just purchased this product less than a month ago. | | Post reply |
