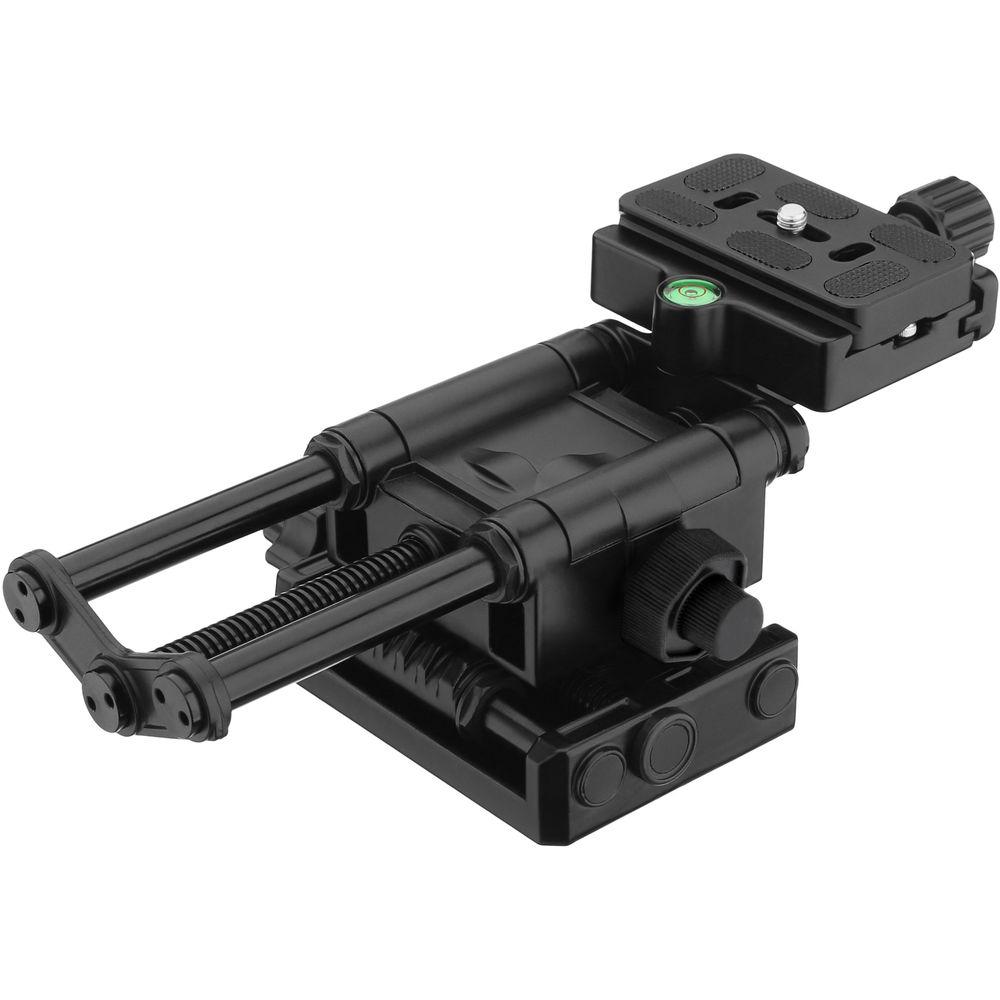

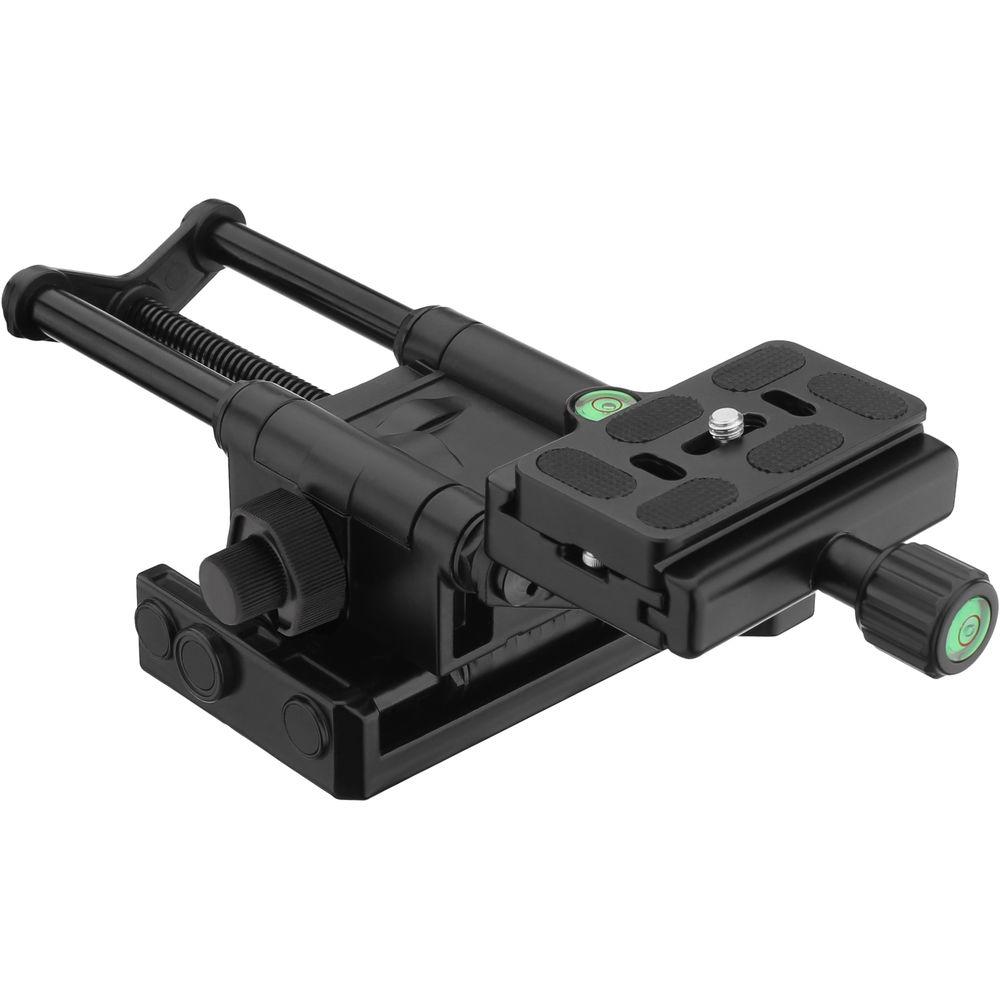

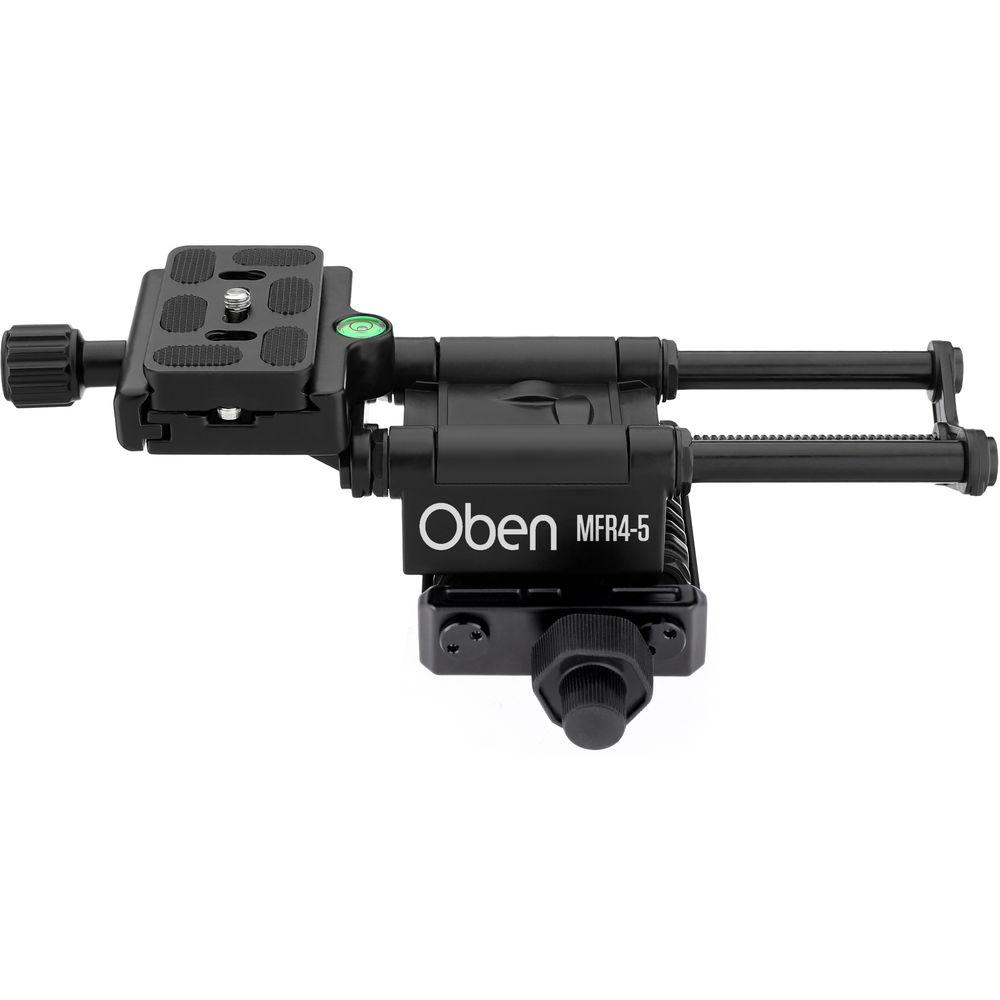

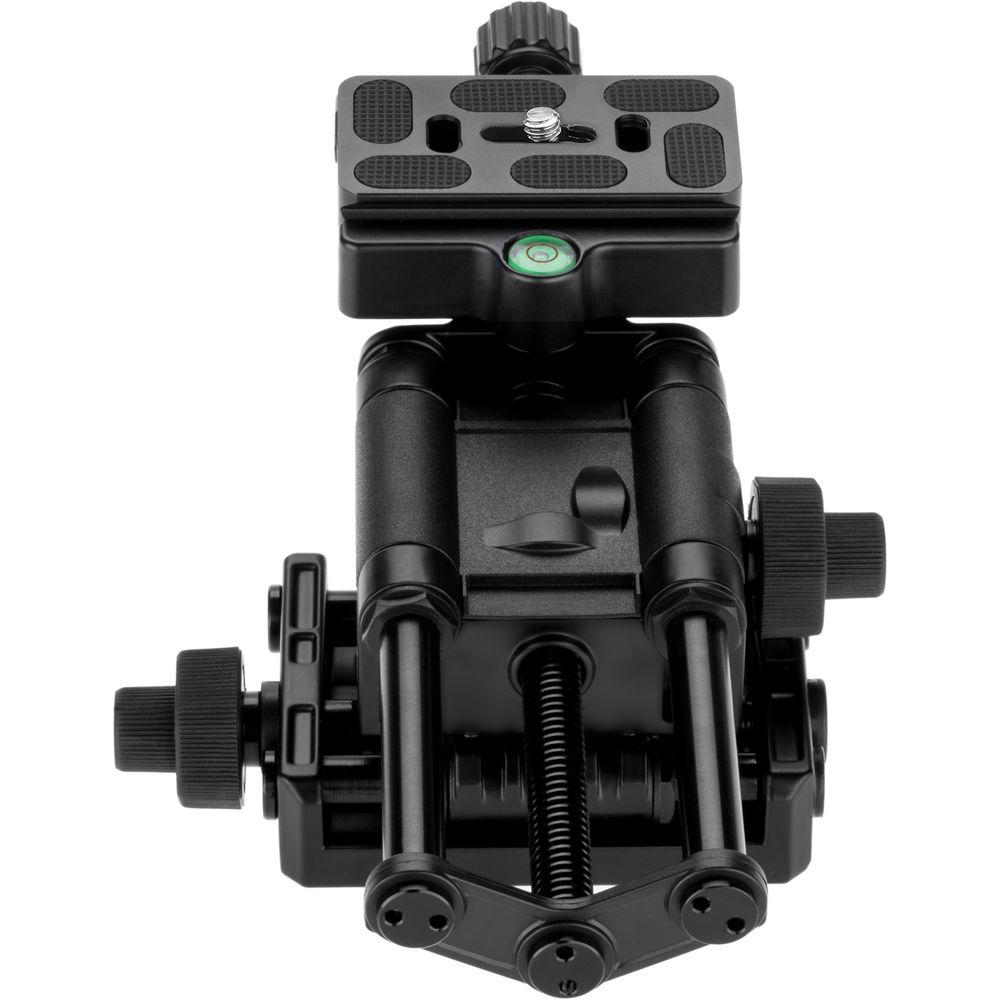

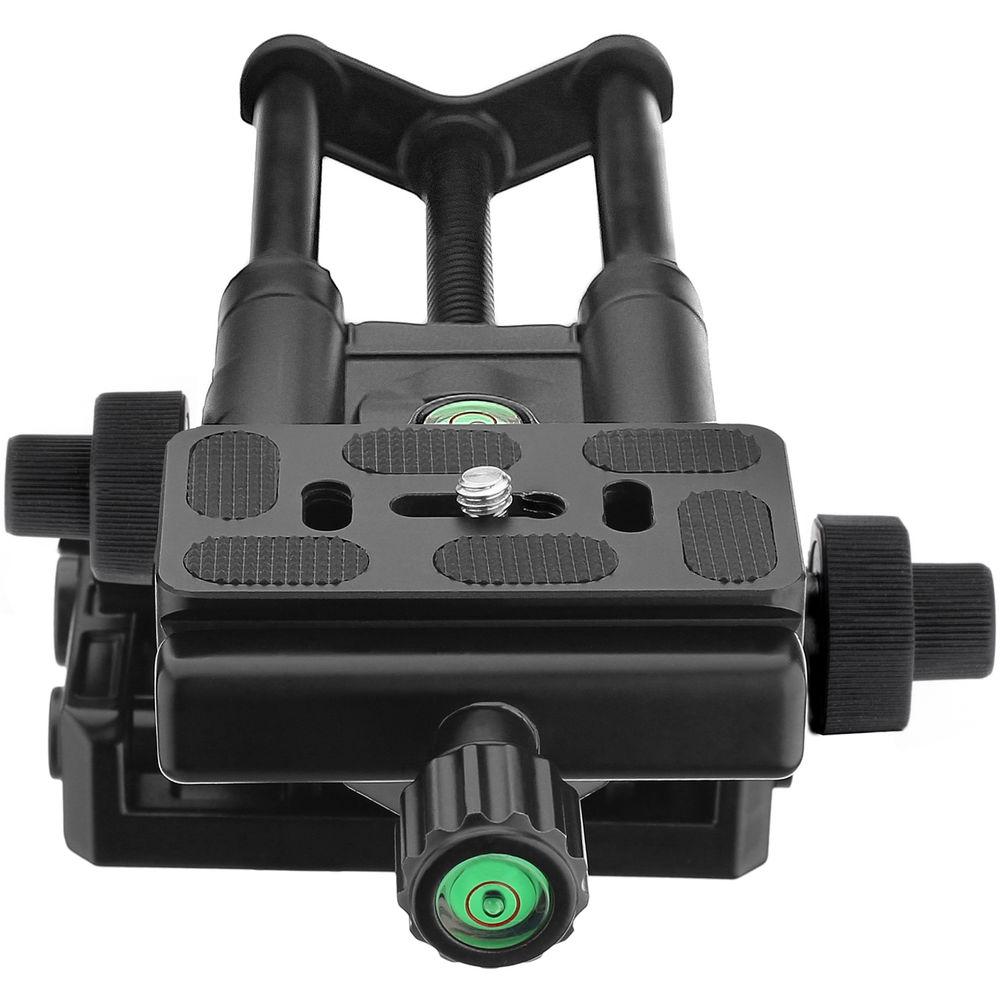

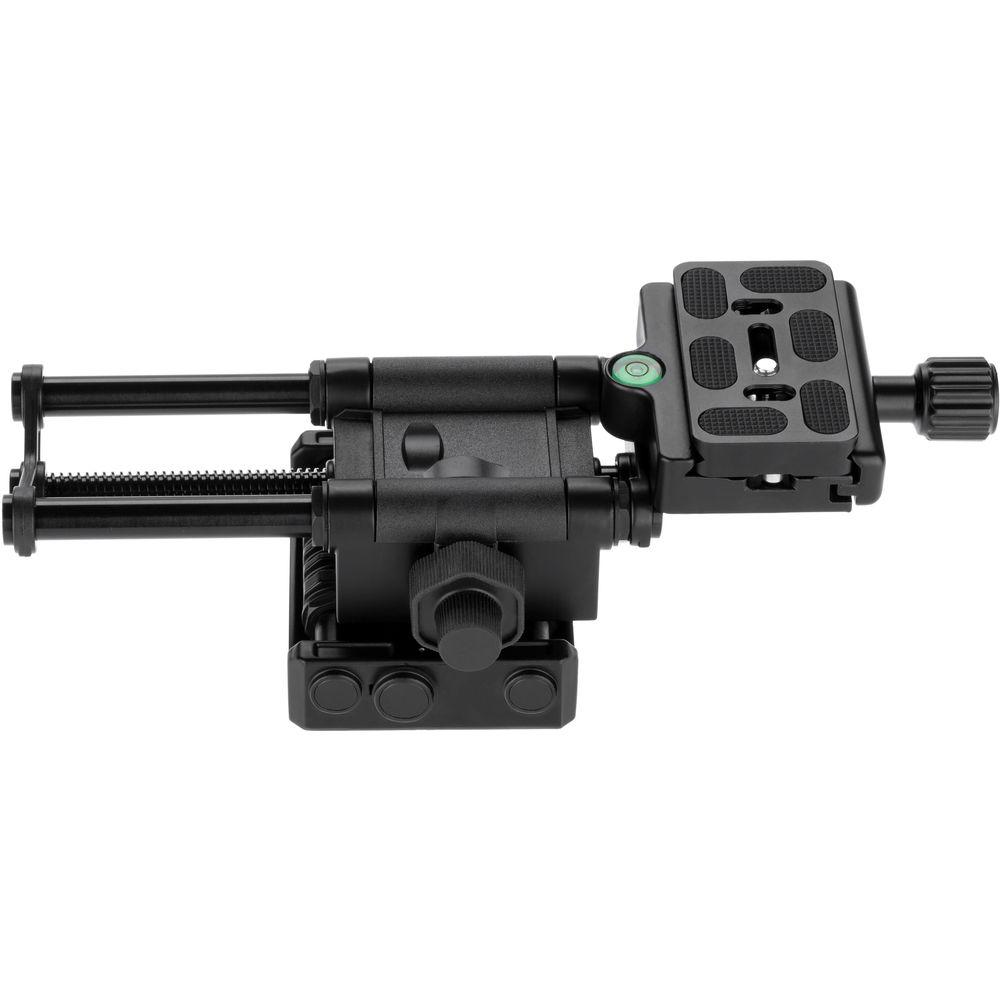

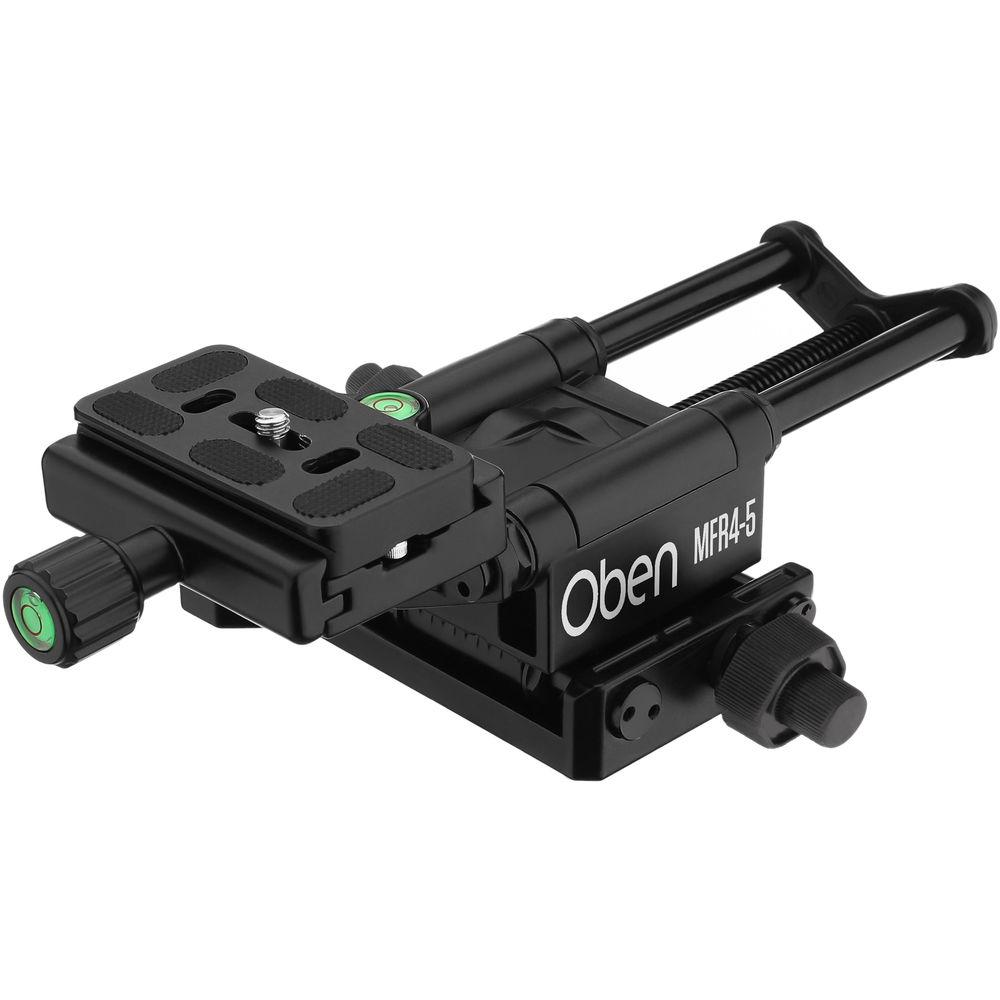

Product description The MFR4-5 Macro Focusing Rail from Oben is a lightweight macro stage designed for precise 4-way camera alignment. Its ability to make small incremental adjustments is ideal for close-up work, tilt-shift or macro-photography.

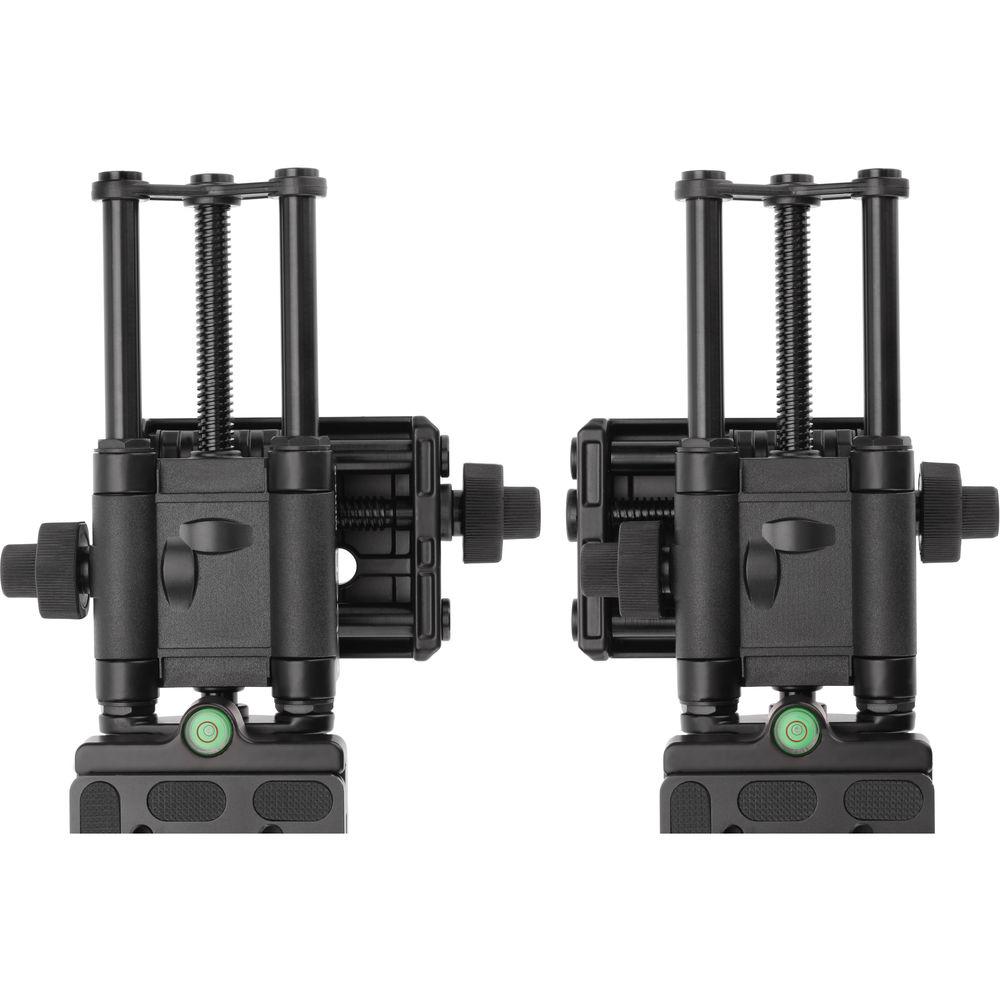

The MFR4-5 provides 2.75" of maximum front to back movement and 1.25" of maximum left to right movement controlled by dual-level adjustment knobs. The two angles of movement are controlled by independent top and bottom rails which may be separated using the included Allen key. This allows the top rail to be used alone as a front-to-back macro rail.

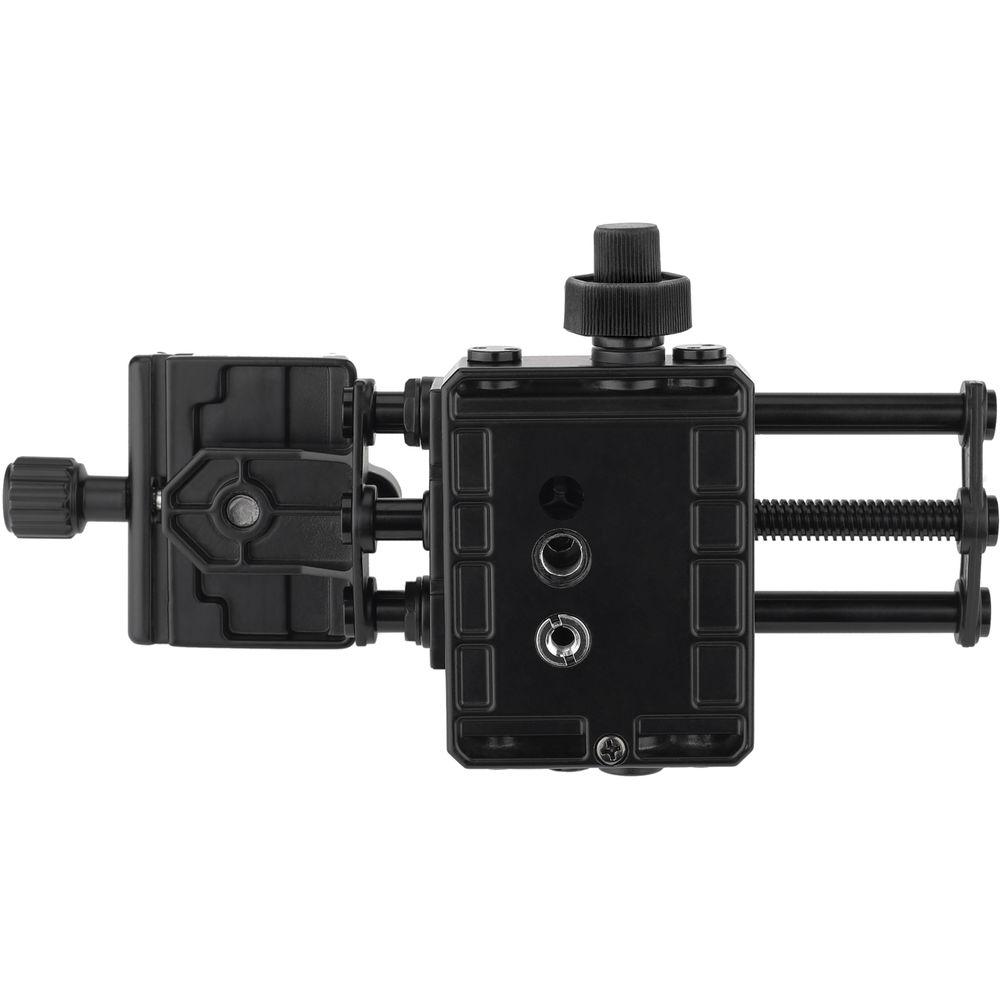

The rail is also equipped with an integrated Arca-type compatible quick release clamp and an included Arca-type plate. The plate uses a 1/4"-20 screw mount compatible with most cameras. The rail can also be mounted on most tripods by utilizing the built-in 1/4"-20 and 3/8"-16 tripod mounting threads. A durable aluminum construction provides smooth operation for extended use and keeps the unit lightweight at only 1.3 lb. UPC: 847628588219 In the Box Oben MFR4-5 Macro Focusing Rail QR-30 Quick Release Plate Allen Key Wrench 2 x 3/8"-16 to 1/4"-20 Reducer Bushing Limited 5-Year Warranty User Manual PDF 1.3mbxesccucybueerzsttwsdrfwwtycxyttzdcrzsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Oben MFR4-5 Macro Focusing Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOben MFR4-5 Specs | Material of Construction | Aluminum | | Tripod Mount Thread Size | 3/8"-16, 1/4"-20 | | Range of Movement | Front to Back: 2.75" (7 cm)
Left to Right: 1.25" (3.2 cm) | | Quick Release | Arca-type compatible | | Dimensions | 3 x 4.75 x 9" (7.6 x 12 x 22.8 cm) | | Weight | 1.3 lb (0.59 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.2 x 5.8 x 3.2" |
