User Manual for Ocean Matrix 12G-SDI UHD 1x6 Reclocking Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Ocean Matrix 12G-SDI UHD 1x6 Reclocking
- Product category: Distribution Amplifiers (DA's) Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Distribution Amplifiers (DA's)
|
User manual for the Ocean Matrix 12G-SDI UHD 1x6 Reclocking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|

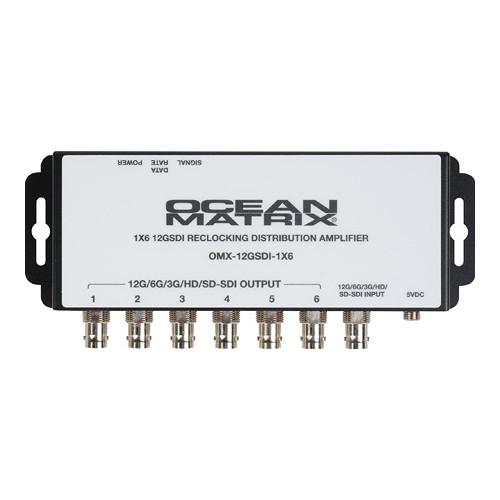

Product description Provided by third party: The Ocean Matrix OMX-12GSDI-1X6 is a low cost, stand-alone 1x6 reclocking distribution amplifier for signals up to 12G-SDI UHD. Input any signal, whether it's SDI, 3G-SDI or even 12G-SDI, and feed six pristine reclocked outputs to devices across your facility. The OMX-12GSDI-1X6 utilizes automatic input cable equalization able to drive SD signals up to 1000 feet and 12G-SDI signals to 150 feet on broadcast grade RG6 cable.
Supports DVB-ASI protocols at 270Mbps as well as SMPTE 259M, 292M, 344M, 424M, 425M, ST2081 and ST2082. A road tough full metal enclosure ensures high quality performance in all outside broadcast and studio facility applications.
- Key Features
-
- Supports all SMPTE video formats for HD and UHDTV broadcast requirements
- Six separately buffered and reclocked outputs
- Cable equalization and signal retiming
- LED indicators for signal input lock and rate
- Passes all ancillary data
- Automatic input type detection
- Additional distance can be achieved using Belden 4794R 12G SDI Coax
- Reclocking SDI signals for cascading and longer transmission
- Inter-locked power supply
- Supports 2K and 4K SDI transmission
- Universal Mounting Flanges
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix 12G-SDI UHD 1x6 Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-12GSDI-1X6 Specs | | | Type | 12G/6G/3G/HD/SD-SDI distribution amplifier | | Width | 8 in | | Depth | 2.8 in | | Height | 1 in | | Weight | 15.87 oz | | | | Terminals | (1) x 12G-SDI input - BNC
(6) x 12G-SDI output - BNC | | | | Min Operating Temperature | 32
