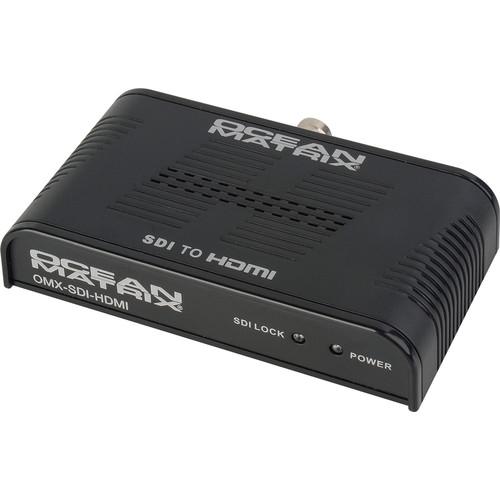

Product description A simple one-in / one-out converter, this compact 3G/HD/SD-SDI to HDMI Converter from Ocean Matrix allows you to convert and monitor an SDI signal on an HDMI display, such as a large screen HDTV. It features one auto-detecting 3G/HD/SD-SDI input and one HDMI output, and passes 48KHz L/R synchronized embedded audio.
Part of the Ocean Matrix CleanLink Series, this converter delivers a true signal with no transition loss. The converter works fully plug-and-play; just plug in the power supply, and your devices and a signal will be ready for connection to your HDMI display.
Common applications this converter may be useful for include monitoring SDI camera signals and SDI-enabled CCTV signals. HD-SDI cable lengths are supported for up to 1500 ft, and SD-SDI up to 750 ft. An SDI lock LED on the front panel confirms when your SDI signal is connected and active. - Key Features
-
- Ocean Matrix CleanLink Series plug-and-play
- Auto-detecting 3G/HD/SD-SDI input
- HDMI output
- 48KHz L/R synchronized embedded audio
- HD-SDI cable lengths up to 1500 ft
- SD-SDI cable lengths up to 750 ft
- SDI lock LED
In the Box Ocean Matrix 3G/HD/SD-SDI to HDMI Converter Power Supply Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix 3G HD SD-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-SDI-HDMI Specs | Input | 1 x 3G/HD/SD-SDI (auto detecting) | | Output | 1 x HDMI type A | | Date Rate | 2.97 Gbps, 1.485 Gbps, 270 Mbps | | Impedance | 75 Ohms | | Supported Cable Lengths | HD-SDI: Up to 750 ft (230 m)
SD-SDI: Up to 1500 ft (460 m) | | Resolution | HD: 1080p60/50/30/25/24, 1080i50/60
SD: 720p60/50/30/25/24, 625i, 525i | | Audio | 48 kHz digital audio | | Power | 5 VDC / 1 A working currency is less than 400 mA | | Dimensions | 4.1 x 2.3 x 0.9" (10.5 x 5.9 x 2.3 cm) | | Weight | 2.7 oz (75 g) | | | | Package Weight | 0.54 lb | | Box Dimensions (LxWxH) | 7.75 x 6.15 x 2.7" |
