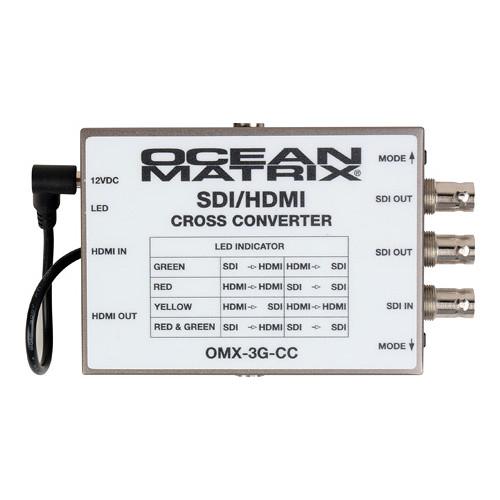

Product description Provided by third party: The Ocean Matrix OMX-3G-CC is a unique broadcast quality cross converter perfect for any multiformat field and studio tool kit. Whether you need to convert a 3G-SDI output to feed your HDMI camera top monitor or convert your HDMI feed to match your 3G-SDI production switcher, the OMX-3G-CC is your all-in-one solution.
Supporting a wide range of formats, the unit not only converts 3G/HD/SD-SDI to HDMI or HDMI to 3G/HD/SD-SDI but features dual powering capability and convenient mounting options. The back of the OMX-3G-CC has a built in Sony NP F970 type mounting plate with a power plug tether. So if you're out in the field on a shoot you'll always have an option to power your converter. Simply detach the power tether in place of a standard power supply when standard AC power is available. And its 1/4-20 threaded top and bottom mounting holes mean you can position it wherever it's convenient.
For true field reliability, the unit is housed in a super rugged metal shell and has the muscle to send 3G-SDI signals up to 100 meters.
- Key Features
-
- Enhanced HD Signal Processing Technology
- SDI Input, 2 SDI Outputs, and 1 HDMI Input, 1 HDMI Output
- Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M Standards
- 100 Meter 3G-SDI Transmission on SDI Output
- Supports wide range input voltage from 5V - 24V
- Dual Power Capability - DC adapter or Sony NP F970 Lithium Battery
- Top & Bottom 1/4-20 Threads Convenient Mounting Option
- Power I/O Status Indicator
- Super Rugged Housing
- Embedded Audio Compatible
- SDI and HDMI Looping Outputs (All Outputs are Active)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix 3G SDI-HDMI Multiformat Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-3G-CC Specs | | | Type | 3G/HD/SD-SDI / HDMI cross converter | | Width | 4.3 in | | Depth | 3.1 in | | Height | 0.9 in | | Weight | 8.96 oz | | | | Low Voltage Power | DC 12 V | | | | Terminals | (1) x HDMI input - 19 pin HDMI Type A
(1) x HDMI output - 19 pin HDMI Type A
(1) x SDI input - BNC
(2) x SDI output - BNC |
