User Manual for Ocean Matrix 4K UHD 5x1 HDMI 2.0 Switcher with RS-232 Control Click to enlarge the picture
Contents of the user manual for the Ocean Matrix 4K UHD 5x1 HDMI
- Product category: Routers & Switchers Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Routers & Switchers
|
User manual for the Ocean Matrix 4K UHD 5x1 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|

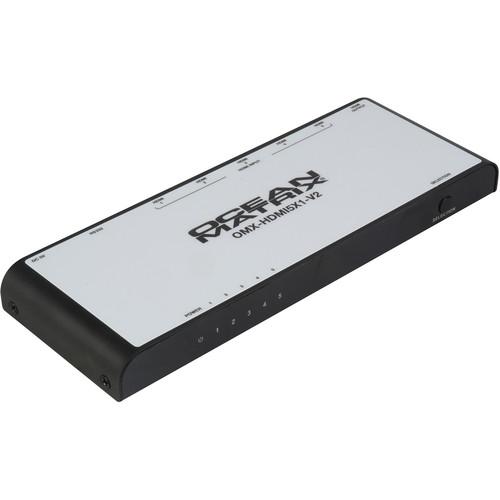

Product description The 4K/UHD 5x1 HDMI 2.0 Switcher with RS-232 Control from Ocean Matrix is a 5-input HDMI switcher that supports multiple resolutions and formats. It allows you to select between five HDMI devices and route signals to a single HDMI display, projector, or a digital signage system. This switcher includes RS-232 control and supports full HD 12-bit video, HDMI 3D, and resolutions up to 4K x 2K at 60 Hz. You can control the HDMI source selection using the included remote or by the RS-232 serial port on the switcher.
This HDMI switcher accommodates bandwidth up to 18 Gb/s and has a baud rate of 9600 bps. It handles standard audio, direct digital stream, and HD (HBR). The switcher also supports HDMI 2.0 standards as well as HDCP 2.2. - Routes 5 HDMI sources to 1 HDMI display
- Supports HDMI resolution up to 4K x 2K at 60 Hz and HDMI 3D
- Input signal can be switched by remote control
- Supports bandwidth up to 18 Gb/s
In the Box Ocean Matrix 4K/UHD 5x1 HDMI 2.0 Switcher with RS-232 Control 5 VDC, 1A Power Supply Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix 4K UHD 5x1 HDMI 2.0 Switcher with RS-232 Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-HDMI5X1-V2 Specs | Input/Output | 5 x HDMI inputs
1 x HDMI output | | Compatibility | DVI1.0, HDMI1.4, HDMI2.0, HDCP1.4, HDCP2.2 | | Frequency Range | 25 to 600 MHz | | Video Resolution | 12-bit full HD
3D video
4K x 2K at 30/60 Hz UHD | | Signals | TMDS: 0.5-1.5 V p-p
DDC: 5 V p-p (TTL) | | Audio Capability | Standard
DSD (Direct Stream Digital)
HD (HBR) | | HDMI Resolutions | 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K at 24/25/30/60 Hz | | RS-232 Control | RS-232 Serial Port (Baud Rate): 9600 bps | | Power Supply | 5 VDC, 1 A | | Power Consumption | 5 W | | Dimensions | 3.8 x 2.3 x 0.7" (9.7 x 5.8 x 1.8 cm) | | Weight | 3.2 oz (90.7 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.5 x 7.2 x 3.2" |
