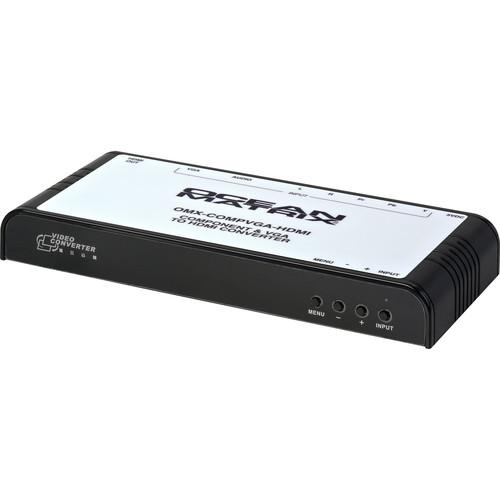

Product description The Component and VGA to HDMI Pro Mini Converter from Ocean Matrix is an analog to digital converter with scaling that features two inputs: a component/composite video input for sources such as DVD players and game consoles, and a VGA computer input. On the component side, it will accept NTSC and PAL as well as HD video up to 1080p resolution at 50 or 60 Hz. And through VGA it will accept a range of VESA computer resolutions up to 1920 x 1080 at 60 Hz. The HDMI output in turn supports either 720p or 1080p displays and can sync to 50 or 60 Hz. This converter allows you to continue to use legacy analog video devices with modern digital displays, and may be employed in a range of applications from home theater setups to A/V installations. - Color Eye scaling chipset up-scales computer VGA or component video (YPbPr) with stereo audio to HDMI
- Both the component and VGA inputs each feature dedicated audio inputs: 3.5mm for the VGA and stereo RCA for the component
- User-selectable resolution options
- Supports input and output of up to 1920 x 1080 at 60 Hz
- Input signal auto-detection on the component input
- Both VGA and component inputs remain active are can be selected
- In Auto mode native aspect ratio of source video is retained
- Operated via front panel buttons
In the Box Ocean Matrix Component and VGA to HDMI Pro Mini Converter Power Supply VGA Cable 3.5mm Stereo Audio Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix Component and VGA to HDMI Pro Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-COMPVGA-HDMI Specs | | | Inputs | 1 x VGA
1 x Component (YPbPr, composite) on 3 x RCA (auto signal detection)
1 x 3.5 mm stereo mini (paired with VGA input)
1 x Stereo analog audio on 2 x RCA (paired with component input) | | Output | 1 x HDMI | | Supported Resolutions | Composite: NTSC, PAL
Component: 480i/p at 60 Hz; 576i/p at 50 Hz; 720p at 50/60 Hz; 1080i at 50/60 Hz; 1080p at 50/60 Hz
VGA: 640 x 480 (60 Hz); 800 x 600 (60 Hz); 1024 x 768 (60 Hz); 1280 x 720 (60 Hz); 1280 x 768 (60 Hz); 1280 x 960 (60 Hz); 1280 x 1024 (60 Hz); 1360 x 768 (60 Hz); 1366 x 768 (60 Hz); 1400 x 1050 (60 Hz); 1440 x 900 (60 Hz); 1600 x 900 (60 Hz); 1680 x 1050 (60 Hz); 1920 x 1080 (60 Hz)
HDMI: 720p at 50/60 Hz, 1080p at 50/60 Hz | | Standards | Signal TMDS: 0.5 to 1.0 Vp-p
Signal TMDS: 0.5 to 1.0 Vp-p | | | | Power Consumption | 3 W | | Dimensions | 7.3 x 3.4 x 10" / 18.5 x 8.5 x 25.4 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.83 lb | | Box Dimensions (LxWxH) | 8.05 x 6.0 x 3.2" |
