User Manual for Ocean Matrix HDMI Over IP Extender Converter Click to enlarge the picture
Contents of the user manual for the Ocean Matrix HDMI Over IP Extender
- Product category: Video Extenders & Repeaters Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Video Extenders & Repeaters
 |
User manual for the Ocean Matrix HDMI Over IP Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|
Product description The Ocean Matrix HDMI Over IP Extender / Converter converts an HDMI input to standard TCP/IP and transmits it over your local area network in resolutions up to 1080p60. The conversion to TCP/IP allows you to forego the limitations of point-to-point extender systems and transmit directly over your network. You can also use this set as a typical point-to-point extender and transmit for up to 394 ft over a single Cat6 cable or 328 ft over a Cat5e cable. The transmitter unit features a static IP address and can be paired with up to eight receivers on the same network. - Key Features
-
- Converts an HDMI signal to TCP/IP and transmits it over your local network
- Supports resolution up to 1080p60 and 36 bit deep color
- Can also be used as a point-to-point extender supporting transmissions up to 394 ft
- The transmitter features a static IP address and supports up to 8 receivers simultaneously
- Supports DTS-HD, Dolby-true HD, LPCM7.1, DTS, Dolby-AC3, and DSD audio formats
- 10.2 Gbps bandwidth
- HDCP compliant
- Aluminum housing

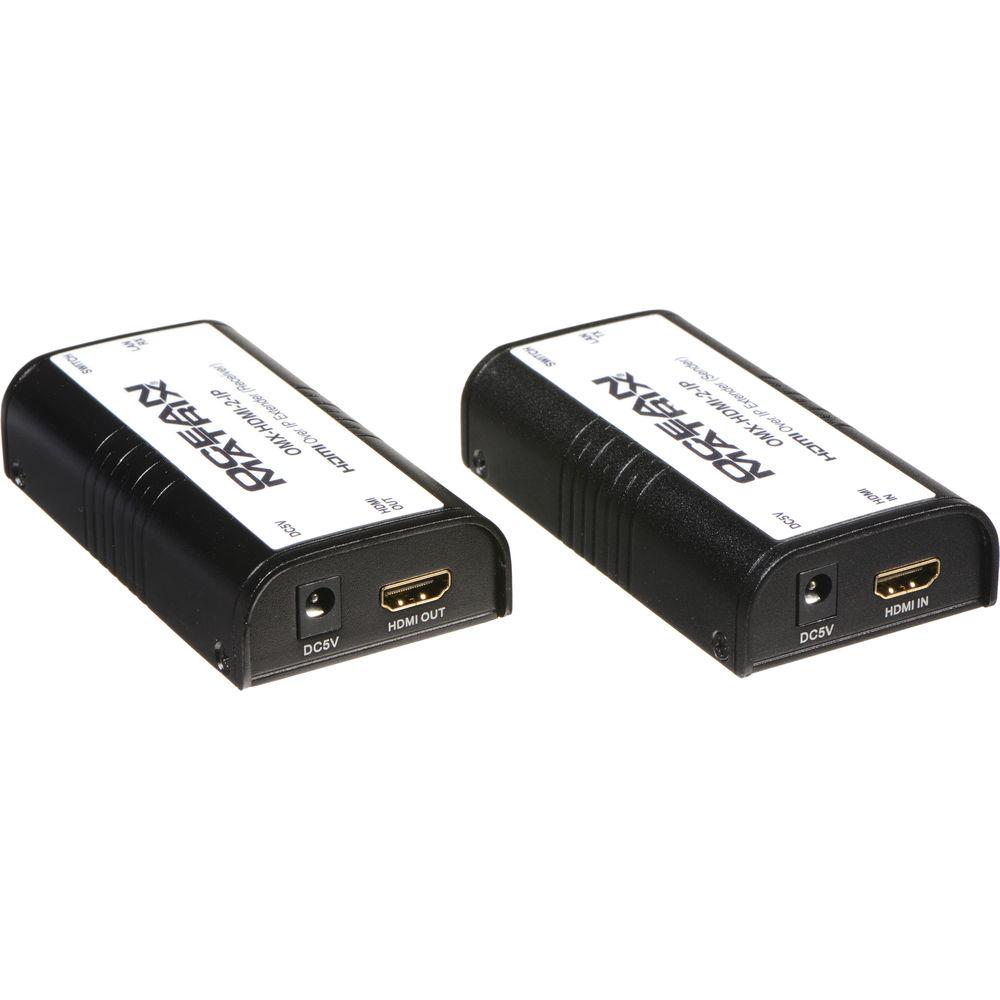

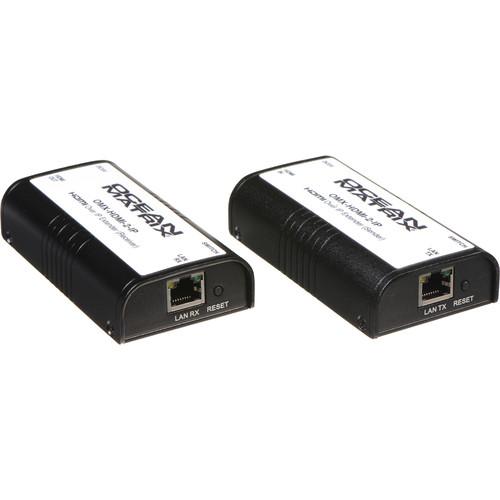

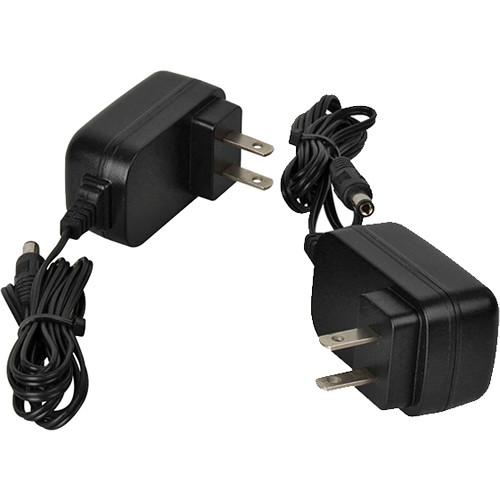

In the Box Ocean Matrix HDMI Over IP Extender / Converter HDMI Over IP Transmitter HDMI Over IP Receiver 2 x 5V AC/DC Switching Power Supply User Manual 90-Day Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix HDMI Over IP Extender Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-HDMI-2-IP Specs | Input / Output | Transmitter: 1x HDMI 1.3 input; 1x RJ-45 output
Receiver: 1x RJ-45 input; 1x HDMI 1.3 output | | Transmission Distance Supported | 394 ft (120 m) over Cat6; 328 ft (100 m) over Cat5e; TIA/EIA568 B cabling standards | | HDCP Compliance | HDCP 1.2 | | HDMI Input Resolution Supported | 480i@60 Hz, 480p@60 Hz, 576i@50 Hz, 576p@50 Hz, 720p@50/60 Hz, 1080i@50/60 Hz, 1080p@50/60 Hz | | HDMI Output Resolution Supported | 480p@60 Hz, 576p@50 Hz, 720p@50/60 Hz, 1080p@50/60 Hz | | Color Depth Supported | 24-bit, 30-bit, 36-bit deep color | | Supported Audio | DTS-HD, Dolby-true HD, LPCM7.1, DTS, Dolby-AC3, DSD | | Bandwidth | 10.2 Gbps | | TMDS | 0.5 - 1.5 Vp-p (TMDS) | | DDC Signal Voltage | 5 Vp-p (TTL) | | Input Cable Length | 16.4 ft (5 m) | | Output Cable Length | 16.4 ft (5 m) | | Power Supply Voltage | 5 VDC | | Power Consumption | < 3.6 W | | Dimensions | (Tx or Rx unit): 4.25 x 2.25 x 1" (10.8 x 5.7 x 2.5 cm) | | Weight | (Tx or Rx unit): 4.8 oz (136 g) | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 7.95 x 5.9 x 3.2" |
