User Manual for Ocean Matrix HDMI to 3G-SDI Mini Converter with Dual Output Click to enlarge the picture
Contents of the user manual for the Ocean Matrix HDMI to 3G-SDI Mini
- Product category: Signal Converters Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Signal Converters
|
User manual for the Ocean Matrix HDMI to 3G-SDI Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|

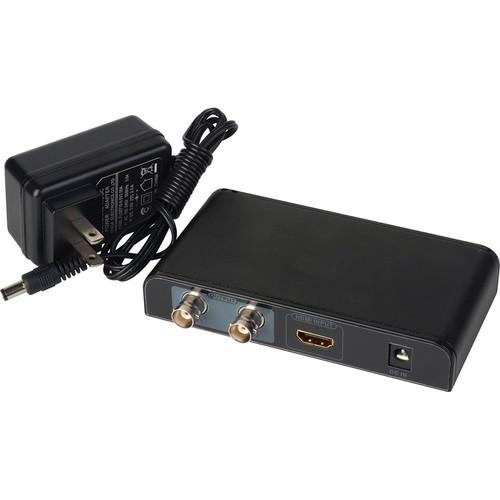

Product description The HDMI to 3G-SDI Mini Converter with Dual Output from Ocean Matrix allows consumer HDMI signals, whether SD or HD, to be integrated with broadcast-standard SDI equipment. It will accept HDMI resolutions up to 1080p60, and can output in SD-SDI for SD sources and in HD- or 3G-SDI for HD sources, depending on the bandwidth. Plus, dual SDI outputs mean you can deliver the converted signal to two downstream destinations without needing a separate distribution amplifier. - Will embed up to 8-channels of audio from the HDMI source in the SDI stream
- Automatic EDID (Extended Device ID) detection for the HDMI input
- Can also be connected to DVI-D device using a DVI to HDMI adapter or cable, available separately
- 5V DC power supply included
In the Box Ocean Matrix HDMI to 3G-SDI Mini Converter with Dual Output Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix HDMI to 3G-SDI Mini Converter with Dual Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-HDMI-SDI Specs | | | Input | 1 x HDMI
EDID Support: Yes, auto-detect | | Output | 2 x SDI (mirrored)
Embedded Audio: 8-channels
Impedance: 75 ohm
Standards: SD/HD/3G-SDI; SMPTE-259/274/296/372/424/425/292
Maximum Bitrate: 2.97 Gbit/s | | Supported Resolutions | HDMI Input: 480i at 60 Hz, 576i at 50 Hz; 720p at 50/60 Hz; 1080i at 50/60 Hz; 1080p at 24/25/30/50/60 Hz
SDI Outputs: 480i at 60 Hz, 576i at 50 Hz; 720p at 50/60 Hz; 1080i at 50/60 Hz; 1080p at 24/25/30/50/60 Hz | | | | Power Requirements | 5 VDC / 1 A | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Dimensions | With Protrusions: 3.1 x 5 x 1" / 7.9 x 12.7 x 2.5 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.73 lb | | Box Dimensions (LxWxH) | 6.25 x 4.75 x 3.05" |
