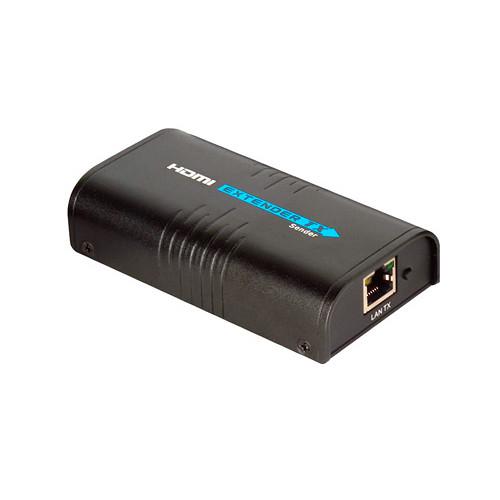

User Manual for Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP Extender Transmitter Click to enlarge the picture
Contents of the user manual for the Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP
- Product category: Video Extenders & Repeaters Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Video Extenders & Repeaters
|
User manual for the Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|
Product description Use the Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP Extender Transmitter to convert HDMI video for transmission over an Ethernet connection. Sending video over an Ethernet network allows for installations to take advantage of existing wiring, while maintaining pristine video and audio quality. Video resolutions up to 1080p are supported, as are multichannel audio streams.Each HDMI transmitter maintains a static IP address on your network and can be mapped to transmit to up to eight separately available receivers simultaneously. Any number of transmitters and receivers can be installed on a network, creating a scalable and expandable solution. This system can be applied in corporate offices, event spaces, convention halls, and educational institutions to great effect. - 36-bit (12-bit per channel) Deep Color support
- May also be used as standard point-to-point to transmit and receive, for on location monitoring and content delivery
- Supports DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby-AC3, and DSD multichannel audio formats
In the Box Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP Extender Transmitter 2 x Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix OMX-HDMI-2-IP-T HDMI over IP Extender Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-HDMI-2-IP-T Specs | Resolution Support | Input:
1080p 50/60
1080i 50/60
720p 50/60
576p 50
480p 60
NTSC
PAL
Output:
1080p 50/60
720p 50/60
576p 50
480p 60 | | Color Depth | 24/30/36-bit color | | Audio Formats Supported | Multichannel: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
Audio Transmission Signal: L/R stereo audio | | Transmission Rate | Max: 10.2 Gbps | | Signal | TMDS: 0.5 to 1.5 Vpp
DDC: 5 Vpp (TTL) | | I/O | 1 x HDMI input
1 x RJ45, Ethernet output | | Transmission Distance | Cat6 Ethernet: Up to 393' / 120 m
Cat5e Ethernet: Up to 330' / 100 m | | Power Supply | 5 VDC | | Power Consumption | Max: 3.6 W | | Dimensions | 4.25 x 2.25 x 1" / 10.8 x 5.7 x 2.5 cm | | Weight | 0.3 lb / 136 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.2 x 4.9 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
