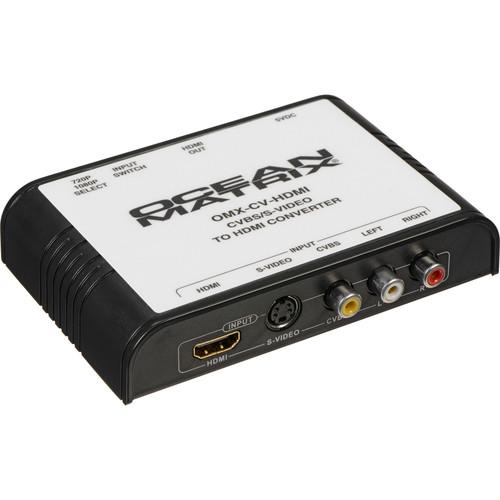

User Manual for Ocean Matrix Video to HDMI Pro Mini Converter Scaler Click to enlarge the picture
Contents of the user manual for the Ocean Matrix Video to HDMI Pro
- Product category: Signal Converters Ocean Matrix
- Brand: Ocean Matrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ocean Matrix Signal Converters
|
User manual for the Ocean Matrix Video to HDMI Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ocean Matrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ocean Matrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ocean Matrix product will considerably shorten its lifespan!
|
Product description The Video to HDMI Pro Mini Converter/Scaler from Ocean Matrix allows you to use a composite or S-video device with one of the growing number of displays that no longer have analog inputs. It will accept either NTSC or PAL video and stereo audio from sources such as SD camcorders, VCRs, DVD players, and CCTV cameras, and more, and up-converts the signal to 720p or 1080p HDMI. Plus, the converter features an HDMI pass-through input so you can still use your display's HDMI input for HDMI hardware as well. - Change settings and access OSD (on screen display) via rear-panel buttons and selection switch
- LED indicates HDMI output resolution: 720p or 1080i/p
- Powered by Ocean Matrix CEC (Color Enhancement Chipset) technology
- Supports 50 to 60 Hz frame rate conversion
- HDMI input also accepts many common VESA computer resolutions
In the Box Ocean Matrix Video to HDMI Pro Mini Converter/Scaler Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ocean Matrix Video to HDMI Pro Mini Converter Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOcean Matrix OMX-CV-HDMI Specs | | | Inputs | 1 x Composite on RCA
1 x S-video on 4-pin DIN
1 x Stereo analog audio on 2 x RCA
1 x HDMI | | Output | 1 x HDMI | | Supported Resolutions | Composite/S-video Input: NTSC, PAL (auto detecting)
HDMI Input: 480i/p at 60 HHz, 576i/p at 50 Hz; 720p at 50/60 Hz; 1080i/p at 50/60 Hz
HDMI Computer Resolutions (60 Hz): 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1680 x 1050, 1920 x 1080
HDMI Output: 720p at 50/60 Hz; 1080p at 50/60 Hz | | Standards | HDMI DDC Signal: 5Vp-p (TTL)
HDMI TMDS Signal: 0.5 - 1.0V p-p | | | | Power Requirements | 5.0 VDC / 2 A | | Power Consumption | 3.5 W | | Dimensions | 5.1 x 3.4 x 1" / 13 x 8.6 x 2.5 cm | | Weight | 0.4 lb/ 170 g | | | | Package Weight | 0.71 lb | | Box Dimensions (LxWxH) | 6.15 x 4.75 x 3.05" |
